Sail DRYA DISCLAIMER The Plot Thickens: Basic Navigation for Racers & Cruisers By Kaye Soka Need to know where we are Categories of Navigation and where we are going Piloting - Determining your position by reference to external aids

slide-1
SLIDE 1

SailDRYA

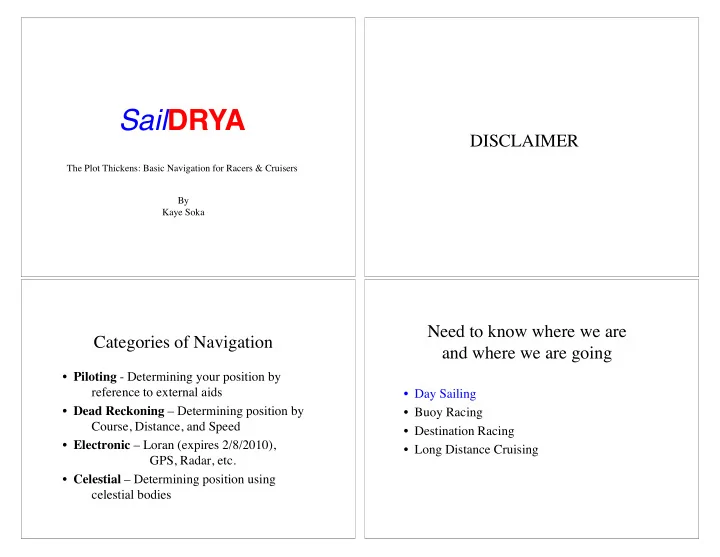

By Kaye Soka The Plot Thickens: Basic Navigation for Racers & Cruisers

DISCLAIMER Categories of Navigation

  • Piloting - Determining your position by

reference to external aids

  • Dead Reckoning – Determining position by
  • Dead Reckoning – Determining position by

Course, Distance, and Speed

  • Electronic – Loran (expires 2/8/2010),

GPS, Radar, etc.

  • Celestial – Determining position using

celestial bodies

Need to know where we are and where we are going

  • Day Sailing
  • Buoy Racing
  • Buoy Racing
  • Destination Racing
  • Long Distance Cruising
slide-2
SLIDE 2

SailDRYA

Need to know where we are and where we are going

  • Day Sailing
  • Buoy Racing
  • Buoy Racing
  • Destination Racing
  • Long Distance Cruising

SailDRYA

Need to know where we are and where we are going

  • Day Sailing
  • Buoy Racing
  • Buoy Racing
  • Destination Racing
  • Long Distance Cruising
slide-3
SLIDE 3

SailDRYA

Need to know where we are and where we are going

  • Day Sailing
  • Buoy Racing
  • Buoy Racing
  • Destination Racing
  • Long Distance Cruising

SailDRYA

Nautical Charts

  • Title Block
  • Number of Chart, Date
  • Latitude and Longitude Scales
  • Compass Rose
  • Colors
  • Aids to Navigation
  • Depth Contour Lines
  • Other Charted Features and Information
slide-4
SLIDE 4

NOT FOR NAVIGATION

Describing Position Using Latitude and Longitude

Latitude

measured north and

B 97 05-04

north and south from the equator

slide-5
SLIDE 5

measured east and west from

Longitude

B 97 05-05

and west from the prime meridian at Greenwich, England

Determining Latitude and Longitude

  • Find Desired Position on Chart
  • Read Latitude along Vertical Scale
  • Read Longitude along Horizontal Scale
  • Example – Peche Island Range Front Light

– Latitude – L 42° 21.6'N – Longitude – Lo 82° 54.4'W

NOT FOR NAVIGATION

L 42°21.6'N Lo 82 °54.4'W

slide-6
SLIDE 6

Find Chart Position of Known Latitude and Longitude

  • Find Latitude on Vertical Scale
  • Find the Longitude on the Horizontal Scale
  • Position is at Intersection of the Two Lines
  • Position is at Intersection of the Two Lines

NOT FOR NAVIGATION

L 42°21.4'N Lo 82 °49.3'W

L46°08.1'N Lo82°37.1'W John Harbor

Find the Distance between Two Points

  • Draw a line between two points
  • Use dividers to measure the line
  • Determine the distance on
  • Determine the distance on

– The latitude scale (nautical miles) – The statute mile scale (statute miles) – The longitude scale

slide-7
SLIDE 7

NOT FOR NAVIGATION

3.84 NM 4.425 SM

Aids to Navigation

  • Lateral Buoyage System IALA-B

– Red, Right, Returning

  • NA & SA Coasts, Great Lakes, Caribbean
  • Japan, Philippines, Korea
  • All the Rest, Green-Right-Returning

– Distinct Pattern - Color, Numbering, Lights

  • Lowest Numbers Furthest Out
  • Other Aids
  • Lighthouses, Range Lights, Structures
  • Cardinal Buoyage System

IALA Regions

slide-8
SLIDE 8
slide-9
SLIDE 9

L50°22'N Lo04°30'W L45°58.2'N Lo82°51.2'W Strawberry Island Lighthouse L45°58.2'N Lo81°29.3'W Kilarney East Light On Red Rock Point

slide-10
SLIDE 10

Toledo Harbor Light L41°45.7'N Lo83°19.7'W Iso W 6s Ht 72' Ht 72' Range 10 FOG HORN: 1 blast ev 30s

Cardinal Buoyage System

Cardinal Buoy Safe to the West

slide-11
SLIDE 11

Compass

  • Important for Determining Course
  • True vs. Magnetic North (variation)
  • Compass Card – 360 degrees
  • Compass Card – 360 degrees
  • Lubber Lines

Magnetic Compass

slide-12
SLIDE 12

Magnetic North vs. True North

Compass Rose

Variation is found in the center of the compass rose compass rose

slide-13
SLIDE 13

If allowance is not made for compass error, the vessel will make good the wrong course. Correcting for compass error to make good the correct course.

Correcting for Variation T 063° V 15°W V 15°W M 078° D 000° C 078° Deviation

  • Caused by magnetic forces on your boat
  • Wiring, electronics, metal all can contribute
  • Actual deviation changes with the boat’s heading
  • Develop a deviation table to determine needed

correction on each point of sail

Plotting A Course

  • Draw Line Between Point A and Point B
  • Determine Course Heading from Compass Rose
  • Correct for Variation to Get Magnetic Course
  • Measure Distance in Miles Between Points Using

Latitude Scale

  • Calculate Estimated Time Using 60D=ST

Example: 60x13.3 = 6xT 798/6=T T= 133 minutes=2 hours 13 minutes

slide-14
SLIDE 14

Taking a Bearing

A bearing is a line of position sighted from your boat to another object

  • Sight Compass Bearing
  • Sight Compass Bearing
  • Correct for Variation
  • Plot True Bearing on Chart
  • You are somewhere on that LOP

Determining Position

Fix is a position obtained by two or more LOPs

  • Sight a second compass bearing
  • Sight a second compass bearing
  • Correct for variation
  • Plot true bearing on chart
  • Intersection of LOPs is a Fix, your most

likely position

slide-15
SLIDE 15

Plotting Tools

Dividers GPS Plotter Marine Radio Parallel Rules Depth Sounder Traditional Modern Parallel Rules Depth Sounder Pencil Radar Pink Pearl Chart Plotter PC Internet

TYC

slide-16
SLIDE 16
slide-17
SLIDE 17

Electronic Navigation Tools

GPS

Marine Radio Depth Sounder

slide-18
SLIDE 18

Radar Chart Plotter Navigation’s Golden Rule Does this make sense? Collision Bearings

  • Situation - Two vessels crossing
  • Note relative bearing of crossing vessel
  • If over time:
  • If over time:

– The relative bearing moves toward the bow, the vessel will pass clear ahead – The relative bearing moves toward the stern, the vessel will pass clear astern – The relative bearing remains the same, YOU ARE ON A COLLISION COURSE!!!

slide-19
SLIDE 19

Navigation Resources Navigation Resources

Piloting Books Catalog of Charts Date of Latest Editions

http://nauticalcharts.noaa.gov/mcd/dole.htm

slide-20
SLIDE 20

Navigation Software

Fugawi NavSim MaxSea

http://nauticalcharts.noaa.gov/mcd/chart1/chart1hr.htm

Light Lists

slide-21
SLIDE 21

Water Levels

www.glakesonline.nos.noaa.gov/monitor

Marinas.com Marinas.com

slide-22
SLIDE 22

EarthNC.com

Integrates Google Earth imagery with nautical vector charts EarthNC Plus

  • Vector charts (680)
  • With UBS GPS laptop,

functions as a chart plotter

EarthNC Raster EarthNC Raster

  • Includes all NOAA charts
  • Used in conjunction with

EarthNC Plus

EarthNC Online

  • Limited versions of approach,

harbor and inland vector charts

  • Free

Three Ideas for Practicing Your Navigation Skills Mills Trophy Race Sponsored by Toledo Yacht Club Overnight Race over 3 Courses Begins at Toledo Harbor Light Finishes at Put-in-Bay Friday, June 11, 2010 Friday, June 11, 2010 2 Nights Dockage Included Free Dockage at TYC Prior to Race Thursday Night Party at TYC Saturday Party at Put-in-Bay www.toledoyachtclub.com

slide-23
SLIDE 23

The New Bay Week 2010 Sponsored by I-LYA Feeder Races On Thursday, August 5 Racing on Friday-Sunday, August 6-8 Racing on Friday-Sunday, August 6-8 Dockage Included 3 Courses Depending on Boat Type 3 Night Social Package i-lya.com Middle Bass Island www.mbiyc.com
