1 NYSE: GSS TSX: GSC

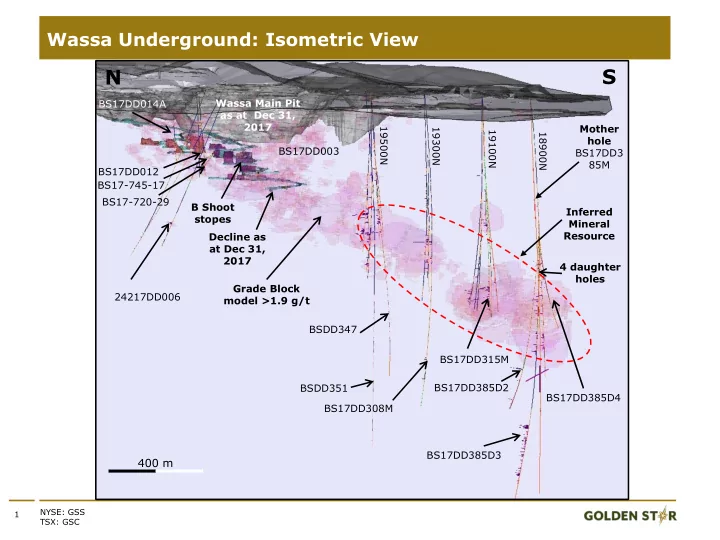

Wassa Underground: Isometric View

19500N 19300N 19100N 18900N

400 m

24217DD006 BS17-720-29 BS17DD385D3 BS17DD385D2 BS17DD308M BS17DD385D4 BS17DD315M BSDD347 BSDD351 BS17DD014A BS17DD012 BS17DD003 Decline as at Dec 31, 2017 B Shoot stopes Wassa Main Pit as at Dec 31, 2017 Grade Block model >1.9 g/t Inferred Mineral Resource

N S

Mother hole BS17DD3 85M 4 daughter holes BS17-745-17

slide-2
SLIDE 2

2 NYSE: GSS TSX: GSC

Wassa Underground: Plan View

B Shoot stopes F Shoot stopes Decline 19500N 19300N 19100N 18900N F Shoot expected projection B Shoot expected projection Inferred Mineral Resource 200m

N

slide-3
SLIDE 3

3 NYSE: GSS TSX: GSC

B Shoot South Drilling: 19500 N

19500 N

  • Two holes, BSDD347 and BSDD351, are existing holes

that were re-entered with a diamond drill rig and the holes extended

  • These two holes were targeting the F Shoot, which was

thought to project into the footwall of the B Shoot

  • Both of these holes intersected dioritic intrusive rocks,

where the F Shoot was interpreted to be

  • Further geological work is needed to determine the

geometry of these intrusive bodies

BSDD347 22.6m @ 4.2g/t BSDD290BD1 25.4m@8.3g/t 19500 N B Shoot BSDD347 No significant intersections BSDD351 Assays Pending

W E

BSDD290B 19.0m@6.9 g/t

slide-4
SLIDE 4

4 NYSE: GSS TSX: GSC

B Shoot South Drilling: 19300 N

19300 N

  • Drilling on this section was targeting the F Shoot

projection in the footwall of the B shoot zone

  • One

new hole, BS17DD386M, and

  • ne

historic deepened hole, BSDD308M, were drilled ~300 m apart to test the F Shoot structure. Both holes intersected what is interpreted to be the target

  • Additional drilling is planned for 2018 to test between

these two intersections

BSDD308M 23.7m @9.6g/t BSDD308D1 13.4m @ 6.0g/t BSDD295M 26.3m@2.9g/t Planned hole 19300N BSDD308M 7.4 m @3.1 g/t BS17DD386M 6.4 m @ 3.2 g/t B Shoot

W E

slide-5
SLIDE 5

5 NYSE: GSS TSX: GSC

B Shoot South Drilling: 19100N

BSDD315M

70.5m @ 5.9g/t

BSDD315M

60.1m @ 3.4g/t

19100 N

  • One hole was drilled ~285m up dip of the previous

high grade intersection in historic hole BSDD315M

  • Hole BS17DD389M was drilled to test the zone

~85m above hole BSDD315M – results are pending

  • Two additional daughter holes are planned to test

down dip of hole BSDD315M

Planned hole BS17DD389M Assays Pending 19100N BS17DD387M

6.6 m @ 1.1 g/t

W E

slide-6
SLIDE 6

6 NYSE: GSS TSX: GSC

B Shoot South Drilling: 18900 N

BS17DD386M 23.8m @6.1g/t 21.7m @ 5.3g/t BS17DD386D2 4.3m@25.9g/t BS17DD386D1 15.9m @4.3g/t

Planned holes

BS17DD386D3 5.0m @ 5.5g/t

B Shoot

F Shoot

18900N

BS17DD386D3 15.0m @ 3.8 g/t 8.1m @ 3.6 g/t BS17DD386D3 94m@4.3 g/t

Currently Drilling

BS17DD386D4 7.7m@5.2g/t

18900 N

  • Five holes drilled on the southern most

step

  • ut

fence, testing F Shoot mineralization

  • Currently drilling is underway to test B

Shoot horizon and F Shoot at depth

  • Hole

BSDD386D3 intersected widest zone of +4 g/t Au mineralization to date on Wassa Property

W E

slide-7
SLIDE 7

7 NYSE: GSS TSX: GSC

242 Section FW

24217DD006

6.8m @ 8.2g/t WUG Pan 1 Stopes

  • 242 FW target discovered in 2017 – new footwall horizon
  • Located in western limb of Wassa deposit scale fold structure
  • Drilling planned for 2018 to test this zone further

Planned DD holes

Wassa Underground Wassa Plan View

Drill Section 8900 WE

N S
