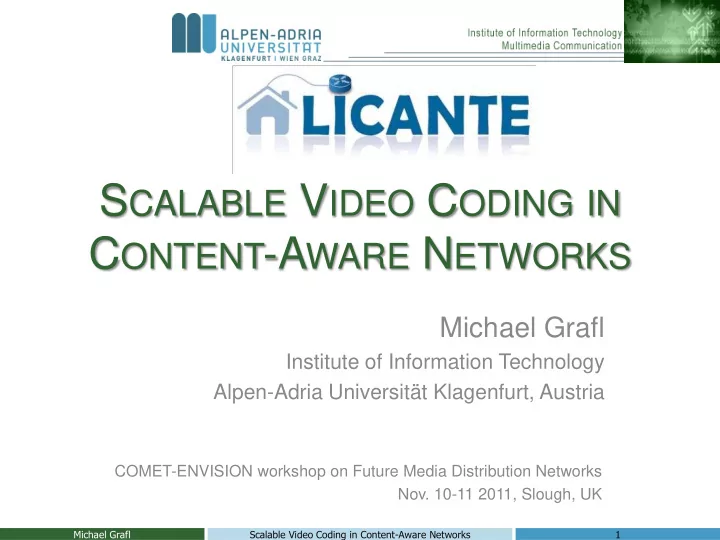

S CALABLE V IDEO C ODING IN C ONTENT -A WARE N ETWORKS Michael Grafl - - PowerPoint PPT Presentation

SCALABLE VIDEO CODING IN CONTENT-AWARE NETWORKS

Michael Grafl

Institute of Information Technology Alpen-Adria Universität Klagenfurt, Austria

Michael Grafl 1 Scalable Video Coding in Content-Aware Networks

COMET-ENVISION workshop on Future Media Distribution Networks

• Nov. 10-11 2011, Slough, UK

OUTLINE

• Introduction
• ALICANTE
• Project Overview
• Conceptual Architecture
• Comparison to ICN
• Use Cases for SVC in CAN (Analysis wrt. ICN research

challenges)

• Unicast
• Multicast
• P2P Streaming
• Web/HTTP Streaming
• Step-by-Step Walkthrough
• Conclusions

Michael Grafl Scalable Video Coding in Content-Aware Networks 2

INTRODUCTION

• Information-Centric Networking (ICN)
• Revolutionary approach
• Content-Aware Networking (CAN)
• Evolutionary approach
• ALICANTE project
• Scalable Video Coding (SVC)
• Extension of H.264/MPEG-4 AVC
• Spatial, temporal and quality (SNR) scalability
• Base layer + multiple enhancement layers
• Coding overhead: ~ 10% wrt. H.264

Michael Grafl Scalable Video Coding in Content-Aware Networks 3

ALICANTE

• Project Info:
• EU FP7-ICT project
• Duration: March 2010 – Aug 2013
• 20 partners
• "Media Ecosystem Deployment through Ubiquitous

Content-Aware Network Environments"

• Goal: New Home-Box layer and CAN layer with

distributed cross-layer adaptation and universal multimedia access enabling cooperation between providers, operators, and end-users

Michael Grafl Scalable Video Coding in Content-Aware Networks 4

http://ict-alicante.eu

Michael Grafl Scalable Video Coding in Content-Aware Networks 5

CAN CAN CAN CAN CAN CAN MANE MANE MANE MANE Physical Layer: autonomous systems CAN Layer: in-network components as overlay

Home-Box Layer

HB Layer: networked components as overlay HB HB HB HB HB

User Environment

Context- aware Content- aware Network- aware AS AS AS Service Environment: content and services User Environment: devices and end user

Service Environment Network Environment

ALICANTE CONCEPTUAL ARCHITECTURE

ALICANTE VS. FULL ICN APPROACH

Michael Grafl Scalable Video Coding in Content-Aware Networks 6

Degree of awareness on upper layer information at network level

Approaches:

• Best effort
• QoS-based virtual splitting
• Content-aware networks
• Content-type awareness
• Service-aware networking
• Full ICN
• Content/object awareness
• Name/location resolution,

routing of requests, caching at network nodes

ALICANTE approach

• Evolutionary approach for FI

(Mid-way to full ICN)

• Caching and storage
• In Home-Boxes (network edge)

and Content Servers

• Scalable and Cost-Efficient

Content Distribution

• Name/location resolution –

at Service level (not in routers)

• Content-awareness
• aggregated CA and associated

processing at network level

• Deployment
• Seamless/incremental deployment

USE CASES FOR SVC IN CAN

• Role of scalable media formats for enabling

content-aware networking

• Unicast, Multicast, Peer-to-Peer Streaming,

Web/HTTP Streaming

• Analysis wrt. ICN research challenges:
• Routing & Forwarding
• Caching & Buffering
• Quality of Service/Experience (QoS/QoE)

Michael Grafl Scalable Video Coding in Content-Aware Networks 7

SYSTEM OVERVIEW FOR USE CASES

Michael Grafl Scalable Video Coding in Content-Aware Networks 8

ICNN2

Buffer Buffer

ICNN1

SVC-Base Layer Enhancement Layer 1 Enhancement Layer 2

U1 U2 U3

Full-HD TV

R1 R3 R2 S1 S2

HD-Ready TV Mobile

USE CASES: UNICAST

• Example: Video on Demand (VoD)
• RTP (with SST of SVC) and RTSP
• Routing & Forwarding:
• ICN node can react to network fluctuations
• In-network adaptation of SVC at ICN node (for short-term fluctuations)
• Signal to sender for dropping SVC layers (for long-term fluctuations)
• Caching & Buffering:
• ICN node can perform prefix caching
• Reduce start-up delay
• Selective caching of SVC layers
• QoS/QoE: (applies to all use cases)
• Consider terminal capabilities when requesting SVC layers
• Monitor network conditions at ICN nodes (cf. ALICANTE)
• Smooth, undistorted playout

Michael Grafl Scalable Video Coding in Content-Aware Networks 9

USE CASES: MULTICAST

• Receiver-Driven Layered Multicast (RDLM) of SVC
• RTP in MST mode (each SVC layer in own session)
• Routing & Forwarding:
• ICN nodes adapt to network conditions through subscription

to SVC layers

• ICN nodes as bridges between native and overlay multicast

(ALICANTE: virtual content-aware network of ICN nodes)

• Selective treatment of SVC layers (MPLS, DiffServ)
• Caching & Buffering:
• Prefix caching to reduce start-up delay in non-live scenarios

Michael Grafl Scalable Video Coding in Content-Aware Networks 10

USE CASES: P2P STREAMING

• Receivers request pieces from multiple senders
• P2P network as overlay
• Receiver only requests SVC layers supported by

end-user terminal

• Routing & Forwarding:
• ICN nodes can act as peers, forming an in-network
• verlay
• Caching & Buffering:
• Aggregate requests and perform information-centric

buffering (during sliding window) at ICN nodes

Michael Grafl Scalable Video Coding in Content-Aware Networks 11

USE CASES: WEB/HTTP STREAMING

• Download via HTTP (partial) GET requests
• Content fragmented into segments (e.g., per SVC layer and GOP)
• Manifest file describes structure of segments and available

representations

• Standard: Dynamic Adaptive Streaming over HTTP (DASH)
• Overcome NAT traversal & firewall issues
• Stateless sender
• Unicast, multicast, and multisource (P2P-like) scenarios
• Routing & Forwarding:
• ICN node signals network condition to receiver (implicit adaptation)
• Caching & Buffering:
• SVC-based prefix caching using HTTP-based CDN infrastructure
• Buffering during sliding window creates multicast tree
• Information-centric buffering in multisource scenario

Michael Grafl Scalable Video Coding in Content-Aware Networks 12

STEP-BY-STEP WALKTHROUGH

Michael Grafl Scalable Video Coding in Content-Aware Networks 13

HB HB HB CAN MANE MANE

SVC encoding 1st SVC Adaptation at MANE 2nd SVC Adaptation at MANE SVC to AVC transcoding SVC to AVC transcoding Source AVC decoding AVC decoding

1 2 3 4 5 7 6 8 9

Source Stream Base Layer (AVC) Enhancement Layer 1 Enhancement Layer 2

HB

CONCLUSIONS

• Towards ICN: Scalable media coding formats (e.g.,

SVC) in combination with in-network adaptation

• Routing & Forwarding
• Caching & Buffering
• QoS/QoE
• Enabling content-awareness within the (core)

network

• Context-awareness at receiver & sender (& ICN

node)

• ALICANTE
• Towards deployment of a networked "Media Ecosystem"
• Collaboration of CAN layer and Home-Box layer

Michael Grafl Scalable Video Coding in Content-Aware Networks 14

LITERATURE

[1] J. Pan, S. Paul, R. Jain, “A survey of the research on future internet architectures”, IEEE Communications Magazine, vol.49, no.7, pp.26-36, July 2011. [2] V. Jacobson, D. Smetters, J. Thornton, M. Plass, N. Briggs, R. Braynard, “Networking named content”, Proc. of ACM CoNEXT 2009, Rome, Italy, December 2009. [3] H. Koumaras et al., “Media Ecosystems: A Novel Approach for Content- Awareness in Future Networks,” Future Internet: Achievements and Promising Technology, Springer Verlag, pp. 369-380, May 2011. [4] ALICANTE Web site, http://ict-alicante.eu/. [5] M. Wien et al., “Performance Analysis of SVC,” Circuits and Systems for Video Technology, IEEE Transactions on, vol. 17, no. 9, pp. 1194-1203, 2007. [6] T. Stockhammer, “Dynamic adaptive streaming over HTTP – standards and design principles,” in Proceedings of the Second Annual ACM Conference on Multimedia Systems, New York, NY, USA, pp. 133–144, February 2011. [7] M. Grafl, et al., “Scalable Video Coding in Content-Aware Networks: Research Challenges and Open Issues,” in: N. Blefari-Melazzi, G. Bianchi, and L. Salgarelli (eds.), Trustworthy Internet, Springer, pp. 349-358, June 2011.

Michael Grafl Scalable Video Coding in Content-Aware Networks 15

THANK YOU

FOR YOUR ATTENTION!

Questions?
