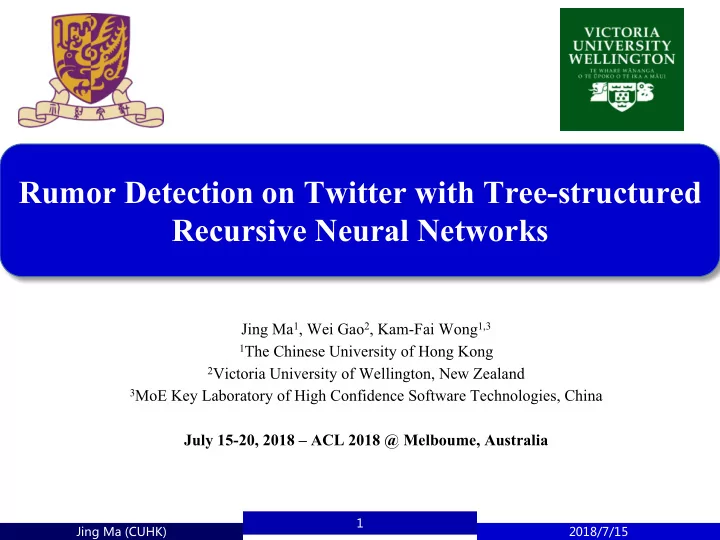

Rumor Detection on Twitter with Tree-structured Recursive Neural - - PowerPoint PPT Presentation

Jing Ma (CUHK) 2018/7/15 1

Rumor Detection on Twitter with Tree-structured Recursive Neural Networks

Jing Ma1, Wei Gao2, Kam-Fai Wong1,3

1The Chinese University of Hong Kong 2Victoria University of Wellington, New Zealand 3MoE Key Laboratory of High Confidence Software Technologies, China

July 15-20, 2018 – ACL 2018 @ Melboume, Australia

Jing Ma (CUHK)

￭Introduction ￭Related Work ￭Problem Statement ￭RvNN-based Rumor Detection ￭Evaluation ￭Conclusion and Future Work

Outline

2018/7/15 2

Jing Ma (CUHK)

Introduction

2018/7/15 3

What are rumors?

A story or statement whose truth value is unverified or deliberately false

Jing Ma (CUHK)

Introduction

2016/7/1 4

Ø people tend to stop spreading a rumor if it is known as false. (Zubiaga et al., 2016b) Ø Previous studies focused on text mining from sequential microblog streams, we want to bridge the content semantics and propagation clues. How the fake news propagated?

supportive denial

Jing Ma (CUHK)

Motivation

￭We generally are not good at distinguishing rumors ￭It is crucial to track and debunk rumors early to minimize their harmful effects. ￭Online fact-checking services have limited topical coverage and long delay. ￭Existing models use feature engineering – over simplistic;

• r recently deep neural networks – ignore propagation

structures; Kernel-based method – develop based on tree structure but cannot learn high-level feature representations automatically.

2018/7/15 5

Jing Ma (CUHK)

Observation & Hypothesis

2018/7/15 6

￭ IDEA: Combining the two models, leveraging propagation structure by representation learning algorithm

(a) RNN-based model (Ma et al. 2016) Doubt Support Neutral (b) Tree kernel-based model (Ma et al. 2017)

￭ Existing works: Consider post representation or propagation structure

Jing Ma (CUHK)

Observation & Hypothesis

2018/7/15 7

￭ A reply usually respond to its immediate ancestor rather than the root tweet. ￭ Repliers tend to disagree with (or question) who support a false rumor or deny a true rumor; repliers tend to agree with who deny a false rumor or support a true rumor.

(a) False rumor (b) True rumor Polarity stances

Why such model do better?

Local characteristic:

Jing Ma (CUHK)

Contributions

￭The first study that deeply integrates both structure and content semantics based on tree-structured recursive neural networks for detecting rumors from microblog posts ￭Propose two variants of RvNN models based on bottom-up and top-down tree structures, to generate better integrated representations for a claim by capturing both structural and textural properties signaling rumors. ￭Our experiments based on two real-world Twitter datasets achieve superior improvements over state-of-the-art baselines on both rumor classification and early detection tasks. ￭We make the source codes in our experiments publicly accessible at https://github.com/majingCUHK/Rumor_RvNN

2018/7/15 8

Jing Ma (CUHK)

￭Introduction ￭Related Work ￭Problem Statement ￭RvNN-based Rumor Detection ￭Evaluation ￭Conclusion and Future Work

Outline

2018/7/15 9

Jing Ma (CUHK)

Related Work

￭ Systems based on common sense and investigative journalism, e.g.,

￭ snopes.com ￭ factcheck.org

￭ Learning-based models for rumor detection

￭ Information credibility: Castillo et al. (2011), Yang et al. (2012) ￭ Using handcrafted and temporal features: Liu et al. (2015), Ma et al. (2015), Kwon et al. (2013, 2017) ￭ Using cue terms: Zhao et al. (2015) ￭ Using recurrent neural networks: Ma et al. (2016, 2018) ￭ Tree-kernel-based model: Ma et al. (2017), Wu et al. (2015)

￭ RvNN-based works

￭ images segmentation (Socher et al, 2011) ￭ phrase representation from word vectors (Socher et al, 2012) ￭ Sentiment analysis (Socher et al, 2013) ￭ etc

2018/7/15 10

Without hand- crafted features

Jing Ma (CUHK)

￭Introduction ￭Related Work ￭Problem Statement ￭RvNN-based Rumor Detection ￭Evaluation ￭Conclusion and Future Work

Outline

2018/7/15 11

Jing Ma (CUHK)

Problem Statement

2018/7/15 12

￭Given a set of microblog posts R = {𝑠}, model each source tweet as a tree structure T 𝑠 = < 𝑊, 𝐹 >, where each node 𝑤 provide the text content of each post. And 𝐹 is directed edges corresponding to response relation. ￭Task 1 – finer-grained classification for each source post

false rumor, true rumor, non-rumor, unverified rumor

￭Task 2 – detect rumor as early as possible

Jing Ma (CUHK)

Tweet Structure

2018/7/15 13

Root tweet replies

𝒚𝟐: #Walmart donates $10,000 to #DarrenWilson fund to continue police racial profiling… 𝒚𝟒: NEED SOURCE. have a feeling this is just hearsay ... 𝒚𝟓: I agree. I have been hearing this all day but no source 1:12 𝒚𝟔: Exactly, i don't think Wal-Mart would let everyone know this if they did!! 2:21 𝒚𝟑: 1:30 Idc if they killed a mf foreal. Ima always shop with @Walmart. I'm just bein honest 💂 𝒚𝟐: #Walmart donates $10,000 to #DarrenWilson fund to continue police racial profiling… 𝒚𝟒: NEED SOURCE. have a feeling this is just hearsay ... 𝒚𝟓: I agree. I have been hearing this all day but no source 1:12 𝒚𝟔: Exactly, i don't think Wal-Mart would let everyone know this if they did!! 2:21 𝒚𝟑: 1:30 Idc if they killed a mf foreal. Ima always shop with @Walmart. I'm just bein honest 💂

bottom-up tree top-down tree

Jing Ma (CUHK)

￭Introduction ￭Related Work ￭Problem Statement ￭RvNN-based Rumor Detection ￭Evaluation ￭Conclusion and Future Work

Outline

2018/7/15 14

Jing Ma (CUHK)

Standard Recursive Neural Networks

2018/7/15 15

￭ RvNN (tree-structured neural networks) utilize sentence parse trees: representation associated with each node of a parse tree is computed from its direct children, computed by 𝑞 = 𝑔(𝑋 9 𝑑;; 𝑑= + 𝑐)

￭ p: the feature vector of a parent node whose children are 𝑑; and 𝑑= ￭ computation is done recursively over all tree nodes

Jing Ma (CUHK)

Bottom-up RvNN

2018/7/15 16

Ø Input: bottom-up tree (node: a post represented as a vector of words ) Ø Structure: recursively visit every node from the leaves at the bottom to the root at the top (a natural extension to the original RvNN ) Ø Intuition: local rumor indicative features are aggregated along different branches (e.g., subtrees having a denial parent and a set of supportive children) (generate a feature vector for each subtree)

𝒚𝟐: #Walmart donates $10,000 to #DarrenWilson fund to continue police racial profiling… 𝒚𝟒: NEED SOURCE. have a feeling this is just hearsay ... 𝒚𝟓: I agree. I have been hearing this all day but no source 1:12 𝒚𝟔: Exactly, i don't think Wal-Mart would let everyone know this if they did!! 2:21 𝒚𝟑: 1:30 Idc if they killed a mf foreal. Ima always shop with @Walmart. I'm just bein honest 💂

Ø GRU equation at node 𝑘 Own input Children node

Jing Ma (CUHK)

Top-down RvNN

2018/7/15 17 𝒚𝟐: #Walmart donates $10,000 to #DarrenWilson fund to continue police racial profiling… 𝒚𝟒: NEED SOURCE. have a feeling this is just hearsay ... 𝒚𝟓: I agree. I have been hearing this all day but no source 1:12 𝒚𝟔: Exactly, i don't think Wal-Mart would let everyone know this if they did!! 2:21 𝒚𝟑: 1:30 Idc if they killed a mf foreal. Ima always shop with @Walmart. I'm just bein honest 💂

Ø Input: top-down tree Ø Structure: recursively visit from the root node to its children until reaching all leaf nodes. (reverse Bottom-up RvNN) Ø Intuition: rumor-indicative features are aggregated along the propagation path (e.g., if a post agree with its parent’s stance, the parent’s stance should be reinforced) (models how information flows from source post to the current node) Ø GRU transition equation at node 𝑘 Own input Parent node

Jing Ma (CUHK)

Model Training

2018/7/15 18

Ø Comparison: both of the two RvNN models aim to capture the structural properties by recursively visiting all nodes Bottom-up RvNN: the state of root node (i.e., source tweet) can be regard as the representation of the whole tree (can be used for supervised classification). Top-down RvNN: the representation of each path are eventually embedded into the hidden vector of all the leaf nodes. Ø Output Layer Bottom-up RvNN: 𝑧 = 𝑇𝑝𝑔𝑢𝑛𝑏𝑦 𝑊ℎK + 𝑐 Top-down RvNN: 𝑧 = 𝑇𝑝𝑔𝑢𝑛𝑏𝑦 𝑊ℎL + 𝑐 Ø Objective Function: 𝑀 = ∑ ∑ 𝑧O − 𝑧 QO =

R OS;

+

T US;

𝜇 Θ =

=

Ø Training Procedure parameters are updated using efficient back-propagation through structure (Goller and Kuchler, 1996; Socher et al., 2013) learned vector of root node the pooling vector over all leaf nodes prediction Ground truth

Jing Ma (CUHK)

￭Introduction ￭Related Work ￭Problem Statement ￭RvNN-based Rumor Detection ￭Evaluation ￭Conclusion and Future Work

Outline

2018/7/15 19

Jing Ma (CUHK)

Data Collection

￭Use two reference Tree datasets:

2018/7/15 20

URL of the datasets: https://www.dropbox.com/s/0jhsfwep3ywvpca/rumdetect2017.zip?dl=0

Jing Ma (CUHK)

Approaches to compare with

2018/7/15 21

￭ DTR: Decision tree-based ranking model using enquiry phrases to identify trending rumors (Zhao et al., 2015) ￭ DTC: Twitter information credibility model using Decision Tree Classifier (Castillo et al., 2011); ￭ RFC: Random Forest Classifier using three parameters to fit the temporal tweets volume curve (Kwon et al., 2013) ￭ SVM-TS: Linear SVM classifier using time-series structures to model the variation of social context features. (Ma et al., 2015) ￭ SVM-BOW: linear SVM classifier using bag-of-words. ￭ SVM-TK and SVM-HK: SVM classifier uses a Tree Kernel (Ma et al., 2017) and that uses a Hybrid Kernel (Wu et al., 2015), both model propagation structures with kernels. ￭ GRU-RNN: The RNN-based rumor detection model. (Ma et al., 2016) ￭ Ours (BU-RvNN and TD-RvNN): Our bottom-up and top- down recursive models.

Jing Ma (CUHK)

Results on Twitter15

2018/7/15 22

Method Accu. NR FR TR UR F1 F1 F1 F1 DTR 0.409 0.501 0.311 0.364 0.473 DTC 0.454 0.733 0.355 0.317 0.415 RFC 0.565 0.810 0.422 0.401 0.543 SVM-TS 0.544 0.796 0.472 0.404 0.483 SVM-BOW 0.548 0.564 0.524 0.582 0.512 SVM-HK 0.493 0.650 0.439 0.342 0.336 SVM-TK 0.667 0.619 0.669 0.772 0.645 GRU-RNN 0.641 0.684 0.634 0.688 0.571 BU-RvNN 0.708 0.695 0.728 0.759 0.653 TD-RvNN 0.723 0.682 0.758 0.821 0.654 NR: Non-Rumor; FR: False Rumor; TR: True Rumor; UR: Unverified Rumor; hand-crafted features (e.g., user info → NR vs others) Structural info Linear chain input More info loss

Jing Ma (CUHK)

Results on Twitter16

2018/7/15 23

NR: Non-Rumor; FR: False Rumor; TR: True Rumor; UR: Unverified Rumor; Method Accu. NR FR TR UR F1 F1 F1 F1 DTR 0.414 0.394 0.273 0.630 0.344 DTC 0.465 0.643 0.393 0.419 0.403 RFC 0.585 0.752 0.415 0.547 0.563 SVM-TS 0.574 0.755 0.420 0.571 0.526 SVM-BOW 0.585 0.553 0.556 0.655 0.578 SVM-HK 0.511 0.648 0.434 0.473 0.451 SVM-TK 0.662 0.643 0.623 0.783 0.655 GRU-RNN 0.633 0.617 0.715 0.577 0.527 BU-RvNN 0.718 0.723 0.712 0.779 0.659 TD-RvNN 0.737 0.662 0.743 0.835 0.708 models without hand-crafted features

Jing Ma (CUHK)

Results on Early Detection

❑ In the first few hours, the accuracy of the RvNN- based methods climbs more rapidly and stabilize more quickly ❑ TD-RvNN and BU- RvNN only need around 8 hours or about 90 tweets to achieve the comparable performance

• f the best baseline

model.

2018/7/15 24

(a) Twitter15 DATASET (b) Twitter16 DATASET

Jing Ma (CUHK)

Early Detection Example

2018/7/15 25

Example subtree of a rumor captured by the algorithm at early stage of propagation

Ø Bottom-up RvNN: a set of responses supporting the parent posts that deny or question the source post. Ø Top-down RvNN: some patterns of propagation from the root to leaf nodes like “support→deny→support” Ø Baselines: sequential models may be confused because the supportive key terms such as “be right”, “yeah”, “exactly!” dominate the responses, and the SVM-TK may miss similar subtrees by just comparing the surface words.

Jing Ma (CUHK)

￭Introduction ￭Related Work ￭Problem Statement ￭RvNN-based Rumor Detection ￭Evaluation ￭Conclusion and Future Work

Outline

2018/7/15 26

Jing Ma (CUHK)

Conclusion and future work

2018/7/15 27

￭ Propose a bottom-up and a top-down tree-structured model based on recursive neural networks for rumor detection on Twitter. ￭ Using propagation tree to guide the learning of representations from tweets content, such as embedding various indicative signals hidden in the structure, for better identifying rumors. ￭ Results on two public Twitter datasets show that our method improves rumor detection performance in very large margins as compared to state-of-the-art baselines. ￭ Future work: ❑ Integrate other types of information such as user properties into the structured neural models to further enhance representation learning ❑ Develop unsupervised models due to massive unlabeled data from social media.

Jing Ma (CUHK) 2018/7/15 28

Q & A
