RTec EXPERT Collection of design tools for building engineering - PowerPoint PPT Presentation

Apr 12, 2023 •126 likes •223 views

RTec EXPERT Collection of design tools for building engineering RTec EXPERT consists of various components of the statics software from RIB RTOOL: Reinforced concrete, steel and wood dimensioning according to DIN and EN with corresponding NAs

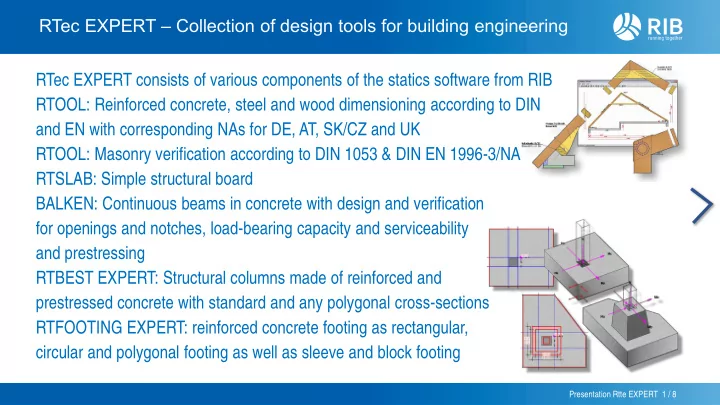

RTec EXPERT – Collection of design tools for building engineering RTec EXPERT consists of various components of the statics software from RIB RTOOL: Reinforced concrete, steel and wood dimensioning according to DIN and EN with corresponding NAs for DE, AT, SK/CZ and UK RTOOL: Masonry verification according to DIN 1053 & DIN EN 1996-3/NA RTSLAB: Simple structural board BALKEN: Continuous beams in concrete with design and verification for openings and notches, load-bearing capacity and serviceability and prestressing RTBEST EXPERT: Structural columns made of reinforced and prestressed concrete with standard and any polygonal cross-sections RTFOOTING EXPERT: reinforced concrete footing as rectangular, circular and polygonal footing as well as sleeve and block footing Presentation Rtte EXPERT 1 / 8 ZWAX 1
RTool – Timber Construction Design according to DIN & Euronorm Purlin, rafter and collar beam roofs Frame corner connected by dowel pins, special dowel designs or wedge dovetails Presentation Rtte EXPERT 2 / 8 ZWAX 2
RTool – Steel Construction Design according to DIN & Euronorm Lateral torsional buckling analysis with consideration of the deformation and torsional restraint Calculation of internal forces, deformations, reactions and stresses for continuous steel beams Presentation Rtte EXPERT 3 / 8 ZWAX 3
RTSLAB – Analysis and dimensioning of simple building slabs Internal forces calculation for bending, shear and punching capacity Presentation Rtte EXPERT 4 / 8 ZWAX 4
BALKEN – Prestressing of a continuous beam Prestressed concrete design considering creep, shrinkage and relaxation Prestressing with up to 4 prestressing conditions per side including wedge slip Presentation Rtte EXPERT 5 / 8 ZWAX 5
BEST EXPERT – Polygonal column cross-sections & prestressing Polygonal cross-sections with rectangular, circular or polygonal recesses Variable cross-sections Presentation Rtte EXPERT 6 / 8 ZWAX 6
RTfooting – Extension for circular and polygonal footings Graphic-interactive design of circular and polygonal foundations Presentation Rtte EXPERT 7 / 8 ZWAX 7
ZWAX – Design of reinforced and prestressed concrete X-sections Sketches of reinforced concrete cross-sections Presentation Rtte EXPERT 8 / 8 ZWAX 8
