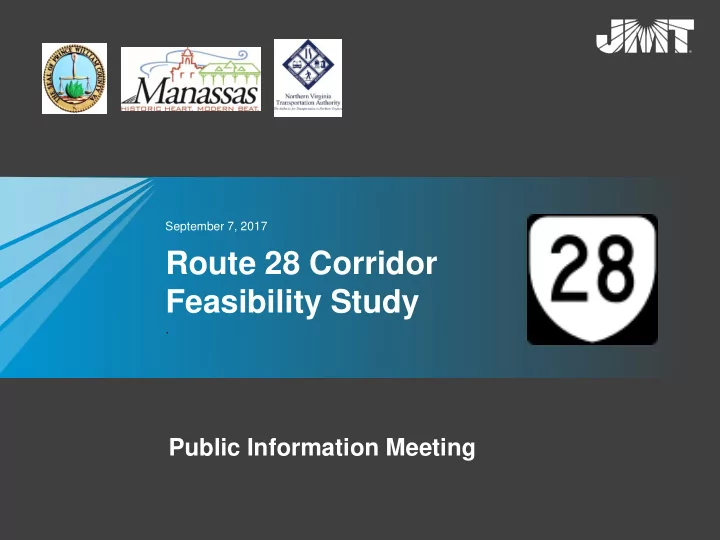

Route 28 Corridor Feasibility Study . Public Information Meeting - - PowerPoint PPT Presentation

Public Information Meeting

September 7, 2017

Route 28 Corridor Feasibility Study

.

Project Team and Study Committees

Route 28 Corridor Feasibility Study

Agency Involvement

Route 28 Corridor Feasibility Study

The study is fully funded by the Northern Virginia Transportation Authority (NVTA) Jointly administered by: Prince William County and City of Manassas

Study Team

Steve Burke

City of Manassas Co-Project Manager

Randy Boice

JMT Project Manager

Brian Curtis

JMT Deputy Project Manager

Rodney Hayzlett

JMT Senior Advisor

Rick Canizales

Prince William County Co-Project Manager Route 28 Corridor Feasibility Study

Sujith Racha

JMT Senior Traffic Engineer

Ian Frost

JMT Senior Environmental Lead

Technical staff from jurisdictions/agencies Technical Committee Members

Route 28 Corridor Feasibility Study

Prince William County City of Manassas City of Manassas Park Fairfax County Northern Virginia Transportation Authority (NVTA) Virginia Department of Transportation (VDOT) Virginia Railway Express (VRE) Potomac and Rappahannock Transportation Commission (PRTC) Bull Run Regional Park Virginia Department of Rail and Public Transportation (DRPT) Federal Highway Administration (FHWA) Prince William County Service Authority

Executive Committee Members

Route 28 Corridor Feasibility Study

Senator George Barker Virginia General Assembly Senator Richard Black Virginia General Assembly Senator Jeremy McPike Virginia General Assembly Delegate Tim Hugo Virginia General Assembly Delegate Randy Minchew Virginia General Assembly Delegate Bob Marshall Virginia General Assembly Delegate Jackson Miller Virginia General Assembly Chairman Corey Stewart Prince William County Supervisor Martin Nohe Prince William County Mayor Hal Parrish City of Manassas Council Member Pamela Sebesky City of Manassas Mayor Jeanette Rishell City of Manassas Park Councilman Preston Banks City of Manassas Park Chairman Sharon Bulova Fairfax County Supervisor Kathy Smith Fairfax County - Sully District Supervisor Pat Herrity Fairfax County – Springfield District Chris Price Prince William County Monica Backmon NVTA Helen Cuervo VDOT Renee Hamilton VDOT Maria Sinner VDOT Todd Horsley DRPT Scott Kasprowicz CTB Mary Hughes Hynes CTB Gary Garczynski CTB Chief Executive Officer Doug Allen VRE Paul Gilbert Northern Virginia Regional Parks Authority

Short-Term Recommendations From VDOT 2015 Study

Route 28 Corridor Feasibility Study

Previous Study Short-Term Recommendations from VDOT 2015 Study

Route 28 Corridor Feasibility Study

VDOT completed a corridor safety and traffic

• perations study on Route 28 in 2015 from

Liberia Avenue to I-66. The report identified low-cost, short-term improvements to address congestion and safety improvements along Route 28. Many recommendations have been completed and others are underway.

Study Area and Goals and Objectives

Route 28 Corridor Feasibility Study

Study Area

Route 28 Corridor Feasibility Study

GOAL Study Goals and Objectives

Route 28 Corridor Feasibility Study

The project goals for the Route 28 Corridor Feasibility Study are to identify long-term infrastructure improvements that will improve travel times and network reliability within the Route 28 Corridor through Prince William County, the City of Manassas and City of Manassas Park and develop a plan to implement these improvement project(s).

Study Goals and Objectives

Route 28 Corridor Feasibility Study

• Obj. 1: Reduce Congestion (Historic Downtown

Manassas)

• Obj. 2: Reduce Congestion (Liberia Ave to

Compton Rd)

• Obj. 3: Facilitate Peak Period Commute Flows
• Obj. 4: Increased Opportunities for Alternative

Modes of Travel

• Obj. 5: Improved Access to Transit Facilities
• Obj. 6: Improvement Projects with Public

Consensus

• Obj. 7: Improvement Projects with Minimal

Environmental Impacts

• Obj. 8: Improvement Projects with Minimal

Existing Conditions Impacts

• Obj. 9: Improvement Projects that Complement

Route 28 Operations

Key Objectives Summary

Key Objectives

Route 28 Corridor Feasibility Study

Project Development Process

Step 1: Route 28 Corridor Feasibility Study

• Subject of tonight’s meeting
• Includes development and analysis of alternatives to meet study

goals and objectives

• Identification of a highest ranked alternative

Step 2: Complete National Environmental Policy Act (NEPA) Process.

• Preparation of an Environmental Impact Statement (EIS) in

accordance with FHWA implementing regulations

• Additional opportunities for public input
• Selection of a Preferred Alternative

Step 3: Final Design of the Preferred Alternative Step 4: Construction

Existing and Future Traffic Conditions

Route 28 Corridor Feasibility Study

Existing Conditions

Route 28 Corridor Feasibility Study

Route 28 has

• 2 continuous through lanes in each

direction from Godwin Drive to Route 29

• Additional through lanes around

Manassas Drive

• 24 signals between Godwin Drive and

Route 29 Observed Peak Hours

• AM peak hour (7:45 – 8:45 a.m.)
• PM peak hour (5:30 – 6:30 p.m.)

Route 28 Corridor Feasibility Study

2040 No-Build Alternative

• Maintains existing lane configurations along Route 28
• Includes Fairfax Design Build Project
• 4 lanes in each direction from Old Centreville Road to the Prince William

County line

• Includes transportation projects from 2016 MWCOG Constrained Long

Range Plan

• I-66 Improvements
• Extension of New Braddock Road across I-66
• Includes 2040 MWCOG population and employment growth forecasts

Volumes

Route 28 Corridor Feasibility Study

Existing and Future Traffic Conditions

Route 28 Average Daily Traffic (ADT)

• Historic Downtown:

2016 21,300 2040 No-Build 29,200

• Between Liberia Ave and Manassas Dr: 2016 46,000

2040 No-Build 60,800

• Bull Run:

2016 57,300 2040 No-Build 76,200

1.4% Annual Growth Rate

Travel Times

Route 28 Corridor Feasibility Study

Traffic Operations

* Travel time in the northbound direction remains essentially the same compared to the existing conditions due to the Route 28 widening in Fairfax County mitigating the northbound delays. Southbound delays increase due to no-build condition south of Compton Road. 48 46* 19 23 22 37 27 54

Levels of Service (LOS) Results

Route 28 Corridor Feasibility Study

Traffic Operations

• Intersections in study area operating over capacity (LOS F)* in

either AM or PM peak hour: 2016 - 4 out of 29 – 14% 2040 No-Build - 16 out of 29 – 55%

* Queuing along the corridor causes additional intersections to operate at capacity (LOS E) Queueing

Alternatives Evaluation and Screening

Route 28 Corridor Feasibility Study

01 02 03 04

Preliminary Alternatives

03 02

Criteria: Meeting study goals objectives Environmental Impacts Property Impacts Traffic Benefits Policy Considerations/ Long Term Solution

Initial Screening

Four Advanced for Further Evaluation and Study

Feasible Alternatives Alternatives Evaluation

Alternatives Screening / Evaluation

01 01 01

03 03 04 05

05

Highest Ranked Alternative

Criteria: Project Cost Project Benefits Environmental Impacts Socioeconomic / Right of Way Impacts

c

01 01 01

Route 28 Corridor Feasibility Study

Preliminary Alternatives

Route 28 Corridor Feasibility Study

• ALT. 1: No Build
• ALT. 2A: Godwin Drive extended to match existing Route 28 south
• f Bull Run
• ALT. 2B: Godwin Drive extended to match existing Route 28 north of

Bull Run

• ALT. 3: Godwin Drive extended to match I-66 near the existing

Compton Road crossing (the former Tri-County Parkway alignment)

• ALT. 4: Widening Route 28 on existing alignment between Liberia

Avenue and the Fairfax County line

• ALT. 5: New Route 28 Reversible Lanes between Liberia Avenue

and the Fairfax County Line

• ALT. 6: Widening Old Centreville Road/Ordway Road throughout its

length

• ALT. 7: Converting Old Centreville Road/Ordway Road to a

reversible facility

• ALT. 8: Transit Alternatives to include BRT and/or VRE expansion

along the corridor (Not Shown)

• ALT. 9A: Euclid Avenue extension north and south
• ALT. 9B: Euclid Avenue extension north and south
• ALT. 9C: Euclid Avenue extension north and south
• ALT. 10A: A new southern alignment (Hastings Drive/Signal View

Drive)

• ALT. 10B: A new southern alignment (Hastings Drive/Signal View

Drive)

• ALT. 10C: A new southern alignment (Hastings Drive/Signal View

Drive)

Alternatives Carried Forward for Further Study

Route 28 Corridor Feasibility Study

Route 28 Corridor Feasibility Study

Alternatives Carried Forward for Further Study

Route 28 Corridor Feasibility Study

Alternatives Alt 2B – Godwin Drive Extended to north of Bull Run Alt 2A – Godwin Drive Extended to south of Bull Run

Access Points:

• Sudley Road
• Lomond Drive
• Old Centreville Rd
• Route 28 south of Bull Run

Access Points:

• Sudley Road
• Lomond Drive
• Old Centreville Rd
• Ordway Rd – partial access
• Route 28 north of Bull Run

Alternatives

Route 28 Corridor Feasibility Study

Alt 4 – Widen Route 28

• Add a lane in each direction

between Liberia Avenue and end of Fairfax County widening.

• Ties into Fairfax County Design

Build Project south of Compton.

Route 28 Corridor Feasibility Study

Alt 9 – Euclid Avenue Extension North to Rte. 28 & South to Sudley Rd / Rte. 28 Intersection Roundabout is being planned for Route 28/ Sudley Road intersection by City of Manassas

Alternatives

2nd Screening Evaluation of Alternatives

Route 28 Corridor Feasibility Study

Screening Criteria for Alternative Evaluation

Route 28 Corridor Feasibility Study

Screening Criteria established to attain study objectives

• Obj. 1: Reduce Congestion (Historic Downtown

Manassas)

• Obj. 2: Reduce Congestion (Liberia Ave to

Compton Rd)

• Obj. 3: Facilitate Peak Period Commute Flows
• Obj. 4: Increased Opportunities for Alternative

Modes of Travel

• Obj. 5: Improved Access to Transit Facilities
• Obj. 6: Improvement Projects with Public

Consensus

• Obj. 7: Improvement Projects with Minimal

Environmental Impacts

• Obj. 8: Improvement Projects with Minimal

Existing Conditions Impacts

• Obj. 9: Improvement Projects that Complement

Route 28 Operations

Key Objectives Summary

Screening Criteria for Alternative Evaluation

Route 28 Corridor Feasibility Study

Alternative Rating

Planning Level Costs

Route 28 Corridor Feasibility Study

Planning Level Costs

Route 28 Corridor Feasibility Study

2017 Planning Level Costs

Construction Cost – using VDOT Project Cost Estimating System (PCES) ROW Costs Utility Costs Environmental Mitigation Costs Contingency – 10% (applied to total) Rounded up to Nearest $5 Million 2040 No-Build N/A Alt 2A 4.25 $240 M Alt 2B 4.0 $190 M Alt 4 3.5 $245 M Alt 9 4.75 $265 M Conceptual Alternative # Alignment Color Length in Miles 2017 Planning Level Costs

Estimated costs subject to change as the project progresses through the project development process and costs are inflated for future construction years.

Project Benefits

Route 28 Corridor Feasibility Study

Project Benefits

Route 28 Corridor Feasibility Study

Screening Criteria for Alternative Evaluation

• No. of Intersections Operating over

Capacity Multimodal Compatibility

Project Benefits

Change in 2040 ADT in Historic Downtown Manassas 2040 ADT Served by Alternative + Route 28 Ratio of 2040 ADT to Planning Level Cost Peak Hour Travel Time in 2040 using Alternative Peak Hour Travel Time Savings in 2040 on Route 28

1 2 3 X

Key Objective Attainable 4,5 2,3 1, 2,3 1, 2,3

• Obj. 1: Reduce Congestion (Historic Downtown

Manassas)

• Obj. 2: Reduce Congestion (Liberia Ave to

Compton Rd)

• Obj. 3: Facilitate Peak Period Commute Flows
• Obj. 4: Increased Opportunities for Alternative

Modes of Travel

• Obj. 5: Improved Access to Transit Facilities

Project Benefits

Route 28 Corridor Feasibility Study

Bypass Alt Route 28

2 Current Volume

57,200 57,200

2040 No-Build

 76,200 76,200 

Alt 2A

• 7,700



• 16,900

37,200 59,300 96,500 

Alt 2B

• 7,700



• 16,800

37,200 59,400 96,600 

Alt 4

2,700  6,200 82,400 82,400 

Alt 9

3,400 

• 24,300

35,000 51,900 86,900 

Change in 2040 ADT on Route 28 (Liberia Ave to Compton Rd)

Key Objectives Attainable 1 1 2

Change in 2040 ADT on route 28 in Historic Downtown Manassas3 2040 ADT Served by Alternative + Route 28 (Liberia Ave to Compton Rd)4 Total Conceptual Alternative # Alignment Color Traffic Benefits (when compared to 2040 No-Build)

Project Benefits

Travel Times on Alternative Routes (min)

Route 28 Corridor Feasibility Study

Travel Paths

Alt 2A Alt 2B Alt 4 Alt 9

A B

Alternative # NB AM Peak Hr SB PM Peak Hr Total

2040 No-Build

47 55 102

Alt 2A

20 31 51

Alt 2B

18 31 49

Alt 4

35 43 78

Alt 9

30 36 66

Travel Time Savings on Business Route 28 (min)

Alternative # NB AM Peak Hr SB PM Peak Hr Total

Alt 2A

24 15 39

Alt 2B

24 17 41

Alt 4

12 12 24

Alt 9

20 19 39

Godwin Drive Route 29

Environmental Impacts

Route 28 Corridor Feasibility Study

Environmental Impacts

4f Properties / Historic Sites / Public Recreation Areas / Wildlife or Waterfowl Refuges

Floodway / Floodplains Streams / Wetlands Hazardous Materials Environmental Justice Concern Noise Impacts

7 7

Route 28 Corridor Feasibility Study

Screening Criteria for Alternative Evaluation

7 7 7 7

Environmental Impacts

X

Key Objective Attainable

• Obj. 6
• Obj. 7
• Obj. 8
• Obj. 9

Improvement Projects with Minimal Environmental Impacts Improvement Projects with Minimal Existing Conditions Impacts

• Obj. 1

Reduce Congestion (Historical Downtown Manassas) Key Objectives Summary

Screening Criteria for Alternative Evaluation

Route 28 Corridor Feasibility Study

Environmental Impacts within 250 Foot Corridor

2040 No-Build 0 / 0 / 0



0 / 0



0 / 0

 

Alt 2A 7.0 / 16.4 / 0



23.4 / 66.7



7370 / 5.4



9



Alt 2B 0.7 / 30.3 / 0



21.2 / 55.7



7050 / 6.2



1



Alt 4 3.9 / 1.1 / 0



5.0 /9.3



2050 / 0.9



50



Alt 9 0.6 / 8.3 / 0



16.9 / 47.8



2030 / 2.8



16



Key Objectives Attainable 3 7 7 7 7

4f Properties: Historic Sites (acres) / Public Recreation Areas / Wildlife or Waterfowl Refuges Floodway (Acres) / Floodplains (Acres) Streams (Linear Feet) / Wetlands (Acres) Hazardous Materials (# Sites) Conceptual Alternative # Alignment Color Environmental Impacts

Environmental impacts are preliminary, based on GIS databases and do not have the benefit of fieldwork which will occur during the NEPA process.

Socioeconomic / ROW Impacts

Route 28 Corridor Feasibility Study

Socioeconomic / ROW Impacts

Route 28 Corridor Feasibility Study

Screening Criteria for Alternative Evaluation

Socioeconomic/ROW Impacts

Relocations - Businesses Relocations to Residential / Churches / Schools Conservation Easements

8 8 8 X

Key Objective Attainable

• Obj. 6
• Obj. 7
• Obj. 8
• Obj. 9

Improvement Projects with Minimal Environmental Impacts Improvement Projects with Minimal Existing Conditions Impacts

• Obj. 1

Reduce Congestion (Historical Downtown Manassas) Key Objectives Summary

Route 28 Corridor Feasibility Study

2040 No-Build



0 / 0 / 0



Alt 2A 13



112 / 0 /0



Alt 2B



70 / 0 /0



Alt 4 96



5 / 0 / 0



Alt 9 24



51 / 0 / 0



Socioeconomic / Right of Way Impacts

Key Objectives Attainable 3 8 8

Relocations to Businesses (#) Relocations to Residential (#) / Churches (#) / Schools (#) Conceptual Alternative # Alignment Color

Socioeconomic / ROW Impacts

Right of way impacts are preliminary and subject to change as the project progresses through the project development process.

Highest Ranked Alternative

Route 28 Corridor Feasibility Study

Highest Ranked Alternative

Route 28 Corridor Feasibility Study Rounded up to Nearest $5 Million Ranking* Points Ranking* Points Ranking* Alt 2A $240 M 2 19 pts. 2

• 20 pts.

4

2.7

Alt 2B $190 M 1 20 pts. 1

• 15 pts.

2

1.3

P

Alt 4 $245 M 3 8 pts. 4

• 11 pts.

1

2.7

Alt 9 $265 M 4 12 pts. 3

• 16 pts.

3

3.3

* Ranking Best (1) to Worse (4) Highest Ranked Alternative by Technical Committee Conceptual Alternative # Alignment Color 2017 Planning Level Costs Project Benefits Environmental / Socioeconomic / ROW Impacts Average Ranking*

Next Steps

Route 28 Corridor Feasibility Study

Route 28 Corridor Feasibility Study

Next Steps

Dates subject to change as the project progresses through the project development process.

Route 28 Corridor Feasibility Study

Public Information Meeting in Fairfax

Monday, September 11, 2017 6:30 p.m. to 8:30 p.m. Centreville Elementary School Cafeteria 14330 Green Trails Blvd, Centreville, VA 20121 Presentation (same as tonight’s) and Question and Answer Session at 7:00 p.m. Boards and Handouts (same as tonight’s)

Thank you for coming! Comment sheets are available

Route 28 Corridor Feasibility Study
