SLIDE 1

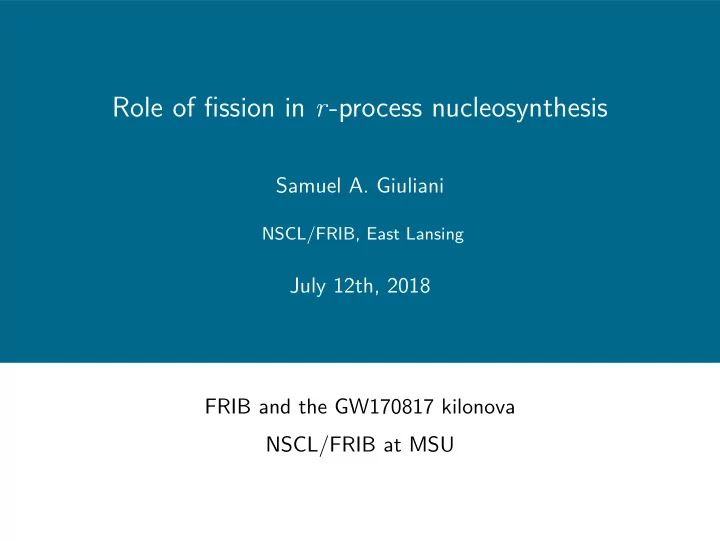

Role of fission in r-process nucleosynthesis

Samuel A. Giuliani

NSCL/FRIB, East Lansing

July 12th, 2018 FRIB and the GW170817 kilonova NSCL/FRIB at MSU

SLIDE 2

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Outline

1. Introduction
2. Impact of fission on r-process nucleosynthesis
3. Fission fragments distributions
4. Conclusions & Outlook

SLIDE 3

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Outline

1. Introduction
2. Impact of fission on r-process nucleosynthesis
3. Fission fragments distributions
4. Conclusions & Outlook

SLIDE 4

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

The r process

r(apid neutron capture) process: τn ≪ τβ−

β decay neutron capture neutron shell closure

N

Z

unstable nuclei stable nuclei

How far can the r process proceed? Number of free neutrons that seed nuclei can capture (neutron-to-seed ratio).

SLIDE 5

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

r process and fission

100 150 200 250 10

−3

10

−2

10

−1

10 10

1

r−process waiting point (ETFSI−Q) Known mass Known half−life N=126 N=82

Solar r abundances

28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68 70 72 74 76 78 80 82 84 86 88 90 92 94 96 98 100 102 104 106 108 110 112 114 116 118 120 122 124 126 128 130 132 134 136 138 140 142 144 146 148 150 152 154 156 158 160 162 164 166 168 170 172 174 176 178 180 182 184 186 188 190 26 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68 70 72 74 76 78 80 82 84 86 88 90 92 94 96 98 100

N=184

30 32 28

f i s s i

n

For large neutron-to-seed ratio fission is unavoidable

n-induced fission
β-delayed fission
spontaneous fission

◮ Where does fission occur? ◮ How much material accumulates in fissioning region? ◮ What are the fission yields?

SLIDE 6

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

1) Compute fission properties and binding energies using BCPM EDF.

120 140 160 180 200 220 240 Neutron number 90 100 110 120 Proton number

Sn = 2 MeV Sn = 0 MeV

2

2 4 6 8 10 12 14

Bf−Sn (MeV)

2) Calculate stellar reaction rates from Hauser-Feshbach theory.

120 140 160 180 200 220 240 Neutron number 90 100 110 120 Proton number

Dominating channel at nn =1028 cm−3

(n,γ) (n,fission)

spont. fission

Sn= 2 MeV Sn= 0 MeV

3) Obtain r-process abundances using network calculations.

120 140 160 180 200 220 240 Neutron number 90 100 110 120 Proton number

25
20
15
10
5

log10(Y)

SLIDE 7

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

The fission process

10 20 30 40 50 60 70 80 Q20 (b)

2050
2045
2040
2035

EHFB (MeV) 286Fl 114 inner barrier fission isomer

uter

barrier ground state

E*

spontaneous fission neutron-induced beta-delayed photo-induced fission

Potential Energy Surface Energy evolution from the initial state to the scission point.

SAG+ PRC90(2014); Sadhukhan+ PRC90(2014)

Collective inertias Resistance

f

the nucleus against the deformation forces.

Baran+ PRC84 (2011)

SLIDE 8

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

The Hartree-Fock-Bogolyubov (HFB) formalism

The ground-state wavefunction is obtained by minimizing the total energy: δE[|Ψ] = 0 , where |Ψ is a quasiparticle (β) vacuum: |Ψ =

µ

βµ|0 ⇒ βµ|Ψ = 0 . The energy landscape is constructed by constraining the deformation of the nucleus Ψ(q)| ˆ Q|Ψ(q) = q: E[|Ψ(q)] = Ψ(q)| ˆ H − λq ˆ Q|Ψ(q) . The energy density functionals (EDF) provide a phenomenological ansatz of the effective nucleon-nucleon interaction:

Barcelona-Catania-Paris-Madrid (BCPM);
Skyrme and Gogny interactions (UNEDF1, D1S);
relativistic EDF.

SLIDE 9

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Outline

1. Introduction
2. Impact of fission on r-process nucleosynthesis
3. Fission fragments distributions
4. Conclusions & Outlook

SLIDE 10

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Nuclear inputs from the BCPM EDF

We study the impact of fission in the r process by comparing BCPM with previous calculations based on Thomas-Fermi (TF) barriers and Finite Range Droplet Model (FRDM) masses.

2 4 6 8 10 12 14

Fission barrier (MeV)

120 140 160 180 200 220 240 Neutron number 90 100 110 120 Proton number TF 90 100 110 120 Proton number BCPM

Sn = 2 MeV Sn = 0 MeV

2 6 10 14 18 S2n (MeV)

184 126 174 BCPM

90 100 110 120 Proton number 2 6 10 14 18 S2n (MeV)

184 126 174 FRDM

BCPM: Giuliani et al. (2018); TF: Myers and ´ Swiat ¸ecky (1999); FRDM: M¨

ller et al. (1995).

SLIDE 11

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Compound reactions

Reaction rates computed within the Hauser-Feshbach statistical model.

compound nucleus target

γ

gamma decay particle emission fission

Based on the Bohr independence hypothesis: the decay of the compound

nucleus is independent from its formation dynamics.

BCPM nuclear inputs implemented in TALYS reaction code to compute

n-induced fission and n-capture rates.

SLIDE 12

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Cross sections from BCPM

Energy (MeV) 101 102 103 104 σ(n,fiss) (mb) 235U(n,fis) Experiment BCPM Energy (MeV) 238U(n,fis) Energy (MeV) 238Pu(n,fis) 10-2 10-1 100 101 Energy (MeV) 101 102 103 104 σ(n,γ) (mb) 235U(n,g) 10-2 10-1 100 101 Energy (MeV) 238U(n,g) 10-2 10-1 100 101 Energy (MeV) 238Pu(n,g)

SLIDE 13

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Stellar reaction rates - impact of collective inertias?

120 140 160 180 200 220 240 Neutron number 90 100 110 120 SEMP-r 90 100 110 120 Proton number GCM-r

Sn = 2 MeV Sn = 0 MeV

90 100 110 120 ATDHFB-r

spont. fis.

α-decay (n,γ) (n,α) (n,fis) (n,2n) SAG, Mart´ ınez-Pinedo and Robledo, Phys. Rev. C 97, 034323 (2018)

SLIDE 14

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

The dynamical ejecta in neutron mergers

Trajectory from 3D relativistic simulations of 1.35 M⊙-1.35 M⊙ NS mergers.

x [km] y [km] 30 20 10 10 20 30 30 20 10 10 20 30 9 9.5 10 10.5 11 11.5 12 12.5 13 13.5 14 14.5 x [km] y [km] 30 20 10 10 20 30 30 20 10 10 20 30 9 9.5 10 10.5 11 11.5 12 12.5 13 13.5 14 14.5 13.0056 ms 13.4824 ms x [km] y [km] 13.8024 ms 50 50 50 40 30 20 10 10 20 30 40 50 9 9.5 10 10.5 11 11.5 12 12.5 13 13.5 14 14.5 x [km] y [km] 15.167 ms 50 50 50 40 30 20 10 10 20 30 40 50 9 9.5 10 10.5 11 11.5 12 12.5 13 13.5 14 14.5

Bauswein et al., ApJ 773, 78 (2013).

Large amount of ejecta (0.001-0.01 M⊙).
Material extremely neutron rich (Rn/s 600).
Role of weak interactions?

SLIDE 15

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

r-process abundances: BCPM vs FRDM+TF

◮ Trajectory: 3D relativistic simulations from 1.35 M⊙-1.35 M⊙ NS mergers [Bauswein+(2013)]. ◮ BCPM Giuliani+(2017) vs TF+FRDM Panov+(2010). ◮ We changed the rates of nuclei with Z ≥ 84. ◮ Same β-decay rates [M¨

ller et al. PRC67(2003)].

10

9

10

8

10

7

10

6

10

5

10

4

10

3

10

2

abundances at n/s=1

10

9

10

8

10

7

10

6

10

5

10

4

10

3

10

2

abundances at τ(n,γ) = τβ

100 150 200 250 300 A 10

9

10

8

10

7

10

6

10

5

10

4

10

3

10

2

abundances at 1 Gyr solar BCPM FRDM+ TF

SLIDE 16

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

r-process abundances: BCPM vs FRDM+TF

◮ Trajectory: 3D relativistic simulations from 1.35 M⊙-1.35 M⊙ NS mergers [Bauswein+(2013)]. ◮ BCPM Giuliani+(2017) vs TF+FRDM Panov+(2010). ◮ We changed the rates of nuclei with Z ≥ 84. ◮ Same β-decay rates [M¨

ller et al. PRC67(2003)].

◮ BCPM barriers larger than TF:

nuclei around A > 280 longer lifetimes ,
accumulation above 2nd peak.

◮ BCPM shell gap smaller than FRDM at N = 174:

FRDM-TF peak at A ∼ 257,
impact on final abundances at A ∼ 110.

◮ Same 232Th/238U ratio: progenitors of actinides have Z < 84 ⇒ can initial nuclei with Z ≥ 84 survive to fission?

10

9

10

8

10

7

10

6

10

5

10

4

10

3

10

2

abundances at n/s=1

10

9

10

8

10

7

10

6

10

5

10

4

10

3

10

2

abundances at τ(n,γ) = τβ

100 150 200 250 300 A 10

9

10

8

10

7

10

6

10

5

10

4

10

3

10

2

abundances at 1 Gyr solar BCPM FRDM+ TF

SLIDE 17

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

r-process abundances: BCPM vs FRDM+TF

◮ Trajectory: 3D relativistic simulations from 1.35 M⊙-1.35 M⊙ NS mergers [Bauswein+(2013)]. ◮ BCPM Giuliani+(2017) vs TF+FRDM Panov+(2010). ◮ We changed the rates of nuclei with Z ≥ 84. ◮ Same β-decay rates [M¨

ller et al. PRC67(2003)].

◮ BCPM barriers larger than TF:

nuclei around A > 280 longer lifetimes ,
accumulation above 2nd peak.

◮ BCPM shell gap smaller than FRDM at N = 174:

FRDM-TF peak at A ∼ 257,
impact on final abundances at A ∼ 110.

◮ Same 232Th/238U ratio: progenitors of actinides have Z < 84 ⇒ can initial nuclei with Z ≥ 84 survive to fission?

10

9

10

8

10

7

10

6

10

5

10

4

10

3

10

2

abundances at n/s=1

10

9

10

8

10

7

10

6

10

5

10

4

10

3

10

2

abundances at τ(n,γ) = τβ

100 150 200 250 300 A 10

9

10

8

10

7

10

6

10

5

10

4

10

3

10

2

abundances at 1 Gyr solar BCPM FRDM+ TF

SLIDE 18

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

r-process abundances: BCPM vs FRDM+TF

◮ Trajectory: 3D relativistic simulations from 1.35 M⊙-1.35 M⊙ NS mergers [Bauswein+(2013)]. ◮ BCPM Giuliani+(2017) vs TF+FRDM Panov+(2010). ◮ We changed the rates of nuclei with Z ≥ 84. ◮ Same β-decay rates [M¨

ller et al. PRC67(2003)].

◮ BCPM barriers larger than TF:

nuclei around A > 280 longer lifetimes ,
accumulation above 2nd peak.

◮ BCPM shell gap smaller than FRDM at N = 174:

FRDM-TF peak at A ∼ 257,
impact on final abundances at A ∼ 110.

◮ Same 232Th/238U ratio: progenitors of actinides have Z < 84 ⇒ can initial nuclei with Z ≥ 84 survive to fission?

10

9

10

8

10

7

10

6

10

5

10

4

10

3

10

2

abundances at n/s=1

10

9

10

8

10

7

10

6

10

5

10

4

10

3

10

2

abundances at τ(n,γ) = τβ

100 150 200 250 300 A 10

9

10

8

10

7

10

6

10

5

10

4

10

3

10

2

abundances at 1 Gyr solar BCPM FRDM+ TF

SLIDE 19

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Averaged fission rates

10

−1

10 10

1

10

2

10

3

10

4

Time (s) 10

−6

10

−5

10

−4

10

−3

10

−2

10

−1

10 10

1

Rate (s−1) BCPM FRDM+TF n-induced fission

spontan. fission

β-delayed fission 10

−6

10

−4

10

−2

10 10

2

neutron-to-seed ratio n/s

◮ n-induced dominates until freeze-out and revived by β-delayed neutrons ⇒ β-delayed fission rates from BCPM barriers required! ◮ decay of material to stability triggers spontaneous fission.

SLIDE 20

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Emitted radioactive energy

Energy emitted by radioactive products in NSM crucial for predicting kilonova light curves [J. Barnes et al., ApJ 829 110 (2016)].

10-5 10-4 10-3 10-2 10-1 100 101 102 Days 10-2 10-1 100 Fraction of radioactive energy BCPM FRDM+TF β-decay α-decay total fission

◮ Minor impact in the radioactive energy production ⇒ progenitors of actinides from Z < 84 [Mendoza-Temis et al., Phys. Rev. C92, 055805 (2015)]. ◮ Fission subdominant → impact of multi-chance bdf [Mumpower et al., arXiv:1802.04398]?

SLIDE 21

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Outline

1. Introduction
2. Impact of fission on r-process nucleosynthesis
3. Fission fragments distributions
4. Conclusions & Outlook

SLIDE 22

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Impact of fission yields on r process

M. Eichler et al., Astrophys. J. 808, 30 (2015).
Final abundances strongly affected by fragments distributions

[see also B. Cˆ

t´

e et al., Astrophys. J. 855, 99 (2018)].

Most of the models are parametrizations/phenomenological → validity far

from stability?

This talk: compute fission yields (FY) using DFT+Langevin.

SLIDE 23

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

The fission process

J. Sadhukan et al. Phys. Rev. C 93, 011304(R) (2016)

SLIDE 24

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

The fission process

J. Sadhukan et al. Phys. Rev. C 93, 011304(R) (2016)

SLIDE 25

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

The stochastic Langevin framework

Path from outer turning point to scission given by dissipative Langevin: dpi dt = −pjpk 2 ∂ ∂xi (M−1)jk − ∂V ∂xi − ηij

friction

(M−1)jkpk + gijΓj(t)

random force

dxi dt = (M−1)ijpj

J. Sadhukan et al. Phys. Rev. C 96, 061301(R) (2017)

20 220 270 320 370 20 40 60

11 10 9 8 7 6 5 4 3 2 1

Q20(b) Q30(b)

SLIDE 26

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

240Pu: Fission yields

J. Sadhukan et al. Phys. Rev. C 96, 061301(R) (2017)

50 60 0.1 1 10 120 140 160 0.1 1 10

240Pu

charge yield (%) fragment charge mass yield (%) fragment mass

Good agreement with experimental data (circles).
Results are robust against variations in theoretical quantities (ηij, E0,. . . ).
Random force responsible for the tails of the distribution.

SLIDE 27

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Fission yields of 294Og

How robust is the method against:

Choice of collective variables?
Choice of collective inertias?
Choice of functional?

Testground: 294

118Og176 [Oganessian et al., PRC 74 (2006)]

Heaviest element produced on Earth (2005-2010 JINR, Dubna).
τ ∼ 0.7 ms.
Very few events (1-2 fission?).

Very exotic nucleus → “blind” EDF calculation. . .

SLIDE 28

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

294Og: potential energy surface

Two competing fission modes: symmetric (Q30 = 0) vs asymmetric (Q30 = 0).

SLIDE 29

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

294Og: potential energy surface

Two competing fission modes: symmetric (Q30 = 0) vs asymmetric (Q30 = 0).
From localization functions: 294

118Og176 −

− → 208

82Pb126 + 86 36Kr50 .

SLIDE 30

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

294Og: potential energy surface

Two competing fission modes: symmetric (Q30 = 0) vs asymmetric (Q30 = 0).
From localization functions: 294

118Og176 −

− → 208

82Pb126 + 86 36Kr50 .

294Og decays via cluster emission.

SLIDE 31

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

294Og barriers: UNEDF1 vs D1S 10 20 30 40 Q30 (b

3 2)

UNEDF1H F B 50 100 150 Q20 (b) 10 20 30 40 Q30 (b

3 2)

D1S 3 6 9 Energy (MeV) cluster fission cluster fission

Matheson et al. (in preparation)

UNEDF1 and D1S predict similar evolution of the potential energy surface, but D1S has larger barrier → impact on yields?

SLIDE 32

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

294Og fission yields: UNEDF1 vs D1S

160 180 200 220 Heavy fragment mass 10−1 100 101 % yield UNEDF1HFB D1S 60 70 80 90 Heavy fragment charge 10−1 100 101

294Og Matheson et al. (in preparation)

SLIDE 33

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Outline

1. Introduction
2. Impact of fission on r-process nucleosynthesis
3. Fission fragments distributions
4. Conclusions & Outlook

SLIDE 34

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Conclusions & Outlook

◮ HFB + Hauser-Feshbach are valuable tools for studying the role of fission in the r-process nucleosynthesis. ◮ New set of stellar rates suited for r-process calculations: ◮ Abundances sensitive to height of fission barriers and local changes in neutron separation energies around A = 257 and A > 280. ◮ No impact on radioactive energy generation and 232Th/238U ratio: progenitors of actinides have Z < 84 ⇒ no nuclei with Z ≥ 84 survive to fission? ◮ EDF + Langevin is a useful method to compute fission yields → small sensitivity on choice of the functional. ◮ Future work:

β-delayed fission rates from BCPM barriers;
calculation of fission fragments distributions using EDFs;
explore different initial astrophysical conditions;
extend calculations using different EDF.

SLIDE 35

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Some questions

Which observables could prove the production of actinides/SHE during the

r process? (see Y. Zhu et al., arXiv:1806.09724 and Nicole’s talk)

How shall we conciliate consistency and accuracy in the calculations of

nuclear inputs? (Nicolas’ talk)

Is it time for new sensitivity studies of r-process abundances? (see
L. Neufcourt et al., arXiv:1806.00552 Witek’s talk)

SLIDE 36

Introduction Fission and r process Fission fragments distributions Conclusions & Outlook

Collaborators

G. Mart´

ınez Pinedo (TUD/GSI, Darmstadt)

Z. Matheson and W. Nazarewicz (NSCL/FRIB, East Lansing)
L. Robledo (UAM, Madrid)
J. Sadhukhan (VECC, Kulkata)
N. Schunck (LLNL, Livermore)
M.-R. Wu (Sinica, Taiwai)

Thank you!

SLIDE 37

The dynamic description of spontaneous fission

tSF ∼ exp(2S) ⇐ S(L) =

b

a

ds

2 × B(s)

E(s) − E0

Expand the multidimensional PES: relevant d.o.f. in s?

◮ Deformation multipoles: Q20, Q22, Q30, . . . ◮ Pairing correlations ∆ (Babinet and Moretto, PLB 49 (1974)). How to determine the fission path L(s)? ◮ Minimizing the energy E(s): static approximation. ◮ Minimizing the action S(L): dynamic approach.

State-of-the-art SF calculations: Sadhukhan et al, PRC88(2013) and PRC90(2014); SAG et al, PRC90(2014); Zhao et al, PRC92(2015) and PRC93(2016).

SLIDE 38

Static vs dynamic fission: 240Pu and 234U

Triaxial case: 240Pu - SkM* interaction

Q20 [b]

Q22 [b]

E(s) [MeV]

from Shadukhan et al., PRC90(2014), see also Zhao et al., PRC93(2016).

dynamic paths: 2D: s = {Q20, Q22} 3D: s = {Q20, Q22, ∆N 2}

SLIDE 39

Static vs dynamic fission: 240Pu and 234U

Triaxial case: 240Pu - SkM* interaction

Q20 [b]

Q22 [b]

E(s) [MeV]

from Shadukhan et al., PRC90(2014), see also Zhao et al., PRC93(2016).

dynamic paths: 2D: s = {Q20, Q22} 3D: s = {Q20, Q22, ∆N 2}

SLIDE 40

Static vs dynamic fission: 240Pu and 234U

Triaxial case: 240Pu - SkM* interaction

Q20 [b]

Q22 [b]

E(s) [MeV]

from Shadukhan et al., PRC90(2014), see also Zhao et al., PRC93(2016).

dynamic paths: 2D: s = {Q20, Q22} 3D: s = {Q20, Q22, ∆N 2} Pairing fluctuations restore the axial symmetry! Artifact?

SLIDE 41

Static vs dynamic fission: 240Pu and 234U

Axial case: 234U - BCPM interaction Method tsf (s) Emin (static) 0.81 × 1043 Smin(Q20, Q30) 0.44 × 1042 Smin(Q20, Q40) 0.12 × 1043 Smin(Q20, ∆N 2) 0.18 × 1023 Experiment 7.8 × 1023

SAG, Robledo and Guzm´ an-Rodriguez PRC90(2014).

Pairing correlations reduce collective inertias → spontaneous fission

lifetimes decrease when pairing is included as d.o.f.

SLIDE 42

Static vs dynamic fission: 240Pu and 234U

Axial case: 234U - BCPM interaction Method tsf (s) Emin (static) 0.81 × 1043 Smin(Q20, Q30) 0.44 × 1042 Smin(Q20, Q40) 0.12 × 1043 Smin(Q20, ∆N 2) 0.18 × 1023 Experiment 7.8 × 1023

SAG, Robledo and Guzm´ an-Rodriguez PRC90(2014).

Pairing correlations reduce collective inertias → spontaneous fission
