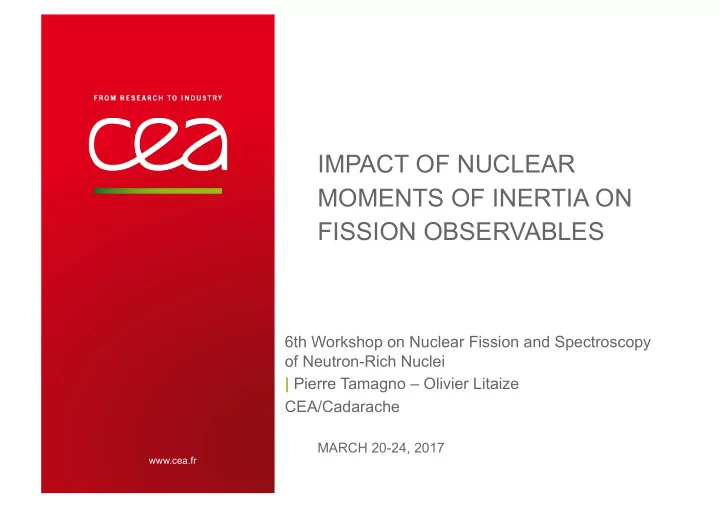

IMPACT OF NUCLEAR MOMENTS OF INERTIA ON FISSION OBSERVABLES 6th Workshop on Nuclear Fission and Spectroscopy of Neutron-Rich Nuclei | Pierre Tamagno Olivier Litaize CEA/Cadarache MARCH 20-24, 2017 www.cea.fr www.cea.fr 31 MAI 2017 CEA

SLIDE 1

www.cea.fr www.cea.fr

IMPACT OF NUCLEAR MOMENTS OF INERTIA ON FISSION OBSERVABLES

MARCH 20-24, 2017

6th Workshop on Nuclear Fission and Spectroscopy

f Neutron-Rich Nuclei

| Pierre Tamagno – Olivier Litaize CEA/Cadarache

31 MAI 2017 | PAGE 1 CEA | 10 AVRIL 2012

SLIDE 2

OUTLINE FIFRELIN calculation scheme Role of the moments of inertia and comparison of models for nuclear moments of inertia Impact of shell-structured MoI on fission observables

31 MAI 2017 | PAGE 2 6th Workshop on Nuclear Fission and Spectroscopy of Neutron-Rich Nuclei | March 20-24, 2017

SLIDE 3

THE FIFRELIN SIMULATION CODE

31 MAI 2017 | PAGE 3 CEA | 10 AVRIL 2012

SLIDE 4

THE FIFRELIN CODE (OUTLINE) Purpose

“FIssion Fragment Evaporation Leading to an Investigation of Nuclear data” Provide information on various fission observables as detailed as possible

Method

Semi-classical simulation of fission decay events by Monte-Carlo sampling of transitions (Hauser-Feshbach) Advantage : many observables, correlation between them Disadvantage : time-consuming for parametric studies

Ingredients

Phenomenological / Microscopic “sub-"models (level density, strength functions, etc.) Experimental data (fragmentations sampling) Nuclear structure databases (RIPL3)

31 MAI 2017 | PAGE 4 6th Workshop on Nuclear Fission and Spectroscopy of Neutron-Rich Nuclei | March 20-24, 2017

SLIDE 5

1. Select a fissioning isotope Zfiss, Afiss, with excitation energy E*

2. Sample fragments masses and kinetics energies from experimental data

3. Sample fragments charges (Gaussian distribution)

4. Sample fragments angular moments according to a Rayleigh distributions 1/2 parity sampling

5. Rotational energy Erot

L + Erot H is removed from available energy Q and remaining

intrinsic energy is distributed according a to temperature-ratio law

| PAGE 5

THE FIFRELIN SIMULATION SCHEME* (OVERVIEW)

* O. Litaize and O. Serot, Phys Rev C 82 (2010)

P(Z) = 1 cπ e

− Z −Z p

( )

ZL, ZH

P(J) = J + 1/2 σ2 e

−(J + 1/2)2

2σ2

JL, JH, πL, πH Y(A) KE(A) AL, AH TKEL, TKEH (AL,ZL) JL, πL, EL* (AH,ZH) JH, πH, EH*

SLIDE 6

1. Starting from fragment (A,Z) in state E*,J,π

2. Sampling levels in unknown (continuum) region from level density ρ(Ε*,J,π)

3. Calculating transition width for γ-emission (γ-strength function)

and neutron emission (Optical Model) + level density (again) 3. 4.

Sample transition, scoring, resuming step 1 until GS is reached

| PAGE 6

Experimental levels Additional levels (from level density sampling)

dE

A

gs

THE FIFRELIN CODE (CASCADE DECAY)

dE

A-1

gs

Γγi→j = P

X,L

y2

XL(Ei − Ej)2L+1 Sγ XL(Ei − Ej)

ρ(Ei, Ji, πi)

6th Workshop on Nuclear Fission and Spectroscopy of Neutron-Rich Nuclei | March 20-24, 2017

SLIDE 7

ROLE OF THE MOMENTS OF INERTIA

31 MAI 2017 | PAGE 7 CEA | 10 AVRIL 2012

SLIDE 8

ROLE OF MOMENTS OF INERTIA IN MODEL INITIAL PARAMETERS

31 MAI 2017 | PAGE 8

FIFRELIN adjusted parameters: RT

min RT max (temperature law)

σL, σH Spin cutoff used for sampling initial spin states (identical for all fragmentations) k (ratio of moment of inertia to rigid body value)

I is not involved only in rotation energy

« However, observations from microscopic level density studies show that the quantity σ2/t is not constant, but exhibits marked shell effects similar to the level density parameter a. » (RIPL3, Capote et al. Nuclear Data Sheets (2009) )

Replacing I in spin cutoff expressions must be done with care (don’t double-count

shell effect)

Erot = J(J + 1) 2kIrigid

P(J) = J + 1/2 σ2 e

−(J + 1/2)2

2σ2

σ2 = Irigid

spherical

a ˜ a r U a

6th Workshop on Nuclear Fission and Spectroscopy of Neutron-Rich Nuclei | March 20-24, 2017

SLIDE 9

CLASSICAL AND SEMI-CLASSICAL MOMENTS OF INERTIA

Rigid body Irrotational flow Cranking (Inglis-Belyaev) model using FRDM* microscopic model *Moller et al., Atomic Data and Nuclear Data Tables, 59 (1995)

| PAGE 9

Irigid = 2 5MR2(1 + 0.31β2 + 0.44β2

2 + ...)

Iirrot = 9 8π AMR2β2

2

Iirrot ⌧ Irigid

Ti-42 Ti-48 Fe-60 Ni-56 Ni-58 Ni-62 Zn-62 Zn-68 Zn-70 Ge-70 Se-74 Sr-88 Zr-92 Mo-92 Mo-96 Ru-96 Cd-106 Cd-110 Cd-112 Sn-116 Sn-122 Te-110 Te-120 Te-122 Te-124 Te-128 Xe-120 Xe-122 Xe-124 Xe-126 Xe-134 Ba-122 Ba-124 Ba-126 Ba-128 Ba-130 Ba-134 Ba-136 Ce-126 Ce-128 Ce-130 Ce-132 Ce-140 Ce-142 Ce-152 Nd-134 Nd-142 Nd-144 Nd-152 Nd-154 Nd-156 Sm-142 Sm-154 Sm-156 Gd-154 Gd-156 Gd-158 Gd-160 Gd-164 Dy-156 Dy-158 Dy-160 Dy-162 Dy-164 Dy-166 Er-162 Er-164 Er-166 Er-168 Er-170 Yb-164 Yb-166 Yb-168 Yb-170 Yb-172 Yb-174 Yb-176 Yb-178 Hf-170 Hf-172 Hf-174 Hf-176 Hf-178 Hf-180 Hf-182 W-176 W-178 W-180 W-182 W-184 W-186 Th-224 Th-226 Th-228 Th-230 Th-232 Th-234 U-230 U-232 U-234 U-236 U-238 U-240 Pu-236 Pu-238 Pu-240 Pu-242 Pu-244 Pu-246 Cm-242 Cm-244 Cm-246 Cm-248 Cf-248 Cf-250 Cf-252 Fm-254

100 200 300 Moment of Inertia 2I/¯ h Icrank Irigid Iirrot Exp

Quasi-particle energy and level occupations from BCS equations Single-particle wave-functions from FRDM

actinides rare-earths “fission fragments”

6th Workshop on Nuclear Fission and Spectroscopy of Neutron-Rich Nuclei | March 20-24, 2017

SLIDE 10

IMPACT ON FISSION OBSERVABLES

Only rotational energy modified, Cranking used with k=2, Application to 252Cf(sf)

31 MAI 2017 | PAGE 10 CEA | 10 AVRIL 2012

SLIDE 11

SAW TOOTH

31 MAI 2017 | PAGE 11 6th Workshop on Nuclear Fission and Spectroscopy of Neutron-Rich Nuclei | March 20-24, 2017

SLIDE 12

AVERAGE NEUTRON ENERGY IN CM

31 MAI 2017 | PAGE 12 6th Workshop on Nuclear Fission and Spectroscopy of Neutron-Rich Nuclei | March 20-24, 2017

SLIDE 13

AVERAGE NEUTRON ENERGY IN CM

31 MAI 2017 | PAGE 13 CEA | 10 AVRIL 2012

rigid cranking Stronger Z-dependency in the A=120-140 and A=85-95 regions for the cranking than the rigid body rigid cranking

SLIDE 14

GAMMA SPECTRUM (1/2)

31 MAI 2017 | PAGE 14 CEA | 10 AVRIL 2012

SLIDE 15

GAMMA SPECTRUM (2/2)

31 MAI 2017 | PAGE 15 CEA | 10 AVRIL 2012

SLIDE 16

CONCLUSIONS

| PAGE 16

The moment of inertia is involved in many aspect in de-excitation models. The shell structure bared by the cranking-based moments of inertia can significantly impact fission observables. Effect on spin cutoffs must be investigated with care as remaining parameters used in systematics have been obtained with rigid-body models.

6th Workshop on Nuclear Fission and Spectroscopy of Neutron-Rich Nuclei | March 20-24, 2017
