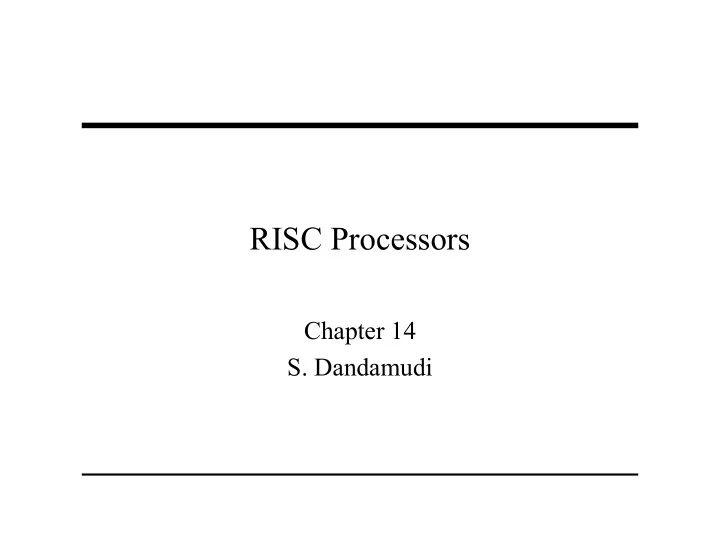

RISC Processors Chapter 14 S. Dandamudi Outline Introduction - - PowerPoint PPT Presentation

RISC Processors

Chapter 14

• S. Dandamudi

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 2

Outline

• Introduction
• Evolution of CISC

processors

• RISC design principles
• PowerPC processor

∗ Architecture ∗ Addressing modes ∗ Instruction set

• Itanium processor

∗ Architecture ∗ Addressing modes ∗ Instruction set ∗ Instruction-level parallelism ∗ Branch handling ∗ Speculative execution

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 3

Introduction

• CISC

∗ Complex instruction set

» Pentium is the most popular example

• RISC

∗ Simple instructions

» Reduced complexity

∗ Modern processors use this design philosophy

» PowerPC, MIPS, SPARC, Intel Itanium – Borrow some features from CISC

∗ No precise definition

» We can identify some common characteristics

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 4

Evolution of CISC Designs

• Motivation to efficiently use expensive resources

∗ Processor ∗ Memory

• High density code

∗ Complex instructions

» Hardware complexity is handled by microprogramming » Microprogramming is also helpful to – Reduce the impact of memory access latency – Offers flexibility Low-cost members of the same family

∗ Tailored to high-level language constructs

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 5

Evolution of CISC Designs (cont’d)

CISC RISC VAX 11/780 Intel 486 MIPS R4000 # instructions 303 235 94

• Addr. modes

22 11 1

• Inst. size (bytes)

2-57 1-12 4 GP registers 16 8 32

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 6

Evolution of CISC Designs (cont’d)

Example

∗ Autoincrement addressing mode of VAX

» Performs the following actions:

(R2) = (R2) + R3; R2 = R2 + 1 ∗ RISC equivalent R4 = (R2) R4 = R4 + R3 (R2) = R4 R2 = R2 + 1

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 7

Why RISC?

• Simple instructions are preferred

∗ Complex instructions are mostly ignored by compilers » Due to semantic gap

• Simple data structures

∗ Complex data structures are used relatively infrequently ∗ Better to support a few simple data types efficiently » Synthesize complex ones

• Simple addressing modes

∗ Complex addressing modes lead to variable length instructions

» Lead to inefficient instruction decoding and scheduling

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 8

Why RISC? (cont’d)

• Large register set

∗ Efficient support for procedure calls and returns

» Patterson and Sequin’s study – Procedure call/return: 12−15% of HLL statements Constitute 31−33% of machine language instructions Generate nearly half (45%) of memory references

∗ Small activation record

» Tanenbaum’s study – Only 1.25% of the calls have more than 6 arguments – More than 93% have less than 6 local scalar variables – Large register set can avoid memory references

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 9

RISC Design Principles

• Simple operations

∗ Simple instructions that can execute in one cycle

• Register-to-register operations

∗ Only load and store operations access memory ∗ Rest of the operations on a register-to-register basis

• Simple addressing modes

∗ A few addressing modes (1 or 2)

• Large number of registers

∗ Needed to support register-to-register operations ∗ Minimize the procedure call and return overhead

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 10

RISC Design Principles (cont’d)

Register windows storing activation records

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 11

RISC Design Principles (cont’d)

• Fixed-length instructions

∗ Facilitates efficient instruction execution

• Simple instruction format

∗ Fixed boundaries for various fields

» opcode, source operands,…

• Other features

∗ Tend to use Harvard architecture ∗ Pipelining is visible at the architecture level

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 12

PowerPC

• Registers

∗ 32 general-purpose registers (GPR0 – GPR31) ∗ 32 floating-point registers (FPR0 – FPR31) ∗ Condition register (CR)

» Similar to Pentium’s flags register » Divided into 8 CR fields (4 bits each) – “less than” (LT), “greater than” (GT), “equal to” (EQ), Overflow (SO) – CR1 is for floating-point exceptions – Other CR fields can be used for integer or FP exceptions – Branch instructions can test a specific CR field bit

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 13

PowerPC (cont’d)

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 14

PowerPC (cont’d)

∗ XER register serves two distinct purposes

» Bits 0, 1, and 2 are used to capture – Summary overflow (SO), overflow (OV), carry (CA) – OV and CA are similar to Pentium’s overflow and carry – SO, once set, only a special instruction can clear it » Bits 25 to 31 (7 bits) – Specifies the number of bytes to be transferred between memory and registers – Two instructions Load string word indexed (lswx) Store string word indexed (stswx) Can load/store all 32 registers (GPR0-GPR31)

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 15

PowerPC (cont’d)

∗ Link register (LR)

» Used to store the procedure return address – Stores the effective address of the instruction following the procedure call instruction – Procedure calls use the branch instructions Example: b = branch, bl = procedure call

∗ Count register (CTR)

» Maintains loop count value – Similar to Pentium's ECX register – Branch instructions can test the value

• 32-bit PowerPC implementations use

segmentation like the Pentium

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 16

PowerPC (cont’d)

• Addressing modes

∗ Load/store instructions support three addressing modes

» Can use GPRs

∗ Register Indirect

» Effective address = contents of rA or 0 » Specifying 0 generates address 0

∗ Register Indirect with Immediate Index

» Effective address = Contents of rA or 0 + imm16

∗ Register Indirect with Index

» Effective address = Contents of rA or 0 + contents of rB

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 17

PowerPC (cont’d)

Instruction format

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 18

PowerPC (cont’d)

• Bits 0-5

∗ Specify primary opcode ∗ Other fields specify suboperations

» Depends on instruction type

• AA bit

∗ 1 (use absolute address) ∗ 0 (use relative address)

• LK bit

∗ 0 (no link --- branch) ∗ 1 (link --- turns branch into a procedure call)

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 19

PowerPC Instruction Set

• Data Transfer instructions
• Byte loads

lbz rD,disp(rA) ;Load byte and zero lbzu rD,disp(rA) ;Load byte and zero ;with update

» Effective address = contents of rA + disp

lbzx rD,rA,rB ;Load byte and zero indexed lbzux rD,rA,rB ;Load byte and zero ;with update indexed

» Effective address = contents of rA + contents of rB » Upper three bytes of rD are zeroed » Update versions: rA ← effective address

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 20

PowerPC Instruction Set (cont’d)

• Similar instructions for halfword and word loads

lhz, lhzu, lhzx, lhzxu lwz, lwzu, lwzx, lwzxu

• For halfword loads, sign extension is possible

lha, lhau, lhax, lhaxu

• Multiword load

lmw rD,disp(rA)

» Loads n consecutive words at EA to registers rD, …, r31

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 21

PowerPC Instruction Set (cont’d)

• Similar instructions for store

stbz, stbzu, stbzx, stbzxu sthz, sthzu, sthzx, sthzxu stwz, stwzu, stwzx, stwzxu

• Multiword store

stmw rD,disp(rA)

» Stores n consecutive words at EA to registers rD, …, r31

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 22

PowerPC Instruction Set (cont’d)

Arithmetic Instructions

• Add instructions

add rD,rA,rB ; rD ← rA + rB

» Status and overflow bits of CR0 and XER are not altered

add. rD,rA,rB ; alters LT,GT,EQ,SO of CR0 addo rD,rA,rB ; alters SO,OV of XER

• addo. rD,rA,rB ; alters LT,GT,EQ,SO of CR0

; and SO,OV of XER

» These four instructions do not alter the CA bit of XER

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 23

PowerPC Instruction Set (cont’d)

∗ To alter CA bit, use

adde rD,rA,rB

∗ To alter the other bits, use

adde., addeo, addeo.

∗ Immediate operand version

addi rD,rA,Simm16

∗ We can use addi to implement other instructions

li rD,value as addi rD,0,value la rD,disp(rA) as addi rD,rA,disp subi rD,rA,value as addi rD,rA,-value

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 24

PowerPC Instruction Set (cont’d)

• Subtract instructions

subf rD,rA,rB

; rD ← rB − rA – subf = subtract from

∗ Like add, other forms are available subf., subfo, subfo. ∗ Negate instruction neg rD,rA

; rD ← 0 − rA

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 25

PowerPC Instruction Set (cont’d)

• Multiply instructions

∗ Two instructions to get upper and lower 32 bits of the 64-bit result mullw rD,rA,rB ; signed/unsigned multiply

» Stores the lower-order 32 bits of the result » Use the following to get the upper 32 bits

mulhw rD,rA,rB ; signed mulhwu rD,rA,rB ; unsigned ∗ Immediate form mulli rD,rA,Simm16

» Stores only lower 32 bits of the 48-bit result

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 26

PowerPC Instruction Set (cont’d)

∗ Divide instructions

» Two divide instructions – Signed (divw)

divw rD,rA,rB ; rD = rA/rB

– Unsigned (divwu) » Both give only quotient » For quotient and remainder, use

divw rD,rA,rB ; quotient in rD mullw rX,rD,rB subf rC,rX,rA ; remainder in rC

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 27

PowerPC Instruction Set (cont’d)

∗ Logical instructions

and rD,rS,rB and. rD,rS,rB

• andi. rD,rS,Uimm16 andis. rD,rS,Uimm16

andc rD,rS,rB andc. rD,rS,rB » andis = left shift uimm16 by four positions before ANDing » andc = complement rB before ANDing » Dot versions update the LT, GT, EQ, SO bits of CR0 » Logical OR also has these six versions » Move register instruction is implemented using OR mr rA,RS is equivalent to

• r

rA,rS,rS » NOP is implemented as

• ri 0,0,0

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 28

PowerPC Instruction Set (cont’d)

∗ Other logical operations

» NAND – nand – nand. » NOR – nor – nor. » XOR – xor, xor. – xori, xoris » Equivalence (exclusive-NOR) – eqv – eqv.

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 29

PowerPC Instruction Set (cont’d)

∗ Shift and Rotate instructions

» Shift left

slw rA,rS,rB ; shift left word

» Shift left the word in rS by rB positions and store result in rA – Shifted out bits get zeroes » Also have the dot version slw. » Shift right

srw srw. (logical) sraw sraw. (arithmetic)

» Rotate left instructions

rlwnm rA,rS,rB,MB,ME rotlw rA,rS,rB ≡ ≡ ≡ ≡ rlwnm rA,rS,rB,0,31

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 30

PowerPC Instruction Set (cont’d)

∗ Compare instructions

» Two versions: – For signed and unsigned » Two formats – Register and immediate » Register compare

cmp crfD,rA,rB

» Updates LT (rA < rB), GT (rA > rB), EQ, SO bits in the crfD » If crfD is not specified, CR0 is used » Immediate version

cmp crfD,rA,Simm16

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 31

PowerPC Instruction Set (cont’d)

∗ Branch Instructions

» Used for both branch (LK = 0) and procedure calls (LK = 1) » Can use absolute (AA = 1) or relative address (AA = 0) b target (AA=0, LK=0) Branch ba target (AA=1, LK=0) Branch Absolute bl target (AA=0, LK=1) Branch then link bla target (AA=1, LK=1) Branch Absolute then link » The last two are procedure calls » Three types of conditional branches – Direct address – Register indirect CTR or LR

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 32

PowerPC Instruction Set (cont’d)

∗ Conditional branch instructions (direct address)

bc BO,BI,target (AA=0, LK=0) Branch Conditional bca BO,BI,target (AA=1, LK=0) Branch Conditional Absolute bcl BO,BI,target (AA=0, LK=1) Branch Conditional then link bcla BO,BI,target (AA=1, LK=1) Branch Conditional Absolute then link » BO = branch options (5 bits) ⇒ specifies branch condition » BI = branch input (5 bits) ⇒ specifies a bit in CR field

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 33

PowerPC Instruction Set (cont’d)

∗ Nine different branch conditions can be specified

» Decrement CTR; branch if CTR ≠ 0 AND cond = false » Decrement CTR; branch if CTR = 0 AND cond = false » Decrement CTR; branch if CTR ≠ 0 AND cond = true » Decrement CTR; branch if CTR = 0 AND cond = true » Branch if cond = false » Branch if cond = true » Decrement CTR; branch if CTR ≠ 0 » Decrement CTR; branch if CTR = 0 » Branch always

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 34

PowerPC Instruction Set (cont’d)

∗ LR-based branch instructions

bclr BO,BI (LK=0) Branch Conditional to Link Register bclrl BO,BI (LK=1) Branch Conditional to Link Register then Link » Target address is taken from LR » Used to return from procedure calls

∗ CTR-based branch instructions

bcctr BO,BI (LK=0) bcctrl BO,BI (LK=1) » CTR instead of LR is used to get target

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 35

Itanium

• Intel’s 64-bit processor

∗ RISC based ∗ Based on EPIC design philosophy

» Explicit Parallel Instruction Computing » Support for ILP – 3-instruction wide word » Speculative computation – Hides memory latency » Predication – Improves branch handling » Large number of registers – 128 integer and 128 FP – Aids in efficient procedure calls

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 36

Itanium (cont’d)

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 37

Itanium (cont’d)

• Registers

∗ 128 general purpose register (gr0 – gr127)

» 64-bit wide » NaT (Not-a-Thing) bit – Used in speculative loading » Divided into static and stacked – Static First 32 registers (gr0 – gr31) gr0 is read-only (always provides zero) – Stacked Available for programs Used as register stack frame

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 38

Itanium (cont’d)

• Registers

∗ Branch registers

» 8 in total (br0 – br7) » 64-bit wide » Specify target address for – Conditional branches – Procedure calls – Return

∗ User mask register

» Alignment, byte ordering, …

∗ Other registers

» Predicate register, Application registers, Current frame marker

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 39

Itanium (cont’d)

• Addressing modes

∗ Load/store instructions can access memory

» Specify three registers: r1, r2, r3 – r32 and r3 are used to compute effective address – r1 receives/supplies data

∗ Register indirect addressing

» Effective address = contents of r3

∗ Register indirect with immediate addressing

» Effective address = contents of r3 + imm9 » r3 = Effective address

∗ Register indirect with index addressing

» Effective address = contents of r3 + contents of r2 » r3 = Effective address

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 40

Itanium (cont’d)

• Instruction Format

[(qp)] mnemonic[.comp] dests = srcs

∗ qp = qualifying predicate

» Specifies a predicate register – 64 1-bit registers – Executed if the specified PR is 1 – Otherwise, instruction is treated as NOP » mnemonic – Identifies an instruction (e.g., compare) » comp – Gives more information to completely specify instruction – E.g., Type of comparison is equality

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 41

Itanium (cont’d)

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 42

Itanium (cont’d)

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 43

Itanium (cont’d)

• Examples

add r1 = r2,r3 Predicate instruction (p4) add r1 = r2,r3 add r1 = r2,r3,1 Compare instructions cmp.eq p3 = r2,r4 cmp.gt p2,p3 = r3,r4 Branch instruction br.cloop.sptk loop_back

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 44

Instruction-level Parallelism

• Itanium provides

∗ Runtime support for explicit parallelism

– Compiler/assembler can indicate parallelism » Instruction groups

∗ Large number of registers

• Instruction groups

∗ Set of instructions that do not have conflicting dependencies

» Can be executed in parallel

∗ Compiler/assembler can indicate this by ;; notation

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 45

Instruction-level Parallelism

• Example: Logical expression with four terms

if (r10 || r11 || r12 || r13) { /* if-block code */ }

can be done using or-tree evaluation

• r r1 = r10,r11 /* Group 1 */
• r r2 = r12,r13 ;;
• r r3 = r1,r2 /* Group 2 */

Other instructions /* Group 3 */

∗ Processor can execute as many instructions from group as it can

» Depends on the available resources

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 46

Itanium Instruction Bundle

• Each instruction is encoded using 41 bits
• Three instructions are bundled together

∗ 128-bit Instruction bundle ∗ No conflicting dependencies among the three instructions

» Aids in instruction–level parallelism

∗ 5-bit template

» Specifies mapping of instruction slots to execution instruction types – Six instruction types Integer ALU, non-ALU integer, memory, branch, FP, extended

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 47

Itanium Instructions

• Data transfer instructions

» Load and store instructions are more complicated than a typical RISC processor

∗ Load instructions (qp) ldSZ.ldtype.ldhint r1=[r3] (qp) ldSZ.ldtype.ldhint r1=[r3],r2 (qp) ldSZ.ldtype.ldhint r1=[r3],imm9

» Loads SZ bytes from memory – SZ can be 1, 2, 4, or 8 to load 1, 2, 4, or 8 bytes – Example:

ld8 r5 = [r6]

Locality of memory access Special load operations: advanced, speculative

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 48

Itanium Instructions (cont’d)

• ldtype

∗ This completer can be used to specify special load

• perations

» Advanced ld8.a r5 = [r6] » Speculative ld8.s r5 = [r6]

• ldhint

∗ Locality of memory access

None – Temporal locality, level 1 nt 1 – No temporal locality, level 1 nt a – No temporal locality, all levels

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 49

Itanium Instructions (cont’d)

• Store instructions

∗ Simpler than load instructions (qp) stSZ.sttype.sthint r1=[r3] (qp) stSZ.sttype.sthint r1=[r3],imm9

• Move instructions

(qp) mov r1 = r3 (qp) mov r1 = imm2 (qp) mov r1 = imm64

» First two are pseudo-instructions – Implemented using other processor instructions

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 50

Itanium Instructions (cont’d)

• Arithmetic instructions

∗ Simpler than load instructions (qp) add r1 = r2,r3 (qp) add r1 = r2,r3,1 (qp) add r1 = imm,r4 ∗ Move instruction (qp) mov r1 = r3 implemented as (qp) add r1 = 0,r3 ∗ Move instruction (qp) mov r1 = imm22 implemented as (qp) add r1 = imm22,r0

can be imm14

• r imm22

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 51

Itanium Instructions (cont’d)

• Similar instructions for subtraction
• Shift-add

(qp) shladd r1 = r2,count,r3

» Before adding, r2 is left-shifted by count bit positions

• Integer multiply is realized using the xma

instruction and floating-point registers

• No divide instruction

∗ Done in software

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 52

Itanium Instructions (cont’d)

• Logical instructions

∗ AND ∗ OR ∗ XOR ∗ No NOT operation » Can use and-complement (andcm)

– Complements one of the operands before ANDing

• Format

(qp) and r1 = r2,r3 (qp) and r1 = imm8,r3

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 53

Itanium Instructions (cont’d)

• Shift instructions

∗ Left-shift ∗ Right-shift

• Format

(qp) shl r1 = r2,r3 (qp) and r1 = imm8,r3

• Right-shift

(qp) shr r1 = r2,r3 (signed version) (qp) shr.u r1 = r2,r3 (Unsigned version)

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 54

Itanium Instructions (cont’d)

• Compare instructions

∗ Format (qp) cmp.crel.ctype p1,p2 = r2,r3 (qp) cmp.crel.ctype p1,p2 = imm8,r3 ∗ crel: Type of comparison Cmp type signed unsigned < lt ult ≤ ≤ ≤ ≤ le ule > gt ugt ≥ ≥ ≥ ≥ ge uge = eq eq

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 55

Itanium Instructions (cont’d)

∗ ctype: Specifies how the two predicate registers are to be updated

» Default: – Comparison result in p1 and its complement in p2 » or type – p1 and p2 are set to 1 only if the comparison result is 1 – Otherwise, p1 and p2 are not altered – Useful in OR-type simultaneous execution » andtype – p1 and p2 are set to 0 only if the comparison result is 0 – Otherwise, p1 and p2 are not altered – Useful in AND-type simultaneous execution

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 56

Itanium Instructions (cont’d)

• Branch instructions

∗ Used for jump as well as procedure calls ∗ Supports both direct and indirect branching

» All direct branched are IP-relative

∗ IP relative form (qp) br.btype.bwh.ph.dh target25 (basic form) (qp) br.btype.bwh.ph.dh b1=target25 (call form) br.btype.bwh.ph.dh target25 (counted loop form)

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 57

Itanium Instructions (cont’d)

∗ Indirect form (qp) br.btype.bwh.ph.dh b2 (basic form) (qp) br.btype.bwh.ph.dh b1=b2 (call form) ∗ btype: Type of branch

» cond or none (for basic form) – Branch taken if qp is 1; otherwise not » To invoke a procedure – Use the call form with btype = call – Turns branch into a conditional procedure call – Procedure invoked only if qp is 1; otherwise not – Return address is saved in b1 branch register

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 58

Itanium Instructions (cont’d)

» Uncounted counted loop version – Set btype = cloop – Loop count is in application register ar65 – If ar65 not zero, decrements and takes branch » RET version – Use btype = ret – Should use the indirect form and specify the branch register that has the return address

• Example 1: Conditional skip

(p3) br skip

• r

(p3) br.cond skip

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 59

Itanium Instructions (cont’d)

• Example 2: Loop iterates 100 times

mov lc = 100 Loop_back: . . . br.cloop loop_back

• Example 3: Procedure call to sum

(p0) br.call br2 = sum

• Example 4: Return from a procedure

(p0) br.ret br2

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 60

Handling Branches

• Three techniques:

∗ Branch elimination

» Eliminate branches – Best way to handle branches is not to have branches Possible to eliminate some types of branches

∗ Branch speedup

» Reduce the delay associated with branches – Reorder instructions – Speculative execution

∗ Branch prediction

» Discussed before (see Chapter 8)

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 61

Handling Branches (cont’d)

• Branch elimination in Itanium

∗ Can be done using predication

if (R1 == R2) R3 = R3 + R1; else R3 = R3 – R1;

cmp r1,r2 je equal sub r3,r1 jmp next equal: add r3,r1 next: cmp.eq p1,p2 = r1,r2 (p1) add r3 = r3,r1 (P2) sub r3 = r3,r1

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 62

Handling Branches (cont’d)

switch (r6){ case 1: r2 = r3 + r4; break; case 2: r2 = r3 - r4; break; case 3: r2 = r3 + r5; break; case 4: r2 = r3 – r5; break; } cmp.eq p1,p0 = r6,1 cmp.eq p2,p0 = r6,2 cmp.eq p3,p0 = r6,3 cmp.eq p4,p0 = r6,4;; (p1) add r2 = r3,r4 (p2) sub r2 = r3,r4 (p3) add r2 = r3,r5 (p4) sub r2 = r3,r5

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 63

Speculative Execution

• Instructions are executed in expectation that they

will be needed

∗ Keeps pipeline full ∗ Masks memory latency

• Itanium supports two types

∗ Handles data dependencies

» Data dependencies are discussed in Chapter 8

∗ Handles control dependencies ∗ Both are compiler optimizations

» Reorders instructions

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 64

Speculative Execution (cont’d)

Data speculation

sub r6 = r7,r8 ;; //cycle 1 sub r9 = r10,r6 //cycle 2 ld8 r4 = [r5] ;; add r11 = r12,r4 ;; //cycle 4 ld8 r4 = [r5] //cycle 1 sub r6 = r7,r8 ;; sub r9 = r10,r6 ;; //cycle 2 add r11 = r12,r4 //cycle 3

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 65

Speculative Execution (cont’d)

• Ambiguous dependency between first st8 and

ld8

sub r6 = r7,r8 ;; //cycle 1 st8 [r9] = r6 //cycle 2 ld8 r4 = [r5] ;; add r11 = r12,r4 ;; //cycle 4 st8 [r10] = r11 //cycle 5

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 66

Speculative Execution (cont’d)

• We can move such load instructions using

advance load (ld.a) and check load (ld.c)

ld8.a r4 = [r5] //cycle 0 or earlier . . . sub r6 = r7,r8 ;; //cycle 1 st8 [r9] = r6 //cycle 2 ld8.c r4 = [r5] add r11 = r12,r4 ;; st8 [r10] = r11 //cycle 3

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 67

Speculative Execution (cont’d)

• Further improvement with advance check (chk.a)

ld8.a r4 = [r5] //cycle -1 or earlier . . . add r11 = r12,r4 //cycle 1 sub r6 = r7,r8 ;; st8 [r9] = r6 //cycle 2 chk.a r4,recover back: st8 [r10] = r11 recover: ld8 r4 = [r5] // reload add r11 = r12,r4 // reexecute add br back // jump back

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 68

Speculative Execution (cont’d)

• Control speculation

∗ To reduce long latency instructions such as loads, advance them earlier into the code cmp.eq p1,p0 = r10,10 //cycle 0 (p1) br.cond skip ;; //cycle 0 ld8 r1 = [r2] ;; //cycle 1 add r3 = r1,r4 //cycle 3 skip: // other instructions Cannot advance because of branch

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 69

Speculative Execution (cont’d)

ld8.s r1 = [r2] ;; cycle –2 or earlier //other instructions cmp.eq p1,p0 = r10,10 //cycle 0 (p1) br.cond skip //cycle 0 chk.s r1,recovery //cycle 0 add r3 = r1,r4 //cycle 0 skip: //other instructions recovery: ld8 r1 = [r2] br skip

Speculative check chk.s allows us to advance ld8

2003

To be used with S. Dandamudi, “Fundamentals of Computer Organization and Design,” Springer, 2003.

 S. Dandamudi Chapter 14: Page 70

Branch Prediction

• Branch hints

∗ bwh completer (branch whether hint)

spnt static branch not taken sptk static branch taken dpnt dynamic branch not taken dptk static branch not taken

• Prefetch hint (ph)

∗ Hint about sequential prefetch

» few or many

• Deallocation hint (dh)

∗ Specifies whether branch cache should be cleared

» clr indicates deallocation

Last slide
