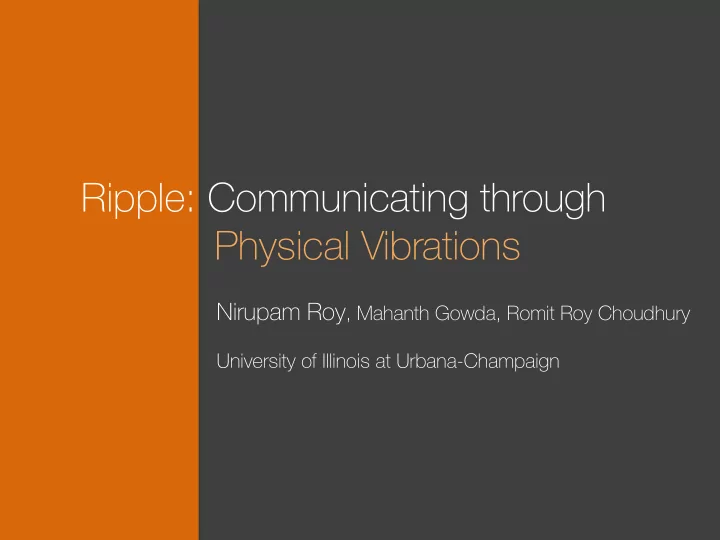

Ripple: Communicating through Physical Vibrations
University of Illinois at Urbana-Champaign
Nirupam Roy, Mahanth Gowda, Romit Roy Choudhury
Vibration Motor Accelerometer
Ripple: Communicating through Physical Vibrations Nirupam Roy , - - PowerPoint PPT Presentation
Ripple: Communicating through Physical Vibrations Nirupam Roy , - - PowerPoint PPT Presentation
Ripple: Communicating through Physical Vibrations Nirupam Roy , Mahanth Gowda, Romit Roy Choudhury University of Illinois at Urbana-Champaign Accelerometer Vibration Motor Accelerometer Vibration Motor Morse Code Key On On On On On On O
SLIDE 2
SLIDE 3
Vibration Motor Accelerometer
SLIDE 4
Vibration Motor Accelerometer On On Offf On On On On
Morse Code Key
Modulated vibration
SLIDE 5
Radio-Frequency Optical Magnetic Acoustic
Vibratory
Communication through Solids
SLIDE 6
Radio-Frequency Optical Magnetic Acoustic
Vibratory
Communication through Solids
Why do we care?
SLIDE 7
Applications: Mobile Money Transfer
SLIDE 8
Applications: Mobile Money Transfer
RECEIVE&
SLIDE 9
Applications: Authentication with Ring
Enter&Passcode&
SLIDE 10
Applications: Authentication with Ring
Vibratory&& Passcode&Detected&&
SLIDE 11
Applications: Authentication with Ring
SLIDE 12
Applications: Body-Area Network
SLIDE 13
Again, we don’t know the killer-app.
SLIDE 14
Application Vibratory Radio
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
Hardware
SLIDE 15
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
6 bps 80 bps 200 bps 400 bps +secured
SLIDE 16
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
N S
Vibration Motor Accelerometer
C1 C2
SLIDE 17
30 60 90 120 ms Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
Regulated Input Vibration Braking
SLIDE 18
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code 30 60 90 120 ms
SLIDE 19
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 20
Single-Carrier Multi-Carrier
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 21
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code 30 60 90 120 ms 100 Hz 200 Hz 300 Hz
SLIDE 22
N S
+
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
+
…"
SLIDE 23
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 24
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 25
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
Filtering Envelope Detection
SLIDE 26
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code Z Y X
SLIDE 27
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code Z Y X
SLIDE 28
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code Z Y X
SLIDE 29
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code Z Y X Spilled signal
SLIDE 30
Phase lag
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code Z Y X Spilled signal
SLIDE 31
2h
Y signal
Y-Axis Z-Axis
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 32
2h
Y signal Y spill
h Y-Axis Z-Axis
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 33
2h
Y signal Y spill
h 2h h
Z spill Z signal
Y-Axis Z-Axis
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 34
2h
Y signal Y spill
h 2h h
Z spill Z signal
2 =&
4h 2h
Scaled Y signal
Y-Axis Z-Axis
*
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 35
2h
Y signal Y spill
h 2h h
Z spill Z signal
2 =&
4h 2h
Scaled Y signal
Y-Axis Z-Axis
*
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 36
2h
Y signal Y spill
h 2h h
Z spill Z signal
2 =&
4h 2h
Scaled Y signal
Y-Axis Z-Axis
*
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 37
2h
Y signal Y spill
h 2h h
Z spill Z signal
2 =&
4h 2h
Scaled Y signal
+
Y-Axis Z-Axis
*
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 38
2h
Y signal Y spill
h 2h h
Z spill Z signal
2 =&
4h 2h
Scaled Y signal
+ =
3h
Interference free Y signal
Y-Axis Z-Axis
*
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 39
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code Z Y X 200 bps 200 bps
SLIDE 40
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
Physical Layer Security
SLIDE 41
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
N S
1 0 1
Correlated
SLIDE 42
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code Vibration sound Speaker sound
SLIDE 43
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code Vibration sound Speaker sound
SLIDE 44
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code Vibration sound Speaker sound
SLIDE 45
&
Audio Sample Buffer S6 S5 S4 S3 S2 S1 S0 Audio Clock Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 46
&
Audio Sample Buffer S6 S5 S4 S3 S2 S1 S0 Audio Clock Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 47
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code Vibration sound Speaker sound
SLIDE 48
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code Vibration sound Speaker sound
SLIDE 49
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
Vibration start Anti-sound start Frequency switch
SLIDE 50
Evaluation
Single-carrier
SLIDE 51
0.05 0.1 0.15 0.2 0.25 0.5 0.75 1 Bit error rate CDF Vpp=2 Vpp=3 Vpp=4 Vpp=5 Vpp=5.5
Evaluation
325 365 405 445 485 525 565 605 645 685 0.02 0.04 0.06 0.08
Carrier Frequency (Hz) Bit error rate Median 90th Percentile
Multi-carrier
SLIDE 52
Summary
Vibratory Radio
Single-Carrier Multi-Carrier Multi-dimension Phy-Security Morse-code
SLIDE 53
Thank&You&
(SyNRG Hardware Lab, UIUC)
