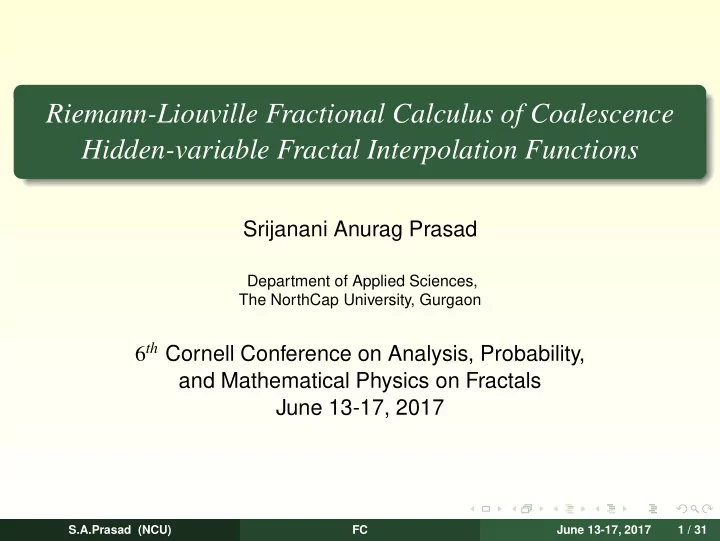

Riemann-Liouville Fractional Calculus of Coalescence Hidden-variable Fractal Interpolation Functions

Srijanani Anurag Prasad

Department of Applied Sciences, The NorthCap University, Gurgaon

6th Cornell Conference on Analysis, Probability, and Mathematical Physics on Fractals June 13-17, 2017

S.A.Prasad (NCU) FC June 13-17, 2017 1 / 31

Outline

1

Introduction

2

Riemann-Liouville fractional integral

3

Riemann-Liouville fractional derivative

S.A.Prasad (NCU) FC June 13-17, 2017 2 / 31

Outline

1

Introduction

2

Riemann-Liouville fractional integral

3

Riemann-Liouville fractional derivative

S.A.Prasad (NCU) FC June 13-17, 2017 3 / 31

Fractal Interpolation Function (FIF)

Fractal Interpolation Function (FIF) : [Barnsley M.F., 1986] Similarities of FIF and traditional methods ∗ Geometrical Character - can be plotted on graph ∗ Represented by formulas Difference between FIF and traditional methods ∗ Fractal Character

S.A.Prasad (NCU) FC June 13-17, 2017 4 / 31

Coalescence Hidden-variable Interpolation Functions

For simulating curves that exhibit self-affine and non-self-affine nature simultaneously, Coalescence Hidden-variable Fractal Interpolation Function (CHFIF) was introduced by [Chand A.K.B. and Kapoor G.P ., 2007].

10 20 30 40 50 60 70 80 90 100 20 40 60 80 100 120 10 20 30 40 50 60 70 80 90 100 20 40 60 80 100 120 140 160 180

S.A.Prasad (NCU) FC June 13-17, 2017 5 / 31

Construction of a CHFIF

Given data{(xk, yk) ∈ R2 : k = 0, 1, . . . , N} Generalized data {(xk, yk, zk) ∈ R3 : k = 0, 1, . . . , N} [x0, xN] = I, [xk−1, xk] = Ik, k = 1, 2, . . . , N Lk : I → Ik Lk(x0) = akx + bk = xk − xk−1 xN − x0 (x − x0) + xk−1 (1)

S.A.Prasad (NCU) FC June 13-17, 2017 6 / 31

Construction of a CHFIF

Fk : I × R2 → R2 Fk(x, y, z) =

• αky + βkz + pk(x), γkz + qk(x)
• (2)

|αk| < 1 , |γk| < 1 , |βk| + |γk| < 1 Fk(x0, y0, z0) = (yk−1, zk−1) Fk(xN, yN, ZN) = (yk, zk) ωk : I × R2 → I × R2 ωk(x, y, z) = (Lk(x), Fk(x, y, z)), k = 1, 2, . . . N

S.A.Prasad (NCU) FC June 13-17, 2017 7 / 31

Construction of a CHFIF

Theorem ( [Chand A.K.B. and Kapoor G.P ., 2007])

(1) {I × R2; ωk, k = 1, 2, . . . , N} is a hyperbolic IFS with respect to a metric equivalent to Euclidean metric on R3. (2) The attractor G ⊆ R3 such that G = N

k=1 ωk(G) of the above IFS is

graph of a continuous function f : I → R2 such that f(xk) = (yk, zk) for k = 0, 1, . . . , N i.e. G = {(x, f(x)) : x ∈ I and f(x) = (y(x), z(x))}.

S.A.Prasad (NCU) FC June 13-17, 2017 8 / 31

Construction of CHFIF

Definition

The Coalescence Hidden-variable Fractal Interpolation Function (CHFIF) for the given interpolation data {(xk, yk) : k = 0, 1, . . . , N } is defined as the continuous function f1 : I → R, where f1 is the first component of the continuous function f = (f1, f2), graph of which is attractor of the hyperbolic IFS. f2 - AFIF (Self-Affine Fractal Interpolation Function) yk = zk and αk + βk = γk for all k, f1 = f2 is FIF

S.A.Prasad (NCU) FC June 13-17, 2017 9 / 31

Construction of CHFIF

CHFIF : if xk−1 ≤ x ≤ xk then f1(x) = αk f1(L−1

k (x)) + βk f2(L−1 k (x)) + pk(L−1 k (x))

FIF : if xk−1 ≤ x ≤ xk then f2(x) = γk f2(L−1

k (x)) + qk(L−1 k (x))

S.A.Prasad (NCU) FC June 13-17, 2017 10 / 31

Outline

1

Introduction

2

Riemann-Liouville fractional integral

3

Riemann-Liouville fractional derivative

S.A.Prasad (NCU) FC June 13-17, 2017 11 / 31

Riemann-Liouville fractional integral

Definition

Let −∞ < a < x < b < ∞. The Riemann-Liouville fractional integral of

• rder ν > 0 with lower limit a is defined for locally integrable functions

f : [a, b] → R as Iν

a+ f(x) =

1 Γ(ν)

x

• a

(x − t)ν−1f(t)dt (3) for x > a.

S.A.Prasad (NCU) FC June 13-17, 2017 12 / 31

Riemann-Liouville fractional integral

Given data{(xk, yk) ∈ R2 : k = 0, 1, . . . , N} Generalized data {(xk, yk, zk) ∈ R3 : k = 0, 1, . . . , N} pν

k (x) = aν k Iν x0+ pk(x) +

1 Γ(ν)

xk−1

• x0

(Lk(x) − t)ν−1 f1(t) dt (4) and qν

k (x) = aν k Iν x0+ qk(x) +

1 Γ(ν)

xk−1

• x0

(Lk(x) − t)ν−1 f2(t)dt. (5)

S.A.Prasad (NCU) FC June 13-17, 2017 13 / 31

Riemann-Liouville fractional integral

Fν

k (x, y, z) =

• Fν

k,1(x, y, z), Fν k,2(x, z)

• =
• aν

k αky + aν k βkz + pν k(x), aν k γkz + qν k (x)

• (6)

Define ων

k (x, y, z) = (Lk(x), Fν k (x, y, z)) ;

(7) yν

0 = 0 = zν 0,

zν

N =

qν

N(xN)

1 − aν

NγN

, yν

N =

aν

NβN

1 − aν

NαN

zν

N +

pν

N(xN)

1 − aν

NαN

, zν

k = aν kγkzν N + qν k (xN) = qν k+1(x0)

and yν

k = aν kαkyν N + aν k βkzν N + pν k (xN) = pν k+1(x0), k = 1, 2, . . . , N − 1.

(8)

S.A.Prasad (NCU) FC June 13-17, 2017 14 / 31

Riemann-Liouville fractional integral of FIF

Proposition

Let f2 be a FIF passing through the interpolation data given by {(xk, zk) ∈ R2 : k = 0, 1, . . . , N}. Then, Riemann-Liouville fractional integral of a FIF of order ν is also a FIF passing through the data {(xk, zν

k ) ∈ R2 : k = 0, 1, . . . , N}, where zν k are given by (8).

S.A.Prasad (NCU) FC June 13-17, 2017 15 / 31

Riemann-Liouville fractional integral of FIF

Theorem ( [S.A.P, 2017])

Let f1 be the CHFIF passing through the interpolation data given by {(xk, yk) ∈ R2 : k = 0, 1, . . . , N} and f2 be the corresponding FIF passing through the data {(xk, zk) ∈ R2 : k = 0, 1, . . . , N}. Then, Riemann-Liouville fractional integral of a CHFIF of order ν given by (3) is also a CHFIF passing through the data {(xk, yν

k ) ∈ R2 : k = 0, 1, . . . , N}, where yν k are given by (8).

S.A.Prasad (NCU) FC June 13-17, 2017 16 / 31

Riemann-Liouville fractional integral of CHFIF

Sketch of Proof: Let x such that xk−1 < x < xk for some k ∈ {1, 2, . . . , N}. Then, Iν

x0+ f1(x) =

1 Γ(ν)

x

• x0

(x − t)ν−1 f1(t)dt = 1 Γ(ν)     

xk−1

• x0

(x − t)ν−1 f1(t) dt +

x

• xk−1

(x − t)ν−1 f1(t) dt     

S.A.Prasad (NCU) FC June 13-17, 2017 17 / 31

Riemann-Liouville fractional integral of CHFIF

Iν

x0+ f1(x) =

1 Γ(ν)   

xk−1

• x0

(x − t)ν−1 f1(t) dt + aν

k L−1

k

(x)

• x0

(L−1

k (x) − t)ν−1 f1(Lk(t)) dt

     = aν

k αk Iν x0+ f1(L−1 k (x)) + aν k βk Iν x0+ f2(L−1 k (x))

+ aν

k Iν x0+ pk(L−1 k (x)) +

1 Γ(ν)   

xk−1

• x0

(x − t)ν−1 f1(t) dt   

S.A.Prasad (NCU) FC June 13-17, 2017 18 / 31

Outline

1

Introduction

2

Riemann-Liouville fractional integral

3

Riemann-Liouville fractional derivative

S.A.Prasad (NCU) FC June 13-17, 2017 19 / 31

Riemann-Liouville fractional derivative

Definition

Let −∞ < a < x < b < ∞, 0 < ν, f ∈ L1([a, b]) and In−νf ∈ W1,1, where n is the smallest integer greater than ν . The Riemann-Liouville fractional derivative of order ν with lower limit a is defined as (Dν

a+f)(x) = dn

dxn (In−ν

a+

f)(x) and (Dν

a+ f)(x) = f(x) when ν = 0.

S.A.Prasad (NCU) FC June 13-17, 2017 20 / 31

Riemann-Liouville fractional derivative of FIF

qdν

k (x) = a−ν k Dνqk(x) +

a−n

k

Γ(n − ν) dn dxn  

xk−1

• x0

f2(t)(Lk(x) − t)n−ν−1 dt   (9) and pdν

k (x) = a−ν k Dν pk(x) +

a−n

k

Γ(n − ν) dn dxn  

xk−1

• x0

f1(t)(Lk(x) − t)n−ν−1 dt   . (10)

S.A.Prasad (NCU) FC June 13-17, 2017 21 / 31

Riemann-Liouville fractional derivative of FIF

Proposition

Let f2 be a FIF passing through the interpolation data {(xk, zk) ∈ R2 : k = 0, 1, . . . , N} and |γk| < aν

k for some fixed ν > 0. Then

Riemann-Liouville fractional derivative of a FIF of order ν is also a FIF provided (9) is satisfied.

S.A.Prasad (NCU) FC June 13-17, 2017 22 / 31

Riemann-Liouville fractional derivative of CHFIF

Theorem ( [S.A.P, 2017])

Let f1 be the CHFIF passing through the interpolation data given by {(xk, yk) ∈ R2 : k = 0, 1, . . . , N} and f2 be the corresponding FIF passing through the data {(xk, zk) ∈ R2 : k = 0, 1, . . . , N}. For a fixed ν > 0, if the free variables and constrained variables are such that |αk| < aν

k,

|γk| < aν

k and |βk| + |γk| < aν k then Riemann-Liouville fractional

derivative of a CHFIF of order ν is also a CHFIF provided (9) and (10) are satisfied.

S.A.Prasad (NCU) FC June 13-17, 2017 23 / 31

Riemann-Liouville fractional derivative of FIF

Suppose f2 is a FIF passing through interpolation data given by {(xk, zk) : k = 0, 1, 2, . . . , N} constructed with the free variables γk for k = 1, 2, . . . , N. Then, for all ν satisfying ν < log |γk| log ak Riemann-Liouville fractional derivative of f2 of order ν exists and is a FIF provided (9) is satisfied.

S.A.Prasad (NCU) FC June 13-17, 2017 24 / 31

Riemann-Liouville fractional derivative of CHFIF

Suppose f1 is a CHFIF passing through a interpolation data given by {(xk, yk) : k = 0, 1, 2, . . . , N} constructed with the free variables αk, γk and constrained variables βk for k = 1, 2, . . . , N. Then, for all ν satisfying ν < min log |αk| log ak , log(|βk| + |γk|) log ak

• Riemann-Liouville fractional derivative of f1 of order ν exists and is a

CHFIF provided (9) and (10) are satisfied.

S.A.Prasad (NCU) FC June 13-17, 2017 25 / 31

Example

Blancmange Curve:[Takagi, 1903] B(x) =

∞

• n=0

s(2nx) 2n x ∈ [0, 1], where, s(y) = min

m∈Z |y − m|, y ∈ R.

B x+k−1

2

• = 1

2B(x) + k−1+(−1)k−1x 2

x ∈ [0, 1] for k = 1, 2.

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.2 0.4 0.6 0.8 1 1.2 1.4

Figure: Blanchmange Curve

S.A.Prasad (NCU) FC June 13-17, 2017 26 / 31

Example

γk = 1

2 for k = 1, 2.

Lk(x) = 1

2x + k−1 2

qk(x) = k−1+(−1)k−1x

2

ν < log |γk|

log ak = log 1/2 log 1/2 = 1

qdν

1 (x) = 1 21−ν Γ(2−ν)x1−ν

S.A.Prasad (NCU) FC June 13-17, 2017 27 / 31

Example

qdν

2 (x) =

1 21−ν Γ(1 − ν)

• xν −

x1−ν (1 − ν)

• −

1 Γ(1 − ν)

∞

• n=0

1 2n

2n

• m=1

(−1)m−1× ×

• 2n

x+1

2 − m 2n+1

1−ν − x+1

2

− m−1

2n+1

1−ν (1 − ν)

• +

x + 1 2 − m 2n+1 −ν m 2 − A

• −

x + 1 2 − m − 1 2n+1 −ν m − 1 2 − A

• A =
• m/2

if m is even (m − 1)/2 if m is odd S.A.Prasad (NCU) FC June 13-17, 2017 28 / 31

References I

Barnsley M.F. (1986). Fractal functions and interpolation. Constructive Approximation, 2:303–329. Chand A.K.B. and Kapoor G.P . (2007). Smoothness analysis of coalescence hidden variable fractal interpolation functions. International Journal of Non-Linear Science, 3:15–26. Changpin Li and Deliang Qian and Yang Quan Chen (2011). On Riemann-Liouville and Caputo Derivatives. Discrete Dynamics in Nature and Society, Article ID 562494). Hilfer R.(2008). Threefold Introduction to Fractional Derivatives,

• In. Anomalous Transport: Foundations and Applications,

Wiley-VCH,Weinheim.

S.A.Prasad (NCU) FC June 13-17, 2017 29 / 31

References II

Prasad S.A.(2017). Fractional calculus of coalescence hidden-variable fractal interpolation functions. Fractals: Complex Geometry, Patterns, and Scaling in Nature and Society, 25(2). Teiji Takagi(1903). A Simple Example of a Continuous Function without Derivative.

• Proc. Phys. Math. Japan,, 1, 176–177.

XueZai Pan(2014). Fractional Calculus of Fractal Interpolation Function on [0, b].. Abstract and Applied Analysis, Article ID: 640628.

S.A.Prasad (NCU) FC June 13-17, 2017 30 / 31

Thank You!
