RIDER 65 Platform Basic specification Dimensions: 1150 X 780 X 1425cm Deck types/ Cleaning width: 2 brushes 550mm 4 brushes 650mm Squeegee width : 650 mm (2 brushes) 750mm (4 brushes)) Running time 2,5-3 hours

slide-1
SLIDE 1
slide-2
SLIDE 2

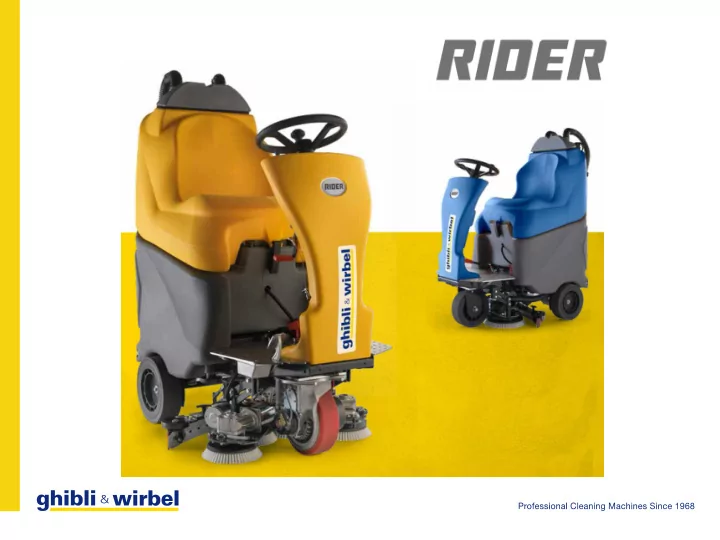

RIDER 65 Platform

slide-3
SLIDE 3

Basic specification

  • Dimensions:

1150 X 780 X 1425cm

  • Deck types/ Cleaning width:

2 brushes 550mm 4 brushes 650mm

  • Squeegee width :

650 mm (2 brushes) 750mm (4 brushes))

  • Running time

2,5-3 hours (105 Ah batteries)

  • Tank capacity (sol / rec) :

65 / 65 l

  • Brush pressure / Contact pressure

19 kg/16,3 g/cm2 (2 brushes) 22 kg/ 20,4 g/cm2 (4 brushes)

slide-4
SLIDE 4

Top 3 features

  • MANOEUVRABILITY

Fast and reactive, you can work everywhere!

  • PERFORMANCE

Top performance and results /4 brushes system

  • SIMPLICITY

Simple to use and easy to maintain

slide-5
SLIDE 5

Who uses this machine?

 Compact dimensions. Rider is “tall and thin”, it can move and work in the most narrow and difficult environments, where the other similar machines are not able to work.  High productivity and running time. Excellent cleaning and drying performance on every kind of surface.  The low noise level makes the machine absolutely suitable for day cleaning and for sensitive areas (hospitals, school, rest homes…) Rider 65 is the perfect solution for effective cleaning results in every kind of floor/environment (medium/large)

  • Hospital
  • Office building
  • Schools - University
  • Medium-large supermarkets
  • Gas station
  • Warehouse
  • Car dealers
  • …
slide-6
SLIDE 6

Why RIDER: Simplicity

  • Mechanical lifting/activation systems
  • User friendly controls

Switch key Speed potentiometer Brush and vacuum activation Hour counter and battery indicator Forward and reverse

slide-7
SLIDE 7

Why RIDER: Simplicity

  • Squeegee and brush head mechanical lifting system (by levers)
  • In the same easy way you can manage the water flow

Accelerator

Squeegee lever Brush head lever H2O lever

slide-8
SLIDE 8

Why RIDER: comfort

  • Left and right entrance
  • Comfortable seat

Maximum visibility in all the directions

slide-9
SLIDE 9

Why RIDER: dimensions

1150 mm 780 mm

Models:

between doors (80cm) between counters at supermarkets

  • n lifts

Easy access:

slide-10
SLIDE 10

Why RIDER: performance

  • RIDER R 65 FD 65: 4 brushes, front traction

4 small brushes but with a good down pressure, surrounding the driving wheel

  • RIDER R 65 RD 55: 2 brushes, rear traction

EXCELLENT FLOOR COVERAGE/ BEST CLEANING RESULTS

slide-11
SLIDE 11

Why RIDER: performance

Compact and reactive, Rider’s squeegee naturally adapt itself to every movement of the machine.

EXCELLENT DRYING RESULTS

On every kind of surface and during all movements

  • f the machine (sharp curves, U-turn,…)

650mm 750 mm

slide-12
SLIDE 12

Why RIDER: manoeuvrability / performance

Easy access to narrow spaces Extreme manoeuvrability between walls and corners U-turn < 115cm!

Model:

tri

slide-13
SLIDE 13

Why RIDER: manoeuvrability / performance

Embracing brush deck:

  • Best floor coverage (corners, sharp curves, …)
  • Cleaning close to wall and corners both right and left sides

Modello:

slide-14
SLIDE 14

Why RIDER: manoeuvrability / performance

  • Front traction

High grip, no slippery effects, even on wet floors

  • 700 W driving wheel power

Remarkable climbing performance

10%

slide-15
SLIDE 15

Why RIDER: productivity

  • Tanks capacity:

65L

  • Productivity: 3000 mq/h (Rider R65 RD55)

3250 mq/h (Rider FD65)

  • Aver. running time: 2,5- 3h (with 105 Ah batteries)

HARD-WORKING WITHOUT STRESS…

slide-16
SLIDE 16

Why RIDER: low noise level

  • The low noise level makes Rider absolutely suitable for day cleaning in

sensitive areas (hospital, school, rest homes…)

slide-17
SLIDE 17

Why RIDER: easy to maintain

  • Compact squeegee:

 squeegee immediately accessible  squeegee blades (usable on the four sides) extremely easy to install/remove (no tools)

  • Fast and immediate filling/draining of the

tanks;

  • Filter and recovery tank easy to reach

and clean;

  • Immediate access to the brush

deck:brushes easy to install/remove; Rider’s daily maintenance is extremely simplified

slide-18
SLIDE 18

Why RIDER: easy to maintain

  • Immediate access to all the main components

Immediate access to:

  • PCB
  • relays
  • Battery compartment

Immediate access to the vac motor

slide-19
SLIDE 19

Comparison

1150 mm 1270 mm

slide-20
SLIDE 20

Comparison

5 5 mm 6 5 mm

1100 mm

1300 mm

  • 33% of time and

detergent

slide-21
SLIDE 21

Comparison

165 mm 1200 mm 10 mm 1570 mm 264 mm

7 5

∆ Efficiency = 30 %

Area cowered during the wipe: 0.42 m2 75% Area cowered during the wipe : 45%

slide-22
SLIDE 22

Comparison

Clean along wall borders BOTH on the right and left side

7 5

Clean along wall borders JUST

  • n the right side

7 5

Clean along wall borders JUST

  • n the right side
slide-23
SLIDE 23

Comparison

+ 24%

Manoeuvrability 1200 mm 1150 mm 1570 mm 1270 mm 1520 mm

slide-24
SLIDE 24

Technical data

slide-25
SLIDE 25

Standard accessories

(external)

slide-26
SLIDE 26

Optional accessories

slide-27
SLIDE 27
