Revamping the CallMonitor Listener EECS 4315 Franck van Breugel March 29, 2020 1/13 CallMonitor listener The listener CallMonitor of Java PathFinder (JPF) prints for each method that is called the ID of the thread that executed the call, the


slide-1
SLIDE 1

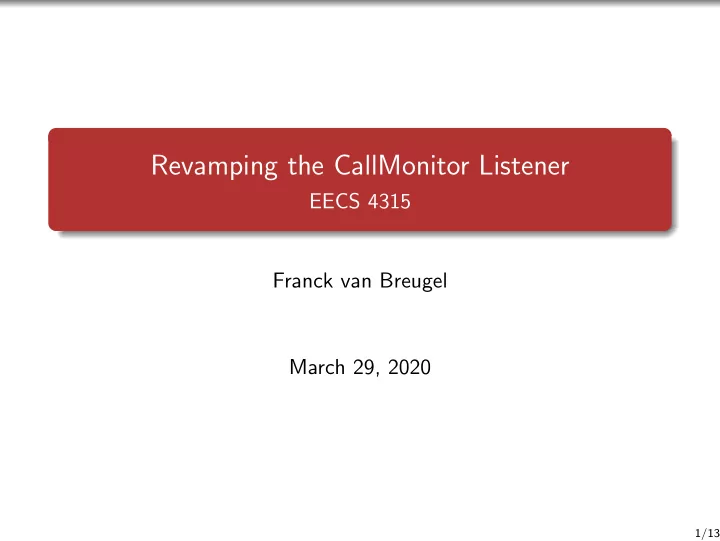

Revamping the CallMonitor Listener

EECS 4315 Franck van Breugel March 29, 2020

1/13

slide-2
SLIDE 2

CallMonitor listener

The listener CallMonitor of Java PathFinder (JPF) prints for each method that is called the ID of the thread that executed the call, the depth of the stack, the name of the class, the name of the method, and its arguments.

2/13

slide-3
SLIDE 3

CallMonitor listener

Consider the following app. public class Example { public static void main(String [] args) { first(1, true); } private static void first(int i, boolean b) { second(i + 1); } private static void second(int i) { // do nothing } }

3/13

slide-4
SLIDE 4

CallMonitor listener

Run JPF on the following application properties file. target = Example classpath = <path to Example.class> listener = gov.nasa.jpf.listener.CallMonitor @using jpf-shell shell = gov.nasa.jpf.shell.basicshell.BasicShell

4/13

slide-5
SLIDE 5

CallMonitor listener

JPF produces the following output ... 0: Example.main([Ljava.lang.String;@bb) 0: Example.first(1,true) 0: Example.second(2) ...

5/13

slide-6
SLIDE 6

CallMonitor listener

JPF produces the following output ... 0: Example.main([Ljava.lang.String;@bb) 0: Example.first(1,true) 0: Example.second(2) ... All methods are called by thread 0, the main thread. The number of spaces following 0: indicates the depth of the stack.

5/13

slide-7
SLIDE 7

CallMonitor listener

JPF’s CallMonitor listener lacks documentation, contains variable names that are cryptic, does not use JPF’s reporting system, and lacks tests.

6/13

slide-8
SLIDE 8

Documentation

Old: /** * this isn’t yet a useful tool, but it shows how to track * method calls with their corresponding argument values */

7/13

slide-9
SLIDE 9

Documentation

Old: /** * this isn’t yet a useful tool, but it shows how to track * method calls with their corresponding argument values */ New: /** * This listener monitors method invocations. When JPF * finishes, it publishes for each method invocation, * the ID of the thread that executed the method * invocation, the depth of the stack, the name of the * class, the name of the method, and its arguments. * * @author Unknown * @author Franck van Breugel */

7/13

slide-10
SLIDE 10

Documentation

Old:

8/13

slide-11
SLIDE 11

Documentation

Old: New: /** * Whenever a method is invoked, information about the * call is recorded. * * @param vm JPF’s virtual machine * @param thread the thread that executed the instruction * @param next the next instruction to be executed * @param executed the executed instruction */

8/13

slide-12
SLIDE 12

Cryptic variable names

Old: ... ti ... ... ... mi ... ... ... ci ... ... ... sb ...

9/13

slide-13
SLIDE 13

Cryptic variable names

Old: ... ti ... ... ... mi ... ... ... ci ... ... ... sb ... New: ... thread ... ... ... method ... ... ... clazz ... ... ... result ...

9/13

slide-14
SLIDE 14

JPF’s reporting system

private StringBuffer result; public CallMonitor(Config configuration, JPF jpf) { ... jpf.addPublisherExtension(Publisher.class, this); } public void publishFinished(Publisher publisher) { PrintWriter output = publisher.getOut(); publisher.publishTopicStart("method invocations");

  • utput.print(this.result);

publisher.publishTopicEnd("method invocations"); }

10/13

slide-15
SLIDE 15

CallMonitor listener

With the revamped CallMonitor listener, JPF produces the following output ... ================================ method invocations ... 0: Example.main([Ljava.lang.String;@bb) 0: Example.first(1,true) 0: Example.second(2) ...

11/13

slide-16
SLIDE 16

Testing

Developed ten tests. private static void staticMethod() {} @Test public void staticMethodTest() { ... if (verifyNoPropertyViolation(CONFIGURATION)) { staticMethod(); } else { // check if output contains the String // "0:.*CallMonitorTest.staticMethod()" } }

12/13

slide-17
SLIDE 17

To do

Develop further tests. In particular,

tests with nested method calls, and tests with multiple threads.

Write a report.

13/13
