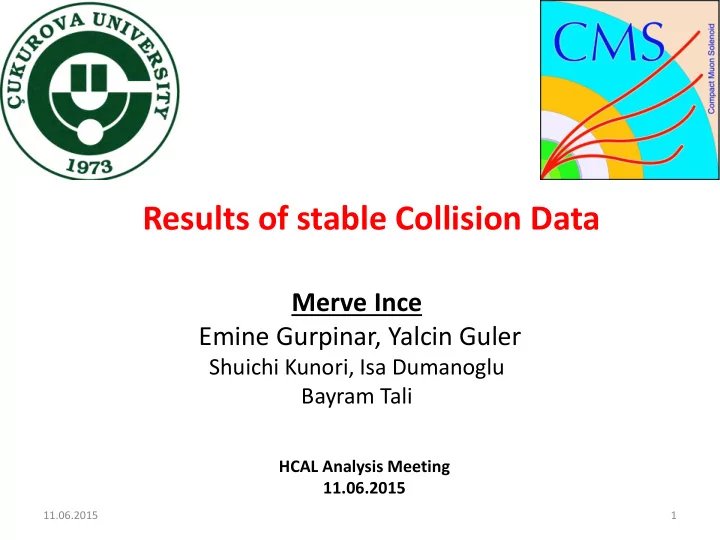

Results of stable Collision Data Merve Ince Emine Gurpinar, Yalcin - PowerPoint PPT Presentation

Dec 09, 2022 •133 likes •688 views

Results of stable Collision Data Merve Ince Emine Gurpinar, Yalcin Guler Shuichi Kunori, Isa Dumanoglu Bayram Tali HCAL Analysis Meeting 11.06.2015 11.06.2015 1 Introduction We have analyzed sqrt(s)=13 TeV stable collision events for

  1. Results of stable Collision Data Merve Ince Emine Gurpinar, Yalcin Guler Shuichi Kunori, Isa Dumanoglu Bayram Tali HCAL Analysis Meeting 11.06.2015 11.06.2015 1

  2. Introduction  We have analyzed sqrt(s)=13 TeV stable collision events for 246908, 246926 .  We applied Luminosity situation according to Luminosity Block distribution of run 246908 . We want to understand condition of low energy events .  Analyzed setup and run information • CMSSW_7_4_2 • GR_E_V47::All  We used /store/express/Run2015A/ExpressPhysics/FEVT/Express-v1/000/246/908 /store/express/Run2015A/ExpressPhysics/FEVT/Express-v1/000/246/926  You can find all information about these runs at this link . https://twiki.cern.ch/twiki/bin/viewauth/CMS/CMSNonStableCollisions2015 11.06.2015 2

  3. Stable Collision Run 246908 sqrt(s) = 13TeV /store/express/Run2015A/ExpressPhysics/FEVT/Express-v1/000/246/908/ 11.06.2015 3

  4. Luminosity Block & Bunch Crossing Distributions • We applied two LS cut :  0 < LS < 50  70 < LS < 130 sqrt(s) = 13TeV 11.06.2015 4

  5. Individual RecHit Energy for HB,HE,HO,HF HE HF HO HB 0 < LS < 50 0 < LS < 50 0 < LS < 50 0 < LS < 50 HB HE HF HO 70 < LS < 130 70 < LS < 130 70 < LS < 130 70 < LS < 130 sqrt(s) = 13TeV 11.06.2015 5

  6. Individual RecHit Time for HB,HE,HO,HF HF HO HB HE 0 < LS < 50 0 < LS < 50 0 < LS < 50 0 < LS < 50 HO HB HE HF 70 < LS < 130 70 < LS < 130 70 < LS < 130 70 < LS < 130 11.06.2015 6 sqrt(s) = 13TeV

  7. Individual RecHit Time(E > 5GeV) for HB,HE,HO,HF HB HE HO HF 0 < LS < 50 0 < LS < 50 0 < LS < 50 0 < LS < 50 HO HB HE HF 70 < LS < 130 70 < LS < 130 70 < LS < 130 70 < LS < 130 sqrt(s) = 13TeV 11.06.2015 7

  8. RecHitTime vs Energy for HB,HE,HO,HF HB: Time vs Energy HE: Time vs Energy HF: Time vs Energy HO: Time vs Energy 0 < LS < 50 0 < LS < 50 0 < LS < 50 0 < LS < 50 0 < LS < 50 HB: Time vs Energy(E>5GeV) HE: Time vs Energy(E>5GeV) HF: Time vs Energy(E>5GeV) HO: Time vs Energy(E>5GeV) 0 < LS < 50 0 < LS < 50 0 < LS < 50 0 < LS < 50 sqrt(s) = 13TeV 11.06.2015 8

  9. RecHitTime vs Energy for HB,HE,HO,HF HB: Time vs Energy HE: Time vs Energy HF: Time vs Energy HO: Time vs Energy 70 < LS < 130 70 < LS < 130 70 < LS < 130 70 < LS < 130 HB: Time vs Energy(E>5GeV) HE: Time vs Energy(E>5GeV) HF: Time vs Energy(E>5GeV) HO: Time vs Energy(E>5GeV) 70 < LS < 130 70 < LS < 130 70 < LS < 130 70 < LS < 130 sqrt(s) = 13TeV 11.06.2015 9

  10. CaloJet 𝑸 𝑼 and eta-phi Distributions 0 < LS < 50 0 < LS < 50 0 < LS < 50 70 < LS < 130 70 < LS < 130 70 < LS < 130 sqrt(s) = 13TeV 11.06.2015 10

  11. CaloMET 𝑸 𝑼 -phi and emFraction Distributions 0 < LS < 50 0 < LS < 50 0 < LS < 50 0 < LS < 50 70 < LS < 130 70 < LS < 130 70 < LS < 130 70 < LS < 130 sqrt(s) = 13TeV 11.06.2015 11

  12. CaloMETphi Distributions (MET 𝑸 𝑼 >80 GeV and MET 𝑸 𝑼 >20GeV) 0 < LS < 50 0 < LS < 50 70 < LS < 130 70 < LS < 130 sqrt(s) = 13TeV 11.06.2015 12

  13. CaloJet 𝑸 𝑼 vsMET- CaloJet 𝑸 𝑼 vsCaloJetPhi- CaloMET 𝑸 𝑼 vsCaloMetPhi Distributions 0 < LS < 50 0 < LS < 50 0 < LS < 50 70 < LS < 130 70 < LS < 130 70 < LS < 130 11.06.2015 13 sqrt(s) = 13TeV

  14. Stable Collision Run 246926 sqrt(s) = 13TeV /store/express/Run2015A/ExpressPhysics/FEVT/Express-v1/000/246/926/ 11.06.2015 14

  15. Individual RecHit Energy and Time for HB,HE,HO,HF HE HF HO HB HB HE HF HO sqrt(s) = 13TeV 11.06.2015 15

  16. Individual RecHit Time(E > 5GeV) for HB,HE,HO,HF sqrt(s) = 13TeV 11.06.2015 16

  17. RecHitTime vs Energy for HB,HE,HO,HF HB: Time vs Energy HE: Time vs Energy HF: Time vs Energy HO: Time vs Energy HO: Time vs Energy(E>5GeV) HB: Time vs Energy(E>5GeV) HE: Time vs Energy(E>5GeV) HF: Time vs Energy(E>5GeV) sqrt(s) = 13TeV 11.06.2015 17

  18. HBHE RecoHit Energy-Time vs Channel ID for Minus and Plus Side (E>2GeV) Depth2 Depth3 Depth1 11.06.2015 18

  19. HBHE RecoHit Energy-Time vs Channel ID for Minus and Plus Side (E>4GeV) 11.06.2015 19

  20. CaloJet-CaloMet 𝑸 𝑼 -emFraction and eta-phi Distributions sqrt(s) = 13TeV 11.06.2015 20

  21. CaloMETphi Distributions (MET 𝑸 𝑼 >80 GeV and MET 𝑸 𝑼 >20GeV) sqrt(s) = 13TeV 11.06.2015 21

  22. CaloJet 𝑸 𝑼 vsMET- CaloJet 𝑸 𝑼 vsCaloJetPhi- CaloMET 𝑸 𝑼 vsCaloMetPhi Distributions sqrt(s) = 13TeV 11.06.2015 22

  23. Luminosity Block & Bunch Crossing Distributions sqrt(s) = 13TeV 11.06.2015 23

  24. Energy-Time PLOTS for Stable Collision Run 246908 11.06.2015 24

  25. HB: Energy-Time Map for Depth1 sqrt(s) = 13TeV 11.06.2015 25

  26. HE: Energy-Time Map for Depth1,2,3 sqrt(s) = 13TeV 11.06.2015 26

  27. HF: Energy-Time Map for Depth1,2 iphi 43 iphi 43 11.06.2015 27 sqrt(s) = 13TeV

  28. HO: Energy-Time Map for Depth 4 11.06.2015 28 sqrt(s) = 13TeV

  29. Conclusion  We analyzed stable run 246908 with two LS situation( 0<LS<50 – 70<LS<130) and compared their results .  We observed plots at two regions.  Besides we gained some plots of stable run 246926 . We will continue other stable new runs .  Mean time is depend on the cut value and we can say that 4GeV energy cut is more stable than other . Also when we increase value of energy cut, energy is more stable .  We checked both detector performance and quality of data by looking at some kinematic plots . 11.06.2015 29

  30. BACK UP 11.06.2015 30

  31. Stable Collision Run 246908 sqrt(s) = 13TeV /store/express/Run2015A/ExpressPhysics/FEVT/Express-v1/000/246/908/ 11.06.2015 31

  32. HBHE RecoHit Energy-Time vs Channel ID for Minus and Plus Side (E>2GeV) Depth3(HE) Depth1 Depth2 11.06.2015 32 sqrt(s) = 13TeV

  33. HBHE RecoHit Energy-Time vs Channel ID for Minus and Plus Side (E>2GeV) 11.06.2015 33 sqrt(s) = 13TeV

  34. Stable Collision Run 246936 sqrt(s) = 13TeV /store/express/Run2015A/ExpressPhysics/FEVT/Express-v1/000/246/936/ 11.06.2015 34

  35. Individual RecHit Energy and Time for HB,HE,HO,HF HE HF HO HB HE HB HF HO sqrt(s) = 13TeV 11.06.2015 35

  36. Individual RecHit Time(E > 5GeV) for HB,HE,HO,HF sqrt(s) = 13TeV 11.06.2015 36

  37. RecHitTime vs Energy for HB,HE,HO,HF HB: Time vs Energy HE: Time vs Energy HO: Time vs Energy HF: Time vs Energy HB: Time vs Energy(E>5GeV) HE: Time vs Energy(E>5GeV) HF: Time vs Energy(E>5GeV) HO: Time vs Energy(E>5GeV) sqrt(s) = 13TeV 11.06.2015 37

  38. CaloJet-CaloMet 𝑸 𝑼 -emFraction and eta-phi Distributions sqrt(s) = 13TeV 11.06.2015 38

  39. CaloMETphi Distributions (MET 𝑸 𝑼 >80 GeV and MET 𝑸 𝑼 >20GeV) sqrt(s) = 13TeV 11.06.2015 39

  40. CaloJet 𝑸 𝑼 vsMET- CaloJet 𝑸 𝑼 vsCaloJetPhi- CaloMET 𝑸 𝑼 vsCaloMetPhi Distributions sqrt(s) = 13TeV 11.06.2015 40

  41. Luminosity Block & Bunch Crossing Distributions sqrt(s) = 13TeV 11.06.2015 41

  42. HBHE RecoHit Energy-Time vs Channel ID for Minus and Plus Side (E>2GeV) 11.06.2015 42 sqrt(s) = 13TeV

  43. HBHE RecoHit Energy-Time vs Channel ID for Minus and Plus Side (E>4GeV) 11.06.2015 43 sqrt(s) = 13TeV

  44. Stable Collision Run 247073 sqrt(s) = 13TeV /store/express/Run2015A/ExpressPhysics/FEVT/Express-v1/000/247/073/ 11.06.2015 44

  45. Individual RecHit Energy for HB,HE,HO,HF HB HE HF HO Without Trigger Without Trigger Without Trigger Without Trigger HB HE HF HO L1_SingleJet16 trigger L1_SingleJet16 trigger L1_SingleJet16 trigger L1_SingleJet16 trigger 11.06.2015 45

  46. Individual RecHit Time for HB,HE,HO,HF HB HE HF HO Without Trigger Without Trigger Without Trigger Without Trigger L1_SingleJet16 trigger L1_SingleJet16 trigger L1_SingleJet16 trigger L1_SingleJet16 trigger HB HE HF HO 11.06.2015 46

  47. Individual RecHit Time(E > 5GeV) for HB,HE,HO,HF HB HE HF HO Without Trigger Without Trigger Without Trigger Without Trigger L1_SingleJet16 trigger L1_SingleJet16 trigger L1_SingleJet16 trigger L1_SingleJet16 trigger HB HE HF HO 11.06.2015 47

  48. RecHitTime vs Energy for HB,HE,HO,HF Without Trigger Without Trigger Without Trigger Without Trigger L1_SingleJet16 trigger L1_SingleJet16 trigger L1_SingleJet16 trigger L1_SingleJet16 trigger 11.06.2015 48

  49. RecHitTime vs Energy (E > 5GeV) for HB,HE,HO,HF Without Trigger Without Trigger Without Trigger Without Trigger L1_SingleJet16 trigger L1_SingleJet16 trigger L1_SingleJet16 trigger L1_SingleJet16 trigger 11.06.2015 49

  50. CaloJet 𝑸 𝑼 and eta-phi Distributions Without Trigger Without Trigger Without Trigger L1_SingleJet16 trigger L1_SingleJet16 trigger L1_SingleJet16 trigger 11.06.2015 50

  51. CaloMET 𝑸 𝑼 -phi and emFraction Distributions Without Trigger Without Trigger Without Trigger Without Trigger L1_SingleJet16 trigger L1_SingleJet16 trigger L1_SingleJet16 trigger L1_SingleJet16 trigger 11.06.2015 51
