Results from T2K Alex Finch Lancaster University ND280 T2K 1 Contents T2K Overview Tokai Kamioka Neutrino Oscillations Results Muon neutrino disappearance Electron neutrino appearance Charged Current

slide-1
SLIDE 1

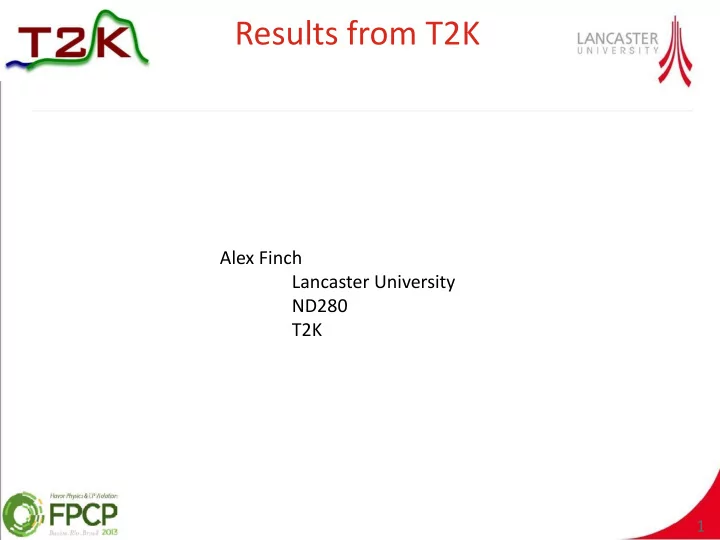

Results from T2K

Alex Finch Lancaster University ND280 T2K

1

slide-2
SLIDE 2
  • T2K

– Overview – Tokai – Kamioka

  • Neutrino Oscillations
  • Results

– Muon neutrino disappearance – Electron neutrino appearance – Charged Current inclusive cross section

  • Future Prospects

– Current Run – Future Running

Contents

2

slide-3
SLIDE 3
  • Observe νe appearance and measure θ13
  • Observe νμ disappearance and measure θ23
  • Measure ν cross sections
  • Search for exotic neutrinos

T2K Overview

Physics Goals

3

T2K - Long Baseline Accelerator based Neutrino Experiment

slide-4
SLIDE 4

T2K Overview

Beam and Detectors

4 Tokai

ND280

slide-5
SLIDE 5

T2K Overview

Neutrino Beam

π→μν

118 m

  • ff-axis (2.5°)

(30 GeV from MR synchrotron)

5

slide-6
SLIDE 6

6

Charge Current Quasi-Elastic

What we’d like: What we have:

“Final State Interactions” confuse the picture

Nucleon changes but doesn’t break up.

slide-7
SLIDE 7

Super Kamiokande

(“SK”)

7

slide-8
SLIDE 8

Super Kamiokande events

8 Muon event Electron event

slide-9
SLIDE 9

ND280

9

slide-10
SLIDE 10

ND280 Events

10

slide-11
SLIDE 11

T2K Data – Run Periods

11

2013/7/31

Long Shutdown →JAN 2014

? Earthquake

slide-12
SLIDE 12

Neutrino Oscillations

12 Slide from P. Litchfield PMNS=>Pontecorvo-Maki-Nakagawa-Sakata Δm2

21 ≡ Δm2 sol = 7.6×10−5 eV2

| Δm2

31| ≈ |Δm2 32| ≡ Δm2 atm=2.4×10−3 eV2

Θ13 = 9⁰ Θ12 = 34⁰ Θ23 = 45⁰

slide-13
SLIDE 13

Angle parameterisation

13 Slide from P. Litchfield

slide-14
SLIDE 14

14 Slide from P. Litchfield

slide-15
SLIDE 15

T2K Oscillation Analysis

Simulate Events in ND280. Tune beam and cross section parameters using ND280 data Tune using NA61 data Simulate events in SK Predict spectrum and fit for

  • scillation parameters.

Systematic errors include ND280 constraints. Simulate ν beam production Constraints from MiniBOONE etc. ND280 Measurements Super Kamiokande Measurements

Overview

NEUT and GENIE MCs Use event reweighting to model effect of varying parameters. 15

slide-16
SLIDE 16

T2K Oscillation Analysis

Simulate Events in ND280. Tune beam and cross section parameters using ND280 data Tune using NA61 data Simulate events in SK Predict spectrum and fit for

  • scillation parameters.

Systematic errors include ND280 constraints. Simulate ν beam production Constraints from MiniBOONE etc. ND280 Measurements Super Kamiokande Measurements

Overview

NEUT and GENIE MCs Use event reweighting to model effect of varying parameters. 16

slide-17
SLIDE 17

17

NA61 / SHINE

NA61 is a large acceptance hadron spectometer with excellent capabilities for momentum, charge and mass

  • measurements. The experimental facility

consists of Time Projection Chambers, Time

  • f Flight and Projectile Spectator Detectors.

Physics goals ... Hadron production reference measurements for neutrino (T2K) and cosmic-ray (Pierre Auger Observatory, KASCADE-Grande and KASCADE)

  • experiments. ...

Phys.Rev. C84 (2011) 034604

slide-18
SLIDE 18

T2K Oscillation Analysis

Simulate Events in ND280. Tune beam and cross section parameters using ND280 data Tune using NA61 data Simulate events in SK Predict spectrum and fit for

  • scillation parameters.

Systematic errors include ND280 constraints. Simulate ν beam production Constraints from MiniBOONE etc. ND280 Measurements Super Kamiokande Measurements

Overview

NEUT and GENIE MCs Use event reweighting to model effect of varying parameters. 18

slide-19
SLIDE 19

T2K Oscillation Analysis

Simulate Events in ND280. Tune beam and cross section parameters using ND280 data Tune using NA61 data Simulate events in SK Predict spectrum and fit for

  • scillation parameters.

Systematic errors include ND280 constraints. Simulate ν beam production Constraints from MiniBOONE etc. ND280 Measurements Super Kamiokande Measurements

Overview

NEUT and GENIE MCs Use event reweighting to model effect of varying parameters. 19

slide-20
SLIDE 20

What are ND280 Inputs?

20

slide-21
SLIDE 21

T2K Oscillation Analysis

Simulate Events in ND280. Tune beam and cross section parameters using ND280 data Tune using NA61 data Simulate events in SK Predict spectrum and fit for

  • scillation parameters.

Systematic errors include ND280 constraints. Simulate ν beam production Constraints from MiniBOONE etc. ND280 Measurements Super Kamiokande Measurements

Overview

NEUT and GENIE MCs Use event reweighting to model effect of varying parameters. 21

slide-22
SLIDE 22
  • Observe muon neutrinos from J-PARC in Super Kamiokande
  • Predict number using beam MC constrained by ND280

measurements

  • Fit reconstructed neutrino energy spectrum and thus
  • Measure sin22θ23, and Δm32

22

Muon neutrino disappearance

Overview

slide-23
SLIDE 23

23

νμ Selection at Far Detector (SK)

slide-24
SLIDE 24

24

νμ Event Selection contd.

> 200 MeV/c Electron observed later in time than μ consistent with beng from decay of μ.

slide-25
SLIDE 25

Muon Neutrino Disappearance

Count number of muon neutrino events in Super Kamiokande 25 95% CC – of which 64% CCQE

slide-26
SLIDE 26

26

Muon Neutrino Disappearance

Plot spectrum as a function of reconstructed ν energy. Fit for oscillation parameters.

slide-27
SLIDE 27

Oscillation Fitting

Results

27 90% Confidence Level allowed region: 2.14 x 10-3 eV2/c4 < |Δm32 | < 2.76 x 10-3 eV2/c4 sin22θ23>0.957 Best fit values: |Δm32 | = 2.44 x 10-3 eV2/c4 sin22θ23 = 1.0

New MINOS result: combined fit of beam and atmospheric results http://uk.arxiv.org/abs/1304.6335 8th May 2013

slide-28
SLIDE 28

28

Latest MINOS Result Overlaid on T2K

slide-29
SLIDE 29
  • 2011 result

– Observed 6 events

  • (Run 1 and 2 data – before earthquake 11 March 2011)

– 0.03 <sin22θ13< 0.28

  • for δCP=0 and normal hierarchy.
  • Reactor results

– 29 Dec 2011 Double Chooz 0.017 < sin22θ13 < 0.16. ( 90% CL) – 8 March 2012 Daya Bay announces 5.2σ measurement of θ13 sin22θ13 = 0.092 ± 0.016 (stat) ± 0.005 (syst) Confirmed 1 month later by RENO See talk by Kwong Lau

  • Our new result

– Run1 + Run2 + Run 3

Electron Neutrino Appearance

Recent history

29

slide-30
SLIDE 30

Electron Neutrino

Candidate Selection (at SK)

30

slide-31
SLIDE 31

31

Electron Neutrino

Candidate Selection (continued) 11 Candidate Events

slide-32
SLIDE 32

32

νe candidate #11

slide-33
SLIDE 33

Effect of ND280 Constraint

33

slide-34
SLIDE 34

Electron Neutrino

Summary

34

slide-35
SLIDE 35

Electron Neutrino

Fit results

35 0.030 < sin22θ13< 0.175 ( 90%CL ) 0.038 < sin22θ13< 0.212 ( 90%CL )

slide-36
SLIDE 36

CC Inclusive Cross Section

36

Efficiency = 50% Purity = 88%

Main backgrounds: Events not in FGD1 Neutral current

  • ND280 Run1 and 2 data
  • Detect νμ in FGD1 of ND280

– Good Data Quality – >0 -ve track in TPC – Track starts in FGD1 – dE/dx of -ve track consistent with μ – No activity upstream of FGD

  • Unfold to true μ p/θ bins
  • Convert to differential cross section
slide-37
SLIDE 37

CC Inclusive

Results (Binned)

37

slide-38
SLIDE 38

CC Inclusive

38 <σCC >φ=(6.93±0.13(stat)±0.85(syst)x10-39cm2/nucleon

slide-39
SLIDE 39
  • More data

–Plan is to collect sufficient data before long shutdown for a 5σ measurement of θ13

  • Improved reconstruction
  • More ND280 cross section measurements
  • Which will all help to produce more

accurate measurement.

Future Prospects

Current Run / Near Term

39

slide-40
SLIDE 40
  • More of the above and..
  • Anti neutrino running?
  • Synergies with NOVA...
  • Possible sensitivity to CP violation.

Future Prospects

Future Runs / Long Term

40 NOVA: Long baseline experiment Fermilab -> Ash River (810 km) => Larger matter effects than T2K Off Axis E=2GeV First beams now (Spring 2013) Detector completed this time next year Expect 5σ on θ13 by May 2014

slide-41
SLIDE 41
  • T2K is well on the way to achieving its original Physics Goals

– Electron neutrino appearance – Muon neutrino disappearance – Neutrino cross sections

  • Lots more to come in the next few years

41

Summary

slide-42
SLIDE 42

42

BACKUP

slide-43
SLIDE 43

43

effects matter with ) ( and ) (

e e

P P    

 

 

slide-44
SLIDE 44

44

Systematic errors -νμ disappearance

Pulls of systematic parameters at the best fit point using two different fitting methods (histogram/ points) Total error envelope calculated as ±1σ spread of bin contents using 100k toy MC experiments generated with randomized systematic parameters. All systematic parameters and their correlations were taken into account.

slide-45
SLIDE 45

Results in 2012: νeflux

Data/MC = .845 ± .146 (stat) ± .107 (syst) νe events = 82.1 ± 14.2 (stat) ± 8.8 (syst)

slide-46
SLIDE 46

CC Inclusive

Unfold to find true bins of muon momentum and angle

46
