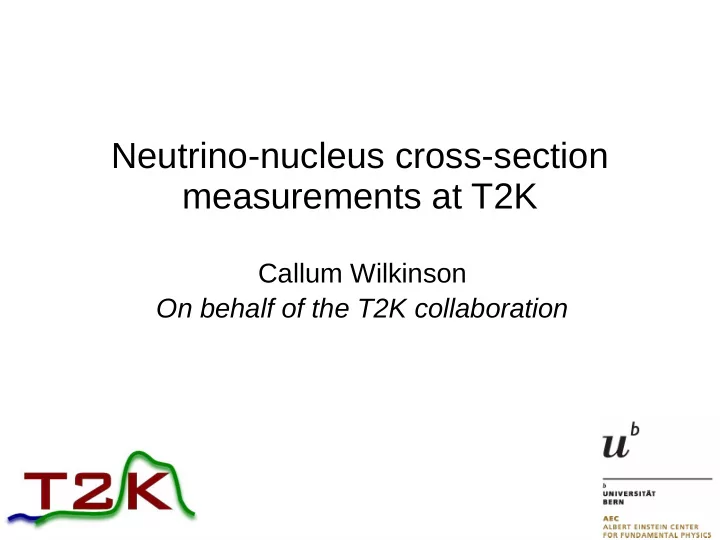

Neutrino-nucleus cross-section measurements at T2K Callum Wilkinson - - PowerPoint PPT Presentation

Neutrino-nucleus cross-section measurements at T2K

Callum Wilkinson On behalf of the T2K collaboration

2

Why neutrino cross sections?

• Event rate; Neutrino flux; Cross section; Detector

smearing; Oscillation probability

• Near/far ratios don’t fully cancel systematics:
• Dramatic Eν change
• ND is νμ dominated. Use to infer νe
• σ(Eν,x) relates observables x to Eν

Require few % cross-section systematics to fulfill design goals of future OA experiments

3

Broad neutrino fluxes, must understand the entire nuclear response... … but no consistent theoretical description Integrate!

Why neutrino cross sections?

Nuclei Nucleons Quarks

Energy transfer

• Ann. Rev. Nucl. Part. Sci., 68, 2018

4

The plot thickens

Final state particles do not correspond to initial interaction type (or energy transfer)!

(E.g. 2p2h)

5

The T2K experiment

• Long-baseline accelerator neutrino
• scillation experiment
• Near detectors:
• Constrain flux and cross-section

model before oscillation

• Cross-section measurements in

unoscillated beam

• Far detector: oscillation analyses

6

Near detector complex

ND280 (2.5º) INGRID (0º) WAGASCI (1.5º)

7

• ND280 (2.5° off-axis):
• Plastic scintillator (C8H8) and water targets
• High resolution tracking + magnet for sign and momentum
• WAGASCI (1.5° off-axis): water and C8H8
• INGRID (on-axis): water, iron and C8H8 targets

Near detector complex

• Fluxes:
• On axis
• 1.5° off-axis
• 2.5° off-axis
• ν (FHC) and ν (RHC)

enhanced modes

• Phys. Rev. D88, 032002 (2013)

8

Initially measure lepton kinematics Benefit from different fluxes/targets Add hadron kinematics over time

T2K cross-section strategy

θl Hadrons l± pl νl

( )

Build selections of interaction topologies by adding restrictions

• n outgoing hadrons:
• No model-dependent corrections
• Increasing Nπ≈ increasing energy

transfer

9

• Measure CC0π on C8H8 by

selecting muon, allowing protons, and vetoing pions

• Control samples for CC1π &

CCNπ backgrounds

ND280 CC0π νμ & νμ

T2K PRELIMINARY T2K PRELIMINARY

Paper in preparation

10

Simultaneous fit to measure cross section in 58 pμ,cosθμ bins for each mode, including correlations between the samples

νμ

T2K PRELIMINARY

P a p e r i n p r e p a r a t i

• n

ND280 CC0π νμ & νμ

11

• Correlations between

measurements can be used to uncover model differences

• Adds significantly more

power for model-building

T2K PRELIMINARY T2K PRELIMINARY T2K PRELIMINARY

Paper in preparation

ND280 CC0π νμ & νμ

12

ND280 νμ-CC0π C8H8 & H2O

FGD2

• Combined FGD1 (C8H8) and

FGD2 (C8H8 + H2O) analysis

• Difficult to reconstruct vertices

from passive water layers, so a joint fit is essential!

T2K PRELIMINARY T2K PRELIMINARY

P a p e r i n p r e p a r a t i

• n

13

• Fully correlated C8H8 and water measurements also produced
• Next step is a fully correlated νμ/νμ, C8H8/water analysis

ND280 νμ-CC0π C8H8 & H2O

(105.7) (145.9)

T2K PRELIMINARY

P a p e r i n p r e p a r a t i

• n

14

INGRID CC-inclusive

• On-axis Eν spectrum
• Limited phase space due to detector design:

1μ-: pμ ≥ 0.4 GeV, θμ ≤ 45°

• Use pure C8H8, water+C8H8 and iron+C8H8 targets

→ A-scaling

arXiv:1904.09611

15

• Water+C8H8 detector 1.5˚ off axis
• Limited phase space due to

detector design:

• 1μ±: pμ ≥ 0.4 GeV, θμ ≤ 45°
• 0π: pπ ≥ 0.2 GeV, θπ ≤ 70°
• 0p: pp ≥ 0.6 GeV, θp ≤ 70°
• Unmagnetized, so main result is

νμ+νμ to avoid model dependence

WAGASCI νμ-CC0π0p

(Tracking) C8H8 target H2O+C8H8 target

16

WAGASCI νμ-CC0π0p

C8H8 H2O

• Results including correlations between C8H8 and H2O

measurements

• Future work will produce correlated INGRID (0º),

WAGASCI (1.5º), and ND280 (2.5º) measurements, to maximize model constraining power

T2K PRELIMINARY T2K PRELIMINARY

P a p e r i n p r e p a r a t i

• n

17

• Important to understand intrinsic

backgrounds for OA experiments

• Also important to control

potential νe/νμ differences

• Challenge to characterize and

constrain γ-backgrounds

ND280 electron neutrinos (νe)

FHC νe RHC νe RHC νe

T2K PRELIMINARY T2K PRELIMINARY

P a p e r i n p r e p a r a t i

• n

18

• Rare SM process, background

for νe-appearance in Cherenkov detectors

• Enhancements suggested as a

possibility to explain low energy excess in MiniBooNE

ND280 NC1γ

• Search for e+e- pairs with low

invariant mass

• Backgrounds from π0

producing processes

• J. Phys. G 46, 08LT01 (2019)

19

• Neutrino cross-section measurements are critical for

current and future oscillation experiments

• T2K focuses on making unbiased, model-independent

cross-section measurements:

• Variety of nuclear targets
• Different fluxes
• Different observable channels
• Aim to provide high quality data to constrain various

cross-section models

Conclusions

20

Backup

21

Nuclear targets

• Free nucleon: the interaction level cross section, including

hadronization at high energy transfer

• Initial nuclear state: how nucleons behave inside the nucleus.

E.g., Relativistic Fermi Gas.

• Nuclear effects: additional effects due to the presence of multiple
• nucleons. E.g. np-nh interactions.
• Final State Interactions: subsequent interactions before

interaction products exit the nucleus.

22

Free nucleon response

QE RES DIS

23

Nuclear response

QE RES DIS Interactions with more than one nucleon contribute 2p2h

24

QE RES DIS 2p2h Integrate! Can’t reconstruct ω, so no way to avoid poorly modelled regions!

Nuclear response

25

• Can only measure for outgoing particle kinematics, as a

function of topology, not interaction channel

• Integrated over a broad neutrino flux
• Post-FSI, integrate out all degrees of freedom other than y:
• Direct theory comparisons to data are difficult
• Require Monte Carlo generator to do integrals numerically

ν-A cross section data

26

• Forthcoming publication to add to the extremely

spartan literature

• Future work on νe-CC0π sample

Electron neutrinos (νe)

T2K PRELIMINARY

P a p e r i n p r e p a r a t i

• n
