CS 4720

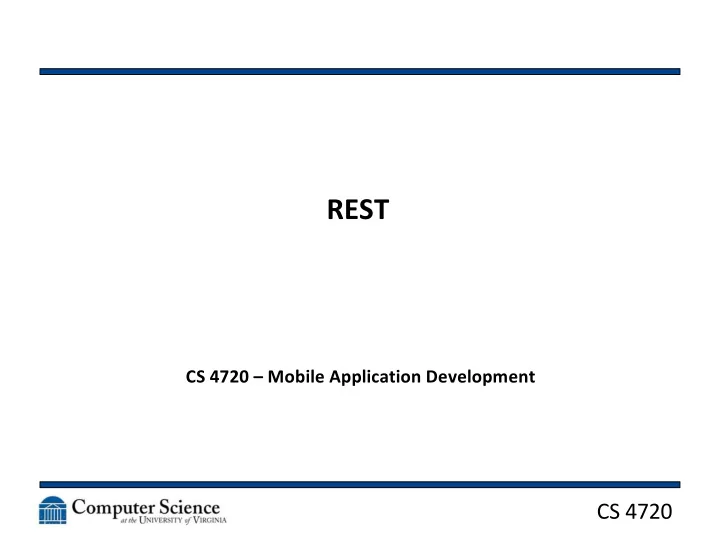

REST

CS 4720 – Mobile Application Development

CS 4720

And verily the Intarwebz were created

• The evolution of the web

– Server / Client – Simple pages – Web applications

2

CS 4720

And verily the Intarwebz were created

3

CS 4720

And verily the Intarwebz were created

4

CS 4720

And verily the Intarwebz were created

5

CS 4720

The Statefulness… or lack there of…

• How does state play into SIS?
• Why? How?

6

CS 4720

Nouns speak louder than… verbs…

• Look at the links in SIS
• What are they? Verbs.
• This is the “evolution” of the web

– We have tried to force the web into the same mold as stand-alone programs – This is not good! – We need to take advantage of the asynchronous nature of web communication!

7

CS 4720

REST

• Definition: REST

– Representation State Transfer – a software architectural style for distributed hypermedia systems, such as the web – (but not necessarily the web)

8

CS 4720

Principles of REST

• 1. Statelessness
• In the simplest terms, this principle forbids for

any state information to be stored on the server

• This does not forbid state to be stored client-

side

• Every message though must contain all

information needed for understanding

9

CS 4720

Principles of REST

• 2. Idempotency
• The output of identical requests is itself

identical

• In other words, if you go to the same page

twice, you get the same page (barring changes in the content model)

• Allows for caching, which improves user-

perceived responsiveness

10

CS 4720

Principles of REST

• 3. Addressable Resources
• Everything has its place and every place has a

thing

• “Everything is a resource”
• See amazon.com for a good example
• URLs reflect the resource

11

CS 4720

Principles of REST

• 4. Well-defined operations
• In the context of the Web and HTTP, we’re

talking:

– POST – GET – PUT – DELETE

• This reflects possible actions

12

CS 4720

Principles of REST

• 5. Formatted/Structured Data
• The resources you get should be encoded in a

uniform way (like HTML, XML, etc.)

13

CS 4720

Sounds good… but…

• Sure sounds hard to pull off good web apps

with these constraints…

• Let’s think about a shopping application
• What’s the “usual” way?

14

CS 4720

RESTful Shopping

• What are the actions that you want to take in a

shopping application?

15

CS 4720

RESTful Shopping

• In real life, who holds the shopping cart?
• You, or your personal shopping buddy

provided by the store?

• If it’s you (and I hope it is) where do you store

cart information?

– In a frame? (UGH… I just threw up a little in my mouth) – In a cookie? (not what it’s meant for!) – HTML5 SessionStorage object J… eventually

16

CS 4720

RESTful Shopping

• Well, just for argument, we’ll give you your

shopping buddy (we’ll call him “Carl”)

• In this instance, the shopper will be asking the

store to set aside items for them

• The difference here is basically philosophical,

but bear with me

• If we treat the cart as part of the STORE and

not owned by the CLIENT, then RESTfulness can still be maintained

17

CS 4720

RESTful Shopping

18

Sender Message Client Show me your products. Server Here’s a list of products. Client Okay, I’d like to buy 2 of http://shop.com/product/X, place it in my basket, my username is “XtremeShopper” and password is “bubba” Server

• Done. I’ve put it in your basket at

http://shop.com/users/XtremeShopper/basket Client Actually, I don’t need 1 of those. Please remove one of X from my basket, my username is “XtremeShopper” and password is “bubba” Server

• Done. I’ve removed it from your basket at

http://shop.com/users/XtremeShopper/basket Client

• Great. Ring it up - username is “XtremeShopper” password is “bubba”

Server Should I charge that to your account?

CS 4720

RESTful Shopping

• Uh… wasn’t that a session?
• Not quite – a session disappears when the user

does

– Theoretically, this would be around until the user removes everything or checks out

• It is addressable, it’s formatted, it’s

idempotent, and it uses defined operations

• The differences are very subtle, but they are

there

19

CS 4720

Sounds good… but…

• REST means that the server is stateless and

cannot store any data about the client’s current state/session

• This example was a bit extreme
• Like most things, moderation is the key to

getting the right balance between server and client resource utilization

20

CS 4720

Describing the World

• We generally refer to client/server systems as

“two-tier systems”

• Why?
• What does that communicate?

21

CS 4720

A Three-Tier System

• How might a three-tier

system be different than a two tier?

• Do we add a server?
• Do we add a client?
• What does it mean to have

three tiers?

22

CS 4720

Context Clues

• It’s all in what you’re talking about.
• If you’re discussion the
• verall system, including

the client, a common view of a three-tier architecture might be this:

23

CS 4720

Principles of REST

• Remember this one?

– 3. Addressable Resources – Everything has its place and every place has a thing – “Everything is a resource”

• This is actually key to how we go about

building a three-tier web application

24

CS 4720

RESTful Tiers

• If every resource is a place, and every place is a

resource, how do we define our resources?

• We know the URL would look something like:

– http://mysite.com/users/mss2x

• Where:

– mysite.com is the domain – users is the “category of resources” – mss2x is a specific instance of the resource

25

CS 4720

RESTful Tiers

• What we want the web server / web

application to do is translate this:

– http://mysite.com/users/mss2x

• Into effectively a function call that

– Identifies what the user is asking for – Loads a particular resource – Displays the pertinent info about that resource back to the user

26

CS 4720

Model-View-Controller

• This is the definition of what MVC is
• The MVC pattern maps:

– Identifies what the user is asking for – Loads a particular resource – Displays the pertinent info about that resource back to the user

• To Model, Controller, View (in that order)

27

CS 4720

MVC

28

CS 4720

MVC

29

CS 4720

30

REST and MVC

• REST and MVC aren’t directly related, but they

intersect in many, many ways

• The idea of “nouns” in the system – of

addressable resources – is a major component

• f both
• In general, a good MVC system will be RESTful,

although a RESTful system does not have to follow MVC.
