Reliable Host Fencing In CloudStack Rohit Yadav (Software Architect) - - PowerPoint PPT Presentation

The Cloud Specialists

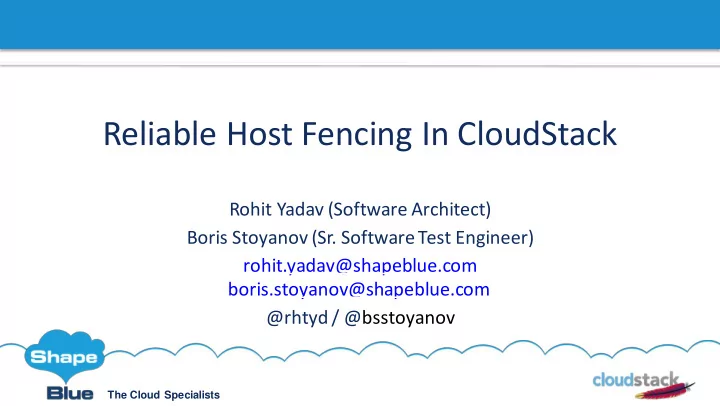

Reliable Host Fencing In CloudStack

Rohit Yadav (Software Architect) Boris Stoyanov (Sr. Software Test Engineer) rohit.yadav@shapeblue.com boris.stoyanov@shapeblue.com @rhtyd / @bsstoyanov
