SLIDE 1

CTO, Cloud Platforms, Citrix

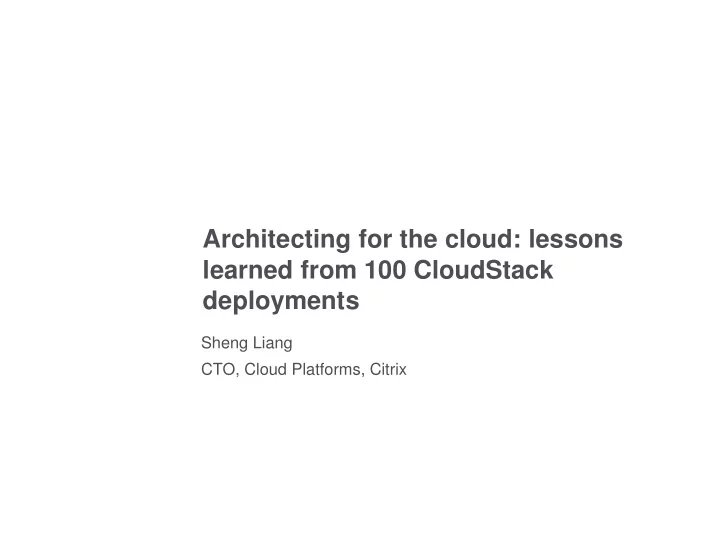

Architecting for the cloud: lessons learned from 100 CloudStack deployments

Sheng Liang

SLIDE 2

2008 Sept 2008: VMOps Founded 2009 Nov 2009: CloudStack 1.0 GA 2010 May 2010: Cloud.com Launch & CloudStack 2.0 GA 2011 July 2011: Citrix Acquires Cloud.com 2012 April 2012: Apache CloudStack

CloudStack History

SLIDE 3

Open Source Xen Hypervisor Open Source Xen Hypervisor Amazon Proprietary Orchestration Software Amazon Proprietary Orchestration Software EC2 API EC2 API Amazon eCommerce Platform Amazon eCommerce Platform Networking Storage Commodity Servers

The inventor of IaaS cloud – Amazon EC2

SLIDE 4

Open Source Xen Hypervisor Open Source Xen Hypervisor Amazon Proprietary Orchestration Software Amazon Proprietary Orchestration Software EC2 API EC2 API Amazon eCommerce Platform Amazon eCommerce Platform Networking Storage Commodity Servers XenServer CloudStack CloudPortal Cloud APIs

ESX Hyper-V KVM OVM

CloudStack is inspired by Amazon EC2

SLIDE 5

There will be 1000s of clouds

IT SP Owner | Operator Horizontal General Purpose Vertical Special Purpose

Desktop Cloud

Data center mgmt and automation

SLIDE 6

Learning from 100s of CloudStack deployments

Enterprise Service Providers Web 2.0

SLIDE 7

What is the biggest difference between traditional-style data center automation and Amazon-style cloud?

SLIDE 8

SLIDE 9

SLIDE 10

How to handle failures

SLIDE 11 11

8%

Kashi Venkatesh Vishwanath and Nachiappan Nagappan, Characterizing Cloud Computing Hardware Reliability, SoCC’10

Annual Failure Rate of servers

Server failure comes from:

70% - hard disk 6% - RAID controller 5% - memory 18% - other factors

Application can still fail for
ther reasons:

Network failure Software bugs Human admin error

SLIDE 12

Internet Core Routers Access Routers Aggregation Switches Load Balancers Top of Rack Switches

… …

Servers

SLIDE 13 13

40%

Phillipa Gill, Navendu Jain & Nachiappan Nagappan, Understanding Network Failures in Data Centers: Measurement, Analysis and Implications, SIGCOMM 2011

Effectiveness of network redundancy in reducing failures

Bugs in failover

mechanism

Incorrect configuration
Protocol issues such

as TCP back-off, timeouts, and spanning tree reconfiguration

SLIDE 14

A. Promise users VM, storage, and networking will

never fail

B. Backup VM for users and restore for users

when failure happens C.Tell users to expect failure. Users to backup VM and handle failure themselves

- no strategy to handle failures

SLIDE 15

zCloud East Zone AWS East Zone zCloud West Zone AWS West Zone

SLIDE 16

zCloud East Zone AWS East Zone zCloud West Zone AWS West Zone

Design for

Failure

SLIDE 17

Cloud workloads

Traditional-Style

Reliable hardware, backup entire cloud, and restore for users when failure happens

Amazon-Style

Tell users to expect failure. Users to build apps that can withstand infrastructure failure Link aggregation Storage multi-pathing VM HA, fault tolerance VM live migration VM backup/snapshots Multi-site redundancy Chaos monkey Ephemeral resources Strong consistency Eventual consistency

SLIDE 18

Designing a zone for a traditional workload

vCenter/XenCenter vCenter/XenCenter Hypervisor Cluster Hypervisor Cluster Hypervisor Cluster Hypervisor Cluster Hypervisor Cluster Hypervisor Cluster Enterprise Networking (e.g., VLAN) Enterprise Networking (e.g., VLAN) Enterprise Storage (e.g., SAN) Enterprise Storage (e.g., SAN) Hypervisor Storage SAN Networking L2 VLANs Network Services Load Balancing VPN Multi-tier Apps Ent App Mgmt vSphere or XenServer Enterprise Traditional-Style Availability Zone

SLIDE 19

Designing a zone for an Amazon-style workload

Hypervisor Storage Local EBS Networking L3 SDN based L2 Elastic IP Network Services Security Groups ELB Multi-tier Apps 3rd Party Tools (e.g., RightScale, enStratus) 3rd Party Tools (e.g., RightScale, enStratus) XenServer or KVM GSLB Software Defined Networks (e.g., Security Groups, EIP, ELB,...) Software Defined Networks (e.g., Security Groups, EIP, ELB,...) Amazon-Style Availability Zone Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Server Racks Elastic Block Storage Elastic Block Storage

SLIDE 20 Users Availability Zone 1 NetScaler

ELB/ GSLB

NetScaler Availability Zone 2

?

Object store is critical for Amazon-style cloud

NetScaler Availability Zone 2 Storage Cloud

SLIDE 21 Object Storage Object Storage AWS-style Availability Zone AWS-style Availability Zone AWS-style Availability Zone AWS-style Availability Zone AWS-style Availability Zone AWS-style Availability Zone

Same Cloud can Support Both Styles

Traditional Style Availability Zone Traditional Style Availability Zone Apache CloudStack Mgmt Server Traditional Style Availability Zone Traditional Style Availability Zone

Replication/DR

SLIDE 22

Tests for a “true” cloud app

Does it require SAN or VLAN?
Does it run in multiple data centers?
Does it involve a distributed object store?
Is there a single point of failure?

SLIDE 23

Learning from 100s of CloudStack deployments

Enterprise Service Providers Web 2.0

Traditional-style Mostly Amazon-style Mostly traditional style

SLIDE 24 Router L3 Core Switch Top of Rack Switch

…

… … … …

Availability Zone 1 Servers Object Store Pod 1 Pod 2 Pod 3 Pod N Load Balancer Internet Availability Zone 2 Primary CloudStack Mgmt Server Cluster Primary MySQL CloudStack Admin Backup MySQL Standby CloudStack Mgmt Server Cluster

SLIDE 25

…

DB Security Group Web Security Group

Layer 3 cloud networking (security groups)

… …

Web VM Web VM Web VM Web VM Web VM Web VM Web VM Web VM DB VM DB VM Web VM Web VM DB VM DB VM Web VM Web VM

SLIDE 26

…

Layer 2 VLAN networking

… …

User 2 User 2 User 1 User 1 User 1 User 1 User 1 User 1 User 1 User 1 User 2 User 2

SLIDE 27

…

OVS networking

… …

User 2 User 2 User 1 User 1 User 1 User 1 User 1 User 1 User 1 User 1 User 2 User 2 OVS OVS OVS OVS OVS

GRE Key 2 GRE Key 1

SLIDE 28

Multi-tier virtual networking

App subnet 10.1.2.0/24 App VM 1 App VM 2 Web VM 1 Web VM 2 Web VM 3 Web VM 4 Web subnet 10.1.1.0/24 DB Subnet 10.1.3.0/24 DB VM 1 Customer Premises Customer Premises

IPSec VPN

Internet Internet

MPLS VLAN

Network Services

IPAM
DNS
LB [intra]
S-2-S VPN
Static Routes
ACLs
NAT, PF
FW [ingress & egress]
BGP

NetScaler VPX GRE Key 1 GRE Key 2 GRE Key 3 Virtual Router

Public VLAN

SLIDE 29

Network flexibility

Network Services

L2 connectivity
IPAM
DNS
Routing
ACL
Firewall
NAT
VPN
LB
IDS
IPS

Network Isolation

No isolation
VLAN isolation
SDN overlays
L3 isolation

Service Providers

Virtual appliances
Hardware firewalls
LB appliances
SDN controllers
IDS /IPS

appliances

VRF
Hypervisor

SLIDE 30

“The Apache Way”

Collaborative software development
Commercial-friendly standard license
Consistently high quality software
Respectful, honest, technical-based interaction
Faithful implementation of standards
Security as a mandatory feature

SLIDE 31

Apache CloudStack Community

Pre Apache Move (Jan 2012) June Actuals # of companies endorsing project 1 68 # of companies participating 10 140 # of developers working on project 40 238

SLIDE 32

Apache CloudStack community projects

SDN

Nicira Midokura Big Switch Networks Stratosphere

Backup/DR

Sungard

Networking

Cisco Brocade (ADX)

Smart Storage

Hadoop + S3 API for object store NetApp (FlexPod, object store) Basho RIAK CS Caringo object store Cloudian S3

PaaS

CloudFoundry implementation through IronFoundry and Stackato teams Engine Yard Cumulogic GigaSpaces

SLIDE 33

Workload requirements drive cloud architecture There is real demand for SDN in cloud infrastructure Open source developers drive cloud adoption

SLIDE 34

More info http://cloudstack.org
