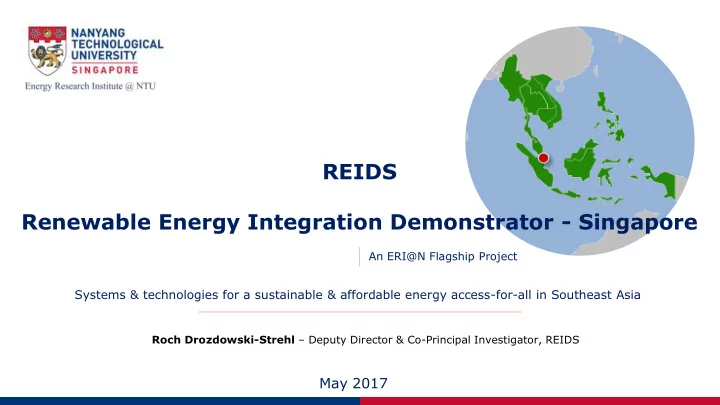

REIDS Renewable Energy Integration Demonstrator - Singapore

An ERI@N Flagship Project

Systems & technologies for a sustainable & affordable energy access-for-all in Southeast Asia

Roch Drozdowski-Strehl – Deputy Director & Co-Principal Investigator, REIDS

May 2017

slide-2
SLIDE 2

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY |

RESEARCH INSTITUTES, e.g.

  • Energy: ERI@N
  • Water: NEWRI
  • Media: IMI
  • Healthcare: NIHTM
  • Consumer Insight: ACI
  • Catastrophe Risk: ICRM
  • Maritime: MI@NTU
  • Complexity Institute

NTU 2020 Research Focuses

  • Sustainable Earth
  • Global Asia
  • Secure Community
  • Healthy Society
  • Future Learning

NTU structure

COLLEGES AND SCHOOLS, e.g.

  • Nanyang Business School
  • College of Engineering
  • College of Humanities, Arts &

Social Sciences

  • College of Science
  • Lee Kong Chian College of

Medicine

2017 | REIDS

13

QS World University Rankings 2017

1

QS Top 50 Under 50 2017

2

THE Top 150 Under 50 2017

2

THE Asia University Rankings 2017

Students: 33.000 Faculty and research staff: 4.300 “High-quality global education”

2

slide-3
SLIDE 3

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY |

Materials, Simulation & Modeling, Electrical Power / Control, Reliability

Flagship Projects : Eco Campus & REIDS

Colleges of Sciences, Engineering, Humanities, Arts and Business

ERI@N

Energy Smart, Research Innovation

Electro mobility Wind & Marine Renewables Solar Energy

&

Solar Fuels Maritime Clean Energy Sustainable Building Technologies Energy Storage Fuel Cells

2017 | REIDS

ERI@N structure

3

slide-4
SLIDE 4

REIDS Renewable Energy Integration Demonstrator - Singapore

REIDS is a Singapore-based RD&D platform dedicated to designing, demonstrating and testing solutions for sustainable multi-activity off-grid communities in Southeast Asia

slide-5
SLIDE 5

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY |

Economic development opportunity

  • 1.2 billion people on this earth do not have access to electricity.
  • An even higher number do not have access to proper sanitation, including drinking water.
  • Most of this population live in Africa, in Southeast Asia and in Latin America.

Given the shear geographical size of the territories involved, in the near term, it is unrealistic to access these populations by way of interconnected transmission systems. The solution must be localized networks - off-grid microgrids. The deliberate focus of REIDS is on microgrid applications for:

  • Islands
  • Remote villages
  • Emergency situations – earthquakes, tsunamis, refugee camps, etc..
  • Remote mining operations
  • “Fringe” networks
  • Military bases

2017 | REIDS

Rationale for REIDS

5

slide-6
SLIDE 6

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY | 2017 | REIDS

Economic development opportunity

While challenging, energy transitions also represent formidable technology and economic development opportunities for energy infrastructure and systems solutions providers. World’s top five fastest growing electricity production regions from 2010 to 2030 Indonesia : 17,508 islands - Philippines : 7,107 islands

Economic development opportunity

6

slide-7
SLIDE 7

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY | 2017 | REIDS

Rural Electrification in Southeast Asia

Rural electrification in Southeast Asia

10 20 30 40 50 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

Number of people without electricity (Million) % of people in rural areas without electricity

Indonesia

(48.7;34.4%)

Myanmar

(36.3;81.7%)

Philippines

(20.6;32.6%)

Cambodia

(9.9;81.8%)

Vietnam

(2.6;4.0%)

Thailand

(0.7;1.7%)

Brunei

(0;1.4%)

Malaysia

(0.1;1.3%)

Laos

(0.9;18.5%)

Singapore

(0;0%) Country

(# people without electricity; % people without electricity )

106 Mio people

7

slide-8
SLIDE 8

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY | 2017 | REIDS

Semakau Island – An emblematic site for REIDS

8

slide-9
SLIDE 9

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY |

Legacy

Loads

  • On-island loads

(residential, commercial, SME’s)

  • Desalination
  • Aquaculture
  • Agro processing
  • Clean mobility
  • …
  • Connection to

neighboring islands Diesel Gen

  • Diesel

REIDS Technology Road Map – 1/4

9

slide-10
SLIDE 10

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY |

Solar Renewables Wind Renewables Marine Renewables

  • Solar PV
  • Solar Thermal Electric
  • Small to

Intermediate

  • Onshore & Offshore
  • In-stream Tidal

Renewable Energy Generation Energy Storage

  • Batteries – Li-ion, Redox

Flow, Super-capacitor

  • Flywheel
  • Compressed Air
  • Hydrogen

Loads

  • On-island loads

(residential, commercial, SME’s)

  • Desalination
  • Aquaculture
  • Agro processing
  • Clean mobility
  • …
  • Connection to

neighboring islands

  • Remote Monitoring

& Control

  • AC/DC

Hybrid Microgrid Diesel Gen

  • Diesel

Microgrid Infrastructure

Renewable & storage enabled Phase-out of diesel as primary provider

10

REIDS Technology Road Map – 2/4

slide-11
SLIDE 11

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY |

Plug & Play expansion

2017 | REIDS

Solar Renewables Wind Renewables Marine Renewables

  • Solar PV
  • Solar Thermal Electric
  • Small to

Intermediate

  • Onshore & Offshore
  • In-stream Tidal

Renewable Energy Generation Energy Storage

  • Batteries – Li-ion, Redox

Flow, Super-capacitor

  • Flywheel
  • Compressed Air
  • Hydrogen

Fuel Cell

  • H2

Bio Energy

  • Non-food

crops

  • Algae

Loads

  • On-island loads

(residential, commercial, SME’s)

  • Desalination
  • Aquaculture
  • Agro processing
  • Clean mobility
  • …
  • Connection to

neighboring islands

  • Remote Monitoring

& Control

  • AC/DC

Hybrid Microgrid Diesel Gen

  • Diesel

Others

11

REIDS Technology Road Map – 3/4

slide-12
SLIDE 12

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY | 2017 | REIDS

Solar Renewables Wind Renewables Marine Renewables

  • Solar PV
  • Solar Thermal Electric
  • Small to

Intermediate

  • Onshore & Offshore
  • In-stream Tidal

Renewable Energy Generation Energy Storage

  • Batteries – Li-ion, Redox

Flow, Super-capacitor

  • Flywheel
  • Compressed Air
  • Hydrogen

Fuel Cell

  • H2

Bio Energy

  • Non-food

crops

  • Algae

Loads

  • On-island loads

(residential, commercial, SME’s)

  • Desalination
  • Aquaculture
  • Agro processing
  • Clean mobility
  • …
  • Connection to

neighboring islands

  • Remote Monitoring

& Control

  • AC/DC

Hybrid Microgrid Diesel Gen

  • Diesel

Hybrid Microgrid Energy Sources Loads Storage Hybrid Microgrid Energy Sources Storage Loads Grid Connection Others

12

REIDS Technology Road Map – 4/4

Interoperability

slide-13
SLIDE 13

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY | 2017 | REIDS

Solar Renewables Wind Renewables Marine Renewables

  • Solar PV
  • Solar Thermal Electric
  • Small to

Intermediate

  • Onshore & Offshore
  • In-stream Tidal

Renewable Energy Generation Energy Storage

  • Batteries – Li-ion, Redox

Flow, Super-capacitor

  • Flywheel
  • Compressed Air
  • Hydrogen

Fuel Cell

  • H2

Bio Energy

  • Non-food

crops

  • Algae

Loads

  • On-island loads

(residential, commercial, SME’s)

  • Desalination
  • Aquaculture
  • Agro processing
  • Clean mobility
  • …
  • Connection to

neighboring islands

  • Remote Monitoring

& Control

  • AC/DC

Hybrid Microgrid Diesel Gen

  • Diesel

Hybrid Microgrid Energy Sources Loads Storage Hybrid Microgrid Energy Sources Storage Loads Grid Connection Others

13

REIDS Technology Road Map

slide-14
SLIDE 14

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY | 2017 | REIDS

  • Solving engineering, economic, environmental and societal energy transition challenges for off-grid

communities.

  • Partnering with Southeast Asia private, public and civil society organizations.

Microgrid R&D

  • Implementing large-scale microgrid system demonstrations under Southeast Asia climatic conditions.
  • Designing and executing equipment performance assessment tests in a neutral environment under in-

the-field operating conditions.

Microgrid systems demonstration and equipment testing

  • Broadly disseminating the REIDS message in Southeast Asia: conference participations, seminars,

executive education – Singapore and off-site.

  • Road-mapping energy transition strategies in Southeast Asia.
  • Enrolling REIDS public and private sector members in Southeast Asia.

Outreach: engineering support, seminars, presentation & publications

2 3 1

14

The three pillars of our long-term strategy for excellence

slide-15
SLIDE 15

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY | 2017 | REIDS

  • 1. Power and Energy management
  • 2. Systemic integration of supply, demand and storage
  • 3. Supply-side and demand-side requirements reconciliation
  • 4. Plug & Play operations
  • 5. Centralized vs local monitoring and control
  • 6. Energy road mapping for off-grid communities
  • 7. Economic performance evaluation of microgrid solutions
  • 8. Standardization

REIDS Key R & D challenges

Microgrid R&D

1

15

slide-16
SLIDE 16

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY | 2017 | REIDS

  • 1. Renewable energy generation (solar, wind, in-stream tidal, ..)
  • 2. Energy storage (batteries, hydrogen, flywheel, compressed air, ..)
  • 3. ICT architectures
  • 4. Energy management systems
  • 5. Aqua and agriculture energy systems integration
  • 6. Desalination and fresh water production
  • 7. Sustainable mobility
  • 8. Power-to-gas and fuels
  • 9. Micro-algae and others

REIDS key technological building blocks

2

Microgrid systems demonstration and equipment testing

16

slide-17
SLIDE 17

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY | 2017 | REIDS

  • 1. Presenting REIDS results at conferences and symposia in the region
  • 2. Delivering seminars and executive education in collaboration with REIDS partners
  • 3. Enhancing knowledge of local market dynamics for REIDS partners
  • 4. Providing additional information channels complementary to existing corporate M & S
  • 5. Participating in REIDS microgrid technology and market intelligence watch
  • 6. Gaining enhanced insights of Southeast Asia regulatory and legislative dispositions
  • 7. Benefiting from proactive engagement in REIDS marketing and showcasing programs

Outreach value propositions for REIDS Members

Outreach: engineering support, seminars, presentation & publications

3 3

17

slide-18
SLIDE 18

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY |

REIDS 3D rendering

2017 | REIDS 18

slide-19
SLIDE 19

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY | 2017 | REIDS

MG0 Test & Commissioning - March 2017

REIDS Development status – “Microgrid 0”

19

slide-20
SLIDE 20

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY | 2017 | REIDS

Foundations, PVS and WTS deployment – July 17

REIDS Development status – “P2 plot”

20

slide-21
SLIDE 21

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY | 2016 | REIDS

Microgrids 1, 2 and 3 on a 64’400 m2 greenfield – Plot 2 (P2)

21

Three separate microgrids

400 VAC – DC distribution possible Within each microgrid:

  • PV – several 100 kWp
  • Wind – 50 to 200 kW
  • Energy storage – Li-Ion, Redox flow, supercapacitors, etc.
  • 400 kW 3Ø passive load
  • Microgrid-specific loads
  • Possibility to connect to shared loads and sources

Each microgrid should be capable of operating in a fully islanded / isolated mode. Inter-microgrid operation “interoperability demonstration” by way of 6.6 kVAC network. Connection to off-P2 assets: 6.6 kVAC

  • Fish nursery
  • Desalination plants
  • In-stream tidal machines
  • ….

P2 plot conceptual diagram:

slide-22
SLIDE 22

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY | 2016 | REIDS

Microgrids 1, 2 and 3 on a 64’400 m2 greenfield – Plot 2 (P2)

22

Three separate microgrids

400 VAC – DC distribution possible Within each microgrid:

  • PV – several 100 kWp
  • Wind – 50 to 200 kW
  • Energy storage – Li-Ion, Redox flow, supercapacitors, etc.
  • 400 kW 3Ø passive load
  • Microgrid-specific loads
  • Possibility to connect to shared loads and sources

Each microgrid should be capable of operating in a fully islanded / isolated mode. Inter-microgrid operation “interoperability demonstration” by way of 6.6 kVAC network. Connection to off-P2 assets: 6.6 kVAC

  • Fish nursery
  • Desalination plants
  • In-stream tidal machines
  • ….

P2 plot conceptual diagram:

slide-23
SLIDE 23

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY |

REIDS Partners as of December 2017

2017 | REIDS

Solutions Providers Adopters

23

Supporting Agencies Coordinator

slide-24
SLIDE 24

ENERGY RESEARCH INSTITUTE | NANYANG TECHNOLOGICAL UNIVERSITY | 2017 | REIDS 24

Thank you

REIDS Renewable Energy Integration Demonstrator – Singapore

Contact:

  • Mr. Roch Drozdowski-Strehl

Deputy Director, REIDS roch@ntu.edu.sg Energy Research Institute @ NTU – ERI@N Nanyang Technological University Singapore 637141 http://erian.ntu.edu.sg/REIDS

24
