Reconfiguration of BWTF Current Status TOEM Committee RCAC Staff Tom Kuckertz Harvey Consulting and Alyeska Pipeline Service Company 1.27.06 Board Meeting BWTF Reconfiguration Facility Modifications PWSRCACs Participation in

slide-1
SLIDE 1

1.27.06 Board Meeting

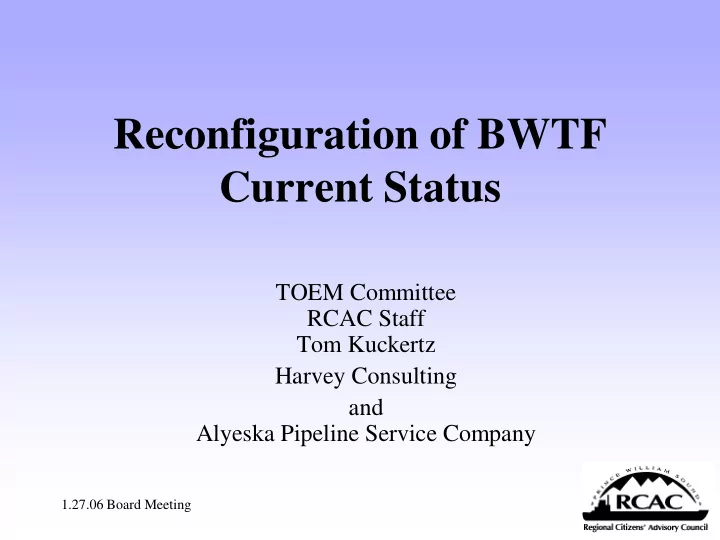

Reconfiguration of BWTF Current Status

TOEM Committee RCAC Staff Tom Kuckertz Harvey Consulting and Alyeska Pipeline Service Company

slide-2
SLIDE 2

1.27.06 Board Meeting

BWTF Reconfiguration

  • Facility Modifications
  • PWSRCAC’s Participation in Planning
  • Alyeska Presentation
  • EPA
  • Comments and Questions
slide-3
SLIDE 3

1.27.06 Board Meeting

Gravity Separation Tanks (1st Stage)

  • Purge Dampers
  • New skimmers
  • Issues:

– HAPs emissions – Fire from oil and wax buildup – Explosive vapors

slide-4
SLIDE 4

1.27.06 Board Meeting

Dissolved Air Flotation (2nd Stage)

  • Wier Dam
  • Oil Film
  • Induced gas flotation?
  • Issues:

– Dam leakage – HAPs emissions – Burping exit line – More Oil to BTTs ?

slide-5
SLIDE 5

1.27.06 Board Meeting

DAF Weirs and Splitter Box

slide-6
SLIDE 6

1.27.06 Board Meeting

Raised Water Levels in Weir System Greatly Reduce Turbulence and HAPs Emissions

slide-7
SLIDE 7

1.27.06 Board Meeting

Biological Treatment Tanks (3rd Stage)

  • Instrumentation for process control
  • Recycle loop planned ?
  • Splitter box replaced ?
  • Issues:

– HAPs emissions – Health of microbes – TROG in effluent – Increased BTEX loading

slide-8
SLIDE 8

1.27.06 Board Meeting

East Biological Treatment Tank

Increased BTEX Loading from Prior Steps in Process?

slide-9
SLIDE 9

1.27.06 Board Meeting

Air Strippers (Rarely Used 4th Stage)

  • Issues:

– HAPs emissions – TROG in effluent

slide-10
SLIDE 10

1.27.06 Board Meeting

Oil Recovery (80s Tanks)

  • RC tanks to replace (36,000 bbl each) 80s Tanks

– 2 each – 2,500 bbl each – Internal floating roofs – Better 90s skimming (strainers, macerators, skimmers)

  • Issues:

– HAPs Emissions – Fire and explosion

slide-11
SLIDE 11

1.27.06 Board Meeting

One of the 80s Tanks

slide-12
SLIDE 12

1.27.06 Board Meeting

PWSRCAC’s Participation in Alyeska’ Planning

  • Projects briefings every 2 months
  • 60% design review of RC Tanks (1/12/06)
  • BWTF Update by Alyeska Experts

(12/19/05)

slide-13
SLIDE 13

1.27.06 Board Meeting

Alyeska Presentation

slide-14
SLIDE 14

1.27.06 Board Meeting

EPA

slide-15
SLIDE 15

1.27.06 Board Meeting

Comments And Questions

slide-16
SLIDE 16

1.27.06 Board Meeting

End of Presentation
