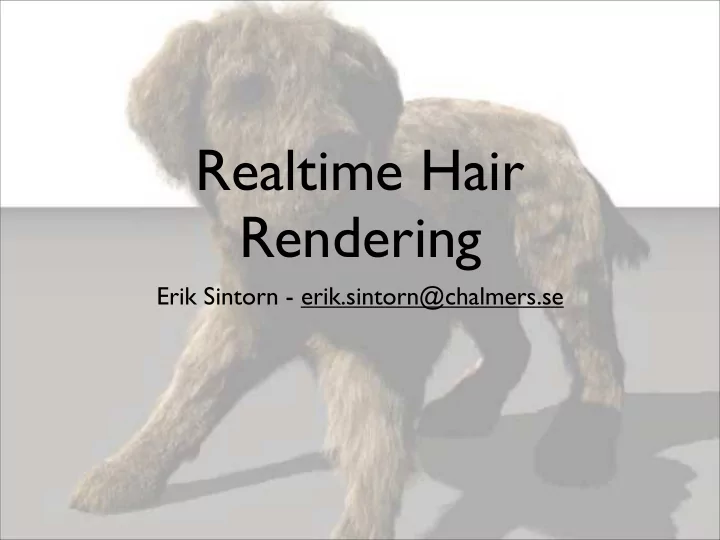

Realtime Hair Rendering

Erik Sintorn - erik.sintorn@chalmers.se

State of the art (realtime)

In recent games In recent research

State of the art (realtime)

A few hundred textured polygons Half a million individual line segments

What makes hair tricky?

• Convincing hair requires very many, very thin

primitives (~.5M lines or quads or cylinders):

• Lots of geometry for GPU to process
• Very prone to aliasing
• Hair is semitransparent (refractive):
• Light is scattered in three strong directions
• Simple transparency effect can be achieved by

blending, but requires fragments to be sorted

Aliasing

The Awful Truth

Major challenges for realtime

• Shading
• Self shadowing
• Blending for transparency and subsampling

Hair Shaders

• Kayija-Kay model

(James T Kajiya and Timothy L Kay, Rendering Fur With Three Dimensional Textures)

• Pretends hair is infinitesimally

thin specular cylinder

• Captures the most obvious

specular highlight from hair:

Hair Shaders

• Marschner et. al., Light Scattering from Human Hair Fibers

Hair Shaders

Proper measurements

• f light scattering

show three distinctive components

Hair Shaders

• “Light scattering”

Self shadowing

Self Shadowing

traditional techniques

Shadow Mapping

Would require huge shadow maps

Shadow Volumes

• main problem with

algorithm is overdraw since each sillhouette edge becomes a polygon

• Hair is ALL sillhouette

edges Neither support semi transparent geometry

Deep Shadow Maps

• Introduced in 2000 by Pixar to render

“fuzzy” objects offline

• Instead of storing the closest fragments

depth in the shadow map, store a function, V(d): The visibility as a function of the depth

• Requires an A-buffer type renderer

Deep Shadow Maps

Store depth and opacity for each fragment along the ray (pixel) Compress into piecewise linear function for each pixel

V(d) V(d) d d

Opacity Maps

Sample opacity at regular intervals

• Render hair once for

each slice

• Each time, move far

plane one slice further away

• Save each slice into a

3d texture

Opacity Maps

• Regular sampling

requires very many slices

• Not feasible to render

hair 256 times

16 slices 256 slices

Opacity Maps

• nVidias NALU

demo uses opacity maps with 16 slices, that they can render in a single pass

Deep Opacity Maps

• In a first pass, find the closest fragment for each pixel
• In fragment shader, find the fragments xy-pos in this

map and use fragments depth to find the slice to write to

Alpha Blending

• We need to alpha-blend the fragments to

simulate: Antialiasing: Transparency:

Alpha Blending

Depth Peeling

• Only failsafe technique known when no A-

buffer available

• Sorting the primitives (triangles/lines) is not

necessarily enough

• Depth peeling will draw the actual

fragments in back to front order

• Render the image with z-buffer and draw
• nly furthest fragments
• Use z-buffer of previous pass as texture to

discard all fragments with depth >= that texture

• Continue until an occlusion query reports

no fragments drawn

Depth Peeling (algorithm)

Depth Peeling (problems)

• Requires as many passes as is the depth

complexity of the image

• Images of hair can have depth complexity of

several hundred fragments in one pixel

• Can use front to back drawing instead and

stop after a certain number of passes, but will still require to many passes to work in realtime

Real-Time Approximate Sorting for Self Shadowing and Transparency in Hair Rendering

Erik Sintorn and Ulf Assarsson Chalmers University Of Technology

What we do...

• Introduces an approximate quicksort

algorithm for lines that runs entirely on the GPU

• Use this to create high def Opacity Maps in

real time

• And to solve the alpha blending problem

Transform Feedback

• Allows us to save the data
• utput from the Geometry

Shader (without rendering to screen)

• Introduced to simplify for

example displacement mapping and cube map

• Called “Stream Out” in

DirectX 10

Quicksorting points on GPU

• Submit all points twice.
• First time we discard all points on one side
• f a split plane, second time we discard the
• thers

Quicksorting points on GPU

• Results are stored in two buffers using

stream out

• Recursively repeat until we have N buffers

where all elements in a buffer lie within one

• f N slices

Quicksorting lines on GPU

• A line can lie on both sides of the plane
• Just clip the line in the Geometry Shader

Building Opacity Map

• Use planes parallel with the light-plane to divide

geometry

• Now, it is easy to build the opacity map texture by:
• Enabling additive blending
• Set up camera from lights viewpoint
• For each slice s
• Render sublist s into the final texture-slice
• Copy the final texture-slice to texture-slice s

Alpha Sorting

• With GPU based Partial Quicksort, alpha blending is

easy

• Simply sort geometry into sublists for each slice of the

viewing frustrum from the cameras viewpoint

• This time, sort back to front
• Render the generated VBO (as one large batch) with alpha

blending enabled

Hair Self Shadowing and Transparency Depth Ordering Using Occupancy maps

Erik Sintorn and Ulf Assarsson Chalmers University Of Technology

Occupancy Maps

• One big problem with Opacity Maps is that they

take up very much space

• 256 slices of 512x512 maps take ~256MB if we

use float opacity values

• That’s half the available memory on many cards
• In this paper we suggest a more compact

representation, with similar quality that is also faster to generate

Occupancy Maps

• The Occupancy Map is like an opacity map, but we

store, for each texel and slice, only a bit that says if the voxel is occupied or not.

• In this way, we can keep information about 128

slices in 4 32-bit words (one texture-map with unsigned ints representing RGBA)

• We also use the technique suggested in Deep

Opacity Maps to optimize the available precision in this map

Occupancy Maps

Occupancy Maps

• Generating the occupancy map
• In a first pass, render the geometry from the light to find

the minimum and maximum depth of each texel

• Render the geometry again, to a UINT32 framebuffer.

Using an OR logical operation for blending

• For each generated fragment, figure out what slice it

belongs to and set the corresponding bit in the output

Occupancy Maps

• When we shade the hair from the cameras view, for

each fragment we find the projected light-space coordinates (x,y) and the slice s and fetch the

• ccupancy words with a texture lookup.
• We then count the number of set bits corresponding

to slices < s and set the opacity to this number multiplied by some constant

• Since several fragments may have recorded

themselves in the same slice (the same bit) they may

• nly be counted once... bad.

The Slab Map

• Enter the slab-map
• The slab map is a simple rgba texture map
• f the same size as the occupancy map
• Each color

channel holds the number of fragments recorded into that slab

Putting it together

• The slab map and occupancy map together provide a

very good estimate of the visibility. So, given the light MVP coords (x,y), the slice s and the slab m:

• Find out how many fragments are in slabs preceeding

m, call this a

• Find the average number of fragments per bit in slab

m: avg = (number of fragments in slab / total number

• f set bits in slab)
• Find approximate number of fragments occluding this

as: a + avg * (number of bits set in slabs < s)

Putting it together

Resulting visibility function

Alpha “sorting”

• The blending function typically used for

rendering transparent objects is:

Alpha “sorting”

• For three fragments blended in back to front
• rder, this would expand to:

Alpha “sorting”

• Which can be rewritten as:

=>

Alpha “sorting”

All alphas are approximately the same =>

Alpha “sorting”

All alphas are approximately the same => =>

Alpha “sorting”

• We donʼt know the depth order of the

fragment...

• But we can approximate how many fragments

precede it! Which is really the same thing. So:

• Calculate the shaded and shadowed color c
• f the fragment.
• Approximate the depth order i using
• ccupancy and slab maps
• Write to the framebuffer:

Results

Video
