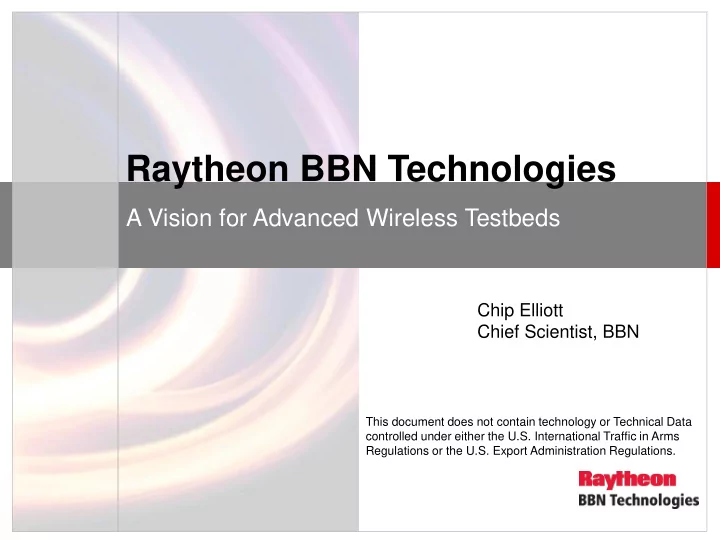

A Vision for Advanced Wireless Testbeds

Chip Elliott Chief Scientist, BBN

This document does not contain technology or Technical Data controlled under either the U.S. International Traffic in Arms Regulations or the U.S. Export Administration Regulations.

5G

November 22, 2016 A Vision for Wireless Testbeds 2

5G 109G

November 22, 2016 A Vision for Wireless Testbeds 3

5G 109G

X

November 22, 2016 A Vision for Wireless Testbeds 4

5G 109G

X

November 22, 2016 A Vision for Wireless Testbeds 5

Outline

• Wireless, the enabler . . .
• . . . when everything is the cloud . . .
• . . . opens up tomorrow’s apps
• How to get started

November 22, 2016 A Vision for Wireless Testbeds 6

A handy invention

November 22, 2016 A Vision for Wireless Testbeds 7

If we built an RF equivalent . . . ?

RF illumination patterns Fading and reflections Even select by modulations Probably feasible to build / demo

November 22, 2016 A Vision for Wireless Testbeds 8

What will we see in 20 years ?

• A world drenched in RF
• Much fuller spectrum occupancy than today
• Many, many illuminators with a wide variety of radiation

patterns (lots of beams)

• Many very agile illuminators (beam steering, spectrum,

coding, distributed beam forming, etc etc)

• Many flickering, mobile illuminators

November 22, 2016 A Vision for Wireless Testbeds 9

Kind of like this, everywhere

November 22, 2016 A Vision for Wireless Testbeds 10

Outline

• Wireless, the enabler . . .
• . . . when everything is the cloud . . .
• . . . opens up tomorrow’s apps
• How to get started

November 22, 2016 A Vision for Wireless Testbeds 11

When everything is the cloud,

Wireless is the Cloud’s Skin

Edge datacenters Regional datacenters Core datacenters

Ubiquitous high-capacity wireless “skin”

November 22, 2016 A Vision for Wireless Testbeds 12

A first step into this new world

Cloud Radio Access Networks (CRANs)

November 22, 2016 A Vision for Wireless Testbeds 13

A more radical architecture

• A fundamentally sliced (multi-tenant) architecture
• SDRs w/ multiple back ends (pub sub)
• Multifunction RF, all software-defined
• Cloud-style, not telco-style

Multi-tenant cloud Multi-tenant cloud

Sliced processing chains with SDR Sliced processing chains with SDR

Air

“RF Hypervisors” Shared data Shared data

November 22, 2016 A Vision for Wireless Testbeds 14

An example

• A fundamentally sliced (multi-tenant) architecture
• SDRs w/ multiple back ends (pub sub)
• Multifunction RF, all software-defined
• Cloud-style, not telco-style

Web access Drone control Radar IM / Text Web access Drone control Radar IM / Text Multi-tenant cloud Multi-tenant cloud

Sliced processing chains with SDR Sliced processing chains with SDR

Air

“RF Hypervisors” Shared data Shared data

November 22, 2016 A Vision for Wireless Testbeds 15

Outline

• Wireless, the enabler . . .
• . . . when everything is the cloud . . .
• . . . opens up tomorrow’s apps
• How to get started

November 22, 2016 A Vision for Wireless Testbeds 16

A very simple case

Why not use the knowledge you have ?

I know where I’m going I know where I’m going Cloud scheduling wireless assets / handoff

November 22, 2016 A Vision for Wireless Testbeds 17

City-wide traffic orchestration?

Why should cars be autonomous ? Even more so, why should drones be ? Surely they should leverage all existing knowledge about everything in the city…..

November 22, 2016 A Vision for Wireless Testbeds 18

Can every network access point help robots navigate ?

From E911 -> wifi -> wallplug appliance ?

November 22, 2016 A Vision for Wireless Testbeds 19

Can every city get, as a service, a realtime, distributed radar system ?

Run radar slice in parallel with comms Leverage dense RF transmitters Maybe add tailored waveforms for weather, drones, etc etc (SDR…) Multistatic transmitters & receivers

November 22, 2016 A Vision for Wireless Testbeds 20

Urban transport / automobiles ?

• DARPA GXV-T
• Extreme mobility
• (Why have 4 wheels?)
• No windows
• Augmented cloud-based

reality instead

• Looking forward . . .

– Perhaps divorce “coach” from chassis, a personal “living room” with a leased-per-drive chassis ? – “Coach” as in trimodal containers, joining “buses” within city, parking bins, slide into hyperloop, etc – Chassis can service people, freight haulage, etc

November 22, 2016 A Vision for Wireless Testbeds 21

Extremely fine-grain realtime sensing ?

• Lidar on every car ?
• Projected cost: $250 / unit
• Current Velodyne stats

– 120m range, < 2cm accuracy – 64 channels (emitter/receiver pairs) – 2.2 Million points per second – About 100 Mbps data stream

• What if we harvested / pooled all those “data torrents”?

– Many looks at everything near a road (many cars, many angles) – Continuous, realtime infrastructure monitoring – Measuring weather and climate change (watch leaves) – Counting cars at walmart – Realtime RF channel models (e.g. leaves again) – Synthetic data for those windows

November 22, 2016 A Vision for Wireless Testbeds 22

Outline

• Wireless, the enabler . . .
• . . . when everything is the cloud . . .
• . . . opens up tomorrow’s apps
• How to get started

November 22, 2016 A Vision for Wireless Testbeds 23

The best way to predict the future is to invent it

November 22, 2016 A Vision for Wireless Testbeds 24

SDX A “Deeply Programmable ” Citywide Testbed

Some slices for Researchers, others for Service Providers Next generation citywide wireless coverage with many radio access points Low-latency, deeply programmable, “sliced” local cloud

The Internet IP Slices

Sliced local cloud

New apps / services Internet of Things

Citywide testbed(s)

VM VM VM

November 22, 2016 A Vision for Wireless Testbeds 25

When everything is the cloud,

Wireless is the Cloud’s Skin

Edge datacenters Regional datacenters Core datacenters

Ubiquitous high-capacity wireless “skin”

November 22, 2016 A Vision for Wireless Testbeds 26

Let’s be ambitious !
