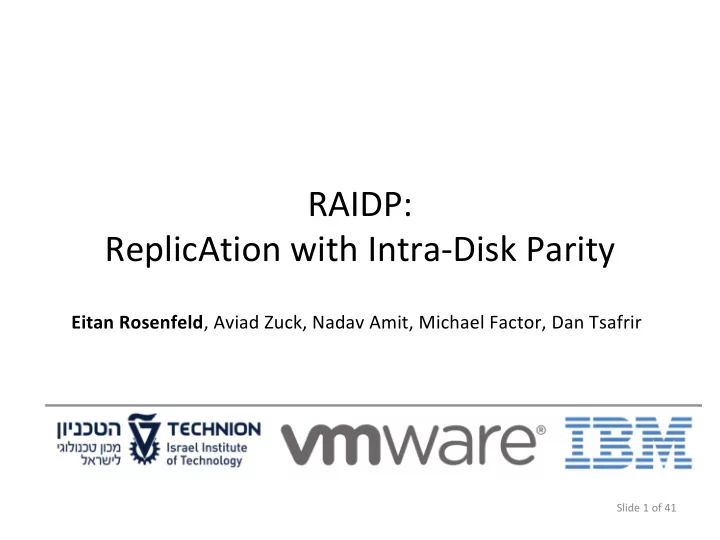

RAIDP: ReplicAtion with Intra-Disk Parity

Eitan Rosenfeld, Aviad Zuck, Nadav Amit, Michael Factor, Dan Tsafrir

Slide 1 of 41

Today’s Datacenters

Image Source: http://www.google.com/about/datacenters/gallery/#/tech/14

Slide 2 of 41

Problem: Disks fail

• So storage systems use redundancy when

storing data

• Two forms of redundancy:

– Replication, or – Erasure codes

Slide 3 of 41

Replication vs. Erasure Coding

b=3 a=2

Slide 4 of 41

Replication vs. Erasure Coding

b=3 a=2 b=3 a=2 b=3 a=2

Replication

Slide 5 of 41

Replication vs. Erasure Coding

b=3 a=2 b=3 a=2 b=3 a=2

Replication

X

Slide 6 of 41

Replication vs. Erasure Coding

b=3 a=2 b=3 a=2 b=3 a=2

Replication

X

Slide 7 of 41

Replication vs. Erasure Coding

b=3 a=2 b=3 a=2 b=3 a=2

Replication Erasure coding

b=3 a=2 a+b=5

X

Slide 8 of 41

Replication vs. Erasure Coding

b=3 a=2 b=3 a=2 b=3 a=2

Replication Erasure coding

b=3 a=2 a+b=5

X X

Slide 9 of 41

Replication vs. Erasure Coding

b=3 a=2 b=3 a=2 b=3 a=2

Replication Erasure coding

b=3 a=2 a+b=5

X X

a+2b = 8

Slide 10 of 41

Replication vs. Erasure Coding

b=3 a=2 b=3 a=2 b=3 a=2

Replication Erasure coding

b=3 a=2 a+b=5

X X X

a+2b = 8

Slide 11 of 41

Many modern systems replicate warm data

• Amazon’s storage services
• Google File System (GFS)
• Facebook’s Haystack
• Windows Azure Storage (WAS)
• Microsoft’s Flat Datacenter Storage (FDS)
• HDFS (open-source file-system for Hadoop)
• Cassandra
• ...

Slide 12 of 41

Load balancing ✓ Parallelism ✓ Avoids degraded reads ✓ Lower sync latency ✓

• 5. Increased sequentiality ✓
• 6. Avoids the CPU processing used for encoding ✓
• 7. Lower repair traffic ✓

Why is replication advantageous for warm data?

Better for reads:

1. Load balancing 2. Parallelism 3. Avoids degraded reads

Better for writes:

• 4. Lower sync latency

Better for reads and writes:

• 5. Increased sequentiality
• 6. Avoids the CPU processing used for encoding
• 7. Lower repair traffic

Slide 13 of 41

Recovery in replication based systems is efficient

Disk 1 Disk 2 Disk 3 Disk 4

1 4 2 1 4 3 4 3 5 1 1 6 2 5 6 5

Slide 14 of 41

Recovery in replication based systems is efficient

Disk 1 Disk 2 Disk 3 Disk 4

1 4 2 1 4 3 4 3 5 1 1 6 2 5 6 5

X

Slide 15 of 41

Recovery in replication based systems is efficient

Disk 1 Disk 2 Disk 3 Disk 4

1 4 2 1 4 3 4 3 5 1 1 6 2 5 6 5

X

Slide 16 of 41

Disk 1 Disk 2 Disk 3 Disk 4

APARITY A1 A2 A3 APARITY

Erasure coding, on the other hand…

B1 B3 C1 1 B2 CPARITY BPARITY 5 C3 C2 DPARITY D1 D3 D2

Slide 17 of 41

Disk 1 Disk 2 Disk 3 Disk 4

APARITY A1 A2 A3 APARITY

Erasure coding, on the other hand…

B1 B3 C1 1 B2 CPARITY BPARITY 5 C3 C2 DPARITY D1 D3 D2

X

Slide 18 of 41

Disk 1 Disk 2 Disk 3 Disk 4

A1 A2 A3 APARITY

Erasure coding, on the other hand…

B1 B3 C1 1 B2 CPARITY BPARITY 5 C3 C2 DPARITY D1 D3 D2

X

Slide 19 of 41

Disk 1 Disk 2 Disk 3 Disk 4

A1 A2 A3 APARITY

Erasure coding, on the other hand…

B1 B3 C1 1 B2 CPARITY BPARITY 5 C3 C2 DPARITY D1 D3 D2

X

Facebook “estimate[s] that if 50% of the cluster was Reed-Solomon encoded, the repair network traffic would completely saturate the cluster network links”

Slide 20 of 41

Modern replicating systems triple-replicate warm data

• Amazon’s DynamoDB
• Facebook’s Haystack
• Google File System (GFS)
• Windows Azure Storage (WAS)
• Microsoft’s Flat Datacenter Storage (FDS)
• HDFS (open-source file-system for Hadoop)
• Cassandra
• ...

Slide 21 of 41

Bottom Line

• Replication is used for warm data only
• It’s expensive! (Wastes storage, energy, network)
• Erasure coding used for the rest (cold data)

Our goal: Quickly recover from two simultaneous disk failures without resorting to a third replica for warm data

Slide 22 of 41

RAIDP - ReplicAtion with Intra-Disk Parity

• Hybrid storage system for warm data with
• nly two* copies of each data object.
• Recovers quickly from a simultaneous failure
• f any two disks
• Largely enjoys the aforementioned 7

advantages of replication

Slide 23 of 41

System Architecture

Disk 1 Disk 2 Disk 3 Disk 4 Disk 5

Slide 24 of 41

Disk 1 Disk 2 Disk 3 Disk 4 Disk 5

System Architecture

• Each of the N disks is divided into N-1 superchunks

– e.g. 4GB each

Slide 25 of 41

System Architecture

1 2 2 3 4 1 3 4 5 5 7 8 9 10 7 8 9 10 6 6

• Each of the N disks is divided into N-1 superchunks

– e.g. 4GB each

• 1-Mirroring: Superchunks must be 2-replicated

Disk 1 Disk 2 Disk 3 Disk 4 Disk 5

Slide 26 of 41

Disk 1 Disk 2 Disk 3 Disk 4 Disk 5

System Architecture

• Each of the N disks is divided into N-1 superchunks

– e.g. 4GB each

• 1-Mirroring: Superchunks must be 2-replicated
• 1-Sharing: Any two disks share at most one superchunk

1 2 2 3 4 1 3 4 5 5 7 8 9 10 7 8 9 10 6 6

Slide 27 of 41

Introducing “disk add-ons”

• Associated with a specific disk

– Interposes all I/O to disk – Stores an erasure code of the local disk’s

superchunks

– Fails separately from the associated disk Disk Drive Add-on SATA/SAS Power

4 3 2 1

1 ⨁2 ⨁3 ⨁4

Slide 29 of 41

Add-on Add-on Add-on Add-on Add-on

RAIDP Recovery

5 1 4 5 9 10 7 2 3 7 9 6 1⨁2⨁6⨁8 2⨁3⨁7⨁9 3⨁4⨁8⨁10 4⨁5⨁9⨁6 5⨁1⨁10⨁7 1 2 6 8 3 4 8 10

X

1⨁2⨁6⨁8 8 6 1 2

X

⊕ ⊕ ⊕ =

XOR Add-on 1 with the surviving superchunks from Disk 1.

1⨁2⨁6⨁8

1 6 8 2

Slide 30 of 41

storage capacity repair traffic ! ! erasure coding (more) (less) triple replication RAIDP (single failure) RAIDP (double failure) warm data cold data

Slide 31 of 41

Lstor Feasability

Goal: Replace a third replica disk with 2 Lstors Lstors need to be cheap, fast, and fail separately from disk.

• Storage: Enough to maintain parity (~$9) [1]
• Processing: Microcontroller for local machine independence (~$5) [2]
• Power: Several hundred Amps for 2–3 min from small supercapacitor

to read data from the Lstor

Commodity 2.5” 4TB disk for storing an additional replica costs $100: 66% more than a conservative estimate of the cost of two Lstors

Slide 32 of 41

Implementation in HDFS

• RAIDP implemented in in Hadoop 1.0.4

– Two variants:

• Append-only
• Updates-in-place
• 3K LOC extension to HDFS

– Pre-allocated block files to simulate superchunks – Lstors simulated in memory – Added crash consistency and several optimizations

Slide 33 of 41

Evaluation

• RAIDP vs. HDFS with 2 and 3 replicas
• Tested on a 16-node cluster

– Intel Xeon CPU E3-1220 V2 @ 3.10GHz – 16GB RAM – 7200 RPM disks

• 10Gbps Ethernet
• 6GB superchunks, ~800GB cluster capacity

Slide 34 of 41

Hadoop write throughput (Runtime of writing 100GB)

RAIDP

U p d a t e s

• i

n

• p

l a c e L s t

• r

s H D F S

• 3

H D F S

• 2

HDFS

S u p e r c h u n k s

• n

l y

For Updates in place: RAIDP performs 4 I/Os for each write à Both replicas are read before they are overwritten

RAIDP completes the workload 22% faster!

Slide 35 of 41

Hadoop read throughput (Runtime of reading 100GB)

U p d a t e s

• i

n

• p

l a c e L s t

• r

s H D F S

• 3

H D F S

• 2

S u p e r c h u n k s

• n

l y

RAIDP HDFS

Slide 36 of 41

Write Runtime vs. Network Usage

Runtime of writing 100GB Network usage in GB when writing 100GB RAIDP HDFS-3 RAIDP HDFS-3

Slide 37 of 41

TeraSort Runtime vs. Network Usage

Runtime of sorting 100GB Network usage in GB when sorting 100GB RAIDP HDFS-3 RAIDP HDFS-3

Slide 38 of 41

Recovery time in RAIDP

System 1Gbps Network 10Gbps Network

RAIDP 827 s 125 s RAID-6 12,300 s 1,823 s For erasure coding, such a recovery is required for every disk failure. For RAIDP, such a recovery is only required after the 2nd failure.

RAIDP recovers 14x faster!

16 node cluster with 6GB superchunk

Slide 39 of 41

Vision and Future work

• Survives two simultaneous failures with only two

replicas

• Can be augmented to withstand more than two

simultaneous failures

– “Stacked” LSTORs

• Building Lstors instead of simulating them
• Equipping Lstors with network interfaces so that

they can withstand rack failures

• Experiment with SSDs

Slide 40 of 41

Summary

• RAIDP achieves similar failure tolerance as 3-way

replicated systems – Better performance when writing new data – Small performance hit during updates

• Yet:

– Requires 33% less storage – Uses considerably less network bandwidth for writes – Recovery is much more efficient than EC

• Opens the way for storage vendors and cloud

providers to use 2 (instead of 3, or more) replicas

– Potential savings in size, energy, and capacity
