Radial distribution of cosmic ray density in the Galactic plane Ruizhi Yang with Felix Aharonian and Carmelo Evoli (P.R.D 93, 123007 and A&A 600, 107) 35 th international Cosmic Ray Conference Busan, 2017. 18. 7 Diffuse emission in the plane

slide-1
SLIDE 1

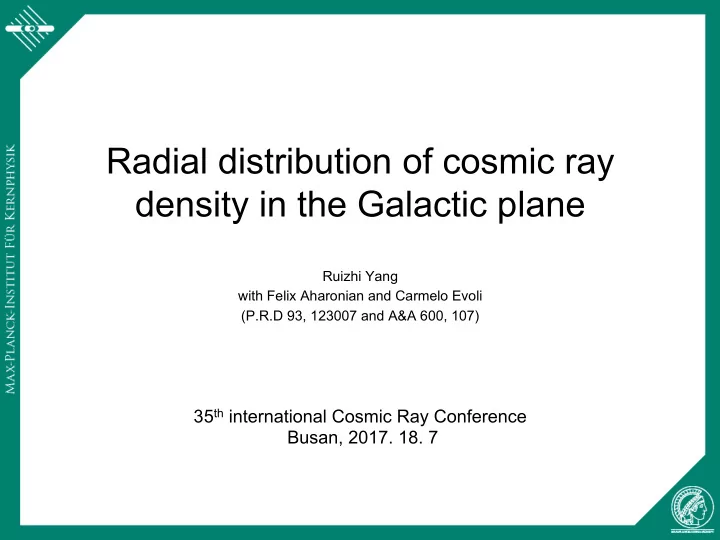

Radial distribution of cosmic ray density in the Galactic plane

Ruizhi Yang with Felix Aharonian and Carmelo Evoli (P.R.D 93, 123007 and A&A 600, 107)

35th international Cosmic Ray Conference Busan, 2017. 18. 7

slide-2
SLIDE 2

Diffuse emission in the plane

  • Gamma-ray emission in the plane (|b|<5o): Point sources+ CR interaction

with gas + ICs +isotropic

  • CR interaction with gas dominates in the plane.
  • Gamma-ray map + gas distribution -> CR distribution
  • Gas Tracers :
  • 1. HI and CO: With distance information. Various of biases (spin temperature of HI,

dark gas problem in Molecular clouds, unknown X_co .etc)

  • 2. Dust opacity: all sky coverage, free of “dark gas” problem, without distance

information

slide-3
SLIDE 3

Gamma-ray sky

Gamma-ray counts map Dust opacity map (gas column) Point source contribution

slide-4
SLIDE 4

Fit with dust column template

10-12 10-11 10-10 10-9 0.1 1 10 100 φ(E) (erg s-1 cm-2) Energy(GeV) l=[5o:15o] l=[85o:95o] l=[175o:185o]

Hardening of spectrum toward inner galaxy. (| b|<5o)

slide-5
SLIDE 5

Fit with dust column template

Hardening of spectrum toward inner galaxy.

2.3 2.6 2.9 50 100 150 200 250 300 350 photon index above 2 GeV Galactic Longitude (o)

slide-6
SLIDE 6

Fit with gas ring template

  • Use kinematic distances.
  • 6 Galactocentric gas rings (|b|<5o).
  • CO conversion factor left free in the fit.
slide-7
SLIDE 7

Fit with gas ring template

SED in different rings

slide-8
SLIDE 8

Fit with gas ring template

2.3 2.6 2.9 5 10 15 20 25 30 photon index above 2 GeV Distance to GC (kpc)

Index distributions

slide-9
SLIDE 9

Fit with gas ring template

Emissivities per H (CR density)

10-27 10-26 5 10 15 20 25 30 emissivity per H atom (>1GeV) (ph sr-1 s-1) Distance to GC (kpc) CMZ Sgr B

slide-10
SLIDE 10

Fit with gas ring template

CRs SED in different rings.

102 103 104 1 10 100 1000 Flux × E2 (m-2s-1sr-1GeV) Energy(GeV) r < 8kpc 4kpc < r <6kpc r > 8kpc Orion B GeV excess

slide-11
SLIDE 11

Source distributions

10-27 10-26 5 10 15 20 25 30 emissivity per H atom (>1GeV) (ph sr-1 s-1) Distance to GC (kpc) CMZ Sgr B OB stars (Bronfman00) SNRs (Green15)

Peak coincide with OB stars

slide-12
SLIDE 12

OB stars as CR sources?

  • GCR distribution reveal a similar peak to that of OB stars.
  • Most of OB stars exist in associations or clusters, stellar wind/

SNRs in such structure form bubbles/superbubbles and can accelerate CRs (e.g., Bykov 14).

  • Isotope measurement favor a superbubble origin. (W.R Binns

2016)

  • Could be visible in gamma-ray due to CR-gas interaction.
  • So far the only detection is Cygnus cocoon. A few more

powerful systems: NGC 3603, Westerlund 1, Westerlund 2. RSGC 1…..

slide-13
SLIDE 13

Cygnus cocoon

8 46 84 122 160 198 236 274 312 350 388 315.000 310.000 305.000 300.000 48.000 44.000 40.000 36.000 32.000

Right ascension Declination gamma Cygni Cygnus Cocoon 35 LAT PSR J2032+4127 LAT PSR J2030+4415 PSR J2030+3641 LAT PSR J2028+3332 B2 2023+33 4C +31.56 LAT PSR J2021+4026 TXS 2016+386 MG2 J201534+3710 PSR J1952+3252 1

10-11 10-10 10-9 1 10 100 1000 φ(E)(erg s-1 cm-2) Energy(GeV)

Spectral Index of -2.2, up to 500 GeV with PASS 8 data. Fermi LAT counts map (>1 GeV)

slide-14
SLIDE 14

NGC 3603 (sky maps)

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 40:00.0 30:00.0 20:00.0 10:00.0 11:00:00.0 10:50:00.0

  • 58:00:00.0
  • 60:00:00.0
  • 62:00:00.0
  • 64:00:00.0

Right ascension Declination

3FGL J1112.0-6135 3FGL J1111.9-6038 PMN J1047-6217 PSR J1055-6028 AT20G J112319-641735 PSR J1105-6107 PSR J1112-6103 PSR J1119-6127 LAT PSR J1135-6055 PSR J1125-6014 PSR J1124-5916 PSR J1125-5825

Counts map (>10 GeV)

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 40:00.0 30:00.0 20:00.0 10:00.0 11:00:00.0 10:50:00.0

  • 58:00:00.0
  • 60:00:00.0
  • 62:00:00.0
  • 64:00:00.0

Right ascension Declination

Residual map (>10 GeV), known source removed

slide-15
SLIDE 15

NGC 3603 (SEDs and CR content)

10-12 10-11 10-10 1 10 100 φ(E)(erg s-1 cm-2) Energy(GeV) NGC 3603 3FGL J1111.9-6038

Gamma-ray SEDs Index ~ -2.3, up tp 300 GeV

10-12 10-11 10-10 0.1 1 10 100 1000 E2 dN/dE (erg cm-2 s-1 ) Energy(GeV)

ne = 2 cm-3 ne = 10 cm-3

Compared with LIS emissivities

slide-16
SLIDE 16

NGC 3603 (gas content)

.00e+21 1.90e+21 2.79e+21 3.70e+21 4.60e+21 5.50e+21 6.40e+21 7.30e+21 8.21e+21 9.10e+21 1.00e+2 40:00.0 30:00.0 20:00.0 10:00.0 11:00:00.0 10:50:00.0

  • 58:00:00.0
  • 60:00:00.0
  • 62:00:00.0
  • 64:00:00.0

Right ascension Declination

CO+HI (0 ~ 20 km/s) HII gas

.00e+00 3.99e+20 7.98e+20 1.20e+21 1.60e+21 2.00e+21 2.40e+21 2.80e+21 3.20e+21 3.60e+21 4.00e+2 40:00.0 30:00.0 20:00.0 10:00.0 11:00:00.0 10:50:00.0

  • 58:00:00.0
  • 60:00:00.0
  • 62:00:00.0
  • 64:00:00.0

Right ascension Declination

Tentative correlation with HII distribution

slide-17
SLIDE 17

Westerlund 2 (Preliminary results)

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 11:00:00.0 50:00.0 40:00.0 30:00.0 20:00.0 10:00.0 10:00:00.0 9:50:00.0

  • 54:00:00.0
  • 56:00:00.0
  • 58:00:00.0
  • 60:00:00.0

Right ascension Declination PSR J1055-6028 PSR J1048-5832 Eta Carinae LAT PSR J1044-5737 PSR J1028-5819 LAT PSR J1023-5746 PSR J1019-5749 1FGL J1018.6-5856 PSR J1016-5857 PSR J0955-61 PSR J1055-6028 PSR J1048-5832 Eta Carinae LAT PSR J1044-5737 PSR J1028-5819 LAT PSR J1023-5746 PSR J1019-5749 1FGL J1018.6-5856 PSR J1016-5857

Counts map (>10 GeV)

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 11:00:00.0 50:00.0 40:00.0 30:00.0 20:00.0 10:00.0 10:00:00.0 9:50:00.0

  • 54:00:00.0
  • 56:00:00.0
  • 58:00:00.0
  • 60:00:00.0

Right ascension Declination PSR J1044-5737 PSR J1028-5819 PSR B1046-58 PSR J1023-5746 SNR G286.5-1.2 SNR G284.3-0.3

Residual map (>10 GeV), known source removed

slide-18
SLIDE 18

Westerlund 2 (Preliminary results)

10-13 10-12 10-11 10-10 1 10 100 1000 10000 φ(E)(erg s-1 cm-2) Energy(GeV) Westerlund 2 FGES J1023.3-5747 HESS J1023-575

  • Index ~ -2.1, up tp 300 GeV.
  • FGES J1023 is the GeV counterpart of HESS J1023,

which has a much smaller spatial extension, is believed to be a PWN.

slide-19
SLIDE 19

Conclusions and implications

  • Spatial variation of CR density and spectral shape
  • The results derived in outskirts of Galaxy is consistent with direct measurement
  • A maximal CR density at 4-6 kpc.
  • A lower CR level in GC region.
  • The main conclusions are consistent with ApJS (2016) 223, 26 from LAT collaboration
  • The maximum at 4-6 kpc coincides with the maximum of OB stars, may be caused by higher

injection rate by OB star clusters.

  • A lower CR density in GC region, may be connected with strong advection therein.
  • The hardening in the inner galaxy may also be caused by strong wind (probably CR driven).
  • Evidence for OB star cluster as an substantial (even dominate) CR source.
slide-20
SLIDE 20

Thanks!
