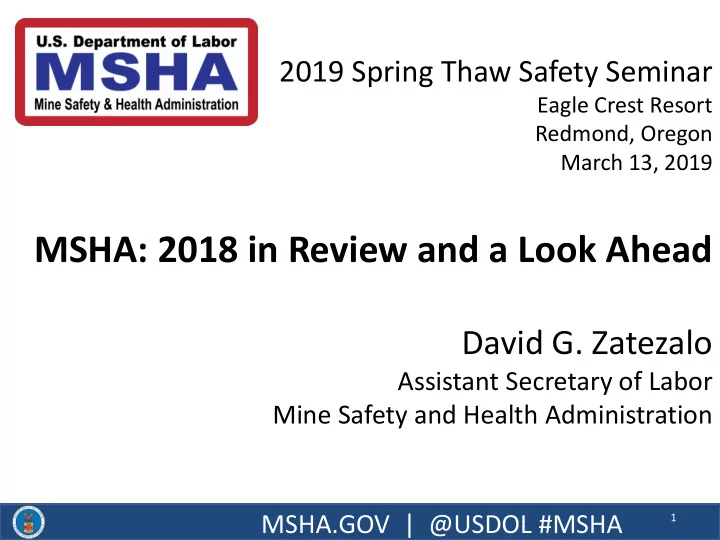

2019 Spring Thaw Safety Seminar Eagle Crest Resort Redmond, Oregon March 13, 2019 Quarterly Training Summit MSHA: 2018 in Review and a Look Ahead October 2016 U.S. Department of Labor David G. Zatezalo U.S. Assistant Secretary of Labor

slide-1
SLIDE 1

Quarterly Training Summit October 2016 U.S. Department of Labor U.S.

MSHA.GOV | @USDOL #MSHA

2019 Spring Thaw Safety Seminar

Eagle Crest Resort Redmond, Oregon March 13, 2019

MSHA: 2018 in Review and a Look Ahead

David G. Zatezalo

Assistant Secretary of Labor Mine Safety and Health Administration

1

slide-2
SLIDE 2

MSHA.GOV | @USDOL #MSHA

The MSHA Mission

“to prevent death, illness, and injury from mining and promote safe and healthful workplaces for U.S. miners”

2

slide-3
SLIDE 3

MSHA.GOV | @USDOL #MSHA

MSHA’s Tools

  • Fair and consistent enforcement,

including mandated inspections

  • Compliance and technical assistance
  • Training and education
  • Rulemaking and policy guidance

3

slide-4
SLIDE 4

MSHA Oregon

# of Mines Reporting Employment 13,014 276

  • Coal Mines Only

1,184

  • Metal/Nonmetal Mines Only

11,830 276 Total Operator Employment* 228,975 1,942 MSHA E01 Inspections Completed 19,215 396 Citations & Orders Issued 97,926 1,374 Dollars Assessed $52.1M $521.3K

MSHA/Oregon Data for 2018

* Total mining employment, including operator and contractor employment is 330,798. However, contractor employment cannot be reported at the state level; therefore, the numbers provided only reflect operator employment.

MSHA.GOV | @USDOL #MSHA

slide-5
SLIDE 5

U.S. MINING FATALITIES 2008 – 2018

Fatalities 120 100 80 60 40 20 Coal Fatalities MNM Fatalities 72 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 Calendar Year 30 18 48 20 20 20 16 12 8 15 12 23 17 24 16 16 22 30 17 17 13 15 53 35 36 36 42 46 29 25 28 27

*One fatality in Oregon during this time, in 2017

MSHA.GOV | @USDOL #MSHA

slide-6
SLIDE 6

0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 500 1000 1500 2000 2500 3000 3500 4000

Fatalities Fatal IR

27 fatalities in 2018 3,679

1912 1914 1916 1918 1920 1922 1924 1926 1928 1930 1932 1934 1936 1938 1940 1942 1944 1946 1948 1950 1952 1954 1956 1958 1960 1962 1964 1966 1968 1970 1972 1974 1976 1978 1980 1982 1984 1986 1988 1990 1992 1994 1996 1998 2000 2002 2004 2006 2008 2010 2012 2014 2016 2018

U.S. Mining Fatalities 1912-2018

MSHA.GOV | @USDOL #MSHA

6

slide-7
SLIDE 7

Fatalities 20 18 16 14 12 10 8 6 4 2

17 18 15 15 9 10 8 7 6 5 5 5 5 4 4 4 4 3 3 2 2

Calendar Year

U.S. MINING INDUSTRY FATALITIES FALL OF ROOF & RIB (1998-2018)

MSHA.GOV | @USDOL #MSHA

7

slide-8
SLIDE 8

MSHA.GOV | @USDOL #MSHA

Dust Sampling Trends

  • Increased sampling of key positions in coal

mines was mandated by 2014 dust rule

  • What trends are we seeing?

8

slide-9
SLIDE 9

174

Coal - Number of Valid MSHA & Operator Respirable Dust Samples

90,803 93,911 80,627 73,313 81,548 82,293 76,812 76,974 88,556 76,304 75,262 79, 74,289 66,534 60,277 61,629 100,913 138,768 129,226

20,000 40,000 60,000 80,000 100,000 120,000 140,000 160,000 Calendar Year

CPDM required 2/1/16

1.5 mg/m³ standard in effect 8/1/16

Data as of 1/30/2019

MSHA.GOV | @USDOL #MSHA

slide-10
SLIDE 10

Average DO* Dust Concentration in Underground Coal Mines, by MSHA and Operator Samples

1.15 1.10 1.05 1.00 0.95 0.90 0.85 0.80 0.75 0.70 0.65 0.60 0.55

0.95 0.92 0.88 0.72 0.86 0.86 0.89 0.81 0.82 0.77 0.77 0.74 0.73 0.72 0.69 0.68 0.64 0.69 0.63 0.61 1.09 1.07

Operator Avg. Conc.

1.00 0.93 0.91 0.92 0.96 0.95 0.87 0.80 0.73 0.73 0.71 0.70 0.69 0.64 0.61 0.61

MSHA Avg. Conc.

Calendar Year

* Designated occupations (DO) exposed to the highest levels of respirable coal mine dust.

Data as of 1/30/2019

Average Dust Concentration – mg/m3

MSHA.GOV | @USDOL #MSHA

10

slide-11
SLIDE 11

10.00% 9.00% 8.00% 7.00% 6.00% 5.00% 4.00% 3.00% 2.00% 1.00% 0.00% Calendar Year

9.08% 9.08% 7.98% 7.58% 7.29% 6.49% 6.27% 6.40% 5.45% 4.68% 4.17% 3.90% 3.50% 3.06% 2.36% 1.65% 0.79% 0.88% 0.87%

Coal - MSHA & Operator Respirable Dust Samples % > Standard

Data as of 1/30/2019

MSHA.GOV | @USDOL #MSHA

slide-12
SLIDE 12

18,000 16,000 14,000 12,000 10,000 8,000 6,000 4,000 2,000

14,798 13,911 11,948 10,038 7,280 6,873 5,311 5,294 5,461 6,389 4,488 4,339 4,125 4,483 4,301 3,928 3,537 3,573 3,199

Calendar Year

Coal - Number of Valid MSHA Quartz Samples

Data as of 2/5/2019

MSHA.GOV | @USDOL #MSHA

slide-13
SLIDE 13

MSHA.GOV | @USDOL #MSHA Underground Coal Mines MSHA Average Designated Occupation* Quartz Concentration by Calendar Year

80 70 60 50 40 30 20 10 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018

Calendar Year

55.5 50.9 49.3 45.2 41.9 33.1 27.8 24.8 25.4 25.6 * Designated occupations (DO) exposed to the highest levels of respirable coal mine dust.

Data as of 1/30/2019

Ave verage e Quartz z Concentration n - µg/ g/m3

3 13

slide-14
SLIDE 14

30.00% 25.00% 20.00% 15.00% 10.00% 5.00% 0.00%

23.26%24.12% 18.15% 18.32% 20.11% 21.11% 19.22% 16.77%16.53% 15.33% 12.17%11.34% 8.62% 7.56% 2.86% 1.86% 1.44% 1.28% 1.20%

Calendar Year

Coal - MSHA Quartz Samples % >100 µg/m³

Data as of 2/5/2019

MSHA.GOV | @USDOL #MSHA

slide-15
SLIDE 15

MSHA.GOV | @USDOL #MSHA

Powered Haulage Safety Initiative

Powered Haulage accidents were responsible for 50% of fatalities in recent years; 13 of 27 (48%) in 2018 Preventing these accidents is a priority for MSHA, with a focus on:

  • Mobile Equipment
  • Belt Conveyors
  • Seat Belt Safety

15

slide-16
SLIDE 16

Mobile Equipment

Large vehicles striking other vehicles or pedestrians have killed 24 miners since 2003 MSHA.GOV | @USDOL #MSHA

16

slide-17
SLIDE 17

MSHA.GOV | @USDOL #MSHA

17

slide-18
SLIDE 18

MSHA.GOV | @USDOL #MSHA

Belt Conveyors

  • Seven miners killed working around belt

conveyors since January 2017; four in coal, three in MNM

  • Since 2008, 19 fatalities and more than 40

permanent injuries

  • Guarding, lock-out tag-out, properly using

crossovers - all essential for safety

18

slide-19
SLIDE 19

Driver saved by wearing a seat belt

Seat Belt Safety

  • Three fatalities in

2017 and 2018, and 38 fatalities since 2007, involved miners not wearing seat belts

  • 6000+ MSHA citations

issued for failure to wear seatbelts since 2007 (most in MNM mines) MSHA.GOV | @USDOL #MSHA

slide-20
SLIDE 20

Powered Haulage Safety Outreach

We are distributing stickers, brochures and more to spread the word MSHA.GOV | @USDOL #MSHA

20

slide-21
SLIDE 21

Fire Suppression Failures

  • In 2018, four mobile equipment fires in one

month; fire suppression systems failed in all

  • One miner killed, another injured
  • Fire suppression equipment must be

properly installed

  • Miners should have a means to escape
  • MSHA has inspected mine mobile

equipment for effective suppression systems

MSHA.GOV | @USDOL #MSHA

slide-22
SLIDE 22

MSHA.GOV | @USDOL #MSHA

One MSHA Initiative

  • Blurring the distinction between Coal and

Metal/Nonmetal enforcement for more efficient use of resources

  • Cross training inspectors and updating

systems to accommodate change where it makes sense

  • Inspector expertise still required for certain

mines

  • 90 mines are involved so far

22

slide-23
SLIDE 23

Scofflaw Initiative

  • Small share of operators are chronically

delinquent and have poor safety records; worst violators selected each month

  • Payment plans proposed/established with

total commitment of $6.9 million

  • 20 mines paid in full for $1.6 million
  • 39 104(a) citations issued; 18 104(b) orders

issued but none currently active

MSHA.GOV | @USDOL #MSHA

slide-24
SLIDE 24

MSHA.GOV | @USDOL #MSHA

In Summary: MSHA Today & Tomorrow

  • IT Modernization
  • Health Focus
  • Workforce for the 21st Century
  • Regulatory Review
  • Dust
  • Diesel Emissions
  • Powered Haulage

24

slide-25
SLIDE 25

MSHA.GOV | @USDOL #MSHA

25

Questions?
