Quarkonium and Heavy Flavour Meson Production at 13 TeV at ATLAS Leonid Gladilin (Moscow State Univ.) on behalf of the ATLAS Collaboration 2-7 June 2016 , Krakow Outline : Introduction Charmonium ATLAS-CONF-2015-030, ATLAS-CONF-2016-0XX

slide-1
SLIDE 1

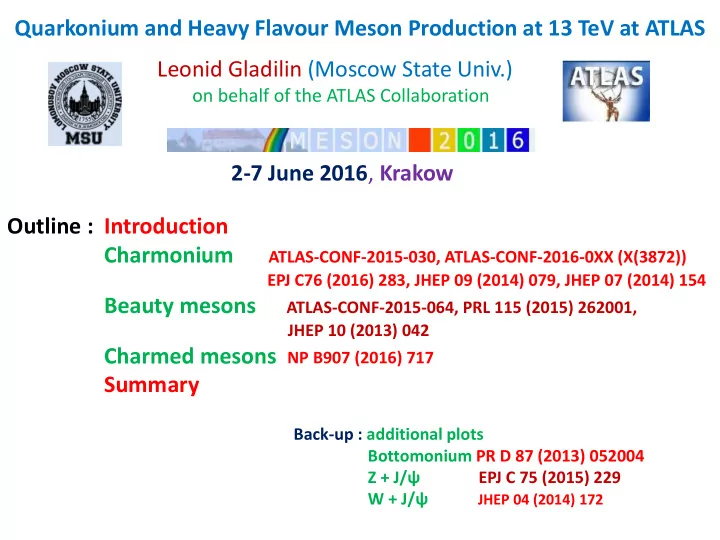

Quarkonium and Heavy Flavour Meson Production at 13 TeV at ATLAS Leonid Gladilin (Moscow State Univ.)

  • n behalf of the ATLAS Collaboration

Outline : Introduction Charmonium ATLAS-CONF-2015-030, ATLAS-CONF-2016-0XX (X(3872))

EPJ C76 (2016) 283, JHEP 09 (2014) 079, JHEP 07 (2014) 154

Beauty mesons ATLAS-CONF-2015-064, PRL 115 (2015) 262001,

JHEP 10 (2013) 042

Charmed mesons NP B907 (2016) 717 Summary

Back-up : additional plots Bottomonium PR D 87 (2013) 052004 Z + J/ψ EPJ C 75 (2015) 229 W + J/ψ JHEP 04 (2014) 172

2-7 June 2016, Krakow

slide-2
SLIDE 2

ATLAS @ LHC

2

Weight : ~ 7000 tons

Inner Detector (Pixel+SCT+TRT): pT > 0.4 (0.1) GeV, |η| < 2.5 New for Run 2: Insertable B-layer (IBL) – inner-most pixel layer (r = 33 mm) and thinner beam-pipe m(µ+µ-) resolution: ~50 MeV for J/ψ ~150 MeV for ϒ Muon Spectrometr: Offline tracking: |η| < 2.7 Triggering: |η| < 2.4

slide-3
SLIDE 3

Data Taking and HF triggering

3

6.76 х 1033 cm-2 s-1 5.0 х 1033 cm-2 s-1 8.2 х 1033 cm-2 s-1

slide-4
SLIDE 4

Charmonium production

4

Non-prompt (from B decays) – probes open b quark production, fragmentation and B-decay kinematics FONLL, matched NLO+NLL (“massive” NLO + resummation) GM-VFNS (“massless” NLO + mass-dependent terms)

slide-5
SLIDE 5

Charmonium production

5

Non-prompt (from B decays) – probes open b quark production, fragmentation and B-decay kinematics FONLL, matched NLO+NLL (“massive” NLO + resummation) GM-VFNS (“massless” NLO + mass-dependent terms)

NRQCD: Color Singlet (CS) and Color Octet (CO)

  • terms. Long-distance matrix elements (LDME)

determined from experimental data. Color Singlet Model (CSM) – only CS diagrams. Color Evaporation Model (CEM) – only one LDME.

Prompt (not from B decays) – probes specific mechanisms of QQ̄ system production and transformation to a meson

slide-6
SLIDE 6

Charmonium production

6

Non-prompt (from B decays) – probes open b quark production, fragmentation and B-decay kinematics FONLL, matched NLO+NLL (“massive” NLO + resummation) GM-VFNS (“massless” NLO + mass-dependent terms)

NRQCD: Color Singlet (CS) and Color Octet (CO)

  • terms. Long-distance matrix elements (LDME)

determined from experimental data. Color Singlet Model (CSM) – only CS diagrams. Color Evaporation Model (CEM) – only one LDME.

Prompt (not from B decays) – probes specific mechanisms of QQ̄ system production and transformation to a meson

Ψ(2S) – nearly feed-down free J/ψ – feed-downs ~35%

slide-7
SLIDE 7

Charmonium production: J/ψ, 13 TeV

7

ATLAS-CONF-2015-030

~70 000 di-muons

Pseudo-proper decay time:

slide-8
SLIDE 8

Charmonium production: J/ψ, 13 TeV

8

rises from ~25% till ~60% Non-Prompt Fraction No strong dependence from |y| range No sizeable differences between 7 and 13 TeV results Larger than at smaller pp and pp̅ energies

slide-9
SLIDE 9

Charmonium production: J/ψ, ψ(2S), χс, 7-8 TeV

9

ψ(2S), JHEP 09 (2014) 079 χc1/2, JHEP 07 (2014) 154 J/ψ and ψ(2S), EPJ C76 (2016) 283

J/ψ, ψ(2S) → μ+μ- ψ(2S), X(3872) → J/Ψ π+π- χc1/2 → J/ψ γ

ψ(2S) and X(3872), ATLAS-CONF-2016-0XX

slide-10
SLIDE 10

J/ψ (→μ+μ-), 8 TeV, non-prompt diff. x-sections

10

  • generally, reasonable description by FONLL
  • predictions are harder than data
slide-11
SLIDE 11

ψ(2S) → J/ψ (→μ+μ-)π+π-, non-prompt diff. x-sections

11

  • generally, reasonable description by FONLL and GM-VFNS

predictions are harder than data

  • NLO with “wrong” (FONLL) fragmentation is even harder
slide-12
SLIDE 12

χс1/2 → J/ψ (→μ+μ-) γ, non-prompt diff. x-sections

12

FONLL describes reasonably (somewhat harder)

ATLAS, χc1/2, JHEP 07 (2014) 154

Absolute χс1/2 cross sections are measured

slide-13
SLIDE 13

J/ψ, 8 TeV, prompt diff. x-sections

13

NLO NRQCD (Y.Q. Ma et al.) is generally o.k.

slide-14
SLIDE 14

ψ(2S) and χc1/2, prompt diff. x-sections

14

kT –factorization predictions (CS) (Baranov et al.) need to be re-tuned

  • NLO NRQCD is generally o.k.
  • CS is too low even at NNLO*
  • CEM is somewhat too hard
slide-15
SLIDE 15

χс1/2 → J/ψ (→μ+μ-) γ, ratios for prompt diff. x-sections

15

reasonable description by NLO NRQCD LO CSM does not describe good agreement between LHC experiments

slide-16
SLIDE 16

X(3872), 8 TeV, prompt/non-prompt diff. x-sections

16

NLO NRQCD (C. Meng et al.), χc1(2P) + D0D ̅ *0, produced dominantly via χc1(2P) , tuned to CMS, is generally o.k.

ATLAS-CONF-2016-0XX

FONLL, rescaled from ψ(2S), with f(B→X(3872)→J/ψπ+π-)=(1.9±0.8)×10-4 (Artoisenet&Braaten with CDF data) is too high, too hard

slide-17
SLIDE 17

X(3872), 8 TeV, indication of enhanced Bc contribution

17

Non-prompt X(3872) production suggests enhanced Bc contribution ATLAS-CONF-2016-0XX Short-lived component ̴ a/pT

2 (recombination)

τlong-lived = 1.45 ± 0.05 ps τshort-lived = 0.40 ± 0.05 ps

slide-18
SLIDE 18

Beauty meson production: B+→J/ψK+, 13 TeV

18

ATLAS-CONF-2015-064

slide-19
SLIDE 19

Beauty meson production: B+→J/ψK+, 7 TeV

19

FONLL provides reasonable description although with large theor. uncertainties Central predictions are somewhat harder The predictions are normalized to f(b→B+) = 40.1 ± 1.3% [PDG]

slide-20
SLIDE 20

Strangeness suppression in b fragmentation: fs /fd , 7 TeV

20

pQCD, X. Liu et al.

slide-21
SLIDE 21

21

No sizeable pT and η dependence Good agreement with other measurements

Strangeness suppression in b fragmentation: fs /fd , 7 TeV

slide-22
SLIDE 22

Charmed meson production: D*±, D±, Ds

±, 7 TeV

22

D*+ → D0 π+ → (K- π+) π+ (+c.c.) D+ → K- π+ π+ (+c.c.) Ds

+ → φ π+ → (K- K+) π+ (+c.c.)

slide-23
SLIDE 23

D meson visible x-sections

23

low-pT: 3.5 – 20 GeV high-pT: 20 - 100 GeV POWHEG+PYTHIA/HERWIG – matched NLO+LL (developed from “massive” NLO) MC@NLO (+HERWIG) – matched NLO+LL (developed from “massive” NLO) FONLL – matched NLO+NLL (developed from “massive” NLO) GM-VFNS – developed from “massless” NLO, consider explicitly flavour excitation diagrams, consider fragmentation of light quarks and gluons to D mesons

slide-24
SLIDE 24

D*± signals and visible x-sections

24

DATA: POWHEG+PYTHIA: FONLL:

slide-25
SLIDE 25

25

slide-26
SLIDE 26

26

slide-27
SLIDE 27

27

slide-28
SLIDE 28

28

slide-29
SLIDE 29

29

slide-30
SLIDE 30

Summary

30

X(3872) production, Prompt: NLO NRQCD (χc1(2P) dominance) agrees Non-Prompt: FONLL is too high (large Br uncert.) an indication of enhanced Bc

+ contribution

Beauty meson x-sections: FONLL generally agree (somewhat harder, like for charmonium) Charmed meson x-sections: GM-VFNS agree in shape and norm.,

FONLL and POWHEG below the data, agree within large theor. uncert.,

MC@NLO shows the worst shape description More results at 13 TeV with up to 25 fb-1 by the end of 2016, and with ~100 fb-1 by Meson 2018 Charmonium production: non-prompt fractions are similar at 7 TeV and 13 TeV, larger than those at smaller pp and pp̅ energies Beauty and charmed meson productions: strangeness suppression is ~0.25 in both beauty and charm fragmentation Charmonium x-sections, Non-Prompt: FONLL and GM-VFNS agree Prompt: only NLO NRQCD generally agree

slide-31
SLIDE 31

Back-up Slides

31

slide-32
SLIDE 32

LHC

32

Run 1 25 fb-1 Run 2 100 fb-1 Run 3 300 fb-1 Run 4 HL-LHC 3000 fb-1 7-8 TeV 13 TeV

slide-33
SLIDE 33

Inner Detector and Muon Spectrometer

33

slide-34
SLIDE 34

Minimum-Bias Trigger

At least one hit above threshold in the Minimum-Bias Trigger Scintillators at each end of the detector Efficiency is ~100% for events with at least 2 tracks passing beam-spot region MBTS trigger allow us to measure D-mesons production cross-sections without uncertainty originating from trigger efficiency

34

The trigger is heavily prescaled with luminosity increase

MinBias Trigger Scintillator at z=±3.56 m

  • n LAr cryostat; 2 rings with 8 sector in azimuth

2.09<|η|<2.82, 2.82<|η|<3.84

Number of tracks

slide-35
SLIDE 35

ψ(2S) → J/ψ (→μ+μ-)π+π-

35

To separate prompt and non-prompt (from B decays) production pseudo-proper lifetime is used

JHEP 09 (2014) 079 ~ 200 000 ψ(2S) mesons

  • contributes to inclusive J/ψ

x-sections

  • free from feed-downs of

heavier charmonium states

slide-36
SLIDE 36

χс1/2 → J/ψ (→μ+μ-) γ

36

JHEP 07 (2014) 154

To separate prompt and non-prompt (from B decays) production pseudo-proper lifetime is used

  • nly converted photons
slide-37
SLIDE 37

ψ(2S) → J/ψ (→μ+μ-)π+π-, prompt diff. x-sections

37

  • NLO NRQCD is generally o.k.
  • CS is too low even at NNLO*
  • CEM is somewhat too hard
slide-38
SLIDE 38

Beauty hadron production: B+→J/ψK+, 13 TeV

38

slide-39
SLIDE 39

39

flavor creation (gg → QQ̄ , qq̄ → QQ̄) gluon splitting (g → QQ̄) flavor excitation (gQ → gQ, qQ → qQ)

slide-40
SLIDE 40

40

slide-41
SLIDE 41

41

slide-42
SLIDE 42

42

slide-43
SLIDE 43

Bottomonium production, 7 TeV

43

PRD 87 (2013) 052004

slide-44
SLIDE 44

Bottomonium production, 7 TeV

44

PRD 87 (2013) 052004

slide-45
SLIDE 45

Z + J/ψ production (1st obs.)

45

ATLAS, Z + J/Ψ, arXiv:1412.6428

Prompt component probes mechanisms of cc̄ system production and transformation to a meson at high scale; potentially sensitive to Double Parton Scattering (DPS)

slide-46
SLIDE 46

Z + J/ψ (→μ+μ-), Δφ distributions and DPS

46

Prompt: Non prompt: ATLAS (W + 2 jets) ATLAS (Z + J/ψ)

slide-47
SLIDE 47

Z + J/ψ (→μ+μ-), integrated and diff. cross sections

47

Predictions below data

NRQCD: Mao et al. CSM: Gong et al.

slide-48
SLIDE 48

W + J/ψ (→μ+μ-)

48

ATLAS, W + J/Ψ, JHEP 04 (2014), 172

slide-49
SLIDE 49

W + J/ψ (→μ+μ-), Δφ distr. and rates w.r.t. inclusive W

49

DPS:

NLO CO: Mao et al. LO CS: Lansberg et al.
