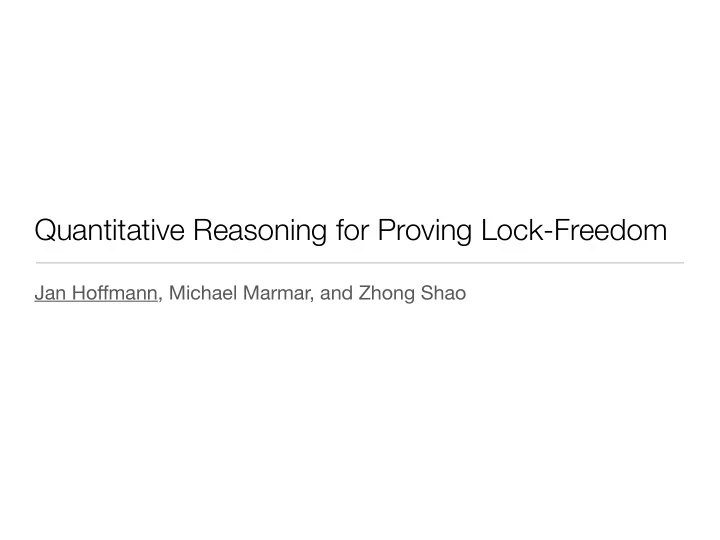

Quantitative Reasoning for Proving Lock-Freedom Jan Ho ff mann, - - PowerPoint PPT Presentation

Jan Hoffmann, Michael Marmar, and Zhong Shao

Quantitative Reasoning for Proving Lock-Freedom

Jan Hoffmann, Michael Marmar, and Zhong Shao

Quantitative Reasoning for Proving Lock-Freedom

Mike is at LICS too.

Jan Hoffmann, Michael Marmar, and Zhong Shao

Quantitative Reasoning for Proving Lock-Freedom

Concurrent Data Structures

Multiprocessor OS Kernel

Threads Shared Memory

Concurrent Data Structures

Multiprocessor OS Kernel

1 77 2 8128

Threads Shared Memory

Concurrent Data Structures

Multiprocessor OS Kernel

1 77 2

Threads Shared Memory

Concurrent Data Structures

Multiprocessor OS Kernel

1 77 2 666

Threads Shared Memory

2012

Concurrent Data Structures

Multiprocessor OS Kernel

1 77 2

Threads Shared Memory

Concurrent Data Structures

Multiprocessor OS Kernel

1 77 2

Threads Shared Memory

Need synchronization to avoid race conditions.

Non-Blocking Synchronization

Non-Blocking Synchronization

• Classical Synchronization: locks ensure mutual exclusion of threads

➡ Performance issues on modern multiprocessor architectures

• Blocking (busy waiting)
• Cache-coherency (high memory contention)

Non-Blocking Synchronization

• Classical Synchronization: locks ensure mutual exclusion of threads

➡ Performance issues on modern multiprocessor architectures

• Blocking (busy waiting)
• Cache-coherency (high memory contention)
• Non-Blocking Synchronization: shared data is accessed without locks

➡ Outperforms lock-based synchronization in many scenarios

• Interference of threads possible
• Need to ensure consistency of the data structure

How to Ensure Consistency Without Locks?

How to Ensure Consistency Without Locks?

• Attempt to perform an operation
• Repeat operations after interference has been detected

How to Ensure Consistency Without Locks?

• Attempt to perform an operation
• Repeat operations after interference has been detected

Optimistic synchronization.

How to Ensure Consistency Without Locks?

• Attempt to perform an operation
• Repeat operations after interference has been detected
• Ensure that a concurrent execution is equivalent to some sequential

execution

• Desired properties: linearizability or serializability
• Different program logics exist, e.g., in [Fu et al. 2010]
• Contextual refinement, e.g., in [Liang et al. 2013]

Optimistic synchronization.

How to Ensure Consistency Without Locks?

• Attempt to perform an operation
• Repeat operations after interference has been detected
• Ensure that a concurrent execution is equivalent to some sequential

execution

• Desired properties: linearizability or serializability
• Different program logics exist, e.g., in [Fu et al. 2010]
• Contextual refinement, e.g., in [Liang et al. 2013]

Optimistic synchronization. Sequential consistency.

How to Ensure Consistency Without Locks?

• Attempt to perform an operation
• Repeat operations after interference has been detected
• Ensure that a concurrent execution is equivalent to some sequential

execution

• Desired properties: linearizability or serializability
• Different program logics exist, e.g., in [Fu et al. 2010]
• Contextual refinement, e.g., in [Liang et al. 2013]
• But: We also need additional progress guarantees.

Optimistic synchronization. Sequential consistency.

Sequential Consistency is Not Enough

Livelocks

1 77 2 8128

Threads Shared Memory

Sequential Consistency is Not Enough

Livelocks

1 77 2 8128

Threads Shared Memory

Interference Repeat

• peration

Repeat

• peration

Sequential Consistency is Not Enough

Livelocks

1 77 2 8128

Threads Shared Memory

Data structure is consistent but system is stuck (livelock).

Interference Repeat

• peration

Repeat

• peration

Progress Properties

Let be a shared-memory data structure with operations

• Assume a system with m threads that access exclusively via the
• perations
• Assume that all code outside the data structure operations

terminates

• Fix an arbitrary scheduling of the m threads in which one or more
• perations have been started

π1, ... , πk π1, ... , πk D πi D πi

Progress Properties

• A wait-free implementation guarantees that every thread can complete

any started operation of the data structure in a finite number of steps

• A lock-free implementation guarantees that some thread will complete

an operation in a finite number of steps

• An obstruction-free implementation guarantees the completion of an
• peration for any thread that eventually executes in isolation
• Wait-freedom implies lock-freedom
• Lock-freedom implies obstruction-freedom

Progress Properties

• A wait-free implementation guarantees that every thread can complete

any started operation of the data structure in a finite number of steps

• A lock-free implementation guarantees that some thread will complete

an operation in a finite number of steps

• An obstruction-free implementation guarantees the completion of an
• peration for any thread that eventually executes in isolation
• Wait-freedom implies lock-freedom
• Lock-freedom implies obstruction-freedom

No livelocks and no starvation.

Progress Properties

• A wait-free implementation guarantees that every thread can complete

any started operation of the data structure in a finite number of steps

• A lock-free implementation guarantees that some thread will complete

an operation in a finite number of steps

• An obstruction-free implementation guarantees the completion of an
• peration for any thread that eventually executes in isolation
• Wait-freedom implies lock-freedom
• Lock-freedom implies obstruction-freedom

No livelocks and no starvation. No livelocks.

Progress Properties

• A wait-free implementation guarantees that every thread can complete

any started operation of the data structure in a finite number of steps

• A lock-free implementation guarantees that some thread will complete

an operation in a finite number of steps

• An obstruction-free implementation guarantees the completion of an
• peration for any thread that eventually executes in isolation
• Wait-freedom implies lock-freedom
• Lock-freedom implies obstruction-freedom

No livelocks and no starvation. No livelocks.

Liang et al. Characterizing Progress Properties via Contextual Refinements. CONCUR’13.

Our Results

New quantitative technique to verify lock-freedom

• Uses quant. compensation schemes to pay for possible interference
• Enables local and modular reasoning
• Our paper: Formalization based on concurrent separation logic [O’Hearn

2007] and quantitative separation logic [Atkey 2010]

• Running example: Treiber’s non-blocking stack (a classic lock-free data

structure)

Our Results

New quantitative technique to verify lock-freedom

• Uses quant. compensation schemes to pay for possible interference
• Enables local and modular reasoning
• Our paper: Formalization based on concurrent separation logic [O’Hearn

2007] and quantitative separation logic [Atkey 2010]

• Running example: Treiber’s non-blocking stack (a classic lock-free data

structure) Sweet spot: strong progress guaranty and efficient, elegant implementations.

Our Results

New quantitative technique to verify lock-freedom

• Uses quant. compensation schemes to pay for possible interference
• Enables local and modular reasoning
• Our paper: Formalization based on concurrent separation logic [O’Hearn

2007] and quantitative separation logic [Atkey 2010]

• Running example: Treiber’s non-blocking stack (a classic lock-free data

structure) Sweet spot: strong progress guaranty and efficient, elegant implementations. Classically: temporal logic and whole program analysis.

Treiber’s Non-Blocking Stack

struct Node { value_t data; Node *next; }; Node *S; void init() { S = NULL; }

Treiber’s Non-Blocking Stack

struct Node { value_t data; Node *next; }; Node *S; void init() { S = NULL; }

Stack is a linked list.

Treiber’s Non-Blocking Stack

struct Node { value_t data; Node *next; }; Node *S; void init() { S = NULL; }

Stack is a linked list. Shared pointer to the top element.

Treiber’s Non-Blocking Stack

struct Node { value_t data; Node *next; }; Node *S; void init() { S = NULL; } void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

Treiber’s Non-Blocking Stack

struct Node { value_t data; Node *next; }; Node *S; void init() { S = NULL; } void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

Prepare update.

Treiber’s Non-Blocking Stack

struct Node { value_t data; Node *next; }; Node *S; void init() { S = NULL; } void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

Compare-and-swap

• peration: if the address

&S contains t then write x into &S and return true; else return false Prepare update.

Treiber’s Non-Blocking Stack

struct Node { value_t data; Node *next; }; Node *S; void init() { S = NULL; } void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

Compare-and-swap

• peration: if the address

&S contains t then write x into &S and return true; else return false CAS-guarded while-loop to detect interference. Prepare update.

Treiber’s Non-Blocking Stack

struct Node { value_t data; Node *next; }; Node *S; void init() { S = NULL; } void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); } value_t pop() { Node *t, *x; do { t = S; if (t == NULL) { return EMPTY; } x = t->next; } while(!CAS(&S,t,x)); return t->data; }

Treiber’s Non-Blocking Stack

struct Node { value_t data; Node *next; }; Node *S; void init() { S = NULL; } void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); } value_t pop() { Node *t, *x; do { t = S; if (t == NULL) { return EMPTY; } x = t->next; } while(!CAS(&S,t,x)); return t->data; }

CAS-guarded while-loop to detect interference.

Proving Lock-Freedom: Step One

Reducing the problem to termination Let be a share-memory data structure with operations .

π1, ... , πk D

Definitions

Sn = {op1; ... ; opn | ∀i : opi ∈ {π1, ... , πk}} S = [

n∈N

Sn Pm = { n

i=1,...,m

si | ∀i : si ∈ S} P = [

m∈N

Pm

Theorem

D is lock-free ⇐ ⇒ every P ∈ P terminiates

Proving Lock-Freedom: Step One

Reducing the problem to termination Let be a share-memory data structure with operations .

π1, ... , πk D

Definitions

Sn = {op1; ... ; opn | ∀i : opi ∈ {π1, ... , πk}} S = [

n∈N

Sn Pm = { n

i=1,...,m

si | ∀i : si ∈ S} P = [

m∈N

Pm

Theorem

D is lock-free ⇐ ⇒ every P ∈ P terminiates

m threads execute finite number of

• perations

Proving Lock-Freedom: Step One

Reducing the problem to termination Let be a share-memory data structure with operations .

π1, ... , πk D

Definitions

Sn = {op1; ... ; opn | ∀i : opi ∈ {π1, ... , πk}} S = [

n∈N

Sn Pm = { n

i=1,...,m

si | ∀i : si ∈ S} P = [

m∈N

Pm

Theorem

D is lock-free ⇐ ⇒ every P ∈ P terminiates

m threads execute finite number of

• perations

Problem: Termination of one thread depends of the behavior of

• ther threads.

Proving Lock-Freedom: Step Two

Prove an upper bound on the number of loop iterations How to reason about one operation locally when the number of loop iterations depends on the other threads? Observation In a lock-free data structure, every iteration of an unsuccessful operation is caused by the successful completion of an operation by another thread.

P ∈ P πi

Idea: Threads that perform a successful operation have to pay for the additional loop iterations that they (potentially) cause in other threads.

Proving Lock-Freedom: Step Two

Prove an upper bound on the number of loop iterations How to reason about one operation locally when the number of loop iterations depends on the other threads? Observation In a lock-free data structure, every iteration of an unsuccessful operation is caused by the successful completion of an operation by another thread.

P ∈ P πi

Idea: Threads that perform a successful operation have to pay for the additional loop iterations that they (potentially) cause in other threads. Quantitative compensation scheme.

A Quantitative Compensation Scheme for Treiber’s Stack

A Quantitative Compensation Scheme for Treiber’s Stack

• Every thread has a number of tokens to pay for its loop iterations
• For Treiber’s stack, a thread needs m tokens to execute a push or pop
• After the execution the tokens disappear
• If n operations are executed then m*n is a bound on the loop iterations

A Quantitative Compensation Scheme for Treiber’s Stack

• Every thread has a number of tokens to pay for its loop iterations
• For Treiber’s stack, a thread needs m tokens to execute a push or pop
• After the execution the tokens disappear
• If n operations are executed then m*n is a bound on the loop iterations

Number of threads.

A Quantitative Compensation Scheme for Treiber’s Stack

• Every thread has a number of tokens to pay for its loop iterations
• For Treiber’s stack, a thread needs m tokens to execute a push or pop
• After the execution the tokens disappear
• If n operations are executed then m*n is a bound on the loop iterations
• Successful push/pop: 1 token is used to pay for the loop iteration

s m-1 tokens are transferred to other threads

• Unsuccessful push/pop: 1 token is used to pay for the loop iteration

s 1 token is received from a successful thread Number of threads.

A Quantitative Compensation Scheme for Treiber’s Stack

• Every thread has a number of tokens to pay for its loop iterations
• For Treiber’s stack, a thread needs m tokens to execute a push or pop
• After the execution the tokens disappear
• If n operations are executed then m*n is a bound on the loop iterations
• Successful push/pop: 1 token is used to pay for the loop iteration

s m-1 tokens are transferred to other threads

• Unsuccessful push/pop: 1 token is used to pay for the loop iteration

s 1 token is received from a successful thread Number of threads. Availability of m tokens is a loop invariant.

A Quantitative Compensation Scheme for Treiber’s Stack

8128

Threads Shared Memory

77 2 1

A Quantitative Compensation Scheme for Treiber’s Stack

8128

Threads Shared Memory

77 2 1 void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

A Quantitative Compensation Scheme for Treiber’s Stack

8128

Threads Shared Memory

77 2 1 void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

1 1 1 1 1 1 1 1 1 1 1 1

Need m tokens for each push operation.

A Quantitative Compensation Scheme for Treiber’s Stack

8128

Threads Shared Memory

77 2 1 void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

1 1 1 1 1 1 1 1 1 1 1 1

Need m tokens for each push operation.

A Quantitative Compensation Scheme for Treiber’s Stack

8128

Threads Shared Memory

77 2 1 void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

1 1 1 1 1 1 1 1 1 1 1 1

A Quantitative Compensation Scheme for Treiber’s Stack

8128

Threads Shared Memory

77 2 1 void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

1 1 1 1 1 1 1 1 1

A Quantitative Compensation Scheme for Treiber’s Stack

8128

Threads Shared Memory

77 2 1 void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

1 1 1 1 1 1 1 1 1

Failed Failed Succeeded

A Quantitative Compensation Scheme for Treiber’s Stack

8128

Threads Shared Memory

77 2 1 void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

1 1 1 1 1 1 1 1 1

Failed Failed Succeeded

A Quantitative Compensation Scheme for Treiber’s Stack

8128

Threads Shared Memory

77 2 1 void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

1 1 1 1 1 1 1 1 1

Failed Failed Succeeded

Exits loop. Pays m-1 tokens to

• ther threads.

Iterate loop. Receive a token from successful thread. Iterate loop. Receive a token from successful thread.

A Quantitative Compensation Scheme for Treiber’s Stack

8128

Threads Shared Memory

77 2 1 void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

1 1 1 1 1 1 1 1 1

Failed Failed Succeeded

Exits loop. Pays m-1 tokens to

• ther threads.

Iterate loop. Receive a token from successful thread. Iterate loop. Receive a token from successful thread.

A Quantitative Compensation Scheme for Treiber’s Stack

8128

Threads Shared Memory

77 2 1 void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

1 1 1 1 1 1 1 1 1

A Quantitative Compensation Scheme for Treiber’s Stack

8128

Threads Shared Memory

77 2 1 void push(value_t v) { Node *t, *x; x = new Node(); x->data = v; do { t = S; x->next = t; } while(!CAS(&S,t,x)); }

1 1 1 1 1 1 1 1 1

Treiber’s stack is lock- free iff we have enough tokens to pay for all loop iterations.

Quantitative Reasoning in Separation Logic

[P] C [Q] [P ∗ R] C [Q ∗ R]

(FRAME)

[P] C [Q]

Quantitative Reasoning in Separation Logic

P and Q are predicates on program states.

[P] C [Q] [P ∗ R] C [Q ∗ R]

(FRAME)

[P] C [Q]

Quantitative Reasoning in Separation Logic

P and Q are predicates on program states. Total correctness: if program C is started in a state which satisfies P then C terminates and Q holds after the execution.

[P] C [Q] [P ∗ R] C [Q ∗ R]

(FRAME)

[P] C [Q]

Quantitative Reasoning in Separation Logic

Total correctness: if program C is started in a state which satisfies P then C terminates and Q holds after the execution. Separating conjunction: heap can be split so that

• ne part satisfies P and

the other part satisfies R.

[P] C [Q] [P ∗ R] C [Q ∗ R]

(FRAME)

[P] C [Q]

Quantitative Reasoning in Separation Logic

Total correctness: if program C is started in a state which satisfies P then C terminates and Q holds after the execution. Separating conjunction: heap can be split so that

• ne part satisfies P and

the other part satisfies R. Frame rule for modular and local reasoning.

[P] C [Q] [P ∗ R] C [Q ∗ R]

(FRAME)

[P] C [Q]

Quantitative Reasoning in Separation Logic

Total correctness: if program C is started in a state which satisfies P then C terminates and Q holds after the execution. Frame rule for modular and local reasoning.

[P] C [Q] [P ∗ R] C [Q ∗ R]

(FRAME)

[P] C [Q]

Quantitative Reasoning in Separation Logic

Total correctness: if program C is started in a state which satisfies P then C terminates and Q holds after the execution. Frame rule for modular and local reasoning.

[P] C [Q] [P ∗ R] C [Q ∗ R]

(FRAME)

[P] C [Q] conjunction ♦ ⇤ P,

(Affine) predicate for tokens:

en ♦ found

⇐ ⇒

ens ♦ ⇤ . . . ⇤ ♦ by ♦n. Appendix IV.

Quantitative Reasoning in Separation Logic

Total correctness: if program C is started in a state which satisfies P then C terminates and Q holds after the execution. Frame rule for modular and local reasoning. Use separating conjunction to combine it with other predicates.

[P] C [Q] [P ∗ R] C [Q ∗ R]

(FRAME)

[P] C [Q] conjunction ♦ ⇤ P,

(Affine) predicate for tokens:

en ♦ found

⇐ ⇒

ens ♦ ⇤ . . . ⇤ ♦ by ♦n. Appendix IV.

Quantitative Reasoning in Separation Logic

Total correctness: if program C is started in a state which satisfies P then C terminates and Q holds after the execution. Frame rule for modular and local reasoning. Use separating conjunction to combine it with other predicates. There are n tokens available.

[P] C [Q] [P ∗ R] C [Q ∗ R]

(FRAME)

[P] C [Q] conjunction ♦ ⇤ P,

(Affine) predicate for tokens:

en ♦ found

⇐ ⇒

ens ♦ ⇤ . . . ⇤ ♦ by ♦n. Appendix IV.

Quantitative Reasoning in Separation Logic

Total correctness: if program C is started in a state which satisfies P then C terminates and Q holds after the execution. Frame rule for modular and local reasoning.

[P] C [Q] [P ∗ R] C [Q ∗ R]

(FRAME)

[P] C [Q] conjunction ♦ ⇤ P,

(Affine) predicate for tokens:

en ♦ found

⇐ ⇒

ens ♦ ⇤ . . . ⇤ ♦ by ♦n. Appendix IV.

P ^ B = ) P 0 ⇤ ♦ I ` [P 0] C [P] I ` [P] while B do C [P ^ ¬B]

(WHILE)

Quantitative Reasoning in Separation Logic

Total correctness: if program C is started in a state which satisfies P then C terminates and Q holds after the execution. Frame rule for modular and local reasoning.

[P] C [Q] [P ∗ R] C [Q ∗ R]

(FRAME)

[P] C [Q] conjunction ♦ ⇤ P,

(Affine) predicate for tokens:

en ♦ found

⇐ ⇒

ens ♦ ⇤ . . . ⇤ ♦ by ♦n. Appendix IV.

P ^ B = ) P 0 ⇤ ♦ I ` [P 0] C [P] I ` [P] while B do C [P ^ ¬B]

(WHILE)

Quantitative Reasoning in Separation Logic

Total correctness: if program C is started in a state which satisfies P then C terminates and Q holds after the execution. Frame rule for modular and local reasoning. Consume one token in each iteration

[P] C [Q] [P ∗ R] C [Q ∗ R]

(FRAME)

[P] C [Q] conjunction ♦ ⇤ P,

(Affine) predicate for tokens:

en ♦ found

⇐ ⇒

ens ♦ ⇤ . . . ⇤ ♦ by ♦n. Appendix IV.

Concurrent Separation Logic

xtension to CCRs is possible. judgment I ` [P] C [Q] , in a state where emp ` [P ⇤ I] C [Q ⇤ I] I ` [P] atomic{C} [Q]

(ATOM)

I ` [P1] C1 [Q1] I ` [P2] C2 [Q2] I ` [P1 ⇤ P2] C1 k C2 [Q1 ⇤ Q2]

(PAR)

Concurrent Separation Logic

Resource invariant: another predicate.

xtension to CCRs is possible. judgment I ` [P] C [Q] , in a state where emp ` [P ⇤ I] C [Q ⇤ I] I ` [P] atomic{C} [Q]

(ATOM)

I ` [P1] C1 [Q1] I ` [P2] C2 [Q2] I ` [P1 ⇤ P2] C1 k C2 [Q1 ⇤ Q2]

(PAR)

Concurrent Separation Logic

Resource invariant: another predicate. Describes the shared memory.

xtension to CCRs is possible. judgment I ` [P] C [Q] , in a state where emp ` [P ⇤ I] C [Q ⇤ I] I ` [P] atomic{C} [Q]

(ATOM)

I ` [P1] C1 [Q1] I ` [P2] C2 [Q2] I ` [P1 ⇤ P2] C1 k C2 [Q1 ⇤ Q2]

(PAR)

Concurrent Separation Logic

Resource invariant: another predicate. Describes the shared memory. Shared memory can only be accessed in atomic blocks.

xtension to CCRs is possible. judgment I ` [P] C [Q] , in a state where emp ` [P ⇤ I] C [Q ⇤ I] I ` [P] atomic{C} [Q]

(ATOM)

I ` [P1] C1 [Q1] I ` [P2] C2 [Q2] I ` [P1 ⇤ P2] C1 k C2 [Q1 ⇤ Q2]

(PAR)

Concurrent Separation Logic

Resource invariant: another predicate. Describes the shared memory. Shared memory can only be accessed in atomic blocks. Assume invariant I holds. Ensure invariant I holds.

xtension to CCRs is possible. judgment I ` [P] C [Q] , in a state where emp ` [P ⇤ I] C [Q ⇤ I] I ` [P] atomic{C} [Q]

(ATOM)

I ` [P1] C1 [Q1] I ` [P2] C2 [Q2] I ` [P1 ⇤ P2] C1 k C2 [Q1 ⇤ Q2]

(PAR)

Concurrent Separation Logic

Resource invariant: another predicate. Describes the shared memory. Shared memory can only be accessed in atomic blocks. Assume invariant I holds. Ensure invariant I holds. Parallel composition.

xtension to CCRs is possible. judgment I ` [P] C [Q] , in a state where emp ` [P ⇤ I] C [Q ⇤ I] I ` [P] atomic{C} [Q]

(ATOM)

I ` [P1] C1 [Q1] I ` [P2] C2 [Q2] I ` [P1 ⇤ P2] C1 k C2 [Q1 ⇤ Q2]

(PAR)

Concurrent Separation Logic

Resource invariant: another predicate. Describes the shared memory. Shared memory can only be accessed in atomic blocks. Assume invariant I holds. Ensure invariant I holds. Parallel composition. Modular reasoning.

xtension to CCRs is possible. judgment I ` [P] C [Q] , in a state where emp ` [P ⇤ I] C [Q ⇤ I] I ` [P] atomic{C} [Q]

(ATOM)

I ` [P1] C1 [Q1] I ` [P2] C2 [Q2] I ` [P1 ⇤ P2] C1 k C2 [Q1 ⇤ Q2]

(PAR)

Back to the Stack: Formal Specification

Resource Invariant Specifications of Push and Pop I ,

• 9u. S 7! u ⇤

~

0i<n α(i, u)

α(i, u) , 9a, c. C[i] 7!

r c ⇤ A[i] 7! r a ⇤ (c = 0 _ a = u _ ⌃)

I ` [A[tid] 7!

r

⇤ C[tid] 7!

r

⇤ ⌃n] push(v) [A[tid] 7!

r

⇤ C[tid] 7!

r

] ` 7! ⇤ 7! ⇤ 7! ⇤ 7! I ` [A[tid] 7!

r

⇤ C[tid] 7!

r

⇤ ⌃n] pop() [A[tid] 7!

r

⇤ C[tid] 7!

r

]

Back to the Stack: Formal Specification

Resource Invariant Specifications of Push and Pop For every thread i: if i has read the stack pointer then it is either unchanged or their is a token available. I ,

• 9u. S 7! u ⇤

~

0i<n α(i, u)

α(i, u) , 9a, c. C[i] 7!

r c ⇤ A[i] 7! r a ⇤ (c = 0 _ a = u _ ⌃)

I ` [A[tid] 7!

r

⇤ C[tid] 7!

r

⇤ ⌃n] push(v) [A[tid] 7!

r

⇤ C[tid] 7!

r

] ` 7! ⇤ 7! ⇤ 7! ⇤ 7! I ` [A[tid] 7!

r

⇤ C[tid] 7!

r

⇤ ⌃n] pop() [A[tid] 7!

r

⇤ C[tid] 7!

r

]

Verifying Treiber’s Stack

While loop of push

S := alloc(1); [S] := 0; A := alloc(max_tid); C := alloc(max_tid); push(v) , pushed := false; x := alloc(2); [x] := v; [(pushed _ ⌃n) ⇤ γr(tid, _, _)] // loop invariant while ( !pushed ) do { //While rule antecedent: ((pushed _ ⌃n) ⇤ γr(tid, _, _)) ^ !pushed ) ⌃n1 ⇤ γr(tid, _, _) ⇤ ⌃ [⌃n1 ⇤ γr(tid, _, _)] atomic { [⌃n1 ⇤ γr(tid, _, _) ⇤ S 7! u ⇤ α(tid, u) ⇤ I0(tid, u)] // atom block [⌃n1 ⇤ γ(tid, _, _) ⇤ S 7! u ⇤ I0(tid, u)] // impl. & read perm. t := [S]; [⌃n1 ⇤ γ(tid, _, _) ⇤ (S 7! u ^ t = u) ⇤ I0(tid, u)] // read & frame C[tid] := 1 [⌃n1 ⇤ γ(tid, _, 1) ⇤ (S 7! u ^ t = u) ⇤ I0(tid, u)] // assignment A[tid] := t [⌃n1 ⇤ (A[tid] 7! t ^ t = u) ⇤ C[tid] 7! 1 ⇤ S 7! u ⇤ I0(tid, u)] [⌃n1 ⇤ γr(tid, t, 1) ⇤ S 7! u ⇤ α(tid, u) ⇤ I0(tid, u)] // perm. [⌃n1 ⇤ γr(tid, t, 1) ⇤ I] // exist. intro & (3) }; [⌃n1 ⇤ γr(tid, t, 1)] // atomic block & frame // [x+1] := t; this is not essential for lock-freedom atomic { [⌃n1 ⇤ γr(tid, t, 1) ⇤ I] // atomic block [⌃n1 ⇤ γr(tid, t, 1) ⇤ S 7! u ⇤ ~1in α(i, u)] // exist. elim. s := [S]; if s == t then { [⌃n1 ⇤ γ(tid, _, _) ⇤ S 7! t ⇤ ~{1,...,n}\{tid}(γ(i, _, _))] [S] := x; [γ(tid, _, _) ⇤ S 7! x ⇤ I0(tid, x)] // permissions & (4) pushed := true [(pushed _ ⌃n) ⇤ γ(tid, _, _) ⇤ 9u. S 7! u ⇤ I0(tid, u)] } else { [⌃n1 ⇤ t 6= u ^ γr(tid, t, 1) ⇤ α(tid, u) ⇤ S 7! u ⇤ I0(tid, u)] [⌃n ⇤ γ(tid, t, 1) ⇤ S 7! u ⇤ I0(tid, u)] // impl. using (5) skip [(pushed _ ⌃n) ⇤ γ(tid, _, _) ⇤ 9u. S 7! u ⇤ I0(tid, u)] }; C[tid] := 0 [(pushed _ ⌃n) ⇤ γ(tid, _, 0) ⇤ S 7! u ⇤ I0(tid, u)] // write & exist. elim (above) and permissions & impl. [(pushed _ ⌃n) ⇤ γr(tid, _, _) ⇤ α(tid, u) ⇤ S 7! u ⇤ I0(tid, u)] [(pushed _ ⌃n) ⇤ γr(tid, _, _) ⇤ I] // exist. intro }; [(pushed _ ⌃n) ⇤ γr(tid, _, _)] // atomic block end }

Data Structure Tokens Per Operation Treiber’s Stack n Michael and Scott’s Queue n + 1 Hazard-Pointer Stack n + (c · n) Hazard-Pointer Queue (n + 1) + (c · n) Elimination-Backoff Stack n · (n + 1)

More Advanced Shared- Memory Data Structures

Details are in the Paper

Conclusion and Ongoing Work

• Compensation schemes simplify reasoning about lock-freedom
• Quantitative reasoning can be directly integrated in modern logics for

safety properties

• The reasoning works for involved real-world data structures
• Current work: Adapt quantitative reasoning to prove termination-

sensitive contextual refinement

• Future work: quantitative reasoning for classic lock-based

synchronization

Conclusion and Ongoing Work

• Compensation schemes simplify reasoning about lock-freedom
• Quantitative reasoning can be directly integrated in modern logics for

safety properties

• The reasoning works for involved real-world data structures
• Current work: Adapt quantitative reasoning to prove termination-

sensitive contextual refinement

• Future work: quantitative reasoning for classic lock-based

synchronization Thank you!
