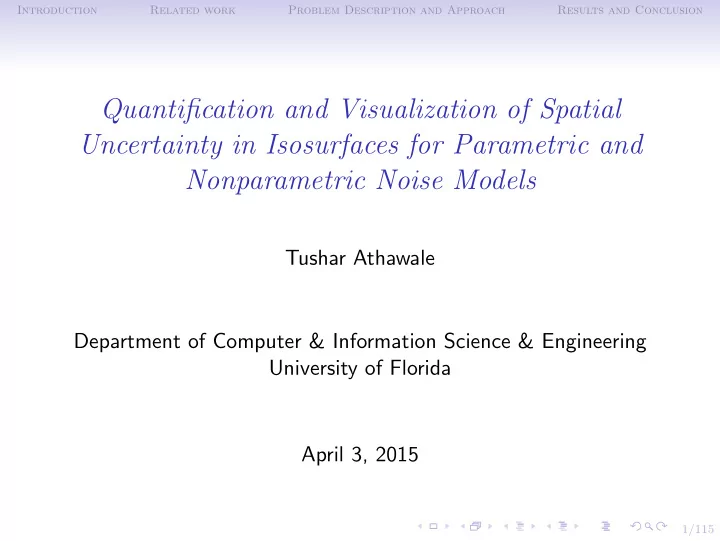

Quantification and Visualization of Spatial Uncertainty in Isosurfaces for Parametric and Nonparametric Noise Models

Tushar Athawale Department of Computer & Information Science & Engineering University of Florida April 3, 2015

2/115 Introduction Related work Problem Description and Approach Results and Conclusion

Outline

• Introduction
• 1. Need for uncertainty visualization
• 2. Problems arising in marching squares algorithm (MSA) for

uncertain data

• Related Work
• 1. Uncertainty visualization techniques
• 2. Uncertainty quantification techniques
• Problem Description and Approach
• 1. Topology prediction for marching cubes algorithm (MCA)
• 2. Uncertainty quantification in MCA geometry
• Results, Conclusion, and Future Work

3/115 Introduction Related work Problem Description and Approach Results and Conclusion

Data Visualization Paradigms

(a) Indirect Visualization (b) Direct Visualization

• Two fundamental paradigms for data visualization:
• Indirect Visualization
• Direct Visualization

4/115 Introduction Related work Problem Description and Approach Results and Conclusion

Isosurfaces: Biomedical Imaging

Figure: Blood Flow Visualization

(Image source: http://www.visitusers.org/images/c/c9/Bflow tutorial vel mag iso .png)

5/115 Introduction Related work Problem Description and Approach Results and Conclusion

Isosurfaces: Climate Studies

Figure: Isobar Visualization

(Image source: http://facweb.bhc.edu/academics/science/harwoodr/GEOL101/Labs/Wind/Images/IsobarMap3.gif)

6/115 Introduction Related work Problem Description and Approach Results and Conclusion

Sources of Uncertainty

• Errors in final visualization can lead to drawing wrong

conclusions and may impact sensitive applications.

7/115 Introduction Related work Problem Description and Approach Results and Conclusion

Sources of Uncertainty

• Errors in final visualization can lead to drawing wrong

conclusions and may impact sensitive applications.

• Uncertainty visualization, therefore, has become an important

research direction.

8/115 Introduction Related work Problem Description and Approach Results and Conclusion

Sources of Uncertainty

• Errors in final visualization can lead to drawing wrong

conclusions and may impact sensitive applications.

• Uncertainty visualization, therefore, has become an important

research direction.

• We study impact of uncertainty in data acquisition phase on

final visualization.

9/115 Introduction Related work Problem Description and Approach Results and Conclusion

Data Acquisition: Sampling/Discretization Errors

• Function of continuous variable is represented by finite

number of evaluations at grid locations.

• Sampling affects gradient values.

Figure: Continuous function sampled at finite space locations

10/115 Introduction Related work Problem Description and Approach Results and Conclusion

Data Acquisition: Quantization Errors

• Rounding off errors introduced due to limited instrument

precision

Figure: Quantization errors

(Image source:http://en.wikipedia.org/wiki/Quantization (signal processing))

11/115 Introduction Related work Problem Description and Approach Results and Conclusion

Data Acquisition: Simulation Data

• Physical systems characterized using state specified by space

and time

• Partial Differential Equations (PDE): Relate rate of change in

system state with respect to space and time (or other variables)

• Heat Equation:

∂u ∂t = h2 ∂2u ∂x2

• Wave Equation:

∂2u ∂t2 = h2 ∂2u ∂x2

12/115 Introduction Related work Problem Description and Approach Results and Conclusion

Data Acquisition: Ensemble Simulations

Consider PDE: ∂2u ∂x2 − ku = 0 When k = 1 then u = Aex + Be−x When k = 0 then u = Cx + D When k = −1 then u = Ecos(x) + Fsin(x)

• Uncertainty in coefficients of PDEs (k in this case) can lead

to diverse solutions.

• Diversity in solutions can be captured in ensemble dataset.
• Each ensemble member represents a solution corresponding to

sampled coefficient value.

13/115 Introduction Related work Problem Description and Approach Results and Conclusion

Marching Squares Algorithm (MSA)

14/115 Introduction Related work Problem Description and Approach Results and Conclusion

Contour Extraction Problem

• Isocontour represents a curve, where every point on the curve

attains an equal value. This value is called isovalue.

• Isocontour ’S’ corresponding to the isovalue c is given by

S = {x ∈ R2 | f (x) = c}, where f : R2 → R.

(a) Scalar Field (b) Isocontour Figure: Figure shows an example of isobars. Black solid lines represent points where pressure magnitude is one of 20, 30, 40, 50, and 60 units.

(Image source: http://www.econym.demon.co.uk/isotut/isobars.htm)

15/115 Introduction Related work Problem Description and Approach Results and Conclusion

Marching Squares Algorithm

For each cell of a scalar grid

• Determine isocontour topology.
• Determine isocontour geometry.

(a) Scalar Field (b) Isocontour Figure: Red lines mark a cell of the scalar grid. (Image source:

http://www.econym.demon.co.uk/isotut/isobars.htm)

16/115 Introduction Related work Problem Description and Approach Results and Conclusion

Research Problem

Analysis of the topological and geometric changes in the isocontour/isosurface for the given isovalue when sampled function values are uncertain.

(a) Scalar Field (b) Isocontour Figure: Red lines mark a cell of the scalar grid. (Image source:

http://www.econym.demon.co.uk/isotut/isobars.htm)

17/115 Introduction Related work Problem Description and Approach Results and Conclusion

Isocontour Topology

• f (x) > isovalue : Positive vertex (Marked with dark blue

circle)

• f (x) < isovalue : Negative vertex (Not marked)
• Identify cell edges crossed by isocontour (Highlighted in green)

Figure: Cell configuration for isovalue c = 30

18/115 Introduction Related work Problem Description and Approach Results and Conclusion

Isocontour Topology

Figure: Marked vertices represent positive vertices. Non-marked vertices indicate negative vertices. Topology of the isocontour for an isovalue c is determined by cutting off positive vertices from negative vertices.

24 possible cell configurations!

19/115 Introduction Related work Problem Description and Approach Results and Conclusion

MSA Cell Configurations

Figure: Basic cell configurations

• 16 configurations reduce to only 4 configurations using

symmetry.

20/115 Introduction Related work Problem Description and Approach Results and Conclusion

MCA Cell Configurations

Figure: Using symmetric properties, 28 possible configurations reduce to

• nly 15 basic configurations. However, number of basic configurations

grows to 88 when ambiguous configuration cases are considered. Figure shows configurations as published in [LC87].

21/115 Introduction Related work Problem Description and Approach Results and Conclusion

MCA Cell Configurations

Figure: The stag dataset: Isovalue c = 580

22/115 Introduction Related work Problem Description and Approach Results and Conclusion

Multilinear Interpolation

Figure: Left image: Bilinear interpolation is equivalent to linear interpolation in two directions. Right image: Piecewise linear approximation to the bilinear interpolation curve (dotted).

• Bilinear interpolation : F(x, y) = ax + by + cxy + d

(Equation of Hyperbola)

• Bilinear interpolation coincides with linear interpolation

(F(x) = ax + b) on the grid edges.

23/115 Introduction Related work Problem Description and Approach Results and Conclusion

MSA Cell Configurations

Figure: Basic cell configurations

• 16 configurations reduce to only 4 configurations using

symmetry.

24/115 Introduction Related work Problem Description and Approach Results and Conclusion

Asymptotic Decider

Figure: Asymptotic decider by Nielson and Hamann [NH91] to resolve the configuration

• ambiguities. Dotted straight lines

show asymptotes of the hyperbolic curves. Isovalue c = 30

.

• Value attained by the intersection of asymptotes of the

hyperbolic arcs, i.e., saddle point S, can be computed using the following formula: f (S) = x1x3 − x2x4 x1 + x3 − x2 − x4

• If saddle point is positive, cut off the negative cell vertices and

vice versa.

25/115 Introduction Related work Problem Description and Approach Results and Conclusion

Midpoint Decider

Figure: Isovalue c = 30

• Value attained at the cell midpoint, M, can be computed

using the following formula: f (M) = x1 + x2 + x3 + x4 4

• If midpoint is positive, cut off the negative cell vertices and

vice versa.

26/115 Introduction Related work Problem Description and Approach Results and Conclusion

Isocontour Geometry

Determine the isocontour-crossing locations on the edges using inverse linear interpolation.

Figure: Isocontour geometry for isovalue c = 30

27/115 Introduction Related work Problem Description and Approach Results and Conclusion

Marching Cubes Algorithm

For each cell of the scalar grid

• Determine the isosurface topology and isosurface geometry

that is consistent with trilinear interpolation.

Figure: Using symmetric properties, 28 possible configurations reduce to only 15 basic configurations. However, number of basic configurations grows to 88 when ambiguous configuration cases are

• considered. Figure shows configurations as published in [LC87].

28/115 Introduction Related work Problem Description and Approach Results and Conclusion

Marching Cubes in Action

. . . Video is courtesy of Koen Samyn.

29/115 Introduction Related work Problem Description and Approach Results and Conclusion

Marching Squares Algorithm (MSA) in Uncertain Data

30/115 Introduction Related work Problem Description and Approach Results and Conclusion

Topological Uncertainty

Isovalue c = 30

31/115 Introduction Related work Problem Description and Approach Results and Conclusion

Ambiguous Topology: Decider Uncertainty

Isovalue c = 30

32/115 Introduction Related work Problem Description and Approach Results and Conclusion

Geometric Uncertainty

Isovalue c = 30

33/115 Introduction Related work Problem Description and Approach Results and Conclusion

Uncertainty Visualization Techniques

34/115 Introduction Related work Problem Description and Approach Results and Conclusion

Color Mapping

Figure: Left image: Original isosurface. Right image: Isosurface with color-mapped uncertainties. Red regions indicate areas of high spatial

• uncertainties. Image is courtesy of [RLB+03]

35/115 Introduction Related work Problem Description and Approach Results and Conclusion

Primitive Displacement

Figure: The leftmost image: Original isosurface. The middle image: Color-mapped uncertainties. The rightmost image: Isosurface with points displaced in the surface normal direction proportional to the uncertainty. Image is courtesy of [GR04].

36/115 Introduction Related work Problem Description and Approach Results and Conclusion

Glyphs

Figure: Left image: Uncertainty in the wind direction visualized using uncertain arrow glyphs (image source: http://slvg.soe.ucsc.edu/

images.uglyph/uncertain.gif). Right image: Cylindrical glyphs to represent

local data uncertainty (image is courtesy of [NL04])

37/115 Introduction Related work Problem Description and Approach Results and Conclusion

Uncertainty Quantification Techniques

38/115 Introduction Related work Problem Description and Approach Results and Conclusion

Visualization of Correlation Structures

Figure: Multi-level clustering where each cluster stands for minimum positive correlation strength. Image is courtesy of [PW12].

Positively correlated regions imply low structural variability in the isosurface and vice versa [PW12].

39/115 Introduction Related work Problem Description and Approach Results and Conclusion

Isosurface Condition Analysis

Figure: For the noise amplitude of ǫ in f (x) = c, there is higher uncertainty in x2 than in x1.

Areas of high data gradient imply low spatial uncertainty in the isosurface and vice versa [PH11].

40/115 Introduction Related work Problem Description and Approach Results and Conclusion

Probabilistic Marching Cubes

Figure: Direct volume rendering of the cell-crossing probabili- ties [PWH11].

.

• Direct volume rendering of cell-crossing probabilities for

isosurface

41/115 Introduction Related work Problem Description and Approach Results and Conclusion

Isosurface Uncertainty: Direct vs. Indirect Visualization

• State of the art: Direct volume rendering of cell-crossing

probabilities for isosurface

• Our work: Quantification and visualization of isosurface

uncertainties while not shifting to direct visualization paradigm

42/115 Introduction Related work Problem Description and Approach Results and Conclusion

Problem Description and Approach

43/115 Introduction Related work Problem Description and Approach Results and Conclusion

Characterizing Data Uncertainty

• Field with independent random variables
• Characterization of uncertainty using probability density

function

• Propagation of data uncertainty into marching cubes

algorithm

44/115 Introduction Related work Problem Description and Approach Results and Conclusion

Topology Prediction for Isosurface in Uncertain Data

45/115 Introduction Related work Problem Description and Approach Results and Conclusion

Isosurface Topology Problem

• Classification of vertices (positive/negative) determine

isosurface topology.

Aim : Given access to each vertex pdf, design a scheme to recover vertex classification corresponding to underlying data?

46/115 Introduction Related work Problem Description and Approach Results and Conclusion

Scheme 1: Vertex-based Classification

47/115 Introduction Related work Problem Description and Approach Results and Conclusion

Vertex-based Classification

• Process each vertex independently
• If Pr(X > c) > Pr(X < c), classify vertex as positive and vice

versa.

Figure: Shaded areas show most probable vertex sign for isovalue c.

48/115 Introduction Related work Problem Description and Approach Results and Conclusion

Vertex-based Classification

• If Pr(X > c) > Pr(X < c), classify vertex as positive and vice

versa.

• Approach doesn’t consider signs of neighboring vertices!

Figure: Shaded areas show most probable vertex sign for isovalue c.

49/115 Introduction Related work Problem Description and Approach Results and Conclusion

Scheme 2: Edge-based Classification

50/115 Introduction Related work Problem Description and Approach Results and Conclusion

Edge-crossing Probability

• Edge-crossing probability for isosurface with isovalue c for

independent random variables X and Y :

1 − Pr(X > c) · Pr(Y > c) − Pr(X < c) · Pr(Y < c)

51/115 Introduction Related work Problem Description and Approach Results and Conclusion

Edge-based Classification

• When edge-crossing probability is relatively high, we want
• pposite signs and vice versa.

52/115 Introduction Related work Problem Description and Approach Results and Conclusion

Edge-based Classification

• What is a vertex classification (+1/-1) corresponding to

underlying data given edge-crossing probabilities?

Figure: Numbers on edges represent edge-crossing probabilities.

53/115 Introduction Related work Problem Description and Approach Results and Conclusion

Optimization Problem

s∗ = arg min

sn=±1

sTWs. W: weight matrix of edge-crossing probabilities s: sign vector sn: n’th entry of matrix s

54/115 Introduction Related work Problem Description and Approach Results and Conclusion

Optimization Problem

s∗ = arg min

sn=±1

sTWs. W: weight matrix of edge-crossing probabilities s: sign vector sn: n’th entry of matrix s

• Solution: Combinatorial approach (Not practical!)

55/115 Introduction Related work Problem Description and Approach Results and Conclusion

Relaxed Optimization Problem

s∗ = arg min

sn=±1

sTWs. w: weight matrix of edge-crossing probabilities s: sign vector sn: n’th entry of matrix s

• Solution: Eigenvector of W with largest (negative) eigenvalue
• Use signs of eigenvector entries for vertex classification
• Computationally expensive compared to scheme 1

56/115 Introduction Related work Problem Description and Approach Results and Conclusion

Ambiguous Configurations in Uncertain Data

Aim : Given access to each vertex pdf, design a scheme to recover topology corresponding to ambiguous configurations?

57/115 Introduction Related work Problem Description and Approach Results and Conclusion

Uncertain Midpoint Decider

• Random variable corresponding to 1-d cell midpoint:

M = X1+X2

2

• Sum of random variables corresponds to convolution of

densities.

Uniforms with equal bandwidths Uniforms with unequal bandwidths Multiple uniforms with unequal bandwidths

58/115 Introduction Related work Problem Description and Approach Results and Conclusion

Uncertain Midpoint Decider

Figure: Convolution of uniform kernels with unequal bandwidths

• Face midpoint random variable: M = X1+X2+X3+X4

4

• Face midpoint density (PdfM): Cubic univariate box-spline

with non-uniform knots

• Body (3-d cell) midpoint random variable: M = X1+··+X8

8

• Body (3-d cell) midpoint density (PdfM): Degree 7 univariate

box-spline with non-uniform knots

59/115 Introduction Related work Problem Description and Approach Results and Conclusion

Uncertain Midpoint Decider

• Random variable corresponding to cell midpoint:

M = X1+X2+X3+X4

4

• Sum of random variables corresponds to convolution of

densities.

• Vertex-based classification for M to make topological decision.

Figure: Shaded areas show most probable vertex sign for isovalue c.

60/115 Introduction Related work Problem Description and Approach Results and Conclusion

Uncertainty Quantification in Isosurface Geometry for Uncertain Data

61/115 Introduction Related work Problem Description and Approach Results and Conclusion

Uncertainty Quantification in Linear Interpolation

Figure: Left: Ratio density for uniform parametric model; Right: Ratio density for nonparametric model with uniform base kernel.

Aim : Closed-form characterization of the ratio random variable, Z =

c−X1 X2−X1 , assuming X1 and X2 have parametric or nonparametric

distributions.

62/115 Introduction Related work Problem Description and Approach Results and Conclusion

Ratio Density for Uniform Noise Model

63/115 Introduction Related work Problem Description and Approach Results and Conclusion

Uncertainty Quantification in Linear Interpolation

Figure: µi and δi represent mean and width, respectively, of a random variable Xi. c is the isovalue. v1 and v2 represent the grid vertices.

Aim : Closed-form characterization of the ratio random variable, Z =

c−X1 X2−X1 , when X1 and X2 are uniformly distributed.

64/115 Introduction Related work Problem Description and Approach Results and Conclusion

Joint Distribution

Find the joint distribution of the dependent random variables Z1 = c − X1 and Z2 = X2 − X1, where Z = Z1

Z2 = c−X1 X2−X1 .

65/115 Introduction Related work Problem Description and Approach Results and Conclusion

Joint Distribution

• Determine the range of

c − X1.

• X1 assumes values in the

range [µ1 − δ1, µ1 + δ1].

• Random variables Z1 and

Z2 are dependent. µi and δi represent mean and width, respectively, of a random variable Xi.

66/115 Introduction Related work Problem Description and Approach Results and Conclusion

Joint Distribution

• Determine the range of

X2 − X1.

• X2 assumes values in the

range [µ2 − δ2, µ2 + δ2].

• Random variables Z1 and

Z2 are dependent. µi and δi represent mean and width, respectively, of a random variable Xi.

67/115 Introduction Related work Problem Description and Approach Results and Conclusion

Joint Distribution

• Determine the range of

X2 − X1.

• X2 assumes values in the

range [µ2 − δ2, µ2 + δ2].

• Random variables Z1 and

Z2 are dependent. µi and δi represent mean and width, respectively, of a random variable Xi.

68/115 Introduction Related work Problem Description and Approach Results and Conclusion

Joint Distribution

• Parallelogram represents

the joint distribution of the dependent random variables Z1 = c − X1 and Z2 = X2 − X1.

69/115 Introduction Related work Problem Description and Approach Results and Conclusion

Joint Distribution

Shape and position of the joint distribution is impacted by relative configurations for X1 and X2 and the isovalue c.

(a) Non-overlapping (b) Overlapping (c) Contained

70/115 Introduction Related work Problem Description and Approach Results and Conclusion

Cumulative Density Function

What is Pr( Z1

Z2 ≤ m)?

71/115 Introduction Related work Problem Description and Approach Results and Conclusion

Cumulative Density Function

• What is Pr( Z1

Z2 ≤ m)?

• cdfZ(m) = Pr(−∞ ≤

Z1 Z2 ≤ m) (orange region).

cdfZ(m) represents cumulative density function of a random variable Z.

72/115 Introduction Related work Problem Description and Approach Results and Conclusion

Probability Density Function

• What is Pr( Z1

Z2 ≤ m)?

• cdfZ(m) = Pr(−∞ ≤

Z1 Z2 ≤ m) (orange region).

• Obtain pdfZ(m) by

differentiating cdfZ(m) with respect to m. pdfZ(m) represents probability density function of a random variable Z.

73/115 Introduction Related work Problem Description and Approach Results and Conclusion

Probability Density Function

• What is Pr( Z1

Z2 ≤ m)?

• cdfZ(m) = Pr(−∞ ≤

Z1 Z2 ≤ m) (orange region).

• Obtain pdfZ(m) by

differentiating cdfZ(m) with respect to m.

• A piecewise inverse

polynomial function.

74/115 Introduction Related work Problem Description and Approach Results and Conclusion

Probability Density Function

pdfZ(m) = (c−µ2)2+δ2

2

4δ1δ2(1−m)2

75/115 Introduction Related work Problem Description and Approach Results and Conclusion

Probability Density Function

pdfZ(m) = (c−µ2)2+δ2

2

4δ1δ2(1−m)2

76/115 Introduction Related work Problem Description and Approach Results and Conclusion

Probability Density Function

pdfZ(m) = (µ2+δ2−c)2m2+(µ1+δ1−c)2(1−m)2

8δ1δ2m2(1−m)2

77/115 Introduction Related work Problem Description and Approach Results and Conclusion

Probability Density Function

pdfZ(m) = (µ2+δ2−c)2m2+(µ1+δ1−c)2(1−m)2

8δ1δ2m2(1−m)2

78/115 Introduction Related work Problem Description and Approach Results and Conclusion

Probability Density Function

pdfZ(m) = (c−µ1)2+δ2

1

4δ1δ2m2

79/115 Introduction Related work Problem Description and Approach Results and Conclusion

Probability Density Function

pdfZ(m) = (c−µ1)2+δ2

1

4δ1δ2m2

80/115 Introduction Related work Problem Description and Approach Results and Conclusion

Probability Density Function

pdfZ(m) = (µ2+δ2−c)2m2+(µ1−δ1−c)2(1−m)2

8δ1δ2m2(1−m)2

81/115 Introduction Related work Problem Description and Approach Results and Conclusion

Probability Density Function

pdfZ(m) = (µ2+δ2−c)2m2+(µ1−δ1−c)2(1−m)2

8δ1δ2m2(1−m)2

82/115 Introduction Related work Problem Description and Approach Results and Conclusion

Probability Density Function

pdfZ(m) = (c−µ2)2+δ2

2

4δ1δ2(1−m)2

83/115 Introduction Related work Problem Description and Approach Results and Conclusion

Probability Density Function

We get a piecewise density function as follows, where each piece is an inverse polynomial: pdfZ(m) =                   

(c−µ2)2+δ2

2

4δ1δ2(1−m)2,

−∞ < m ≤ slope S.

(µ2+δ2−c)2m2+(µ1+δ1−c)2(1−m)2 8δ1δ2m2(1−m)2

, slope S < m ≤ slope Q.

(c−µ1)2+δ2

1

4δ1δ2m2

, slope Q < m ≤ slope P.

(µ2+δ2−c)2m2+(µ1−δ1−c)2(1−m)2 8δ1δ2m2(1−m)2

, slope P < m ≤ slope R.

(c−µ2)2+δ2

2

4δ1δ2(1−m)2,

slope R < m < ∞.

84/115 Introduction Related work Problem Description and Approach Results and Conclusion

Ratio Density for Triangle Kernel

85/115 Introduction Related work Problem Description and Approach Results and Conclusion

Uncertainty Quantification in Linear Interpolation

Figure: µi and δi represent mean and width, respectively, of a random variable Xi. c is the isovalue. v1 and v2 represent the grid vertices.

Aim : Closed-form characterization of the ratio random variable, Z =

c−X1 X2−X1 , when X1 and X2 have triangle distributions.

86/115 Introduction Related work Problem Description and Approach Results and Conclusion

Joint Distribution

Figure: P1, P2, P3, P4 represent quadratic polynomial functions of joint

• density. µi and δi represent mean and width, respectively, of a random

variable Xi. c is the isovalue.

87/115 Introduction Related work Problem Description and Approach Results and Conclusion

Cumulative Density Function

Figure: Cumulative density function can be obtained by integrating polynomials falling within red region. µi and δi represent mean and width, respectively, of a random variable Xi. c is the isovalue.

88/115 Introduction Related work Problem Description and Approach Results and Conclusion

Green’s Theorem

Figure: Integration of polynomial P1 over closed polygon ABC is equal to sum of line integrals of new polynomials L = ( −1

2 )

• P1 dZ1 and

M = 1

2

• P1 dZ2 along the edges AB, BC, and CA.

89/115 Introduction Related work Problem Description and Approach Results and Conclusion

Cumulative Density Function

Figure: Integrate polynomial P1 over orange region using Green’s theorm.

90/115 Introduction Related work Problem Description and Approach Results and Conclusion

Cumulative Density Function

Figure: Integrate polynomial P2 over orange region using Green’s theorm.

91/115 Introduction Related work Problem Description and Approach Results and Conclusion

Cumulative Density Function

Figure: Integrate polynomial P3 over orange region using Green’s theorm.

92/115 Introduction Related work Problem Description and Approach Results and Conclusion

Cumulative Density Function

Figure: Integrate polynomial P4 over orange region using Green’s theorm.

93/115 Introduction Related work Problem Description and Approach Results and Conclusion

Ratio Density for Nonparametric Noise Models

94/115 Introduction Related work Problem Description and Approach Results and Conclusion

Uncertainty Quantification in Linear Interpolation

Figure: Kδ(X − µX) represents a kernel with bandwidth δ centered at µX for random variable X. c is the isovalue. v1 and v2 represent the grid vertices.

Aim : Closed-form characterization of the ratio random variable, Z =

c−X1 X2−X1 , when X1 and X2 have nonparametric distributions.

95/115 Introduction Related work Problem Description and Approach Results and Conclusion

Cumulative Density Function

Figure: Joint density is superposition of joint densities for each pair of

• kernels. Cumulative density function can be computed by integrating

polynomials falling within orange region using Green’s theorem.

96/115 Introduction Related work Problem Description and Approach Results and Conclusion

Cumulative Density Function

• When kernel weights are not equal, each parallelogram

polynomial carries different weight.

Figure: Joint density is superposition of joint densities for each pair of

• kernels. Cumulative density function can be computed by integrating

polynomials falling within orange region using Green’s theorem.

97/115 Introduction Related work Problem Description and Approach Results and Conclusion

Results and Conclusion

98/115 Introduction Related work Problem Description and Approach Results and Conclusion

Noise Characterization: Parametric versus Nonparametric Densities

99/115 Introduction Related work Problem Description and Approach Results and Conclusion

Ensemble Dataset: Tangle Function (c = −0.59)

Tangle function: Commonly used dataset well-known for its complexity in isosurface reconstruction

(a) (b) (c) (d) Figure: Parametric versus nonparametric density. (a) Groundtruth, (b) uniform noise model, (c) nonparametric noise model with uniform base kernel, (d) color-mapped spatial uncertainties. Subfigures (b), (c), and (d) show expected isosurface with topology determined using edge-based classification.

100/115 Introduction Related work Problem Description and Approach Results and Conclusion

Ensemble Dataset: Teardrop Function (c = −0.002)

(a) (b) (c) (d) Figure: Parametric versus nonparametric density. (a) Groundtruth, (b) uniform noise model, (c) nonparametric noise model with uniform base kernel, (d) color-mapped spatial uncertainties. Subfigures (b), (c), and (d) show expected isosurface with topology corresponding to vertex-based classification.

101/115 Introduction Related work Problem Description and Approach Results and Conclusion

Ensemble Dataset: Temperature Field (c = 24 ◦C)

(a) Uniform noise model (b) Nonparametric noise model with Epanechnikov base kernel Figure: Boxes indicate places with different topology. Spatial uncertainties are colormapped.

102/115 Introduction Related work Problem Description and Approach Results and Conclusion

Uncertain Scalar Field: Fuel Dataset (c = 96.74)

(a) (b) (c) (d) (e) (f) Figure: (a) Mean field, (b) parametric density, (c) equally-weighed nonparametric density, (d) nonlocal means algorithm, (e) weighted nonparametric density (weights derived from nonlocal means technique [BCM05]), (e) colormapped uncertainties.

103/115 Introduction Related work Problem Description and Approach Results and Conclusion

Vertex-based Classification versus Edge-based Classification

104/115 Introduction Related work Problem Description and Approach Results and Conclusion

Gaussian Density Function (c = 0.008)

Green isocontour: Groundtruth Red isocontour: Vertex-based Classification(asteriskes) Blue isocontour: Edge-based Classification(circles)

105/115 Introduction Related work Problem Description and Approach Results and Conclusion

Ensemble Dataset: Temperature Field (c = 24 ◦C)

(a) Mean field (b) Vertex-based classification method (c) Edge-based classification method

106/115 Introduction Related work Problem Description and Approach Results and Conclusion

Conclusion

• We study impact of uncertainty on the marching cubes

algorithm for isosurface extraction.

• Isosurface topology is predicted using vertex-based and

edge-based classification techniques.

• Uncertain midpoint decider is derived analytically to resolve

topological ambiguties.

• Probability density function of inverse linear interpolation is

derived in closed-form.

• We quantify and visualize positional uncertainty in expected

isosurface using color-mapped uncertainties.

107/115 Introduction Related work Problem Description and Approach Results and Conclusion

Future Work

• Characterization of uncertain asymptotic decider for resolving

topological ambiguities.

• Study of isosurface extraction for dependent random variables.

108/115 Introduction Related work Problem Description and Approach Results and Conclusion

Publications and Submitted Work

• Athawale, T.; Entezari, A.;, Uncertainty Quantification in

Linear Interpolation for Isosurface Extraction, IEEE Transactions on Visualization and Computer Graphics (TVCG), Special Issue on IEEE Visualization, vol.19, no.12, pp.2723-2732

• Athawale, T.; Sakhaee E.; Entezari, A.;, Isosurface

Visualization of Data with Nonparametric Models for Uncertainty, [Submitted to IEEE Transactions on Visualization and Computer Graphics (TVCG)]

109/115 Introduction Related work Problem Description and Approach Results and Conclusion

References I

• A. Buades, B. Coll, and J. M. Morel, A non-local algorithm for

image denoising, Comp. Vision and Pattern Recognition, CVPR 2005. IEEE Comp. Society Conf. on 2 (2005), 60–65. Gevorg Grigoryan and Penny Rheingans, Point-based probabilistic surfaces to show surface uncertainty, Visualization and Computer Graphics, IEEE Transactions on 10 (2004),

• no. 5, 564–573.

William E. Lorensen and Harvey E. Cline, Marching cubes: A high resolution 3d surface construction algorithm, Computer Graphics (Proceedings of SIGGRAPH 87), vol. 21, July 1987,

• pp. 163–169.

Gregory M. Nielson and Bernd Hamann, The asymptotic decider: Removing the ambiguity in marching cubes, Visualization ’91, 1991, pp. 83–91.

110/115 Introduction Related work Problem Description and Approach Results and Conclusion

References II

Timothy S Newman and William Lee, On visualizing uncertainty in volumetric data: techniques and their evaluation, Journal of Visual Languages & Computing 15 (2004), no. 6, 463–491. Kai P¨

• thkow and H-C Hege, Positional uncertainty of

isocontours: Condition analysis and probabilistic measures, Visualization and Computer Graphics, IEEE Transactions on 17 (2011), no. 10, 1393–1406. Tobias Pfaffelmoser and R¨ udiger Westermann, Visualization of global correlation structures in uncertain 2d scalar fields, Computer Graphics Forum 31 (2012), no. 3, 1025–1034. Kai P¨

• thkow, Britta Weber, and Hans-Christian Hege,

Probabilistic marching cubes, Computer Graphics Forum,

• vol. 30, Wiley Online Library, 2011, pp. 931–940.

111/115 Introduction Related work Problem Description and Approach Results and Conclusion

References III

Philip J Rhodes, Robert S Laramee, R Daniel Bergeron, Ted M Sparr, et al., Uncertainty visualization methods in isosurface rendering, Eurographics, vol. 2003, 2003, pp. 83–88.

112/115 Introduction Related work Problem Description and Approach Results and Conclusion

Geometry Results: Linear Interpolation versus Expected Crossing

113/115 Introduction Related work Problem Description and Approach Results and Conclusion

Uncertain Scalar Field: Fuel Dataset (c = 56)

• Study of the impact of variation in the sample mean on the

linear interpolation.

Top: Linear interpolation, Middle: Expected crossing, Bottom: Colormapped distance between linear interpolation and the expected isosurface

114/115 Introduction Related work Problem Description and Approach Results and Conclusion

Future Work: Uncertain Asymptotic Decider

• Random variable corresponding to intersection of asymptotes:

S =

X1X3−X2X4 X1+X3−X2−X4

• Numerator: Convolution of piecewise logarithmic functions

Denominator: Piecewise cubic

• Support of joint distribution in four dimensions

Approximate solutions:

• Monte-Carlo sampling for approximating asymptotic decider

density

• Saddle point coordinates:(

X1−X2 X1+X4−X2−X3 , X1−X3 X1+X4−X2−X3 )

• Determine the density at expected saddle point, using

uncertain midpoint decider.

115/115 Introduction Related work Problem Description and Approach Results and Conclusion

Future Work: Correlated Random Fields

• Transform data to make it correlated (using technique like

PCA) and then extract isosurface.

• Determining joint density of a cell/edge requires marginalizing

density function over scalar field.

• Marginalization is a challenging task unless underlying density

is Gaussian or nonparametric density function with Gaussian base kernel.

• Support of joint density for ratio density is not a

parallelogram!
