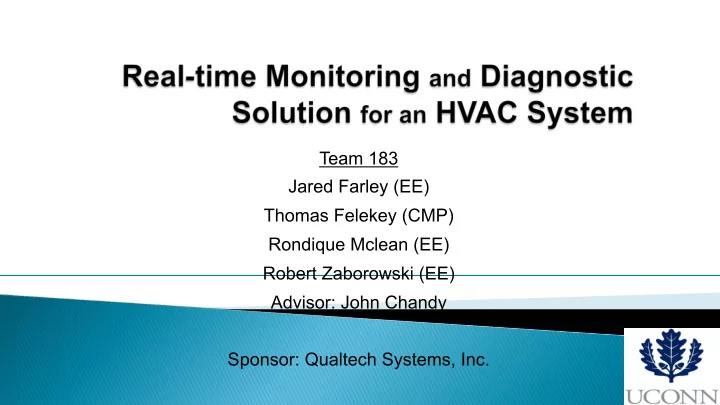

Team 183 Jared Farley (EE) Thomas Felekey (CMP) Rondique Mclean (EE) Robert Zaborowski (EE) Advisor: John Chandy Sponsor: Qualtech Systems, Inc. -Qualtech Systems, Inc. -TEAMS -ITE Building -Past ECE Teams -Progress -Objectives


slide-1
SLIDE 1

Team 183 Jared Farley (EE) Thomas Felekey (CMP) Rondique Mclean (EE) Robert Zaborowski (EE) Advisor: John Chandy Sponsor: Qualtech Systems, Inc.

slide-2
SLIDE 2
  • Qualtech Systems, Inc.
  • TEAMS
  • ITE Building
  • Past ECE Teams
  • Progress
  • Objectives
  • Timeline
slide-3
SLIDE 3
  • East Hartford, CT
  • Founded in 1993
  • Krishna Pattipati
  • Maintenance programs with guided

troubleshooting

  • Projects for NASA and U.S military
  • TEAMS
slide-4
SLIDE 4
  • Testability Engineering and Maintenance System
  • Multiple Components
  • TEAMS Designer
  • TEAMS RDS (Remote Diagnostic Server)
  • TEAMS RT (“Real-Time” Data Collection)
slide-5
SLIDE 5

TEA EAMS De Designer

  • Creates a model of a

system

  • Includes components

with respective test points

  • Can be used to model a

complex system

slide-6
SLIDE 6

TEA EAMS RDS DS

  • Online Server that connects all components
  • Decides which component is most Likely

failing

  • Provides Possible Solutions during Manual

Maintenance

  • Stores information for future analyses
slide-7
SLIDE 7

TEA EAMS RT

  • Provides diagnostics in Real-Time
  • Connects developed code with generated

sensor values to TEAMS RDS

  • Allow for constant connection
slide-8
SLIDE 8
  • HVAC system located in penthouse
  • Split into two subsystems
  • Cold water and steam pumped from basement
  • Multiple sensors on each floor
  • Sensor values sent to facilities website
slide-9
SLIDE 9
slide-10
SLIDE 10
slide-11
SLIDE 11
  • 2 years, 2 different teams
  • TEAMS Designer model created
  • Ran out of time processing facilities data
slide-12
SLIDE 12

Get t th the Da Data ta

  • Created a web browser

for java to access the website

  • Wrote form to access

and send to website to automatically send data to our program to parse

slide-13
SLIDE 13

Generate te Text t Results ts

  • Set up to take data

points from the sensors every 5 minutes

  • Wrote to text file
slide-14
SLIDE 14
  • Do error detection using the

data recieved from the website to determine if there is a fault in the system or not

slide-15
SLIDE 15
  • Send to TEAMS RT
  • Write in C++
  • Generate Test results

to test TEAMS

slide-16
SLIDE 16
slide-17
SLIDE 17
