Quality First! Sicher Stabil Online 11 13 October 2017 Maastricht 1 FEFPEB-Congress HPE HOME OF WOODEN PACKAGING AND PALLETS IN GERMANY Service Unit VHP Board Management 420 Companies Advisors bn . 2.5 turnover p. a.

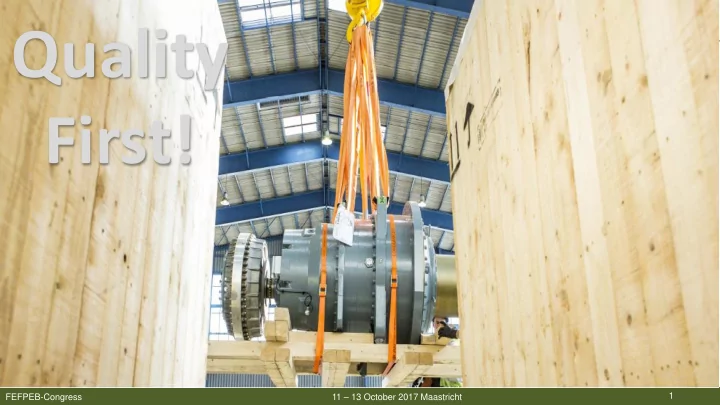

SLIDE 1

FEFPEB-Congress 11 – 13 October 2017 Maastricht 1

Sicher Stabil Online

Quality First!

SLIDE 2

FEFPEB-Congress 11 – 13 October 2017 Maastricht 2

HPE – HOME OF WOODEN PACKAGING AND PALLETS IN GERMANY

420 Companies –

bn. 2.5 € turnover p. a.

Pallets Packaging

Expert Group HPE Certified Packaging New: Software CASE- Express Packaging Guidelines New: Expert Group HPE Certified Pallets Software PALLET- Express New: Guidelines Pallets

Service Unit VHP Management Board Advisors General Assembly

Packaging Guidelines Pallet Guidelines

SLIDE 3

FEFPEB-Congress 11 – 13 October 2017 Maastricht 3

Quality-label pallets

Production of pallets according to HPE quality standard Proofed static properties and datasheet

www.hpe-pallets.com

Static calculation

SLIDE 4

FEFPEB-Congress 11 – 13 October 2017 Maastricht 4

HPE – QUALITY-STANDARD FOR EXPORT PACKAGING WORLDWIDE

Quality assurance 1: Development, construction, production and packaging according to HPE- guidelines Quality assurance 2: External auditing of the company by independant experts Expert Group Packaging 72 companies Construction and analysis of packaging Production of packaging material (cases and crates) + Export packaging

SLIDE 5

FEFPEB-Congress 11 – 13 October 2017 Maastricht 5

▪ New branch software for construction

and static calculation of (havy cargo) cases

▪ Essential supplement for HPE-Packaging guidelines ▪ Under supervision of steering committee + university ✓

Execution of contract with „itech“ (2016, May)

➢

Pre sale of software packages allready

➢

Delivery mid 2018 CASE EXPRESS

HPE – QUALITY PACKAGING – new software

SLIDE 6

FEFPEB-Congress 11 – 13 October 2017 Maastricht 6

SLIDE 7

FEFPEB-Congress 11 – 13 October 2017 Maastricht 7

Calculation software – What for?

SLIDE 8

FEFPEB-Congress 11 – 13 October 2017 Maastricht 8

Safety for

Customer
Export packer

SLIDE 9

FEFPEB-Congress 11 – 13 October 2017 Maastricht 9

Sicher Stabil Online

Product

dimension
Weight
Centre of gravity

Transport

Lorry
Ship
Aircraft

Handling

Forklift
Crane

SLIDE 10

FEFPEB-Congress 11 – 13 October 2017 Maastricht 10

Prüfeinrichtung – Übersicht

CAD Input FEM + proof Output Geometry - material - transport, etc. 3D-Plot + 2D-drawings Structure + carriage + calculation Maximum carriage + deformation, documentation

packaging software CASE Express – structure

SLIDE 11

FEFPEB-Congress 11 – 13 October 2017 Maastricht 11

packaging software CASE Express – welcome

SLIDE 12

FEFPEB-Congress 11 – 13 October 2017 Maastricht 12

packaging software CASE Express – general properties

SLIDE 13

FEFPEB-Congress 11 – 13 October 2017 Maastricht 13

packaging software CASE Express – starting design

SLIDE 14

FEFPEB-Congress 11 – 13 October 2017 Maastricht 14

packaging software CASE Express – define case type

CAD

SLIDE 15

FEFPEB-Congress 11 – 13 October 2017 Maastricht 15

packaging software CASE Express – free creation new elements

SLIDE 16

FEFPEB-Congress 11 – 13 October 2017 Maastricht 16

Structure + deformation of bottom

FEM + proof

SLIDE 17

FEFPEB-Congress 11 – 13 October 2017 Maastricht 17

Sicher Stabil Online
