SLIDE 1

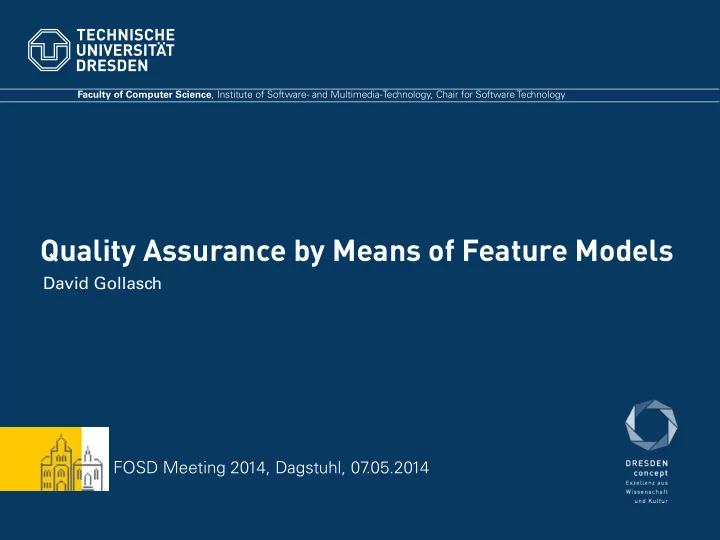

FOSD Meeting 2014, Dagstuhl, 07 .05.2014

Quality Assurance by Means of Feature Models

Faculty of Computer Science, Institute of Software- and Multimedia-Technology, Chair for Software Technology

David Gollasch

slide-2
SLIDE 2

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Contents

2

1 Fundamentals

SaaS Quality Assurance

2 Quality Assurance by Means of Feature Models

Quality as Attributes in Feature Models Structural Analysis of Feature Models

3 Discussion

slide-3
SLIDE 3

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Motivation

3

Modern business applications are getting increasingly distributed over the Internet as multi-tenant software as a service (SaaS). This leads to new challenges in terms of quality assurance when developing or maintaining such applications, because all customers are directly affected very often. Which effects do software changes have? How are those changes proactively determinable? How useful are feature models to face this?

slide-4
SLIDE 4

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21
  • 1. Fundamentals

4 SaaS Quality Assurance

slide-5
SLIDE 5

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Multi-Tenant Software as a Service Applications

5 SaaS Instance

Tenant Tenant Tenant Config. Config. Config.

Configurations possible through product lines (SPL)

[Mietzner et al. 2011] [Schroeter et al. 2012] Domain Engineering Application Engineering

…can be seen as a special kind of SPL

[Linden 2007 , p. 6 ff.]

slide-6
SLIDE 6

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Why to focus on quality assurance?

  • 1. Law of continous change
  • 4. Law of diminishing productivity
  • 2. Law of increasing complexity
  • 5. Law of restricted growth
  • 3. Law of decreasing quality

6 [Sneed 2012, EVOL-21]

Laws of software evolution (development of software in time) key argument for quality assurance

slide-7
SLIDE 7

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

How to assure quality in general?

7

Take a quality goal and try to reach it due to further development Prioritize development process: Remove unnecessary features to avoid wasting time and money. X G Q exclusive gradual quantized analyse product structure

slide-8
SLIDE 8

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21
  • 2. Quality Assurance by Means of Feature Models

8 Quality as Attributes in Feature Models Structural Analysis of Feature Models

slide-9
SLIDE 9

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Qualities as Attributes in Feature Models

9

  • Steps to analyze quality goals:

Classification as X, G

  • r Q goal

Find metric or heuristics Consolidation for configuration 1. 2. 3.

Type Quality Goal Question/Interpretation X goal Capabilities Are the requirements fulfilled? G goal Efficiency How efficient is the feature or configuration? Q goal Resource usage How much memory needs the calculation?

slide-10
SLIDE 10

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Example: Comparing Configurations (Summation as Consolidation)

10

„Measurement“

  • n feature

Consolidation 300 < 500 300 200 100 200 100 200 300 300 500

Configuration 1 Configuration 2

slide-11
SLIDE 11

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Consolidation Methods

  • simple approach for X goals: binary (achieved/not achieved)


ex: If there is one sub feature which does not achieve the X goal, the whole configuration does not achieve the goal.

!

  • simple arithmetic operations for Q/G goals: e.g. summation

!

  • complex consolidation method with dependencies, because not every

feature set allows a simple summation of the quality values,
 e.g. in terms of memory consumption.
 If FA and FB → multiply sum with 0.5.

11

slide-12
SLIDE 12

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Further Measurement Approaches

12

  • Not every quality goal can be measured easily, e.g. safety properties!

!

  • Quality measurement at a concrete software instance respectively

configuration

!

  • usage of Benchmarks
  • usage of model and code

!

  • Quality determination by means of a business approach
  • Assigning „costs“ to each feature
  • Negotiation of „total costs“ for a configuration according to economical

principles (discounts, price increase, ...)

[Siegmund et al. 2012] [Lettner et al. 2011]

slide-13
SLIDE 13

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Structural Similarity of Configurations

13

  • When does comparing configurations make sense?
  • Comparison of similar configurations as a lead for further investigations

same parent feature Configurations are similar, if there are commonalities that can be identified. This does not necessarily refer to the selection of equal features. Similarity also involves structural commonalities. (derived definition)

slide-14
SLIDE 14

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Structural Similarity of Configurations

13

  • When does comparing configurations make sense?
  • Comparison of similar configurations as a lead for further investigations

same parent feature same group Configurations are similar, if there are commonalities that can be identified. This does not necessarily refer to the selection of equal features. Similarity also involves structural commonalities. (derived definition)

slide-15
SLIDE 15

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Structural Similarity of Configurations

13

  • When does comparing configurations make sense?
  • Comparison of similar configurations as a lead for further investigations

same parent feature same group same features of a group Configurations are similar, if there are commonalities that can be identified. This does not necessarily refer to the selection of equal features. Similarity also involves structural commonalities. (derived definition)

slide-16
SLIDE 16

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Structural Similarity of Configurations

13

  • When does comparing configurations make sense?
  • Comparison of similar configurations as a lead for further investigations

same parent feature same group same features of a group same features of a parent feature Configurations are similar, if there are commonalities that can be identified. This does not necessarily refer to the selection of equal features. Similarity also involves structural commonalities. (derived definition)

slide-17
SLIDE 17

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Structural Similarity of Configurations

13

  • When does comparing configurations make sense?
  • Comparison of similar configurations as a lead for further investigations

same parent feature same group same features of a group same features of a parent feature same attributes Configurations are similar, if there are commonalities that can be identified. This does not necessarily refer to the selection of equal features. Similarity also involves structural commonalities. (derived definition)

slide-18
SLIDE 18

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Draw Conclusions (1)

14

Quality change due to software evolution

slide-19
SLIDE 19

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Draw Conclusions (2)

15

Quality difference of similar configurations …and its change due to software evolution

slide-20
SLIDE 20

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21

Structural Analysis of Feature Models

16

  • Comparisons only based
  • n a feature model and

existing derived configurations.

  • Complete automation

possible

!

  • Conceptual

implementation in Java as Eclipse plugin within the extFM-Tooling project (https://github.com/ extFM/extFM-Tooling/)

slide-21
SLIDE 21

Quality Assurance by Means of Feature Models FOSD Meeting, 07 .05.2014

  • f 21
  • 3. Discussion
  • Possible starting points for further research

17

Analysis of the shown methods without the SaaS context Further research in attributed feature models Extension of analysis tools Integration of the prototypical implementation in a practically usable tool Combination of attributed and structural analysis Empirical investigation in practicability in real projects

slide-22
SLIDE 22

FOSD Meeting 2014, Dagstuhl, 07 .05.2014

Thank you for your attention!

Faculty of Computer Science, Institute of Software- and Multimedia-Technology, Chair for Software Technology

1 Fundamentals

SaaS Quality Assurance

2 Quality Assurance by Means of Feature Models

Quality as Attributes in Feature Models Structural Analysis of Feature Models

3 Discussion (References on next slides)
