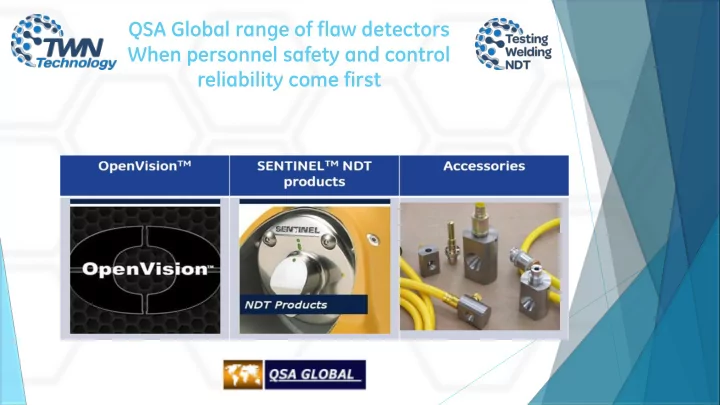

QSA Global range of flaw detectors When personnel safety and control reliability come first Application (key industries) Gamma Series 880 Flaw Detectors SENTINEL 880 Series Elite SENTINEL 880 Series Delta SENTINEL 880 Series Omega Gamma
SLIDE 2
SLIDE 3
Gamma Series 880 Flaw Detectors
SENTINEL 880 Series Delta SENTINEL 880 Series Elite SENTINEL 880 Series Omega
SLIDE 4
Gamma Flaw Detector Series 1075 ScarPro
The main intent is to achieve 24/7 SCAR performance. SCAR - Small Controlled Area Radiography, where the radiation-safe area can be reduced by up to 98% compared to a conventional X-ray. Designed, tested and manufactured in accordance with ANSI N432-1980, ISO 3999: 2004 (E), IAEA TS-R-1 (2009), IAEA SSR-6 (2012), USNRC 10CFR34, USNRC 10CFR71 and USDOT 49CFR173
SLIDE 5
Possible configurations
Projection Style Configuration Offset Fixture Configuration Contact Fixture Configuration
SLIDE 6
Gamma flaw detector series 1075 SCARPro
- Weight 16 kg / Pro 18 kg (with
collimator)
- Activity 81 Ci (3 TBq) 75Se
- Type A Protection - Tungsten
- Made acc. With ISO 3999
SLIDE 7
Protection and Shielding
SLIDE 8
The use of flexible screens
SLIDE 9
Gamma flaw detector series 1075 SCARPro Application of protective screens
Target: 2mR / h. Border: (1.8 meters) Pipe: d152 mm - steel Isotope: 75Se Activity: 80 Ci Flaw Detector: 1075 SCARPro Collimator: 40 ° x 40 ° Shot Type: DW / SW
SLIDE 10
Gamma flaw detector Scar series. Protection and Shielding Issues
SLIDE 11
The use of flexible screens
- 31 Ci 75Se
- 2 ”elliptical
- 5 meters
SLIDE 12
The use of flexible screens 7 uSv/hr @ 3 meters
SLIDE 13
Use of accessories
SLIDE 14
Application of calculator for calculating protective screens
SLIDE 15
Accessories
SLIDE 16
Fixtures
Point-blank tools Kit:
- 1075 SCARPro includes:
̶ Adjustable mechanism ̶ Side ratchet strap Tun 40 ° x 40 ° Tungsten Collimator
- DW / SW contact shots:
fillet welds / butt welds / bends
- Install on any pipe orientation
SLIDE 17
The kit allows you to achieve source displacement from the object up to 24 inches ̶ Includes elliptical radiographs Flexibility increases mounting flexibility in limited space ̶ securely fastens in any position 360 ° around the pipe
Fixtures
Offset Fixture Kit
SLIDE 18
Open Vision DX System New in the field of corrosion control under insulation !!!
- The world's first and only digital real-time digital system
to conduct video monitoring of corrosion under insulation
- 70 kV - X-ray system
- Inspection up to 90cm pipe diameter
Technology :
- Tightly focused x-rays, led to a decrease in the dose of
radiation: IRR99 / complies with IRR17 ANSI 43.5
- CE compliant
SLIDE 19
- Using the same battery as in the previous model, OVDX can
work 3 hours of continuous duty cycle or 8 hours of standby time Allowing operators to do more work without interruption
- Reduced weight (5 kg) and improved balance help reduce
- perator fatigue
- Several attachment points allow you to configure the device
for work at hand
- The absence of wires eliminates the need for an assistant to
carry the controller
- Compact design facilitates staircase / rope access
- Lifting Points Above 100 Lbs.
- Reduced wires = less obstruction
SLIDE 20
The he de dete tect ctor
- r ha
has s be beco come me th thinne inner
SLIDE 21
SLIDE 22
Applicability Table
SLIDE 23
