TDT4250 - Modeling of Information Systems, Autumn 2006 Model-driven development (MDA), Software Oriented Architecture (SOA) and semantic web (exemplified by WSMO) Draft of presentation John Krogstie Professor, IDI, NTNU Senior Researcher,

slide-1
SLIDE 1

1

1

1

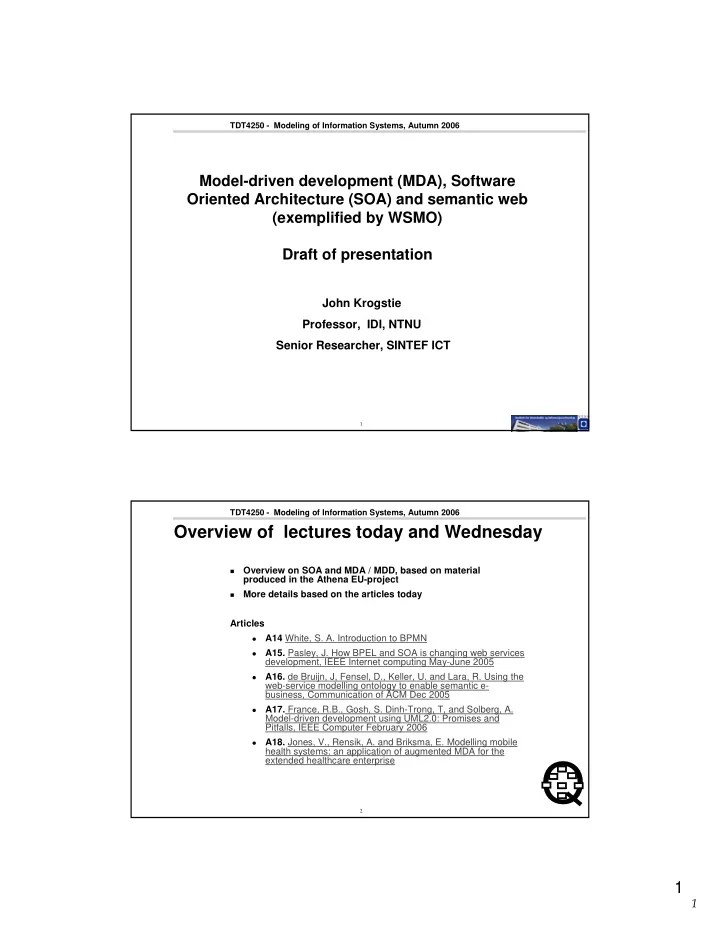

TDT4250 - Modeling of Information Systems, Autumn 2006

Model-driven development (MDA), Software Oriented Architecture (SOA) and semantic web (exemplified by WSMO) Draft of presentation

John Krogstie Professor, IDI, NTNU Senior Researcher, SINTEF ICT

2

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Overview of lectures today and Wednesday

  • Overview on SOA and MDA / MDD, based on material

produced in the Athena EU-project

  • More details based on the articles today

Articles

  • A14 White, S. A. Introduction to BPMN
  • A15. Pasley, J. How BPEL and SOA is changing web services

development, IEEE Internet computing May-June 2005

  • A16. de Bruijn, J, Fensel, D., Keller, U. and Lara, R. Using the

web-service modelling ontology to enable semantic e- business, Communication of ACM Dec 2005

  • A17. France, R.B., Gosh, S. Dinh-Trong, T, and Solberg, A.

Model-driven development using UML2.0: Promises and Pitfalls, IEEE Computer February 2006

  • A18. Jones, V., Rensik, A. and Briksma, E. Modelling mobile

health systems: an application of augmented MDA for the extended healthcare enterprise

slide-2
SLIDE 2

2

2

3

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

BPMN – based on a presentation by Steven White

4

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Business process management (BPM) services

slide-3
SLIDE 3

3

3

5

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

6

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

slide-4
SLIDE 4

4

4

7

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

8

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

slide-5
SLIDE 5

5

5

9

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

10

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

slide-6
SLIDE 6

6

6

11

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

12

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

slide-7
SLIDE 7

7

7

13

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

14

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

slide-8
SLIDE 8

8

8

15

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

16

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

slide-9
SLIDE 9

9

9

17

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

18

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

slide-10
SLIDE 10

10

10

19

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

20

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

slide-11
SLIDE 11

11

11

21

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

22

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

slide-12
SLIDE 12

12

12

23

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

24

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

slide-13
SLIDE 13

13

13

25

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

26

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Model-driven development (MDD)

CIM CIM

Business Context Models

PIM PIM Model trans- formation

Software Specification Models

PSM PSM

Software Realisation Models

Model trans- formation

Model-driven approach to system engineering where models are used in

  • understanding
  • design
  • construction
  • deployment
  • operation
  • maintenance
  • modification

Model transformation tools and services are used to align the different models. Business-driven approach to system engineering where models are refined from business needs to software solutions

  • Computation independent model (CIM)

capturing business context and business requirements

  • Platform independent model (PIM)

focusing on software services independent of IT technology

  • Platform specific model (PSM) focusing on

the IT technology realisation of the software services

slide-14
SLIDE 14

14

14

27

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Current MDA Architecture

CIM models PIM System models PSM System models System QVT QVT MOF2Txt Enterprise modeling expert System modeling expert System realisation installation expert UML2.0 MOF2.0 XMI2.0

Ontology

ODM BPDM OrgMM BSVR

OWL

ATL MOFScript EMF Java API MTF (IBM)

QVT

(MOF2Txt)

28

TDT4250 - Modeling of Information Systems, Autumn 2006

  • A17. France, R.B., Gosh, S. Dinh-Trong, T,

and Solberg, A. Model-driven development using UML2.0: Promises and Pitfalls, IEEE Computer February 2006 Navigating the metamuddle

Arnor Solberg, Robert France, Raghu Reddy Colorado State University and SINTEF Norway

slide-15
SLIDE 15

15

15

29

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Claim

The complexity of the current UML 2 metamodel

make the understanding, using, extending and evolving the metamodel difficult

1000 + pages specification

large and fragmented

Available as a model in Rational Rose

Only for visualization, no manipulation features available

(e.g. queries)

Poorly documented

This is a risk factor for MDD in general and MDA in particular!

30

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

This is a problem since..

  • MDD require development teams to understand, use and extend

metamodels

  • Configuring and tailoring MDD frameworks need to be done for each domain and

even System Family to be able to succeed with MDD.

  • Defining domain specific modeling concepts (for example by means of profiles),

specification of metamodel mappings (transformations) and model composition will be main tasks

  • Task for Domain and System Family architects. No out of the box tools to buy

from vendors. Tailoring is needed

slide-16
SLIDE 16

16

16

31

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Conceptual transformation model

Source (e.g., UML domain/PF subset/profile)

<<metamodel>>

Source2Target Scheme

<<transformation>> <<Model instance>>

Source implementation <<source>> Target (e.g. CORBA UML profile)

<<metamodel>>

<<target>> <<source>> <<target>> <<conforms_to>> Transformation (e.g. MOF2.0 QVT)

<<metamodel>> <<Model instance>>

Target Transformation <<conforms_to>> <<conforms_to>> <<conforms_to>>

32

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Good news and bad news

Good news is In practice only part of the UML is used

Subset of diagrams Subset of concepts

  • > Should not need to have the full knowledge of the

UML metamodel to use “your” part of UML

Bad news Need to manually navigate the metamuddle to extract

the concepts you want to use

slide-17
SLIDE 17

17

17

33

TDT4250 - Modeling of Information Systems, Autumn 2006

A glimpse into the story Illustrative Example

Mapping of Simple UML interactions models (e.g. to UML profile for CORBA)

34

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Simple metamodel for UML interactions

Want to extract the Lifeline and Message

concepts and their relationships. ☺ These are core concepts for modeling interactions so you would expect to find their properties and relationships quite easily in the standard Examination of the Interactions section in the UML specification, reveals that the information required in this simple view is not available in one place in the metamodel.

slide-18
SLIDE 18

18

18

35

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Lifeline fragment (no obvious relation to Message)

36

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Message fragment (no lifeline)

slide-19
SLIDE 19

19

19

37

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Problems of UML

Large and complex Specification fragmented Leads to accidental complexity

  • As opposed to inherent problem complexity

This is a risk factor for the MDA vision! Furthermore how do you evolve the UML model in a

consistent manner?

  • How can one be sure that required changes are incorporated

consistently across the metamodel?

  • How can one determine the impact that a change will have on
  • ther metamodel elements?
  • In particular, how can one ensure that the changes do not

result in a metamodel that defines inconsistent or nonsensical language constructs?

It will be extremely difficult to evolve the UML 2.0

metamodel to reflect changes in the UML standard using only manual techniques.

38

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Suggestions

Need user oriented views into the metamuddle At least a simple view of the metamodel for each diagram type that

describes only the concepts and relationships that appears in the diagram

Use aspect oriented techniques e.g. to Provide views of the set of diagram types that only contain concepts that are

visible in the diagrams (abstract concepts such as NamedElement will not appear in such diagrams, but derived properties will)

Define aspects presenting views of abstract concepts reflecting language and

UML-specific concerns such as name space management, element typing, connectivity of elements, and execution semantics.

Make it easier to evolve (e.g., change aspects, new aspects)

slide-20
SLIDE 20

20

20

39

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Tool support

At least Tool that allows developers to query the metamodel, to

extract views of the metamodel

E.g., get all relationships and properties of a

metamodel concept

Including the derived ones

Some tools provide some of this capability already

Xactium Megamodelling, ATL (Jean Bezivin)

Better Tool that take UML models as input and automatically

extract the metamodel for this set of input models

Implicit model checking (compliance checking)

40

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Conclusion

slide-21
SLIDE 21

21

21

41

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Questions

How do we eliminate accidental complexity such

as the one illustrated in this presentation

Other examples exists, e.g., the QVT specification Is this a unavoidable for new, immature fields? Problem is to include the users in the evolution of the

field when there is too much accidental complexity involved when using it

42

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Conclusion and further work

  • MDD framework that facilitates:

Horizontal separation

Handling crosscutting features distributed across a model Emphasis on QoS during model specification and transformation Simplify transformations

Vertical separation of concerns

Abstractions e.g., to manage diversity and evolution of platforms

  • Future work

More case studies

Different platforms, Repository of models and mappings of common middleware concerns

Profile for specifying model weaving Usage of framework for adaptive systems and adaptive middleware (E.g.,

Madam middleware)

Increase flexibility and ease evolution of adaptive systems

slide-22
SLIDE 22

22

22

43

TDT4250 - Modeling of Information Systems, Autumn 2006

WSMO overview As basis for A16. de Bruijn, J, Fensel, D., Keller, U. and Lara, R. Using the web-service modelling

  • ntology to enable semantic e-business,

Communication of ACM Dec 2005

44

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Contents

Mission of WSMO WSMO Standard

slide-23
SLIDE 23

23

23

45

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

Mission of WSMO

Web Service Modeling Ontology

WSMO is a conceptual model for relevant aspects

related to Semantic Web Services

46

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

WSMO Standard

Provide the formal semantics of the information used by all other components Semantic description of Web Services:

  • Capability (functional)
  • Interface (usage)

Specify objectives that a client may have when consulting a Web Service Connectors between components with mediation facilities (de-coupling)

slide-24
SLIDE 24

24

24

47

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

WSMO Standard - Ontologies

  • Non functional properties
  • Used mediators
  • Importing / re-using ontologies as modular approach for ontology design.
  • OO Mediators:
  • handles all ontology management issues (access, namespaces, etc.)
  • ntology integration (merging / alignment)

=> Modularization & De-coupling

  • Axioms

The set of axioms that belong to the represented ontology.

  • Concepts

The set of concepts that belong to the represented ontology.

  • Relations

The set of relations that belong to the represented ontology.

  • Instances

The set of instances that belong to the represented ontology.

48

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

WSMO Standard - Goals

  • Non functional properties
  • Used mediators
  • import ontologies using OO Mediators.
  • GG Mediator: Goal definition by reusing an already existing goal.
  • Post-conditions
  • describe the state of the information space that is desired.
  • Effects
  • Effects describe the state of the world that is desired.
slide-25
SLIDE 25

25

25

49

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

WSMO Standard - Mediators

Principle of De-coupling for handling complexity & heterogeneity => Mediators: WSMO components are never allowed to touch each

  • ther without a mediator in-between.

50

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

WSMO Standard - Mediators

slide-26
SLIDE 26

26

26

51

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

WSMO Standard - Mediators

Non functional properties Source component

the connected entity / entities

Target component

the connecting entity / entities

Mediation Service

links to Mediation Facility needed to resolve heterogeneity

Reduction

  • describes the differences between the connected entities
  • nly in WG or GG

52

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

WSMO Standard – Web Service

  • Non functional properties
  • Used mediators

OO Mediators for importing ontologies as the formalized terminology for describing the Web Service

  • Capability

functional description (WHAT), 1:1

  • Interfaces

description of usability & composition (HOW), 1:n

Semantic Description of Web Services to allow (semi-)automated usage of Web Services

slide-27
SLIDE 27

27

27

53

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

WSMO Standard – Capability

  • Non functional properties
  • Used mediators
  • OO Mediator: importing ontologies as terminology definition
  • WG Mediator: link to a Goal that is solved by the Web Service
  • Pre-conditions

what a web service expects in order to be able to provide its service, i.e. conditions over the input

  • Assumptions

Conditions on the state of the world that has to hold before the Web Service can be executed

  • Post-conditions

describes the computational result in relation to the input

  • f the Web Service, and conditions on it
  • Effects

Conditions on the state of the world that hold after execution of the Web Service (i.e. changes in the state of the world)

54

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

WSMO Standard – Interfaces

  • describes how the functionality of the service can be achieved
  • provides a twofold view on the operationalization of the Web

Service:

1.

Choreography defines how to communicate with the web service in

  • rder to consume its functionality.

2.

Orchestration defines how the overall functionality is achieved by the cooperation of more elementary service providers.

  • Choreography & Orchestration = different decompositions of

process/capabilities to the top (service requester) and to the bottom (other service providers).

  • This distinction reflects the difference between communication and

cooperation.

slide-28
SLIDE 28

28

28

55

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

WSMO Standard – Interfaces

56

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

WSMO Standard – Interfaces

  • Non functional properties
  • Used mediators

OO Mediators for importing ontologies as terminology definitions

  • Choreography
  • provides the necessary information for the user to communicate with the web

service.

  • described by an instantiated Message Exchange Pattern
  • Orchestration
  • describes a service makes use of other web service or goals in order to achieve it's

capability.

  • specifies the composition of Web Services used by a Web Service
  • described as an instantiated Problem Solving Pattern.
slide-29
SLIDE 29

29

29

57

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

WSMO Standard – Language

F-Logic combines the advantages of conceptual high-level approaches typical for frame-based language and the expressiveness, the compact syntax, and the well defined semantics from logics.

  • it provides a standard model theory
  • it is a full first order logic language
  • it provides second order syntax while staying in the first order logic

semantics

  • it has a minimal model semantics
  • implemented inference engines are already available.

58

TDT4250 - Modeling of Information Systems, Autumn 2006

Q

WSMO Working drafts

at: http://www.wsmo.org/2004/

slide-30
SLIDE 30

30

30

59

TDT4250 - Modeling of Information Systems, Autumn 2006

Model-driven development (MDA), Software Oriented Architecture (SOA) and semantic web (exemplified by WSMO)

John Krogstie Professor, IDI, NTNU Senior Researcher, SINTEF ICT
