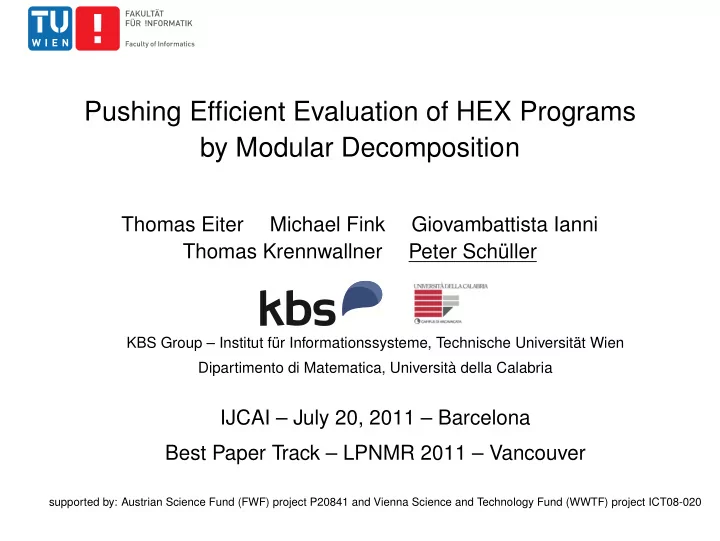

Pushing Efficient Evaluation of HEX Programs by Modular Decomposition

Thomas Eiter Michael Fink Giovambattista Ianni Thomas Krennwallner Peter Schüller

KBS Group – Institut für Informationssysteme, Technische Universität Wien Dipartimento di Matematica, Università della Calabria

IJCAI – July 20, 2011 – Barcelona Best Paper Track – LPNMR 2011 – Vancouver

supported by: Austrian Science Fund (FWF) project P20841 and Vienna Science and Technology Fund (WWTF) project ICT08-020

Motivation and Overview

Motivation:

◮ HEX extends Answer Set Programming ◮ supports external atoms for external knowledge/computations ◮ drawbacks of previous HEX evaluation algorithm

⇒ applications called for efficiency improvements

1 / 17

Motivation and Overview

Motivation:

◮ HEX extends Answer Set Programming ◮ supports external atoms for external knowledge/computations ◮ drawbacks of previous HEX evaluation algorithm

⇒ applications called for efficiency improvements

This work:

◮ novel HEX evaluation formalism

⇒ evaluation graph + model graph

◮ implementation + experimental evaluation

⇒ can even outperform standard ASP solvers

1 / 17

Answer Set Programming [Gelfond and Lifschitz, 1991]

Programs are sets of rules of the form

α1 ∨ · · · ∨ αk ← β1, . . . , βn, not βn+1, . . . , not βm

where not is negation-as-failure and αi, βj are atoms of the form

p(t1, . . . , tk).

Herbrand base HBP is the set of all ground atoms using constants of P Interpretation I ⊆ HBP

I | = rule body iff

• positive atoms β1, . . . , βn are in I, and

negative atoms βn+1, . . . , βm are not in I I |

= rule iff some head atom αi is in I, or the rule body is not satisfied I | = P iff I | = grnd(P) iff I satisfies all ground rules of program P

FLP reduct [Faber et al., 2011] of P wrt. I:

fPI is the set of ground rules of P where I satisfies the rule body I is an answer set of P iff I is a ⊆-minimal model of fPI

2 / 17

HEX Syntax and Semantics [Eiter et al., 2005]

Program (choose a plan, choose a usage, determine resource needs): EDB

{ choose(a, c, d) ←, choose(b, e, f) ← }

IDB

           r1: plan(a) ∨ plan(b) ← r2: need(p,C) ← &res[plan](C) r3: use(X) ∨ use(Y) ← plan(P), choose(P,X,Y) r4: need(u,C) ← &res[use](C) c5: ← need(_ ,money)           

External Atom:

◮ &g[x](y) ◮ input list x = x1, . . . , xn and output list y = y1, . . . , ym of terms ◮ I |

= &g[x](y)

iff oracle function f&g(I, x, y) is true

3 / 17

HEX Example

Program (choose a plan, choose a usage, determine resource needs): EDB

{ choose(a, c, d) ←, choose(b, e, f) ← }

IDB

           r1: plan(a) ∨ plan(b) ← r2: need(p,C) ← &res[plan](C) r3: use(X) ∨ use(Y) ← plan(P), choose(P,X,Y) r4: need(u,C) ← &res[use](C) c5: ← need(_ ,money)           

External Atom:

◮ I |

= &res[p](money) if p(C) ∈ I for C ∈ {a, f},

◮ I |

= &res[p](time) if p(C) ∈ I for C ∈ {b, c, d, e},

◮ I |

= &res[p](X) otherwise.

4 / 17

HEX Example

Program (choose a plan, choose a usage, determine resource needs): EDB

{ choose(a, c, d) ←, choose(b, e, f) ← }

IDB

           r1: plan(a) ∨ plan(b) ← r2: need(p,C) ← &res[plan](C) r3: use(X) ∨ use(Y) ← plan(P), choose(P,X,Y) r4: need(u,C) ← &res[use](C) c5: ← need(_ ,money)           

External Atom:

◮ I |

= &res[p](money) if p(C) ∈ I for C ∈ {a, f},

◮ I |

= &res[p](time) if p(C) ∈ I for C ∈ {b, c, d, e},

◮ I |

= &res[p](X) otherwise.

In our example . . .

{plan(a)} | = &res[plan](money) {plan(a)} | = &res[plan](time) {plan(b)} | = &res[plan](money) {plan(b)} | = &res[plan](time)

4 / 17

HEX Example

Program (choose a plan, choose a usage, determine resource needs): EDB

{ choose(a, c, d) ←, choose(b, e, f) ← }

IDB

           r1: plan(a) ∨ plan(b) ← r2: need(p,C) ← &res[plan](C) r3: use(X) ∨ use(Y) ← plan(P), choose(P,X,Y) r4: need(u,C) ← &res[use](C) c5: ← need(_ ,money)           

Guessed Interpretations:

◮ {plan(a), &res[plan](money), need(p, money),

use(c), &res[use](time), need(u, time)}

◮ {plan(a), &res[plan](money), need(p, money),

use(d), &res[use](time), need(u, time)}

◮ {plan(b), &res[plan](time), need(p, time),

use(e), &res[use](time), need(u, time)}

◮ {plan(b), &res[plan](time), need(p, time),

use(f), &res[use](money), need(u, money)}

5 / 17

HEX Example

Program (choose a plan, choose a usage, determine resource needs): EDB

{ choose(a, c, d) ←, choose(b, e, f) ← }

IDB

           r1: plan(a) ∨ plan(b) ← r2: need(p,C) ← &res[plan](C) r3: use(X) ∨ use(Y) ← plan(P), choose(P,X,Y) r4: need(u,C) ← &res[use](C) c5: ← need(_ ,money)           

Guessed Interpretations:

◮ {plan(a), &res[plan](money), need(p, money),

use(c), &res[use](time), need(u, time)}

◮ {plan(a), &res[plan](money), need(p, money),

use(d), &res[use](time), need(u, time)}

◮ {plan(b), &res[plan](time), need(p, time),

⇐ Answer Set use(e), &res[use](time), need(u, time)}

◮ {plan(b), &res[plan](time), need(p, time),

use(f), &res[use](money), need(u, money)}

5 / 17

HEX evaluation (previous strategy)

(1) calculate models of all program parts that do not depend

• n external computations that still need to be done

(2) do external computations that depend on (1) (3) replace evaluated external atoms by result of (2) and restart at (1)

6 / 17

HEX evaluation (previous strategy)

(1) calculate models of all program parts that do not depend

• n external computations that still need to be done

(2) do external computations that depend on (1) (3) replace evaluated external atoms by result of (2) and restart at (1) r1: plan(a) ∨ plan(b). r2: need(p,C) ←

&res[plan](C). r3: use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). r4: need(u,C) ← &res[use](C). c5: ← need(_ ,money). r1: plan(a) ∨ plan(b). r3: use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). ⇒ plan/1, use/1 u1 r2: need(p,C) ← &res[plan](C) r4: need(u,C) ← &res[use](C) ⇒ need/2 u2 c5: ← need(_,money) u3

6 / 17

HEX model building (previous strategy)

r1: plan(a) ∨ plan(b). r3: use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). “Evaluation Graph” r2: need(p,C) ← &res[plan](C) r4: need(u,C) ← &res[use](C) c5: ← need(_,money) m1

O:−

= {plan(a), use(c)} m2

O:−

= {plan(a), use(d)} m3

O:−

= {plan(b), use(e)} m4

O:−

= {plan(b), use(f)} Models m5

I:1

= m1 m6

I:2

= m2 m7

I:3

= m3 m8

I:4

= m4

7 / 17

HEX model building (previous strategy)

r1: plan(a) ∨ plan(b). r3: use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). “Evaluation Graph” r2: need(p,C) ← &res[plan](C) r4: need(u,C) ← &res[use](C) c5: ← need(_,money) m1

O:−

= {plan(a), use(c)} m2

O:−

= {plan(a), use(d)} m3

O:−

= {plan(b), use(e)} m4

O:−

= {plan(b), use(f)} Models m5

I:1

= m1 m6

I:2

= m2 m7

I:3

= m3 m8

I:4

= m4 m9

O:5

= {need(p,money),need(u,time)} m10

O:6

= {need(p,money),need(u,time)} m11

O:7

= {need(p,time),need(u,time)} m12

O:8

= {need(p,time),need(u,money)} m13

I:9

= m9 m14

I:10

= m10 m15

I:11

= m11 m16

I:12

= m12

7 / 17

HEX model building (previous strategy)

r1: plan(a) ∨ plan(b). r3: use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). “Evaluation Graph” r2: need(p,C) ← &res[plan](C) r4: need(u,C) ← &res[use](C) c5: ← need(_,money) m1

O:−

= {plan(a), use(c)} m2

O:−

= {plan(a), use(d)} m3

O:−

= {plan(b), use(e)} m4

O:−

= {plan(b), use(f)} Models m5

I:1

= m1 m6

I:2

= m2 m7

I:3

= m3 m8

I:4

= m4 m9

O:5

= {need(p,money),need(u,time)} m10

O:6

= {need(p,money),need(u,time)} m11

O:7

= {need(p,time),need(u,time)} m12

O:8

= {need(p,time),need(u,money)} m13

I:9

= m9 m14

I:10

= m10 m15

I:11

= m11 m16

I:12

= m12 m17

O:15

= ∅

7 / 17

HEX model building (previous strategy)

r1: plan(a) ∨ plan(b). r3: use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). “Evaluation Graph” r2: need(p,C) ← &res[plan](C) r4: need(u,C) ← &res[use](C) c5: ← need(_,money) m1

O:−

= {plan(a), use(c)} m2

O:−

= {plan(a), use(d)} m3

O:−

= {plan(b), use(e)} m4

O:−

= {plan(b), use(f)} Models m5

I:1

= m1 m6

I:2

= m2 m7

I:3

= m3 m8

I:4

= m4 m9

O:5

= {need(p,money),need(u,time)} m10

O:6

= {need(p,money),need(u,time)} m11

O:7

= {need(p,time),need(u,time)} m12

O:8

= {need(p,time),need(u,money)} m13

I:9

= m9 m14

I:10

= m10 m15

I:11

= m11 m16

I:12

= m12 m17

O:15

= ∅

7 / 17

Observations

◮ We compute the largest possible fragment

⇒ multiplication of independent guesses ⇒ redundant evaluation of external atoms

◮ Constraints are considered if all dependencies are fulfilled

⇒ some constraints could safely eliminate models earlier

◮ We calculate all models at one unit, then go to the next unit

⇒ if we need only one model, we calculate unnecessary models ⇒ Several improvements possible!

8 / 17

Improved Strategy Evaluation Graph

r1: plan(a) ∨ plan(b). ⇒ plan/1 r2: need(p,C) ←&res[plan](C). c5: ← need(_,money). ⇒ need(p,C) r3: use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). ⇒ use/1 r4: need(u,C) ←&res[use](C). c5: ← need(_,money). ⇒ need(u,C) u1 u2 u3 u4

◮ Acyclic Evaluation Graph ◮ Rules cannot be shared among units ◮ Constraints can be shared among units ◮ Rule dependencies must be fulfilled ◮ Constraint dependencies (less strict) must be fulfilled

⇒ e.g., c5 has no negative body, therefore it can be freely shared

9 / 17

Improved Strategy Model Building

r1: plan(a) ∨ plan(b). ⇒ plan/1 r2: need(p,C) ←&res[plan](C). c5: ← need(_,money). ⇒ need(p,C) r3: use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). ⇒ use/1 r4: need(u,C) ←&res[use](C). c5: ← need(_,money). ⇒ need(u,C) u1 u2 u3 u4 Input and Output models at each Evaluation Unit:

◮ output model = evaluation of program fragment on input model ◮ input model = joined output model of predecessor unit(s) ◮ Principle: common ancestor model at common ancestor units

Soundness + Completeness Theorem:

I = union of connected output models at every unit

iff I = answer set of the program

10 / 17

Improved Strategy Model Building

plan(a) ∨ plan(b). need(p,C) ← &res[plan](C). ← need(_,money). use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). need(u,C) ← &res[use](C). ← need(_,money). u1 u2 u3 u4 Model Graph need input need output u1 u2 u3 u4

11 / 17

Improved Strategy Model Building

plan(a) ∨ plan(b). need(p,C) ← &res[plan](C). ← need(_,money). use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). need(u,C) ← &res[use](C). ← need(_,money). u1 u2 u3 u4 Model Graph need input need output need output need input need output u1 u2 u3 u4

11 / 17

Improved Strategy Model Building

plan(a) ∨ plan(b). need(p,C) ← &res[plan](C). ← need(_,money). use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). need(u,C) ← &res[use](C). ← need(_,money). u1 u2 u3 u4 need output Model Graph need input need output need output need input need output u1 u2 u3 u4

11 / 17

Improved Strategy Model Building

plan(a) ∨ plan(b). need(p,C) ← &res[plan](C). ← need(_,money). use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). need(u,C) ← &res[use](C). ← need(_,money). u1 u2 u3 u4 m1

O:−

= {plan(a)} Model Graph m3

I:1

= m1 need output need output need input need output u1 u2 u3 u4

11 / 17

Improved Strategy Model Building

plan(a) ∨ plan(b). need(p,C) ← &res[plan](C). ← need(_,money). use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). need(u,C) ← &res[use](C). ← need(_,money). u1 u2 u3 u4 m1

O:−

= {plan(a)} Model Graph m3

I:1

= m1 u2 ∪ m3 has no model need output need output need input need output u1 u2 u3 u4

11 / 17

Improved Strategy Model Building

plan(a) ∨ plan(b). need(p,C) ← &res[plan](C). ← need(_,money). use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). need(u,C) ← &res[use](C). ← need(_,money). u1 u2 u3 u4 m1

O:−

= {plan(a)} Model Graph m3

I:1

= m1 need input need output need output need input need output u1 u2 u3 u4

11 / 17

Improved Strategy Model Building

plan(a) ∨ plan(b). need(p,C) ← &res[plan](C). ← need(_,money). use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). need(u,C) ← &res[use](C). ← need(_,money). u1 u2 u3 u4 m1

O:−

= {plan(a)} need output Model Graph m3

I:1

= m1 need input need output need output need input need output u1 u2 u3 u4

11 / 17

Improved Strategy Model Building

plan(a) ∨ plan(b). need(p,C) ← &res[plan](C). ← need(_,money). use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). need(u,C) ← &res[use](C). ← need(_,money). u1 u2 u3 u4 m1

O:−

= {plan(a)} m2

O:−

= {plan(b)} Model Graph m3

I:1

= m1 m4

I:2

= m2 need output need output need input need output u1 u2 u3 u4

11 / 17

Improved Strategy Model Building

plan(a) ∨ plan(b). need(p,C) ← &res[plan](C). ← need(_,money). use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). need(u,C) ← &res[use](C). ← need(_,money). u1 u2 u3 u4 m1

O:−

= {plan(a)} m2

O:−

= {plan(b)} Model Graph m3

I:1

= m1 m4

I:2

= m2 m5

O:4

={need(p,time)} need output need input need output u1 u2 u3 u4

11 / 17

Improved Strategy Model Building

plan(a) ∨ plan(b). need(p,C) ← &res[plan](C). ← need(_,money). use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). need(u,C) ← &res[use](C). ← need(_,money). u1 u2 u3 u4 m1

O:−

= {plan(a)} m2

O:−

= {plan(b)} Model Graph m3

I:1

= m1 m4

I:2

= m2 m5

O:4

={need(p,time)} m7

I:2

= m2 need output need input need output u1 u2 u3 u4

11 / 17

Improved Strategy Model Building

plan(a) ∨ plan(b). need(p,C) ← &res[plan](C). ← need(_,money). use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). need(u,C) ← &res[use](C). ← need(_,money). u1 u2 u3 u4 m1

O:−

= {plan(a)} m2

O:−

= {plan(b)} Model Graph m3

I:1

= m1 m4

I:2

= m2 m5

O:4

={need(p,time)} m7

I:2

= m2 m10

O:7

= {use(e)} m12

I:5,10

= {need(p, time), use(e)} need output u1 u2 u3 u4

11 / 17

Improved Strategy Model Building

plan(a) ∨ plan(b). need(p,C) ← &res[plan](C). ← need(_,money). use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). need(u,C) ← &res[use](C). ← need(_,money). u1 u2 u3 u4 m1

O:−

= {plan(a)} m2

O:−

= {plan(b)} Model Graph m3

I:1

= m1 m4

I:2

= m2 m5

O:4

={need(p,time)} m7

I:2

= m2 m10

O:7

= {use(e)} m12

I:5,10

= {need(p, time), use(e)} m14

O:12

= {need(u, time)} u1 u2 u3 u4

11 / 17

Improved Strategy Model Building

plan(a) ∨ plan(b). need(p,C) ← &res[plan](C). ← need(_,money). use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). need(u,C) ← &res[use](C). ← need(_,money). u1 u2 u3 u4 m1

O:−

= {plan(a)} m2

O:−

= {plan(b)} Model Graph m3

I:1

= m1 m4

I:2

= m2 m5

O:4

={need(p,time)} m7

I:2

= m2 m10

O:7

= {use(e)} m12

I:5,10

= {need(p, time), use(e)} m14

O:12

= {need(u, time)} continue enumerating . . . u1 u2 u3 u4

11 / 17

Improved Strategy Model Building

plan(a) ∨ plan(b). need(p,C) ← &res[plan](C). ← need(_,money). use(X) ∨ use(Y) ← plan(P), choose(P,X,Y). need(u,C) ← &res[use](C). ← need(_,money). u1 u2 u3 u4 m1

O:−

= {plan(a)} m2

O:−

= {plan(b)} Model Graph m3

I:1

= m1 m4

I:2

= m2 m5

O:4

={need(p,time)} m7

I:2

= m2 m10

O:7

= {use(e)} m11

O:7

= {use(f)} m12

I:5,10

= {need(p, time), use(e)} m13

I:5,11

= {need(p, time), use(f)} m14

O:12

= {need(u, time)} . . . no further models u1 u2 u3 u4

11 / 17

Improvements

Acyclic Directed Evaluation Graph

⇒ independent program fragments evaluated independently ⇒ fewer redundant evaluations ⇒ parallel evaluation possible

Constraints can be shared between units

⇒ early model elimination

Calculating one model at a time

⇒ first model obtained faster ⇒ can discard some intermediate results early

12 / 17

Reviewer Selection

1 10 100 700 1 10 20 30 40

Evaluation time / secs (logscale) Number of conference tracks T

previous improved

13 / 17

Multi-Context Systems Evaluation

1 10 100 600 D

• 7
• 7
• 3
• 3

D

• 7
• 7
• 4
• 4

D

• 7
• 7
• 5
• 5

H

• 9
• 9
• 3
• 3

H

• 9
• 9
• 4
• 4

R

• 7
• 7
• 4
• 4

R

• 7
• 7
• 5
• 5

R

• 7
• 8
• 5
• 5

R

• 7
• 9
• 5
• 5

R

• 8
• 7
• 5
• 5

R

• 8
• 8
• 5
• 5

Z

• 7
• 7
• 3
• 3

Z

• 7
• 7
• 4
• 4

Z

• 7
• 7
• 5
• 5

Evaluation time / secs (logscale) Benchmark Instance Groups

previous improved

14 / 17

Reviewer Selection Plain ASP

100 200 300 400 10 20 30 40 50

Evaluation time / secs Number of papers at conference track P

dlv clasp+gringo decomposition+dlv decomposition+clasp+gringo

15 / 17

Reviewer Selection Plain ASP

500 1000 1500 2000 2500 3000 10 20 30 40 50

Memory usage / MB Number of papers at conference track P

dlv clasp+gringo decomposition+dlv decomposition+clasp+gringo

15 / 17

Conclusion

Novel Theoretical HEX Evaluation Framework

⇒ Evaluation Graph + Model Graph ⇒ exponential speedup for certain instances ⇒ potential for optimization strategies

(emphasis on parallelization vs. memory usage)

⇒ can even outperform native ASP solvers in some cases

Improved Implementation (Open Source)

⇒ backends dlv and clingo ⇒ Instructions for building and detailed experimental results:

click Experiments on the dlvhex homepage http://www.kr.tuwien.ac.at/research/systems/dlvhex/

16 / 17

References I

◮ Thomas Eiter, Giovambattista Ianni, Roman Schindlauer, and Hans

• Tompits. A Uniform Integration of Higher-Order Reasoning and External

Evaluations in Answer-Set Programming. In IJCAI-05, pages 90–96, 2005.

◮ Wolfgang Faber, Nicola Leone, and Gerald Pfeifer. Semantics and

complexity of recursive aggregates in answer set programming. Artificial Intelligence, 175(1):278–298, January 2011.

◮ Michael Gelfond and Vladimir Lifschitz. Classical Negation in Logic

Programs and Disjunctive Databases. Next Generation Computing, 9(3–4):365–386, 1991.
