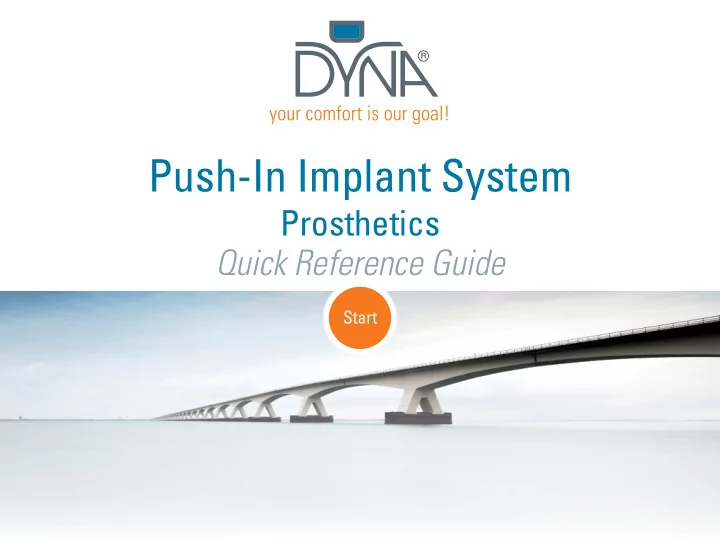

Push-In Implant System Prosthetics Quick Reference Guide Start - - PowerPoint PPT Presentation

Push-In Implant System

Prosthetics Quick Reference Guide

your comfort is our goal!

Start

Push-In Implant System

your comfort is our goal!

2

Contents

 Previous Next   Back to contents

Push-In Implants (No Octa) 3 Determination of Height 4 Healing Abutments 5 Impression Copings & Parts 6 Laboratory Implant Analogues 7 Ball Laboratory Patrix 8 Overdenture with Magnets 9 Overdenture with Magnets 10 Overdenture with Ball Abutments 11 Overdenture with Ball Abutments 12 Overdenture with Ball Abutments 13 Extension Abutments 14 Universal Abutments 15 Universal Abutments 16 Laboratory & Abutment Screws 17 0° Fixed Abutments 18 CAD-CAM Bar On Push-In Implants 19 Push-In: The Instruments 20 Closure 21

Push-In Implant System

your comfort is our goal!

3

Push-In Implants (No Octa)

All Dyna implants are produced in three difgerent diameters. Three difgerent types of Dyna Push-In implants (Ø3.0, Ø3.6, Ø4.0mm) were available To facilitate the dentists and the technicians recognition of a particular type, all elements are colour coded.

Ø 3.6mm Magenta Ø 3.0mm White Ø 4.0mm Blue Article numbers: 5408, 5410, 5413, 5415, 5417 Article numbers: 5308, 5310, 5313, 5315, 5317 Article numbers: 5508, 5510, 5513, 5515

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

4

GH = Xmm

Determination of Height

2mm 4mm 6mm

Determination of height can easily be done by means of the Dyna healing

• abutments. There is a choice in difgerent types depending on the type of

construction that has been chosen. By means of the markings the height

• f the definitive abutments can be determined simpler.

So accurately measure the Gingiva Height (GH) afuer the healing period = distance between the upper side

• f the implant and the gingiva.

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

5

Healing abutments need to be tightened with Hex screwdriver TW-S (Art.no. 5181S) with torque 15Ncm.

Healing Abutments

Overdenture Ø 3.0mm Ø 3.6mm Ø 4.0mm Article number 5614 5616 5615 Crown & Bridge Ø 3.0mm Ø 3.6mm Ø 4.0mm Article number 5814 5816GN 5815GN

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

6

Impression abutment screws need to be tightened with Hex screwdriver TW-S (Art.

• no. 5181S) with torque 15Ncm.

Impression Copings & Parts

5766-4 5766-30

Ball abutment impression caps (POM) are available in a package of 4 or 30 pieces. 4X 30X Ø 3.0mm Ø 3.6mm Ø 4.0mm Article number 56810 56840 56830

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

7

Laboratory Implant Analogues

Ø 3.0mm Ø 3.6mm Ø4.0mm Article number 57810 57812 57811

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

8

Ball Laboratory Patrix

With impression spacer

Ø 3.0mm Ø 3.6mm Ø 4.0mm 02LP0 02LP0 02LP0 02LP02 02LP02 02LP02

Without impression spacer

Ø 3.0mm Ø 3.6mm Ø 4.0mm 5730C 5767C 5767C 5730C-2 5767C-2 5767C-2 Article number Article number

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

9

Medical abutments need to be tightened with Hex screwdriver TW-S (Art.no. 5181S) with torque 30Ncm.

Overdenture with Magnets

Article number Height (mm) Diameter (Ø) 5443 3 3.0 5445 5 3.0 5343 3 3.6 5345 5 3.6 5543 3 4.0 5545 5 4.0

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

10

Overdenture with Magnets

Indications:

• Severely resorbed jaws and small implants  minimal lateral forces;
• (Elderly) patients with diminished motoric ability  easy maintenance.

02MS2 Magnets 02MS1

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

11

Ball abutments with closed ball need to be tightened with Square driver TW (Art.no. 10ST1) with torque 30Ncm.

Overdenture with Ball Abutments

Article number Height (mm) Diameter (Ø) 5760C 1 3.0 5762C 2 3.0 5763C 3 3.0 5764C 4 3.0 5765C 5 3.0 These do not include an impression spacer. Impression directly on the abutment.

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

12

Each ball abutment includes an impression spacer. Ball abutments need to be tightened with Hex screwdriver TW-S (Art.no. 5181S) with torque 30Ncm.

Overdenture with Ball Abutments

• Art. no

Height (mm) Diameter (Ø) 5792 2 3.6 5793 3 3.6 5794 4 3.6 5795 5 3.6 5796 6 3.6

• Art. no

Height (mm) Diameter (Ø) 5782 2 4.0 5783 3 4.0 5784 4 4.0 5785 5 4.0 5786 6 4.0

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

13

Overdenture with Ball Abutments

055 752 055 890 055 698 055 887

The Dyna Ball Attachment consists of a ball abutment and a Dalbo Matrix. They are intended for increasing retention of (partial) overdentures, supported on implants.

Matrices

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

14

Extension abutments need to be tightened with Single slot screwdriver TW-S (art.no 5081S) with torque 35Ncm.

Extension Abutments

Article number Height (mm) Diameter (Ø) 5604 4 3.0 5605 5 3.0 56829 5 3.6  3.0 56826 5.5 4.0

5604 5605 56829 56826

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

15

Universal abutments need to be tightened with Hex screwdriver TW-S (art.no 5181S) with torque 30Ncm.

Universal Abutments

Article number Abutment screw Diameter (Ø) 31UP40S 31AS2 4.0 Article number Abutment screw Diameter (Ø) 31UA30S 31AS0 3.0 31UA36S 31AS1 3.6 31UA36BS 31AS1 3.6 POM POM + GOLD ALLOY

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

16

Universal Abutments

In case the individual shape can not be realized with the custom made abutments, the gold or plastic universal abutment is chosen (81UA1S, 81UP1S). With these abutments any shape can be realized by waxing up the abutment.

Material: POM* and Gold Alloy: 61.5% Au, 20.1% Pt, 17.5% Pd, 0.5% Ag Melting interval: 1340 °C - 1470 °C; Thermal expension coeffjcient (25 - 500 °C) 13.0 µm/m.K; Recommended solders: High and low fusing precious solders general indication:

• For soldering with gold alloy;
• To cast to with precious alloys.

*POM: To cast in any desired precious and non- precious alloy

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

17

Laboratory & Abutment Screws

Ø 3.0mm Ø 3.6mm Ø 4.0mm 31LS0 31LS1 31LS2 Article number Ø 3.0mm Ø 3.6mm Ø 4.0mm 31AS0 31AS1 31AS2 Article number

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

18

Fixed 0° abutments need to be tightened with Notched driver TW (Art.no. 5183) with torque 30Ncm.

0° Fixed Abutments

Article number Height (mm) Diameter (Ø) 5844 4/10 3.0 5861GN 1/7 3.6 5862GN 2/8 3.6 5863GN 3/9 3.6 5851GN 1/7 4.0 5852GN 2/8 4.0 5853GN 3/9 4.0

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

19

It’s also possible to design a CADCAM Bar on Push-In Implants.

CAD-CAM Bar On Push-In Implants

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

20

Push-In: The Instruments

5084G 5181C 5181S 5181L 5081S 10ST1 5183 C8521 C8381

Other side Latch-head Square 4x4

 Previous Next   Back to contents

Push-In Implant System

your comfort is our goal!

21

Closure

Dyna Dental Engineering BV Vang 9 4661 TX Halsteren The Netherlands

• T. +31(0)164-258980
• F. +31(0)164-258390
• E. dyna@dynadental.com

2840-09.01
