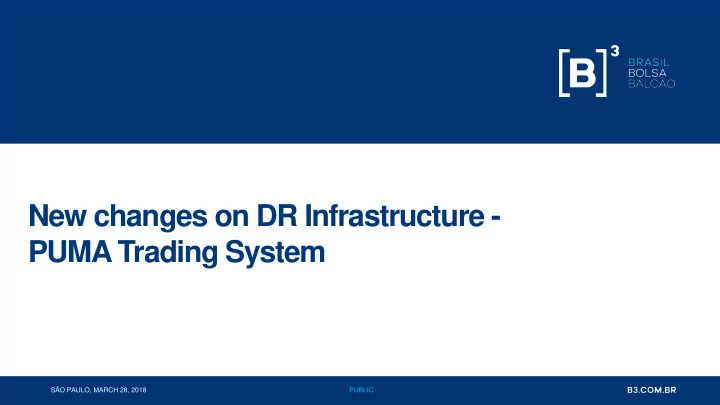

New changes on DR Infrastructure - PUMA Trading System
SÃO PAULO, MARCH 28, 2018
PUBLIC 2
WORKSHOP – NEW CHANGES ON DR INFRASTRUCTURE – PUMA TRADING SYSTEM
PUMA Trading System PUBLIC 1 SO PAULO, MARCH 28, 2018 PUBLIC - - PowerPoint PPT Presentation
PUMA Trading System PUBLIC 1 SO PAULO, MARCH 28, 2018 PUBLIC - - PowerPoint PPT Presentation
New changes on DR Infrastructure - PUMA Trading System PUBLIC 1 SO PAULO, MARCH 28, 2018 PUBLIC WORKSHOP NEW CHANGES ON DR INFRASTRUCTURE PUMA TRADING SYSTEM PUBLIC 2 WORKSHOP NEW CHANGES ON DR INFRASTRUCTURE PUMA TRADING
SLIDE 2
SLIDE 3
PUBLIC 3
AGENDA
WORKSHOP – NEW CHANGES ON DR INFRASTRUCTURE – PUMA TRADING SYSTEM
PUMA Trading System Architecture Network Configurations Trading Services Activities Timeline Conclusion
SLIDE 4
PUBLIC 4
PLATAFORM ARCHITECTURE
SLIDE 5
PUBLIC 5
CURRENT PRODUCTION – FEED-A AND FEED-B
FEED A FEED B
233.252.14.xx 233.252.15.xx
WORKSHOP – NEW CHANGES ON DR INFRASTRUCTURE – PUMA TRADING SYSTEM
MATCH ENGINE DR MATCH ENGINE PROD
SANTANA DE PARNAÍBA CURRENT DR
SLIDE 6
PUBLIC 6
DR Mock Tests and DR events
FEED A FEED B
233.252.15.xx
CURRENT DR – FEED-A AND FEED-B
WORKSHOP – NEW CHANGES ON DR INFRASTRUCTURE – PUMA TRADING SYSTEM
MATCH ENGINE DR MATCH ENGINE PROD
SANTANA DE PARNAÍBA CURRENT DR
SLIDE 7
PUBLIC 7
SANTANA DE PARNAÍBA XV DE NOVEMBRO
FEED A FEED B FEED C
233.252.17.xx 233.252.16.xx 233.252.14.xx
WORKSHOP – NEW CHANGES ON DR INFRASTRUCTURE – PUMA TRADING SYSTEM
MATCH ENGINE PROD MATCH ENGINE DR
CREATION OF NEW DR EXCLUSIVE – FEED-C AND NEW IPs FOR FEED-B
SLIDE 8
PUBLIC 8
CREATION OF NEW DR EXCLUSIVE – FEED-C AND NEW IPs FOR FEED-B
FEED A FEED B FEED C
233.252.17.xx
WORKSHOP – NEW CHANGES ON DR INFRASTRUCTURE – PUMA TRADING SYSTEM
MATCH ENGINE PROD MATCH ENGINE DR
DR Mock Tests and DR events
SANTANA DE PARNAÍBA XV DE NOVEMBRO
SLIDE 9
PUBLIC 9
NETWORK CONFIGURATIONS
SLIDE 10
PUBLIC 10
RCB
SLIDE 11
PUBLIC 11
CO-LOCATION
Data Center Santana de Parnaíba Data Center XV de Novembro
RACK DE NEGOCIAÇÃO DA INSTITUIÇÃO CO-LOCATION B3
FEED A
TRÁFEGO DE MARKET DATA ATUAL
FEED B
RP: 200.19.55.252 MULTICAST GROUP:
233.252.15.0/24
FEED A
RP: 179.127.211.252 MULTICAST GROUP:
233.252.14.0/24
PUMA Trading System PRODUÇÃO PUMA Trading System DR
REGENERADO
NOVO TRÁFEGO DE MARKET DATA
FEED B Data Center Santana de Parnaíba Data Center XV de Novembro
RACK DE NEGOCIAÇÃO DA INSTITUIÇÃO CO-LOCATION B3
FEED A
RP: 179.127.211.252 MULTICAST GROUP:
233.252.14.0/24
PUMA Trading System PRODUÇÃO PUMA Trading System DR
REGENERADO
FEED B FEED C
FEED C
RP: 179.127.221.252 MULTICAST GROUP:
233.252.17.0/24
FEED B
RP: 179.127.221.252 MULTICAST GROUP:
233.252.16.0/24
FEED B FEED A FEED B FEED C
SLIDE 12
PUBLIC 12
NOVOS FLUXOS DE DADOS - RCB
SLIDE 13
PUBLIC 13
NEW DATA WORKFLOW– CO-LOCATON
SLIDE 14
PUBLIC 14
PUMA DR ADDRESS SUMMARY
SLIDE 15
PUBLIC 15
TRADING SERVICES
SLIDE 16
PUBLIC 16
TRADING SERVICES
- Order Entry
- Drop Copy
- PUMALINK Replayer and Historical Replayer
- Admin Session
- UMDF PUMA Conflated
- Web Tools
- ePUMA (OE, MD)
All Ips address are available on: http://www.bmfbovespa.com.br/pt_br/servicos/negociacao/puma- trading-system-bm-fbovespa/para-desenvolvedores-e-vendors/entrypoint-entrada-de-ofertas/
WORKSHOP – NEW CHANGES ON DR INFRASTRUCTURE – PUMA TRADING SYSTEM
SLIDE 17
PUBLIC 17
ACTIVITIES TIMELINE
SLIDE 18
PUBLIC 18
MIGRATION PLAN
2018
April Internal Maintenance August, 25 DR Full Migration / Feed-B Sessões de Ensaio de DR July 07; Jul 21; Aug 04; Aug 25
WORKSHOP – NEW CHANGES ON DR INFRASTRUCTURE – PUMA TRADING SYSTEM
July and August Mock PTRD and Feed B May and June Network Configurations/ Firewall rules
SLIDE 19
PUBLIC 19
CONCLUSIONS
SLIDE 20
PUBLIC 20
August, 25 is near! There are no changes for SenderCompID and Target CompID of Trading sessions, neither for connection ports. Connectivity IPs will be different from Production IPs Feed-C should not be used for Recovering Production Messages purpose. This Feed is exclusive for DR. There are exclusive tests instruments for DR environment. All participants will have to test DR environment during daily Morning test and also on Business Continuity Plan(PTRD) .
WORKSHOP – ALTERAÇÕES DE INFRAESTRUTURA PARA O DR – PUMA TRADING SYSTEM
CONCLUSIONS
SLIDE 21
PUBLIC 21
Evandro Oliveira / Rodrigo Tatekawa / Thiago Ferraz / Valmir Junior Phone details: +55 11 2565-5000
