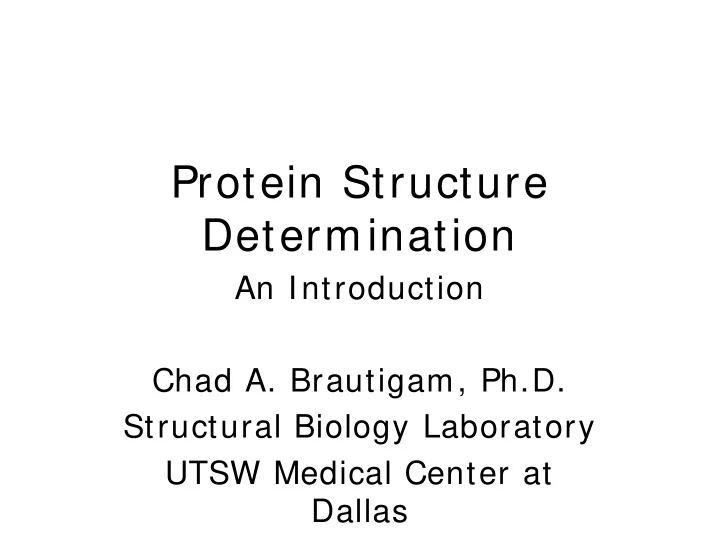

Protein Structure Determination An Introduction Chad A. Brautigam, Ph.D. Structural Biology Laboratory UTSW Medical Center at Dallas What is Protein Structure? Arg-Lys-Ala-Gln-Trp-Cys-His-Ala-Asp What is Protein
SLIDE 2
SLIDE 3
What is “Protein Structure?”
- It is the description of the three-
dimensional architecture of a polypeptide.
- Our aim: to know accurately and
precisely the position of every atom in a protein. That’s usually between 2000 and 10,000 atoms!
SLIDE 4
Wherefore Art Thou, Protein Structure?
- To know a protein’s shape is to get
a glimpse of its function.
SLIDE 5
Sometimes, Structure = Function
SLIDE 6
Other Times, Structure Suggests Function
A structure can give us some wonderful things, i.e. testable hypotheses!
SLIDE 7
How Do We Obtain Protein Structures?
- Nuclear Magnetic Resonance
(similar to MRI)
- Electron Crystallography
- Neutron Crystallography
- X-ray Crystallography
SLIDE 8
In Order to Do Protein Crystallography, We Need… Protein Crystals!
SLIDE 9
Protein Crystals
In order to obtain crystals of a protein, it is almost always necessary to have pure protein.
SLIDE 10
Protein Sources
- Animal, plant, or microbial tissues
- r cultures.
- Companies.
- Overexpression.
– E. coli. – Insect cells. – Mammalian cell culture.
SLIDE 11
Protein Purification
SLIDE 12
Protein Purification
- We use the physical properties of
the protein of interest to separate it from all contaminants.
- Chief among these properties are:
– Charge. – Size.
SLIDE 13
Quality Assessment
PAGE
SLIDE 14
Quality Assessment
Mass Spectrometry
SLIDE 15
Now That We Have Pure Protein… How do we crystallize it?
SLIDE 16
Protein Crystallization
SLIDE 17
Some Common Water- Withdrawing Chemicals (Precipitants)
- Polyethylene Glycol.
- Ammonium Sulfate.
- Sodium Chloride.
- 1,4 Methyl Pentane Diol.
- Ethyl Alcohol.
SLIDE 18
Enough Theory- How Do We Actually Do This? Vapor Diffusion!
SLIDE 19
Vapor Diffusion
“reservoir” “Cover slip” “Drop” Crystal
SLIDE 20
In Most Cases, Protein Crystals Are Not an End They are the means by which we can determine a protein’s structure.
SLIDE 21
X-ray Diffraction by Crystals
X-ray Generator X-ray Detector
SLIDE 22
An X-Ray Diffraction Pattern
SLIDE 23
Electron Density
SLIDE 24
Analysis of the Protein Structure
SLIDE 25
Analysis of the Protein Structure
