Propane Powered Blue Bird Vision 1 Private & Confidential Proven Partnership Blue Bird Established in 1927 Nationally recognized school bus manufacturer Continues to set industry standards with its innovative design and

slide-1

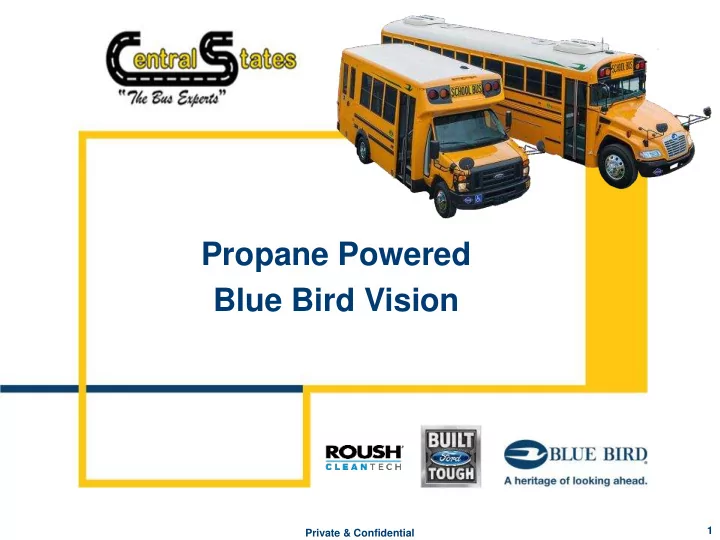

SLIDE 1

Private & Confidential

Propane Powered Blue Bird Vision

1

slide-2
SLIDE 2

Private & Confidential

Proven Partnership

2

  • Blue Bird
  • Established in 1927
  • Nationally recognized school bus manufacturer
  • Continues to set industry standards with its innovative

design and manufacturing capabilities

  • Ford Motor Company
  • Market leader in light- and medium-duty commercial

applications

  • Produced over 1.8 million 6.8L engines
  • Factory prepped engines designed for gaseous fuels
  • ROUSH CleanTech
  • 40 years of engineering experience
  • Leader in the alternative fuels industry
  • Tier 1 supplier to Ford Motor Company
slide-3
SLIDE 3

Private & Confidential

12 12,0 ,000 00

OVER SCHOOL BUSES

800 00

OVER SCHOOL DISTRICTS

slide-4
SLIDE 4

Private & Confidential

Propane Deployments

4

slide-5
SLIDE 5

Private & Confidential

Illinois Deployments

 Propane:

  • 658 propane school buses
  • 27 school districts

5

slide-6
SLIDE 6

Private & Confidential

Product Overview: Propane Powered Vision

slide-7
SLIDE 7

Private & Confidential

Model Years

2018

Engine Size / Manufacturer

6.8L V10 (3V) Ford Engine with exclusive ROUSH CleanTech Propane Fuel System

Applications

169” / 189” / 217” / 238” / 252” / 273” / 280” wheelbase configurations 6-speed automatic transmission

Fuel Tank Capacity

Short: 47 gallons / 170 liters (usable) Mid-Ship: 67 gallons / 254 liters (usable)

Extended Range: 93 gallons / 352 liters (usable)

Technical Specifications

EPA and CARB approved GVWR: 33,000 lbs Up to 77 passengers

Product Overview Blue Bird Vision

(Type C)

7

slide-8
SLIDE 8

Private & Confidential

Vision Powertrain

Major OEM Production Powertrain Over 1.8 Million 6.8 liter V-10 Engines Produced/Sold

8

6.8 liter 3 Valve V-10 6R140 Automatic Transmission

slide-9
SLIDE 9

Private & Confidential

Why Propane?

COST SAVINGS NOISE REDUCTION COLD STARTS LOWEST EMISSIONS

  • 40

OF

slide-10
SLIDE 10

Private & Confidential

Low NOx

Certified .05

grams NOx Per/BHPH

18MY Engine HD OBD II Certified 2018 Ultra Low NOx Cert - .02

grams NOx Per/BHPH

slide-11
SLIDE 11

Private & Confidential

Model Years

2018

Engine Size

6.8L V10 (2V)

Applications

158” / 176” / 186” / 190” wheelbase configurations. Chiller required for vehicles operating in temps ≥ 110˚F 5-speed automatic transmission.

Fuel Tank Capacity

Aft-Axle: 41 gallons (usable)

Technical Specifications

EPA and CARB approved. GVWR: 14,500 lbs. Up to 30 passengers

Order Availability

Blue Bird dealers

Product Overview Micro Bird G5

(Type A)

slide-12
SLIDE 12

Private & Confidential

Operational Impact Blue Bird Alternative Fuels

12

slide-13
SLIDE 13

Private & Confidential

Preventative Maintenance

____________________________________________________ Various Engines Diesel 17 – 30 Quarts ____________ Ford V10 Gas and Propane 7 Quarts

slide-14
SLIDE 14

Private & Confidential

Modern Diesel Emissions = Complexity

Complexity and Cost - Eliminated

14

slide-15
SLIDE 15

Private & Confidential

Increased Inventory

Average diesel needs around 70 gallons / year

15

 Gas and Propane eliminate the need for DEF and the possibility of putting the wrong fluid in a tank.

slide-16
SLIDE 16

Private & Confidential

Preventative Maintenance

16

Part Quantity Price Total Total $70.94 Element Air Cleaner 1 $15.75 $15.75 Oil Spin On Filter 1 $4.11 $4.11 Element, PSR, 510 Filter 1 $24.90 $24.90 Mobil Special 5W-20 7 $3.74 $26.18

Ford 6.8L V10

Part Quantity Price Total Total $277.15 Oil Filter 1 $13.75 $13.75 Fuel Spin-On Filter 1 $37.90 $37.90 Power Steering Spin Filter 1 $9.86 $9.86 Fuel Filter 1 $20.53 $20.53 Allison Control Filter 1 $8.49 $8.49 Mobil Fleet 15W-40 18 $2.59 $46.62 Cleaner, Air Element 1 $140.00 $140.00

Cummins ISB 6.7L

slide-17
SLIDE 17

Private & Confidential

Engine Components

17

Part Quantity Price Total Total $1,399.29 Exhaust Gas Recirculation Valve 1 $275.00 $275.00 Gasket 1 $5.99 $5.99 Injector Assembly 10 $13.75 $137.50 Converter Assembly 1 $910.00 $910.00 Spark Plugs 10 $7.08 70.80

Ford 6.8L V10

Part Quantity Price Total Total $8,778.43 Turbo 1 $2,731.20 $2,731.20 Injector 6 $755.56 $4,533.36 EGR Valve 1 $590.15 $590.15 EGR Cooler 1 $923.72 $923.72

Cummins ISB 6.7L

slide-18
SLIDE 18

Private & Confidential

Engine Components (cont’d.)

18

Part Quantity Price Total Total $102.57 O2 Sensors (all 3) 1 102.57 $102.57

Ford 6.8L V10

Part Quantity Price Total Total $12,272.81 NOx Sensor 1 $480.00 $480.00 NOx Sensor 1 $560.00 $560.00 Pressure Sensor 1 $140.00 $140.00 Doser Injector 1 $290.00 $290.00 Catalyst Assembly w/ DPF 1 $10,554.11 $10,554.11 Temperature Sensor 1 $78.90 $78.90 Temperature Sensor 2 $84.90 $169.80

Cummins ISB 6.7L

slide-19
SLIDE 19

Private & Confidential

Full Engine Replacement

19

Part Price Core Total $8,094.85 Ford 6.8L Engine $7,194.85 $900.00

Ford 6.8L V10 Cummins ISB 6.7L

Part Price Shipping Total $18,921.98 Cummins ISB 6.7L $18,521.98 $400.00

slide-20
SLIDE 20

Private & Confidential

Operational Simplification

 Manual regenerations  Electric block heaters  Webasto heaters  Labor costs: coming in early to ensure buses will start in cold temperatures  Idling buses in cold temperatures  Blending diesel fuel throughout school year

20

slide-21
SLIDE 21

Private & Confidential

Savings Calculation (vs. Diesel)

21

slide-22
SLIDE 22

Private & Confidential

Savings Calculation (vs. Diesel)

22

slide-23
SLIDE 23

Private & Confidential

Real World Savings – Iowa 2017

Diesel: $1.79 Propane: $0.51 after Fed Rebate

23

 Our customers report

  • $0.80 per mile on diesel buses
  • $0.19 per mile on propane buses

 That’s a savings of $0.61 per mile

Which means:

 If you drive 12,000 miles per year and operate for 15 years…

  • 1 bus saves $7,320 in 1 year
  • 1 bus saves $109,800 in its lifetime
slide-24
SLIDE 24

Private & Confidential

Fueling Infrastructure

24

slide-25
SLIDE 25

Private & Confidential

Low Cost / Scalable Infrastructure

25

Ford Michigan Assembly Plant (MI) AmeriGas Propane Tank Bend LaPine School District (OR) ROUSH CleanTech (MI) Kyrene Elementary School (AZ)

slide-26
SLIDE 26

Private & Confidential

Fueling Infrastructure

26

Private stations offer:

  • Fuel management system tie-in

capability

  • Larger, more robust fuel pumps for

quicker fill time

  • More storage, above or below ground
  • Convenience
  • Scalability

Because propane is non-toxic, it is exempt from costly underground monitoring systems that EPA requires on gasoline and diesel stations making propane stations the least expensive option!

slide-27
SLIDE 27

Private & Confidential

Infrastructure Management

UST & AST – Diesel & Gasoline

27

 The EPA has strict requirements surrounding AST and UST systems that hold diesel and gasoline

  • Above Ground Storage Tanks and Below Ground Storage Tanks
  • The EPA estimates that the average remediation is $130,000
  • If groundwater is affected, the correction can exceed $1,000,000

 Source: California EPA

slide-28
SLIDE 28

Private & Confidential

Fueling Infrastructure

28

 Propane fuel transfers as fast as gasoline or diesel but with these added benefits:

  • Secured connection, no spillage
  • No diesel residual on pump handle
  • No residual on the ground
  • Non-carcinogenic

 Propane is non-toxic and dissipates into the atmosphere

slide-29
SLIDE 29

Private & Confidential

Support

29

slide-30
SLIDE 30

Private & Confidential

Customer Success Structure

Technical Support Customer Support Field Service Technical Publications Warranty + Service Parts Training

slide-31
SLIDE 31

Private & Confidential

Leveraging Technology

slide-32
SLIDE 32

Private & Confidential

Leveraging Technology

ROUSHcle cleante tech ch.co com/S /Servi rvice ce

slide-33
SLIDE 33

Private & Confidential

Field Service

slide-34
SLIDE 34

Private & Confidential

Training

slide-35
SLIDE 35

Private & Confidential

Training

Advanced Training

Located at shop with adequate facilities For advanced repair facilities, limited class size Instructed by trainers and FSEs Scheduled after initial training and experience 4-8 hours

Onsite Training

Hosted at a shop/fleet with shop and classroom space For service centers or fleets that perform repairs Primarily trainers, can be FSEs Scheduled in advance Half-day

Vehicle Overview

Performed at customer location or service center For fleets or service centers beginning with

  • ur system

Instructed by FSEs during visits or trainers during routes Done as needed 1-2 hours

slide-36
SLIDE 36

Private & Confidential

Training

Factory Workshop

Located at ROUSH CleanTech For advanced repair facilities Instructed by at least 3 trainers and FSEs Held four times a year

Regional Workshop

Located at a central or neutral location For customer and service centers in a region Instructed by trainers and FSEs First trail by Q2

slide-37
SLIDE 37

Private & Confidential

Your Fuel Options

Ease of Adoption Energy Independence NOx Emissions Fuel Infrastructure Cost of Ownership Range Maintenance Scalable Cold Weather Operation

slide-38
SLIDE 38

Private & Confidential

Focus on New Fuel Solutions

Durable Cost-Effective

Diesel as we used to know it…

Range Simple

slide-39
SLIDE 39

Private & Confidential

E-450 Applications

Industries: Airport, Food & Beverage, Logistics, Para-Transit, Schools

slide-40
SLIDE 40

Private & Confidential

F-450 / F-550 Applications

Industries: Airport, Food & Beverage, Government, Transit, Schools, Energy

slide-41
SLIDE 41

Private & Confidential

F-650 / F-750 Applications

Industries: Energy Food & Beverage Government Transit Utility

slide-42
SLIDE 42

Private & Confidential

F-53 / F-59 Applications

Industries: Food & Beverage, Government, Logistics

slide-43
SLIDE 43

Private & Confidential

Thank You

Tom Hopkins ROUSH CleanTech (734) 679-5704 Tom.Hopkins@roush.com
