ProMed Molded Products Designing for Success (Silicone Molded Components) Designing a silicone component can be a challenge when trying to balance design for manufacturability and the optimum design for end use. 3 Key Rules for Success 1. Know


slide-1

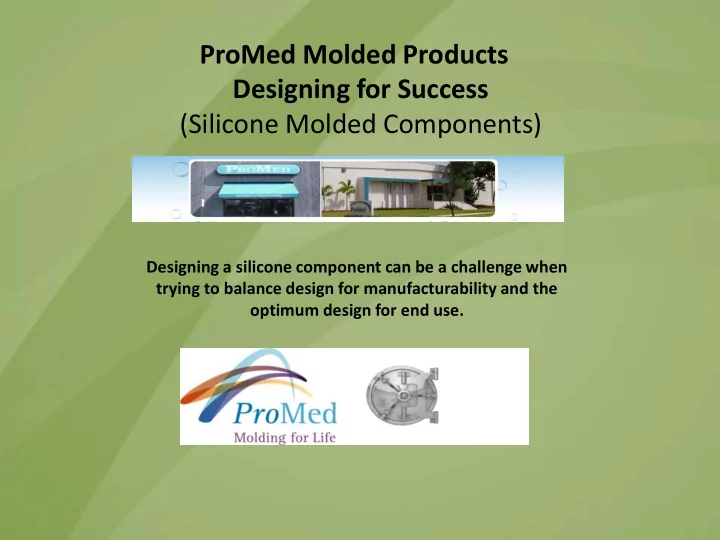

SLIDE 1

ProMed Molded Products

Designing for Success (Silicone Molded Components)

Designing a silicone component can be a challenge when trying to balance design for manufacturability and the

  • ptimum design for end use.
slide-2
SLIDE 2

3 Key Rules for Success

  • 1. Know your companies capabilities and know the capabilities of the materials you

work with.

  • 2. Always understand the specifications and requirements of any new project before

starting development work. (Build in the voice of the customer)

  • 3. Always align the specifications and requirements with your capabilities before

starting development work.

slide-3
SLIDE 3

Material Selection

(LSR) Liquid Silicone Rubber

  • Consistency of honey
  • Better flow for complex part geometry or thin walls
  • Faster cycle times
  • Usually no secondary post cure needed

(HCR) High Consistency Rubber

  • Consistency of clay
  • Difficult flow for complex geometry or thin walls
  • Slower cycle times
  • Usually requires secondary post cure
slide-4
SLIDE 4

LSR Material Mixing

Mixing and formulating LSR material is typically done using a planetary mixer or through a pumping system and static mixer.

slide-5
SLIDE 5

HCR Material Milling

Milling and formulating HCR material is typically done using a Two Roll Mill

slide-6
SLIDE 6

Colorants

  • Silicone Colorants are offered in an array colors including white, black red, orange,

yellow green, and blue.

  • Colorants can be custom formulated into silicone at low or high percentages based on

desired color.

slide-7
SLIDE 7

Material Selection

Manufacturability Tips and Aids

  • The most common hardness range for silicone is from 20 to 80 Shore A durometer.

For manufacturability purposes we recommend using between 30 to 70 durometer

  • Fully automated molding, higher durometers work best
  • Complex part geometry or thin walls, LSR material works best
  • Measurement accuracy and repeatability, higher durometers and colored parts work best
slide-8
SLIDE 8

Materials

Shrink Rate, General Rule

  • Liquid Silicone Rubber (LSR) 2.5% to 4.0%
  • High Consistency Rubber (HCR) 1.5% to 3.0%

Variables that play a role and can affect shrink

  • Material, Lot to lot variation
  • Material, Durometer
  • Material, Additives and Colorants
  • Material flow
  • Process
  • Gate, Vent size
slide-9
SLIDE 9

Dimension and Tolerance

ProMed’s standard dimensional policy, on any given dimension, is 2.5% or ± .003”, whichever is

  • greater. To ensure project success, it’s best to consider using the maximum possible tolerance

for each specific component. Note: the R.M.A Handbook calls out a tolerance for “A1” high precision Silicone components to be a minimum of +/-.004” and states that depending on material selection, part geometry and molding method this may not be attainable.

slide-10
SLIDE 10

Dimension and Tolerance

Manufacturability Tips and Aids

  • Prototype when possible
  • When working with a tight tolerance, build the mold steel safe and plan a mold

modification into the project timeline

  • If a dimensional feature can be made a reference, then its best to make it a reference
  • Indicate critical or inspection dimensions on the part drawing
slide-11
SLIDE 11

Visual Inspection Criteria

The criticality of visual inspection criteria can have an effect on how parts are manufactured and cost. Typical inspection callouts:

  • Inspect at 18” inches with the unaided eye having 20/20 vision under normal work space

lighting.

  • Inspect at 10X magnification
slide-12
SLIDE 12

Visual Inspection Criteria

  • Material (Raw Silicone) directly from the supplier can have up to .010” in foreign material.

This will end up fully embedded which would be detected under magnification.

  • Additional material filtering can be added to the process, but is not always 100% effective on

very small particulate such as fiber.

slide-13
SLIDE 13

Visual Inspection Criteria

Recommendations to Aid in Manufacturability When Possible

  • Notes for reject criteria should always be specific and measureable, for example, embedded

foreign material can be a maximum of .020” x .020” in any direction.

  • A note saying nothing is allowed, for example “no nicks, cuts or voids allowed” is difficult to

quantify and should be avoided.

  • Inspect at 18” inches with the unaided eye having 20/20 vision under normal work space

lighting.

  • Adding a colorant can make a part easier to inspect and improve accuracy of measurement.
slide-14
SLIDE 14

Flash Extension

The amount of flash extension allowed on a part can make a difference in cost, when secondary operations are needed

Using the below part for example With a .004” extension = $1.15 With a .005” extension = $.71 With a .008” extension = $.56 With a .010” extension = $.53

slide-15
SLIDE 15

Flash Extension

There can be more than one flash extension specification on a part

Example: Maximum flash extension not to exceed (zone #1 and #3 .010” inch) (zone #2 .005” inch)

slide-16
SLIDE 16

Tooling

Mold construction is critical, LSR material will flow into a gap of .0001” during the injection and hold phase.

  • Building a tight mold becomes more difficult when shutting off around core

pins or inserts and when uneven parting lines are present. In these cases tear flash or dump rings can be used.

  • On a tubular shaped part, dump rings can be added to part ends and plucked

away leaving any flash left behind below tolerance.

slide-17
SLIDE 17

Tooling

Tear flash Dump Rings

slide-18
SLIDE 18

Tooling

  • Surface finish of mold cavities will have an effect on the appearance of the molded part.
  • A polished cavity will produce a clear appearance where an EDM cavity surface will produce

more of a matte appearance.

  • For manufacturability purposes it’s good to note that silicone parts are easier to remove from

an EDM finish than a polished finish.

  • ProMed’s recommended cavity surface finish callout is 32 Micro-inch Max
slide-19
SLIDE 19

Tooling

Manufacturability Tips and Aids

  • Its good to note all sharp corners depicted on drawing may exhibit up to a .005” maximum radius

condition.

  • Use hardened 420SS whenever possible
  • Add plating to mold surface
  • When possible, gating should be located on a thicker and non-critical area of the part
slide-20
SLIDE 20
  • At ProMed, we like to work closely with our customers
  • n the front end of a project offering our knowledge

and expertise in silicone processing and best design for manufacturability.

  • Your upfront homework will have more of an impact
  • n success than anything you can do in development.
slide-21
