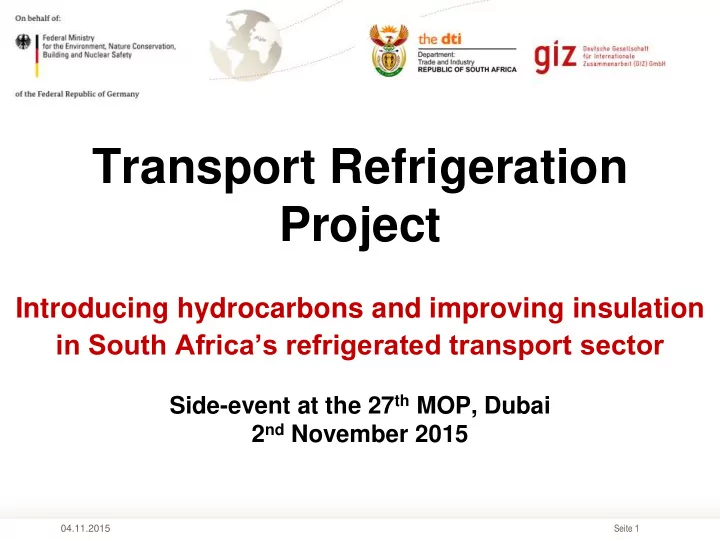

Transport Refrigeration Project

Introducing hydrocarbons and improving insulation in South Africa’s refrigerated transport sector

Side-event at the 27th MOP, Dubai 2nd November 2015

Seite 2

• Commissioned by: German Ministry for the Environment, Nature

Conservation, Building and Nuclear Safety under its International Climate Initiative (IKI)

• Objective: Implement innovative technologies , improve energy-

efficiency, reduce carbon footprint in transport refrigeration sector

• Project type: Technology cooperation with the industry

 Pilot projects and capacity development

• Governmental partners in South Africa: DTI Department of Trade and

Industry, DEA Department of Environment other relevant departments

• Possible cooperation partners:

 Companies and associations in the refrigerated transport sector  R&D institutes (Transport & logistics, refrigeration, energy etc)

1 Basic Project Information

Seite 3

Agreed structures to steer the implementation process

• Steering Committee broad involvement of stakeholders, chaired by DTI
• Discussion of substantive matters : demonstration projects,

activities

• Working Groups: specific involvement of stakeholders
• Discussion of detailed technical questions on projects and activities
• WG I: Establishment of a thermal test chamber in SA
• WG II: Improvement of body manufacturing & design
• Bilateral activities: pilots on natural refrigerants
• Discussion of organizational and financial matters
• In the background with relevant departments

2 Steering and Dialogue Structure

Seite 4

3 Sector study on refrigerated transport in SA

Size Classes Loading Volume in m3 Worldwide vehicle units South African stock (approx.) Typical cooling capacity in kW (@0°C) Refriger- ant used Typical refrigerant charge in kg Small trucks and vans <20 1,600,000 5,500-6,500 4 134a/40 4A 2.5 Large trucks 20-59 1,200,000 4,000-4,500 7 404A 5.5 Trailers / Semi-Trailers >60 1,200,000 3,000-3,500 17 404A 7.5 Total 4,000,000 12,500- 14,500

Overview of world and South African refrigerated road vehicles according to size classes

Seite 5

Assessment of identified mitigation options

3 Sector study on refrigerated transport in SA

5 000 10 000 15 000 20 000 Thermal Test Chamber Refrigeration system Energy Efficieny Low GWP Refrigerant Logistic best practices & standards Servicing best practices & standards

t CO2eq p.a.

Ranking of Short Term Sector Options to Reduce Emissions Fuel and emissions savings through the establishment of a test chamber which enables SA to quantify and improve the thermal performance of the insulation of refrigerated vehicle bodies: approx 17,500 t CO2 p.a., which translates to 7,500 litres Diesel

• r 74 t CO2 for the trailers (lifetime)

Seite 6

4 Project activities

Establishment of a Test Chamber for Refrigerated Vehicles

International Exchange on Best Practises Trainings on Transport Refrigeration Technology Technology Development with Domestic Industry Partners Technical Support of Body Manufacturers

Seite 7

4 Project activities: Thermal Test Chamber 1/2

• No facility to measure the thermal

performance of refrigerated vehicles in (South) Africa

• Single most important measure to

reduce GHG emissions in refrigerated transport in SA

• A road-map for the establishment of a

TTC has been approved by the Steering Committee

04.11.2015

Seite 8

4 Project activities: Thermal Test Chamber 2/2

• Voluntary agreement on the future use of the test chamber was signed

by key industry stakeholders to prove their commitment

• Tendering processes have resulted in awarding of
• SA Bureau of Standards as the operator (SABS Commercial)
• Cemafroid as the ATP consultant (espec engineering, training)
• Start of official operation expected for mid 2016
• A national standard for the testing of refrigerated vehicles is being

drafted by a specifically established sub-committee at the Bureau of Standards

• Further policy framework and organizational setup is being developed

04.11.2015

Seite 9

Establishment of a Test Chamber for Refrigerated Vehicles International Exchange on Best Practises Trainings on Transport Refrigeration Technology Technology Development with Domestic Industry Partners

Technical Support

• f Body

Manufacturers

4 Project activities

Seite 10

4 Project activities: Body Design & Manufacturing

04.11.2015

• Objective: Enable domestic

manufacturers to improve thermal efficiency of their products

• Outcomes: Estimated annual savings for

a 13.4 m truck body: 3,500 - 5,000 l diesel; 10 - 15 t CO2 p.a.

Seite 11

4 Project activities: Body Design & Manufacturing

 The introduction of international standards might result in thermal requirements for bodies that cannot not be met at the moment Identified options to support South African body manufacturers

• Individual manufacturing training and design support in order to build a

pilot box according to the proposed adjustments by each beneficiary

• Joint group training on general issues (insulation, thermodynamics etc)
• Provision of a software tool to simulate the overall thermal performance

 Tendering processes has resulted in awarding the Italian company EGA  Beneficiaries are all 5 major refrigerated body manufacturers  Specific South African requirements are being considered espec strength and durability

04.11.2015

Seite 12

4 Project activities

Establishment of a Test Chamber for Refrigerated Vehicles International Exchange on Best Practises Trainings on Transport Refrigeration Technology

Technology Development with Domestic Industry Partners

Technical Support of Body Manufacturers

Seite 13

4 Project activities: Technology Development

Pilot on hydrocarbons with Transfrig and Tshwane University

• Cooperation to jointly develop, demonstrate and deploy the use of a

refrigeration system with non-fluorinated hydrocarbons (propane R290)

• Involvement of GIZ Proklima expert Daniel Colbourne and Prof Huan’s

team from Tshwane University of Technology

• Proposed Schedule
• October 2014: leak simulation tests, check possible sources of ignition 
• End February 2015: conclude revised system design for R290,

increased energy efficiency and reduced refrigerant charge 

• End May: build R290 prototype 
• June – December: testing and training (esp leakage and safety)
• January – April 2016: field trial

04.11.2015

Seite 14

4 Project activities

Establishment of a Test Chamber for Refrigerated Vehicles International Exchange on Best Practises

Trainings on Transport Refrigeration Technology

Technology Development with Domestic Industry Partners Technical Support of Body Manufacturers

Seite 15

4 Project activities: Trainings

Training Course on Transport Refrigeration

• Train the trainer course on sealed system design, leakages detection,

system commissioning and reporting from Nov 3-6

• Open Trade Training Centre (OTTC) is developing a training course on

Transport Refrigeration Technologies

• 6 modules of 1-2 weeks
• 1st training was kicked off in May 2015

04.11.2015

Seite 16

4 Project activities

Establishment of a Test Chamber for Refrigerated Vehicles

International Exchange on Best Practises

Trainings on Transport Refrigeration Technology Technology Development with Domestic Industry Partners Technical Support of Body Manufacturers

Seite 17

Ngiyabonga! Thank you for your attention! Dankie vir jou aandag!
