UMBC iGEM: The Retriever Project Sam Keating, May Li, Pranesh Navarathna 2 University of Mary ryland, Baltimore County From Baltimore County, Maryland, USA This is our FIRST time at the Jamboree! Our mascot is the Chesapeake Bay

slide-1
SLIDE 1

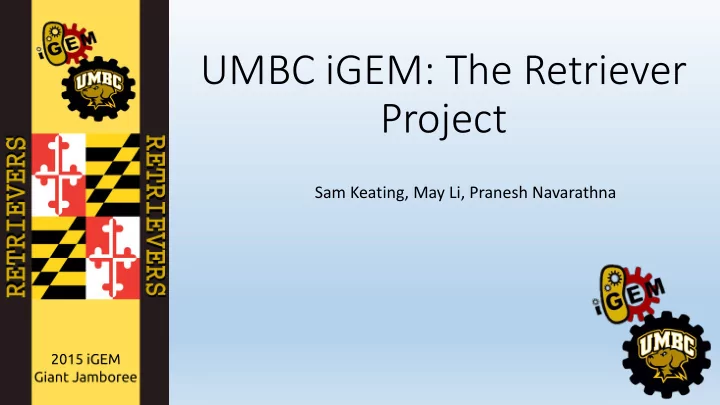

UMBC iGEM: The Retriever Project

Sam Keating, May Li, Pranesh Navarathna

slide-2
SLIDE 2

University of Mary ryland, Baltimore County

  • From Baltimore County, Maryland, USA
  • This is our FIRST time at the Jamboree!
  • Our mascot is the Chesapeake Bay Retriever
  • The Chesapeake Bay spans six states including Maryland

2

slide-3
SLIDE 3

Project Motivation

  • The EPA guidelines consider copper concentrations above 1.3ppm [1]

in drinking water to be toxic.

  • The level in the Chesapeake Bay is 8.3ppm[2]
  • That’s almost 6.5x the toxicity level!

Potential Solution: Copper Remediating E.coli

[1] -Hall, L. W., Scott, M. C. and Killen, W. D. (1998), Ecological risk assessment of copper and cadmium in surface waters of

Chesapeake Bay watershed. Environmental Toxicology and Chemistry, 17: 1172–1189. doi:10.1002/etc.5620170626

[2] -"Basic Information about Copper in Drinking Water." Basic Information about Copper in Drinking Water. Web. 14 Sept.

2015.

3

slide-4
SLIDE 4

Copper Remediating E.c .coli

  • Broad Goal: To engineer a robust bacterial strain capable of lowering

copper amounts to a safe level without affecting the ecosystem it is in.

  • Summer 2015 - Proof of Concept: Engineer a strain that can lower

copper concentrations in a lab setting.

  • Similar work done by different teams: Tokyo NoKoGen 2011, Cornell

2014, Newcastle 2009, Groningen 2009 on absorbing As, Cd, Hg.

4

slide-5
SLIDE 5

Challenges of f Copper

  • Copper is an essential nutrient used by cells in redox reactions
  • Used in cytochrome c-oxidase and is necessary for energy production
  • Is normally held tightly by proteins inside cells
  • Is very toxic at small concentrations of unbound cellular copper
  • E. coli cells are sensitive to zeptomolar (10-21 M) concentrations of

free copper

5

slide-6
SLIDE 6

Copper Metabolism in E. . coli

6

slide-7
SLIDE 7

Copper Metabolism in E. . coli

7 Cu+ Cu+ Cu+ Cu+ Cu2+ Cu+ Cu+ Cu+ Cu+ Cu+

METALLOTHIONEIN

  • 1 cysteine group binds 1 Cu+
  • 2 cysteine groups bind to 1 Cu2+

Cysteine Group Native to Yeast

slide-8
SLIDE 8

Ret1 Ret2 Ret3

3 Avenues of Development

8

slide-9
SLIDE 9

Ret1 Ret2 Ret3

CUP1 Codon-Optimized CUP1 CUP1-LamB Fusion

Part: BBa_K1811777 Part: BBa_K1811888 Part: BBa_K1811666 9

slide-10
SLIDE 10

Gblock Hi-Fi Assembly Transformation Minipreps and Digest DNA Gel Growth Experiments

Cell Line Development

Copper Measurements SDS Gel Analysis 10

slide-11
SLIDE 11

Experimental Procedure:

11

Grow Culture on Plate Overnight Culture Inoculate Shake Flasks Grow for 7 hours Sample Every Hour for OD Measure Copper in Supernatant with Plate Reader Centrifuge SDS-PAGE

  • E. coli K-12
slide-12
SLIDE 12

PRELIMINARY RESULTS

12

slide-13
SLIDE 13

Ret1 Growth Experiments

13

slide-14
SLIDE 14

Ret1 Copper Analysis

14

Copper Levels at End of Growth Copper Levels vs Time Extracellular Copper Concentrations

slide-15
SLIDE 15

Ret1 Results Analysis

15

  • The Ret1 plasmid does not hinder cell growth. Growth rates are similar for

Ret1 and control.

  • Growth curves show that 4mM is above the threshold at which copper

affects cell growth rate.

  • Preliminary data suggests that metallothionein may be expressed; SDS gels

were inconclusive.

  • Minimal copper remediation relative to the control.
slide-16
SLIDE 16

Ret2 Growth Analysis

16

slide-17
SLIDE 17

Ret2 SDS-Gel Analysis

17 32 kD

slide-18
SLIDE 18

18

  • Metallothionein is not native to E. coli
  • Has been shown that the reducing cellular environment

can degrade cysteine groups

  • These cysteine groups can end up forming clusters with
  • ther proteins native to E. coli
slide-19
SLIDE 19

Ret2 Copper Analysis

19

Copper Levels vs Time Extracellular Copper Concentrations Copper Levels at End of Growth

slide-20
SLIDE 20

Ret2 Results Analysis

20

  • Ret2 had a slightly lower growth rate than that of the control.
  • Ret2 had a different protein expression profile than that of the control.
  • Minimal copper remediation relative to control
slide-21
SLIDE 21

Ret3: LamB Fusion

21 Metallothionein Gene Fusion Site: AA Position 153 Transmembrane protein LamB:

  • 18 stranded antiparallel beta barrel
  • Maltose transporter

Extracellular Intracellular

slide-22
SLIDE 22

Ret3 Growth Analysis

22

Ret3

slide-23
SLIDE 23

Ret3 Copper Analysis

23

Copper Levels at End of Growth Extracellular Copper Concentrations Copper Levels vs Time

Possibly due to metallothionein proteins binding copper even after cells died.

slide-24
SLIDE 24

Ret3 Results Analysis

  • Growth of Ret3 was very minimal compared to that of the

control.

  • Likely due to stress put on cells to express metallothionein with a

strong constitutive promoter.

  • Could be affected by the increased number of LamB proteins.
  • Ret3 showed more copper remediation at high initial

concentrations of copper.

24

slide-25
SLIDE 25

Future Work @ UMBC iGEM

  • Explore Ret2 and Ret3 further with statistical analysis of data
  • Consider fine tuning cell lines with different promoters
  • Strong, constitutive promoter likely too demanding for cell growth
  • Use of a copper sensitive promoter, such as pCopA or CueR
  • After fine tuning, explore the addition of a gasification gene for cell

harvesting, as has been done by previous iGEM teams (Groningen 2009) Entrepreneurship and Outreach:

  • Explore development of Retriever as a marketable product/service
  • Build relationships with community DIY Bio spaces and surrounding high

schools to foster culture of innovation and entrepreneurship in synthetic biology

25

slide-26
SLIDE 26

Acknowledgements

UMBC Support:

  • Dr. Cynthia Wagner
  • Dr. Stephen Freeland
  • Professor Julie Wolf
  • Dr. William LaCourse
  • Dr. Stephen Mang
  • Dr. Hal Schreier
  • Dr. Philip Farabaugh
  • Dr. Zeev Rosenzweig
  • Dr. Elsa Garcin
  • Dr. Suzanne Ostrand-Rosenberg
  • Ralph Murphy, Teaching Lab Technician

26

Funding Sources:

  • UMBC Student Government

Association

  • Mrs. Felicia Felton, Assistant

Director of Annual Giving at UMBC.

  • Department of Biological Sciences
  • Department of Chemistry &

Biochemistry

  • UMBC Honors College
  • College of Natural and

Mathematical Sciences at UMBC

  • Interdisciplinary Studies at UMBC
slide-27
SLIDE 27

And Of f Course, , The Rest of f Our Team!

  • Alex Kusnetsov
  • Natithorn “Frame” Bhusri
  • William Larsen Angel
  • Mark Kerr
  • John Jayman
  • Mukta Bain
  • Pari Majethia
  • Dennis Fasciani
  • Tarik Hawkins
  • Thomas Coard

27

slide-28
SLIDE 28

BACKUP SLIDES

28

slide-29
SLIDE 29

Ret1 Development

Construct Size: 247 bp Total Plasmid Size: 2.3kb Gblock for Part BBa_K1811777 (CUP1) was synthesized by IDT NEB Hi-Fi Assembly was used to ligate Part BBa_K1811777 (CUP1) with plasmid backbone pSB1C3 Hi-Fi Assembly product was transformed into E.coli and minipreps were prepared for gel analysis (Figure) Figure : Gel Analysis of Part BBa_K1811777 Control Ladder Miniprep #2 Miniprep #1 0.5kb 0.25kb 29

slide-30
SLIDE 30

Ret3 Development

Ret3 is designed to have metallothionein bound to the outer membrane exposed to the environment. This was done by fusing a membrane transport sequence called LamB upstream of the codon optimized CUP1 coding sequence. CUP1 + LamB = 1585bp Gblock for Part: BBa_K1811666 (LamB +Codon-Optimized CUP1 NEB Hi Fi Assembly was used to ligate Part: BBa_K1811666 (LamB+Codon-Optimized CUP1) with backbone psb1c3 Hi-Fi assembly product was transformed into E. coli and minipreps were prepared for gel analysis 2 kb 1.6kb 30 4 3 2 1

slide-31
SLIDE 31

Ret2 Development

CUP1 Gene was optimized for E.coli via IDT Gblock for Part BBa_K1811888 (Codon- Optimized CUP1) NEB Hi Fi Assembly was used to ligate Part BBa_K1811888 (Codon-Optimized CUP1) with backbone psb1c3 Hi-Fi assembly product was transformed into

  • E. coli and minipreps were prepared for gel

analysis (Figure)

Figure 2: Gel analysis of Part BBa_K1811888 (Codon- Optimized CUP1), From left to right: Colonies 1-12 0.5kb 0.25kb 31
