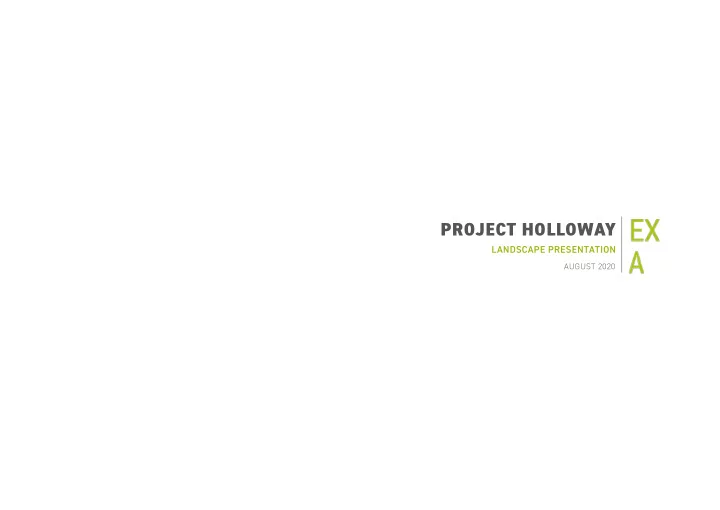

PROJECT HOLLOWAY LANDSCAPE PRESENTATION AUGUST 2020 ABOUT EXTERIOR - - PowerPoint PPT Presentation

PROJECT HOLLOWAY

LANDSCAPE PRESENTATION

AUGUST 2020

ABOUT EXTERIOR ARCHITECTURE

WHO ARE EXA?

• OUR DNA

ExA are an established and well-respected landscape architecture practice with an impressive catalogue of experience both throughout the U.K and internationally. Our design team have significant skills and experience working on large- scale and high-profile projects across a range

• f contexts. We bring added value in our services

by providing a depth of experience on complex projects delivered over multiple phases. We see every new project as an opportunity to innovate, elevate and draw on a developments unique attributes to establish a new and desireable destination.

• OUR EXA FAMILY

We are firm believers that those who love their job never work a day in their lives, and feel lucky enough to experience this in the ExA family. For us work is the new play; we love what we do and are excited about our industry. As a close-knit team we are committed to ensuring a work-life balance and supporting the health and well-being of our staff members. Together, we have initiatives that seek to foster a collective conscious: with initiatives to support our local community, charities and organisations. We have our own ethical procurement policy, and are sustainability- minded in our day-to-day studio operation and our work.

LANDSCAPE-LED APPROACH

LANDSCAPE-LED MASTERPLAN PRINCIPLES

1) CONNECT TO THE WIDER LANDSCAPE

A considered approach to land, topography, and ecology, embedding the masterplan within the wider landscape, through... A) working with topography B) connecting to green infrastructure C) establishing wider green connections

2) REDUCE CARS, PRIORITISE PEOPLE

Minimise the need for traditional carriageways, and develop creative solutions to manage vehicle

• access. Consider streetscapes as useable spaces for people by...

A) reducing carriageways wherever possible B) restricting vehicle access + prioritising pedestrians C) creating functional (ecology, suds), activated (playable, furnished) streetscapes

3) A PLACE FOR PEOPLE

Allow the way people live their lives daytoday to dictate spaces, use and layouts, by creating... A) a modern village with spaces for people to relax, recreate, gather and socialise B) platforms to accommodate a variety of uses throughout the day & year C) a landscape to suit the diversity of communities; for all ages & abilities D) spaces to reflect the memory of what was once on the site and celebrates the sites future

4) ECOLOGY TO DEFINE SPATIAL TYPES

Identify key strategies for incorporating natural systems within the masterplan, and ensure that these work with (as well as for) the people who live there, including... A) integrated biodiversity to frame masterplan structure B) productive gardens C) suds D) a connection to nature LANDSCAPE-LED APPROACH

EXISTING TREES

The primary objective is to identify and retain trees where they provide the most benefit. The adjacent survey identifies and categorises all existing trees within in site and its immediate environs. Existing trees are important to retain for: > Scale > Providing instant site maturity and impact > Preserving a diversity of species and age compositions of trees across the site > Strengthening green infrastructure networks > Connect the past and future together through memory in landscape The total quantity of trees noted below includes all within and beyond the site boundary that will need to be taken into consideration in development of the masterplan. Trees Within site boundary Beyond site boundary Cat A 1 Cat B 47 28 Cat C 21 9 Dead 1 Groups of trees Cat A Cat B 3 5 Cat C 4 5 TREES

N

C A M D E N R O A D PARKHURST ROAD

Category A Tree Category B Tree / Tree Group Category C Tree / Tree Group Category B Tree Group Category C Tree Group

TREES & TREE GROUPS SURVEYED (2019) (WITHIN AND BEYOND THE SITE)

124

* *

area yet to be surveyed

KEY TREES IDENTIFIED WITHIN THE SITE

Category A Tree Category B Tree Category C Tree Category B Tree Group Category C Tree Group Category C Hedgerow

• PNE
• PNE
• PNE

H1 -C1 T3 -B1 T4 -B1 T15 T18 -B1

T3 WEEPING WILLOW B1, holds strong connotations to former

• prisoners. Former shelter
• f chicken coops.

9m height, low branching form

• t

• t

• B1

T26 - 36 SMALL-LEAVED LIMES LARGE-LEAVED LIMES SILVER MAPLES All B1, good form and condition 8 - 17m height T51 LONDON PLANE A1, excellent form, thought to be a pristine example

• f an untouched London

Plane Tree 22m height

Category A Tree Category B Tree Category C Tree Category B Tree Group Category C Tree Group Category C Hedgerow

H2 -C1

• C1

T51 -A1 T26 -B1 T62 -B1

TREES

T64 TREE OF HEAVEN C1, Fair health and condition 16m height T68 SYCAMORE B1, good form and condition 11m height T66 HORSE CHESTNUT B1, good form and condition 14m height T65 COMMON ASH B1, good form and condition 16m height T69 COMMON LIME B1, good form and condition 9m height T67 HORSE CHESTNUT B1, good form and condition 14m height G6 3X SILVER BIRCH B1, good form and condition 5-10m height Note: Situated in planter G7 EVERGREEN

• OAK. QUERCUS

ILEX, ROWAN, SYCAMORE B1, good form and condition 6-10m height Note: Situated in planter G5 COMMON LIMES, LONDON PLANES, HORSE CHESTNUT B1, good form and condition 6-10m height

CAMDEN ROAD/PARKHURST ROAD TREES

TREES

LANDSCAPE EXPRESSIONS OF A RICH SITE HISTORY

FORM FINDING, PATTERNS AND STRUCTURAL REFERENCES

LANDSCAPE EXPRESSIONS OF A RICH SITE HISTORY

PAVING PATTERNS SURFACE PATTERNS/NAVIGATION/PLAY

Expressed through...

ORIGINAL PRISON ‘STAR’ LAYOUT & TOWER ORIGINAL PRISON TOWER DESTINATION PLAY: PLAY TOWER CRINKLE-CRANKLE WALL SEATING & EDGES PLAYABLE LANDFORMS PLAYABLE SEATING DETAILS

At key thresholds / nodes throughout site Public Garden/centre of site Key nodes

GEOMETRIC MARKER PLANTERS

ORIGINAL PRISON DETAILS

FORM FINDING, PATTERNS AND STRUCTURAL REFERENCES

LANDSCAPE EXPRESSIONS OF A RICH SITE HISTORY

Expressed through...

PRISON GATE DETAIL HALLWAY TILES PRISON GATE ARCHWAY PAVING PATTERNS COVERED WALKWAYS LIGHT VERTICAL DIVIDER SEATING & PLAY TERRACES BREEZE BLOCK WALL PIXELATED PAVING

Public Garden Courtyard Gardens Courtyard Gardens Women’s Garden

BALUSTRADE PATTERN PLAY FEATURES CLIMBER FRAMES

Public Garden Blank façades

LUSH & ENCLOSED FRAMED GROVE GREEN JOURNEY LINEAR & REGULAR FOCAL POINT

MEMORY THROUGH TREES

LANDSCAPE EXPRESSIONS OF A RICH SITE HISTORY

TREE SPECIES ARRANGEMENTS

Common Name Latin Name Sycamore Acer pseudoplatanus Silver Maple Acer saccharinum Tree of Heaven Ailanthus altissima Silver Birch Betula pendula Sweet Chestnut Castanea Sativa Lawson Cypress Chamaecyparis lawsoniana Cabbage Tree Cordyline australis Eucalyptus spp. Eucalyptus Common Ash Fraxinus excelsior Tulip Tree Liriodendron tulipifera Silver Beech Nothofagus menziesii London Plane Platanus × acerifolia Cherry Kanzan' Prunus 'Kanzan' Bird Cherry Prunus padus Weeping Cherry Prunus pendula Cherry Prunus x hillieri Spire Prunus x hillieri Robinia 'Frisia' Robinia pseudoacacia Weeping Willow Salix babylonica Contorted Willow Salix matsudana Elder Sambucus Whitebeam Sorbus aria Rowan Sorbus aucuparia Swedish Whitebeam Sorbus intermedia Common Lime Tilia × europaea Smallleaved Lime Tilia cordata Caucasian Lime Tilia euchlora Largeleaved Lime Tilia platyphyllos

LANDSCAPE SPACES

C A M D E N R O A D PARKHURST ROAD

LANDSCAPE CHARACTER STRATEGY

LANDSCAPE SPACES

PUBLIC GARDEN CITY STREET NATURE GARDEN COMMUNAL RESIDENTS GARDEN WOMEN’S GARDEN PLANE TREE GATEWAY WILLOW LAWN SENSORY GARDEN GREEN CONNECTORS RESIDENTIAL STREETS ROOF TERRACES (LOCATION TBC)

PLOT C PLOT B PLOT A PLOT D PLOT E PLOT F PLOT F

PLAY SPACE TYPOLOGIES

PLAY SPACE DESTINATION PLAY AREA for children of all ages, both living within the village & wider islington community PUBLIC REALM PLAY POCKETS Play on the way, natural & integrated into surface treatment RESIDENTS COURTYARD PLAY AREAS Safe,

• verlooked play areas for younger children

ROOF TERRACE PLAY AREAS Of a range of types to suit different ages, abilities and play styles NATURAL PLAY TRAIL Interlinked play obstacles in a natural setting DESTINATION PLAY AREA FOR ISLINGTON SAFE, OVERLOOKED PLAY IN THE COMMUNAL COURTYARDS PUBLIC REALM PLAY POCKETS NATURAL PLAY TRAILS ROOF TERRACE PLAY AREAS

PLAY SPACE TYPOLOGIES

PLAY SPACE DESTINATION PLAY AREA FOR ISLINGTON SAFE, OVERLOOKED PLAY IN THE COMMUNAL COURTYARDS PUBLIC REALM PLAY POCKETS NATURAL PLAY TRAILS ROOF TERRACE PLAY AREAS

THE CITY STREET

CHARACTER

EDGES TO SIT CELEBRATE AND REINFORCE EXISTING TREES PLANTING BENEATH EXISTING TREES SOLID EDGES STEPPED LEVEL CHANGE CAFE SEATING WITH GREEN EDGE SPILL OUT SPACE

THE CITY STREET

Collective Living > Commercial offering & activated public realm > Pockets of activity, spill out and seating > Moments to pause within the streetscape Ecology & Environment > Celebrate and reinforce existing tree line and canopy > Botanically rich & ecological planting swathes beneath trees > Low planting to maintain clear visual connectivity and safety Connecting > Improved pedestrian experience > Distinctive gateway feature opening up (previously closed) site & public garden > An identifiable address LANDSCAPE SPACES

THE CITY STREET

LANDSCAPE SPACES

THE CITY STREET (CAMDEN/PARKHURST)

MOVEMENT & ACCESS LEVELS

+39.58 FFL 41.50 +38.95 +38.20 FFL 37.00 FFL 36.60 FFL 35.50 +34.10 +37.25 +35.71 +41.00 +38.00 +41.07 +34.46 +40.13 +39.51 +38.90 + 3 8 . 1 1 +37.43 +36.38 +35.42 +35.11 +34.75 +34.03

Bus Shelter Existing controlled crossing location Blue Badge car parking TfL Red Route New street access into site Loading bay Tertiary pedestrian movement (within street front plaza) Pedestrian gateway to public garden Public Entrance Primary pedestrian movement (north-south along C/P Road) Secondary pedestrian movement (within street front plaza) Residential Core Entrance Proposed stepped access Proposed level Existing level Retaining structure

LEVELS

+00.00 +00.00

Proposed +FFL

+00.00

Existing Trees Soft landscape Entrance feature (signage / lighting / artwork) Entrance plaza Spill out space

ZONING

ZONING

LANDSCAPE SPACES

THE CITY STREET (CAMDEN/PARKHURST)

1 5 3 9 7 2 6 4 9 8 9 1

Existing trees with generous, biodiverse feature planting beds beneath

2

Level-access cut through from street front to facade

3

Localised step access

4

Existing pedestrian crossing location

5

Entrance gateway space

6

Seating pockets

7

Cafe spill out seating

8

New planter to tie together design language to streetscape

9

Existing planter, segmented between root protection zones to allow access through while retaining existing trees

10

Vehicle entrance into the site

10 10

THE PUBLIC GARDEN

LANDSCAPE SPACES

THE PUBLIC GARDEN THE PUBLIC GARDEN

Connecting > A place for Islington > Open and accessible for all > Performance space > Space for a pop up coffee cart or food truck Ecology & Environment > Verdant, ecologically focused planting and biodiversity > Meadow and natural play > Habitat features beneath trees > Feature SuDs Collective Living > Flexible space for the community F&B: carts, trucks, permanent structure A variety of seating options for families, individuals, locals and visitors to enjoy > Existing trees retained, ecological planting beneath the trees > Rain gardens

CHARACTER

COFFEE CART OR FOOD TRUCK FLEXIBLE USE LAWN TERRACED SEATING EDGES

LANDSCAPE SPACES

THE PUBLIC GARDEN THE PUBLIC GARDEN

Play > Destination play for all ages > Feature play tower with elevated play areas, bridges, climbing nets and a slide > Natural play and ecoplay trails > Topo-integrated play structures > Rolling lawn > Zip wire feature > Flexible play lawn > Table tennis arena

CHARACTER

PLAY INCORPORATING GRADE CHANGE PLAY INCORPORATING TREES: TREE DECK, TREE HOUSE ROLLING MOUNDS, PLAY TRAILS AND ECOLOGICAL PLANTING BENEATH EXISTING TREES

LANDSCAPE SPACES

THE PUBLIC GARDEN

MOVEMENT & ACCESS

Proposed marked crossing location Shared-surface paved finish to road around park New road through site Emergency Access Route - 3.7m min. Loading bay Blue Badge car parking Proposed marked crossing location Loading bay Tertiary pedestrian movement (playable routes) Primary pedestrian movement Secondary pedestrian movement Entrance to garden Public Building Entrance Residential Core Entrance Proposed stepped access Proposed level Existing level Retaining structure

LEVELS

+00.00 +00.00

Proposed +FFL

+00.00

Existing Trees +38.77 +38.53 +36.56 +36.70 +38.77 +38.69 +37.88 +38.67 +38.54 +38.60 +38.70 +37.85 +37.60 +38.00 +37.00 +38.40 +38.02 +38.70 FFL = 38.00 +37.67 FFL = 41.20 FFL = 38.00 FFL = 38.00 FFL = 38.00 L G = 3 8 . 1 FFL = 41.20 +38.00

LEVELS ZONING

Natural & explorative play beneath the existing trees Green buffer Benches and picnic tables set into planting Food truck/coffee cart access Entrance plaza & Pop up screen / stage location Open lawn area and 12+ play space Plane Tree Gateway space 0-4’s natural play space 5-11’s destination play space Play features incorporated into level change SuDS feature with terraced seating edge

LANDSCAPE SPACES

THE PUBLIC GARDEN

PLOT A PLOT B PLOT D PLOT C

DESTINATION PLAY TOWER

PUBLIC GARDEN

LANDSCAPE SPACES

THE PLANE TREE GATE THE PLANE TREE GATE

CHARACTER

SEATING POCKETS CAFE SPILL OUT SPACE FLEXIBLE SEATING AROUND PLANE TREE GATEWAY FEATURE PLANTING RETENTION / CELEBRATION OF EXISTING TREE Connecting > A new gateway: main pedestrian connection > Transition space > Celebrating iconic tree connection Ecology & Environment > Retention of the historic London Plane tree > Vibrant planting typlogy: highlight seasonality > Plants as a wayfinder > Rain gardens Collective Living > Performance space and seating > Flexible spill out / cafe seating > Seating pockets

1 1 2 2 3 3 4 4 5 5

THE NATURE GARDEN

LANDSCAPE SPACES

THE NATURE GARDEN THE NATURE GARDEN

Connecting > People to nature through shared ownership, management, harvesting Ecology & Environment > Ecobuffer planting: privacy to neighbors > Verdant visual and functional connection > Creating wildlife habitats + pollinator friendly planting > Creation of refugia and standing deadwood features > Connected canopy and dark corridor across northern site boundary for bat movement Collective Living > Community gardens: productive plots > Transition space between existing and new buildings

CHARACTER

NATURE PLAY POCKETS NATURE PLAY TRAIL PLAY AND PICNIC NATURE PLAY: SPACE TO EXPLORE PRODUCTIVE PLOTS | GREENHOUSE PRIVACY BUFFER PLANTING TO EXISTING NEIGHBOURS

LANDSCAPE SPACES

THE NATURE GARDEN

MOVEMENT & ACCESS

Tertiary pedestrian movement (playable routes) Primary pedestrian movement Secondary pedestrian movement (garden path) New pedestrian connection to Crayford Road Service & emergency access route Emergency Access Route - 3.7m min. New street access into site Residential Core Entrance Proposed stepped access Proposed level Existing level Retaining structure

+00.00 +00.00

Proposed +FFL

+00.00

Existing Trees Fall direction Proposed stepped access Proposed level Existing level Retaining structure

+00.00 +00.00

Proposed +FFL

+00.00

Existing Trees Fall direction

+33.73 +35.81 +35.82 +36.02 +34.60 +33.74 +33.27 +35.64 +36.74 +35.54 +34.30 +33.43 +36.39 +36.00 +33.87 +37.60 FFL = 38.00 +36.60 +36.10 +37.10 +38.00 +37.67 FFL = 34.50 LG = 34.85 LG = 34.85 +35.60 +35.10 +37.88 FFL = 38.00

LEVELS ZONING

Soft landscape Eco-buffer Natural play beneath existing trees Existing Trees Community Garden allotments Childrens allotments and workshop space Lawn area Picnic tables and communal dining Community Garden ancillary space (green houses, potting station, harvest shed, storage unit)

LANDSCAPE SPACES

THE NATURE GARDEN

PLOT A

COMMUNAL RESIDENTS GARDENS

LANDSCAPE SPACES

COMMUNAL RESIDENTS GARDENS COMMUNAL RESIDENTS GARDENS

CHARACTER

SCULPTURAL PLAY ELEMENTS SPACE TO EXPLORE AND PLAY ENCOURAGING BIOPHYLLIA COMMUNAL DINING SPACE TO RELAX SPACE FOR SOCIALISING A VERDANT JOURNEY INHERENTLY PLAYFUL SPACES Ecology & Environment > Ecological focus with verdant and unique planting > Defensible planting / raised planters as edge treatment Collective Living > Areas for social exchange > Communal dining tables > Places to rest and relax > Outdoor quiet spaces for work or reading > Exercise provisions & work out points Play > Pocket play > Climbable seating elements > Doorstep play with additional elements for a range of ages

MOVEMENT & ACCESS

PLOT A PLOT B Primary pedestrian movement Secondary pedestrian movement LANDSCAPE SPACES

COMMUNAL RESIDENTS GARDENS

ZONING

PLOT A PLOT B Soft landscape Private terraces Multi-functional elevated platform Fitness equipments Work pods Flexible lawn/ play area Picnic tables & communal dining/ Lounges Playful art feature / seat Formal play area Tertiary pedestrian movement (playable routes) Tertiary pedestrian movement (playable routes) Proposed ramp Residential Core Entrance

LANDSCAPE SPACES PLOT A PLOT B

COMMUNAL RESIDENTS GARDENS

1

Flexible lawn with play structures

2

Mounding for planting trees with understory play features

3

Equipped play space

1 2 2 3 5 5 6 8 7 4 4

Multifunctional platform for play, lunch, picnic, meeting etc

5

Exercise edge

6

Pergola over sloped access to raised area

7

Meeting point / communal dining / community sale tables

8

Outdoor work pods

9

Planters with integrated play

1 2 3 4 5 5 5 6 7 8 9 10 10 10 10 10 10 11 11 12 12 12 12 12 10

Private amenity space

11

Access to courtyard from public realm

12

Residential lobby

10 10 10 10 10 10 10 11 11 12 12 12 12 12 12

RESIDENTS ROOF AMENITY SPACES

LANDSCAPE SPACES (FINAL LOCATIONS STILL BEING WORKED THROUGH)

RESIDENTS ROOF AMENITY SPACES RESIDENTS ROOF AMENITY SPACES

CHARACTER

PLAYABLE LANDSCAPES SOCIAL INTERVENTIONS AMENITY AREAS INTEGRATED NATURAL PLAY ECOLOGICAL FOCUS SPACES FOR ALL AGES SOCIAL SPACES Collective Living > Safe, comfortable & well-overlooked space > Social spaces for groups and smaller pockets for smaller group social interaction > Communal dining features > Opportunities to meet, connect with and interact with neighbours > Social facilities / games Ecology & Environment > Biodiversity and ecology focus > Bird houses & habitat features within planting beds > Verdant walking routes & seating pockets Connecting > Layered opportunities for social engagement at an elevated level > Framed views beyond the site

LANDSCAPE SPACES

RESIDENTS ROOF AMENITY SPACE (AN EXEMPLAR)

1

Natural play garden with balancing bridge and mounded lawn

2

Verdant seating pocket

3

Green edge

4

Outdoor lounge seating

5

Core entrance

6

Picnic tables

7

Pergola adjoining core, covering communal dining table

8

Southfacing sun loungers

9

Perscriptive play space

10

Biodiverse roof (level below)

1 5 3 9 7 2 6 4 10 8

SENSORY GARDEN (OLDER PERSONS HOUSING)

LANDSCAPE SPACES

SENSORY GARDEN

SINUOUS / CONTINUOUS SENSORY STIMULATION CONNECTING TO NATURE INTERACTIVE & ENGAGING REFLECTIVE & REMINISCENT

Routes & seating

• ptions catering for the

ablebodied as well as those who have problems with mobility Routes & seating

• ptions catering for the

ablebodied as well as those who have problems with mobility A clear, meandering, & infinite path route with good visibility and natural navigation signals Effective use of colour and texture in planting, surfaces and features to encourage exploration Inclusion of audible features such as running water, wind chimes & whispering grasses Consideration of framed views to the garden from internal communal spaces Planting palettes to alert the senses, with intriguing and familiar colours, textures, and scents throughout the seasons Communal spaces to facilitate a range of uses, including active engagement & passive, solitary activities with flexible furniture and configurations Reflective spaces with protection from sun & wind Use of memoryevoking textures and finishes such as sand, pebbles, or recycled glass Opportunity to engage with community here to create a feature that may be specific to & remeniscent of Islington Areas & furniture typologies for socialisation & group activites, clubs & classes, such as a large communal table Accessible garden beds with low edges and space for wheelchair users to access A ‘Kitchen Garden’ with raised allotment beds where greenfingered residents can grow their

• wn vegetables

Ecological features, nests, feeding stations, a bird bath & pollinator species to attract a range of wildlife

LANDSCAPE SPACES

SENSORY GARDEN

1 5 3 7 2 6 4 1

Large green terraced planting separating communal amenity space (for Plot E residents) from Sensory Garden

2

Lawn/flexible space

3

Flexible furniutre

4

Benches surrounding bird bath

5

Water wall / green wall with seating areas

6

Access to communal amenity garden

7

'Breakfast terrace' (good morning sun) with lounge type seating and communal dining table

8

Retained existing tree

9

Plot E communal residents garden with orchard trees to site boundary

10

Dedicated outdoor space for creche

CRECHE OLDER PERSONS GARDEN OLDER PERSONS GARDEN COMMUNAL AMENITY GARDEN

PLOT E ZONING 8 9 10

WOMEN’S GARDEN

LANDSCAPE SPACES

WOMEN’S GARDEN WOMENS GARDEN

A place for Women (and children) > Areas for physical and mental rehabilitation activities > Contemplative spaces with pockets of seating > Variety of places and spaces (community, groups, one-to-one) > Enabling people (shared ownership, management) Play > Integrate play, movement and seating for children in a natural and sensitive manner Ecology > Healing garden > Soft and lush vegetation > Plant palette that includes scented and edible species and vibrant colors to activate all senses

CHARACTER

INCORPORATING EDIBLES IN PLANTING SCENTED PLANT PALETTE WITH VIBRANT COLOURS: INTEGRATING DIFFERENT POCKETS OF CONTEMPLATIVE SEATING AREAS NATURE WORKSHOPS (PLAY WITH NATURAL MATERIALS) INTEGRATION OF SEATING AND PLAY SOFT AND LUSH PLANTING FLEXIBLE SPACE FOR GROUPS

CHILDRENS PLAY

INTEGRATED INTO THE GARDENS PRODUCTIVE PLOTS, COMMUNITY-RUN

EMPOWERMENT GARDENS

CELEBRATORY FEATURE, CONNECTION TO THE MEMORY OF PAST, A MOMENT TO PAUSE

INSPIRATION PLAZA THE RETREAT

SOCIALISING, MINDFULNESS, EVENTS, GROUP SUPPORT, 1-2-1 MENTORING, CALMING, REFLECTIVE, FLEXIBLE AND ADAPTABLE LANDSCAPE SPACES

WOMEN’S GARDEN

ZONING

1

A framed garden entrance

2

Inspiration plaza: a space at the heart of the garden with a water feature and seating pockets

3

Flexible space: social events, yoga or other group exercise, spill out seating to function rooms

4

The retreat: secluded seating pockets for social interaction, peacefulness and space for 1-2-1 support and mentoring

5

Play space/playful elements beneath the trees & within planting

6

Garden of Cherry Trees: colourful planting beds beneath cherry trees reloacted from existing central garden as a linking feature and memory

7

Garden beds managed by staff and/or volunteers for edible plants

5 2 3 4 4 1 6 7 5 LANDSCAPE SPACES

WOMEN’S GARDEN

KEY SPACES

1

Water feature

2

Sculpture: an inspiring feature celebrating women on the main axis of garden - visible and framed from indoor

3

Seating pockets: immersed in lush planting and integrated with the planter's forms

4

Secret pods: reflective seating pocket

5

Seating pockets beneath trees

1 2 3 4 4 5 3 3 5 LANDSCAPE SPACES

WOMEN’S GARDEN

KEY FEATURES
