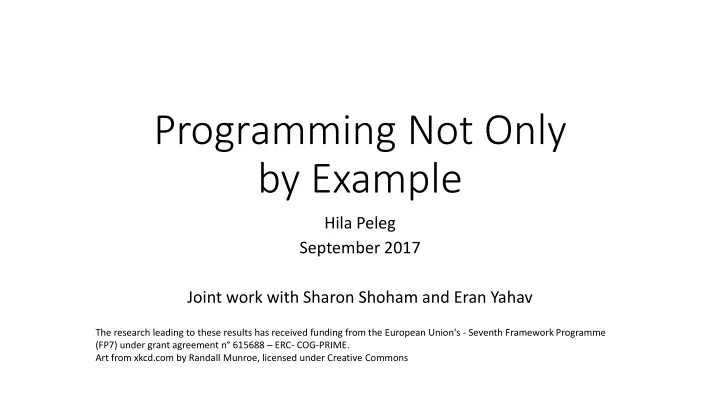

Programming Not Only by Example

Hila Peleg September 2017 Joint work with Sharon Shoham and Eran Yahav

The research leading to these results has received funding from the European Union's - Seventh Framework Programme (FP7) under grant agreement n° 615688 – ERC- COG-PRIME. Art from xkcd.com by Randall Munroe, licensed under Creative Commons

Program Synthesis

• The problem of producing code that will

satisfy a (usually) partial specifications

• Many existing works are aimed at end-users

performing simple repetitive tasks

• Others produce code meant to be executed
• These all require human-synthesizer

interaction, often iteratively

I need code that will solve my problem

Programming by Example

An example of the desired behavior:

• Input:

"abdfibfcfdebdfd ebdihgfkjfdebd"

• Output: "bd"

Find the most frequent bigram in a string Synthesize!

Many examples are inherently ambiguous

• PBE aims for

consistency with examples

• Examples don’t

convey intent uniquely

• In other words:
• verfitting

Wait, that’s not what I meant!

input .takeRight(2)

Input: "abdfibfcfdebdfd ebdihgfkjfdebd" Output: "bd"

Problem I: Finding a differentiating example is hard

• Both a counterexample and an

example

• Implicitly convey explicit knowledge
• Usually takes a RTE and some time

Drat! Still consistent with the bad program!

Problem II: Examples are terrible at directing search

input

//ab,bd,df,…

.sliding(2)

//bd,df,fi,…

.drop(1)

//bd

.min

I want it to never use min again Even if we give an example where it’s the maximum? Impossible.

Input: "abbba" Output: "bb" input//abbba .sliding(2)//ab,bb,… .drop(1)//bb,bb,ba .dropRight(1)//bb,bb .min //bb

Problem II: An impossibility result

• Claim: If f is a function in the vocabulary, f

cannot be eliminated from the search space by examples alone

• And in practice, undesirable elements are all
• ver the search space – they come back
• As often as half the session!
• The interaction model is too lean:
• You can see the problem
• But you can’t communicate the problem
• Longer search
• But also frustration

Aargh! I just need it to not use that anymore!

Granularity of the interaction

• Programmers can interact on a lower

level

• They understand sub-problems
• They understand the code
• (They can be helped to understand)
• They should be given the power

This part looks fine… but that’s clearly wrong.

The Granular Interaction Model (GIM)

• A programmer can talk at

the level of the program

• Read debug info
• Reason about subtrees or

sequences of methods

• Or intermediate states
• But also examples, if those

happen to be easier input

//ab,bd,df,…

.sliding(2)

//bd,df,fi,…

.drop(1)

//bd

.min

That looks right Those are wrong

Back to our example

The user can answer locally: exclude takeRight(2)

Find the most frequent bigram in a string

input .takeRight(2)

Input: "abdfibfcfdebdfd ebdihgfkjfdebd" Output: "bd"

Another step

The synthesizer prunes the search space and produces another answer Answer: exclude drop(1)∙take(2) input //"abdfibfcfdebdfdebdihgfkjfdebd" .drop(1) //"bdfibfcfdebdfdebdihgfkjfdebd" .take(2) //"bd"

The synthesizer answers User provides a compound answer: retain zip(input.drop(1)) exclude take(2) And possibly even retain map(p => p._1.toString + p._2)

input//"abdfibfcfdebdfdebdihgfkjfdebd" .zip(input.drop(1))//List((a,b),(b,d),(d,f),(f,i),...) .take(2)//List((a,b),(b,d)) .map(p => p._1.toString + p._2)//List("ab","bd") .max//"bd"

Until finally

input//"abdfibfcfdebdfdebdihgfkjfdebd" .zip(input.drop(1))//List((a,b),(b,d),(d,f),(f,i),… .map(p => p._1.toString + p._2)//List("ab","bd",... .groupBy(x => x)//Map("bf"->List("bf"),"ib"-> List("ib"),... .map(kv => kv._1 -> kv._2.length)//Map("bf"->1, "ib"->1,... .maxBy(_._2)//("bd",4) ._1//"bd"

Can this also help the synthesizer?

• “Well-suited” feedback
• To the domain
• And to the synthesizer
• For example: functional concatenations are

trees

• Help prune the state

Dammit, GIM, I’m a programmer, not a gardener!

The usability of GIM

• We studied GIM in the wild (32 users,

industry/academia)

• Users loved the debug information
• Total synthesis session time is the same
• But each iteration was shorter than PBE
• Users spent less time fighting “distracting”

sub-programs

Can your data fully reflect my frustration? Well…

Users like examples (but not that much)

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% histogram

• no. lines

with text most frequent word histogram

• no. lines

with text most frequent word histogram

• no. lines

with text most frequent word all users familiar with Scala not familiar with Scala

Portion of examples (%)

2 4 6 8 10 12

PBE Syntax GIM PBE Syntax GIM PBE Syntax GIM histogram

• no. lines with text

most frequent word

Reached correct answer (no. users) Reached target answer
