PRODUCTION OF PURE ENANTIOMERS AT HIGH YIELDS BY INTEGRATING CHROMATOGRAPHY, ISOMERIZATION AND MEMBRANE FILTRATION Sebastian Nimmig, Malte Kaspereit Institute of Separation Science and Technology, University Erlangen-Nrnberg PIN-NL &


slide-1
SLIDE 1

1

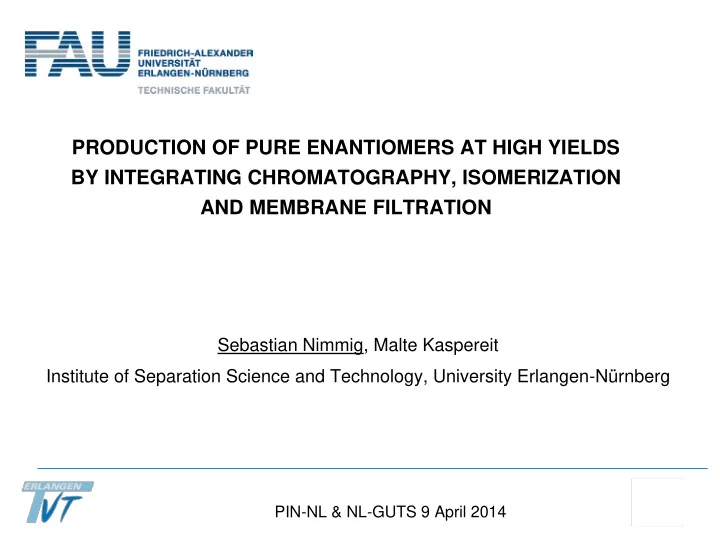

PRODUCTION OF PURE ENANTIOMERS AT HIGH YIELDS BY INTEGRATING CHROMATOGRAPHY, ISOMERIZATION AND MEMBRANE FILTRATION

Sebastian Nimmig, Malte Kaspereit Institute of Separation Science and Technology, University Erlangen-Nürnberg

PIN-NL & NL-GUTS 9 April 2014

slide-2
SLIDE 2

2

Motivation and objectives

slide-3
SLIDE 3

3

Enantiomers

  • Stereoisomers ("mirror images")
  • Basically identical physico-chemical properties
  • Often produced as racemate (50/50 mixture)
  • Usually only one enantiomer has the desired physiological effect
  • Separation?  Chromatography

Motivation a C b c d a C b c d

slide-4
SLIDE 4

4

Motivation

Separation of enantiomers

  • Yield limited to 50% only (conventional approach)
  • Reaction required to convert E2 into E1+E2  isomerization
  • Increase yield to 100% by recycling E2

E1+E2 E1 E2 E1: Enantiomer 1 (product) E2: Enantiomer 2 Single-column Chromatography Single-column Chromatography fresh feed E1 (product) solvent

E2 E1

E2 (recycle)

Recycle always diluted!

[1] Bechtold et al., J Biotechnology 124 (2006) 146-162

slide-5
SLIDE 5

5

Objectives

  • Inhibit dilution by solvent removal (here: nanofiltration)

Challenges

  • Design specifications
  • Required parameters and models
  • Analysis and process behaviour
  • Fully continuous implementation
  • Experimental validation

Single-column Chromatography Membrane- filtration fresh feed E1 (product) solvent solvent

E2 E1

E2 (recycle)

slide-6
SLIDE 6

6

Theoretical investigations I

slide-7
SLIDE 7

7

Concentration c / g·L-1 c1 c2 Time t / min

t1

1

t1

2

t1

3=t2 1 t2 2

t2

3=t3 1 t3 2

t3

3=tk+1 1

Theoretical investigations I

Shortcut process design[2]

  • Reproduce a given chromatogram (simulated or experimental) in each cycle
  • Main design parameters:
  • Feed flow rate Qfeed
  • Permeate flow rate Qperm
  • Chrom. flow rate Qchrom
  • Injection width Δtinj
  • Fractionation times t1 , t2, t3

[2] Nimmig, Kaspereit, Chem Eng Process 67 (2013) 89– 98

slide-8
SLIDE 8

8

Theoretical investigations I

Shortcut process design[2]

  • Simple explicit equations
  • Easy performance prediction

C R M

0.2 0.4 0.6 0.8 1 20 40 60 80 100 Membrane rejection R / - Yield Y / % Shortcut R=1 Shortcut R<1 0.2 0.4 0.6 0.8 1 10 20 30 40 50 Membrane rejection R / - Solvent consumption SC / L·g-1 0.2 0.4 0.6 0.8 1 0.5 1 1.5 2 2.5 Membrane rejection R / - Productivity PR / g·h-1·L-1

slide-9
SLIDE 9

9

Theoretical investigations I

Detailed process design

  • Chromatography :

Equilibrium dispersive model

  • Reaction:

First order kinetics, CSTR

  • Nanofiltration:

Simplified solution diffusion model

  • Implementation in MatLab

R C M

slide-10
SLIDE 10

10

Theoretical investigations I

Detailed process design

  • Fully continous connection
  • Performance prediction:

0.2 0.4 0.6 0.8 1 20 40 60 80 100 Membrane rejection R / - Yield Y / % 0.2 0.4 0.6 0.8 1 20 40 60 80 Membrane rejection R / - Solvent consumption SC / L·g-1 0.2 0.4 0.6 0.8 1 0.5 1 1.5 2 Membrane rejection R / - Productivity PR / g·h-1·L-1 40mL 120mL 200mL 280mL 360mL 440mL

slide-11
SLIDE 11

11

Experimental validation

slide-12
SLIDE 12

12

Experimental validation

C R M

F UV

TI PI

F UV

TI PI

slide-13
SLIDE 13

13

Experimental validation

Experiment 1 – Design via detailed simulation

5 10 15 20 80 85 90 95 100 Fraction # Purity PUR / % 5 10 15 20 0.02 0.04 0.06 0.08 0.1 Fraction # Concentration c / g·L-1 Simulation Experiment 1 15 20 25 30 35 0.05 0.1 Time t / min Concentration cout / g·L-1

1

100 200 300 0.05 0.1 0.15 0.2 Time t / min Concentration cout / g·L-1 Simulation Experiment 1

1

slide-14
SLIDE 14

14

Experimental validation

Experiment 2 – Design via shortcut method

5 10 15 20 50 60 70 80 90 100 Fraction # Purity PUR / % 5 10 15 20 0.1 0.2 0.3 Fraction # Concentration c / g·L-1 Design Experiment 2 20 30 40 0.05 0.1 0.15 0.2 0.25 Time t / min Concentration cout / g·L-1 100 200 300 0.1 0.2 0.3 0.4 Time t / min Concentration cout / g·L-1 Experiment 2

1

slide-15
SLIDE 15

15

Theoretical investigations II

slide-16
SLIDE 16

16

Theoretical investigations II

Unit Arrangements Different setups - different performance?

C M R C M R C M R C R M C R M C R M

R: Reactor M: Membrane C: Column : Fresh Feed 1 2 3 4 5 6

slide-17
SLIDE 17

17

Theoretical investigations II

Perfomance prediction - Yield

C R M

4 Best choice:

0.4 0.6 0.8 1 20 30 40 50 60 70 80 90 100 Membrane rejection R / - Yield Y / % Da = 0.3 0.4 0.6 0.8 1 20 30 40 50 60 70 80 90 100 Membrane rejection R / - Yield Y / % Da = 10 Var 1 Var 2 Var 3 Var 4 Var 5 Var 6 Batch

slide-18
SLIDE 18

18

Theoretical investigations II

Perfomance prediction - Productivity

C R M

4 Best choice:

0.4 0.6 0.8 1 1.5 2 2.5 3 Membrane rejection R / - Productivity PR / g·h-1·L-1 Da = 0.3 0.4 0.6 0.8 1 1.5 2 2.5 3 Membrane rejection R / - Productivity PR / g·h-1·L-1 Da = 10 Var 1 Var 2 Var 3 Var 4 Var 5 Var 6 Batch

slide-19
SLIDE 19

19

Further extensions of concept?

slide-20
SLIDE 20

20

Further extensions of concept

heating jacket reaction chamber stirrer membrane

slide-21
SLIDE 21

21

Further extensions of concept

On-column protein refolding

Single-column Chromatography Membrane reactor Denatured protein (D) SolvR

X D

Native protein (N) Undesired conformations (X) Solvent SolvD

D N X

slide-22
SLIDE 22

22

Summary

Summary

  • Proposed concept capable of significantly improving yield and performance
  • Shortcut methods developed for basic design, full model for detailed design
  • Performance limited mainly by membrane rejection
  • Process setup influences performance
  • First successful realization of such process in directly coupled operation

Outlook

  • Potential application to industrial relevant compunds?
slide-23
SLIDE 23

23

Thank you for your attention!

slide-24
SLIDE 24

24

Racemization scheme

Chlorthaidone racemization

  • Nearly insolubile in Water
  • Increasing solubility in

MeOH/H2O

  • MW =338 g/mol
  • Kinetics known as function of

pH-value and temperature[3] Racemization under acid conditions

[3] J. G. Palacios, B. Kramer, A. Kienle, M. Kaspereit, J Chromatogr A 1218 (2011) 2232- 2239

slide-25
SLIDE 25

25

Detailed process design

Reactor concentration behavior for different Volumes

VR=1mL VR=1000mL

slide-26
SLIDE 26

26

Membran behavior

Reaktor Membranmodul

I

  • Membran Reactor design
  • Membrane unit acts as CSTR

(residence time function) N E P F B I

slide-27
SLIDE 27

27

Experimental characterization

Parameter determination - Nanofiltration

2 4 6 8 50 100 150 200 250 300 350 400 450 500 Pressure ∆p [bar] Permeate flux for pure solvent [mL/min/m

2]

0.1 0.2 0.3 0.4 100 150 200 250 300 350 400 450 500 550 600 Concentration cCTD [g/L] Permeate flux [mL/min/m

2]

8.30 bar 6.38 bar 4.80 bar

Pure water experiments (k1) Batch concentration experiments (k2)

slide-28
SLIDE 28

28

Experimental characterization

  • Parameter determination - Racemization

Time [min] Concentration [g/L] Time [min] ln(c*)
