Bitcoin Clustering P2P wallet leak Analysis Conclusion Privacy in Bitcoin On the Effectiveness of Clustering Jonas Nick March 15, 2016 Privacy in Bitcoin Jonas Nick 1/34 Bitcoin Clustering P2P wallet leak Analysis Conclusion Privacy

slide-1
SLIDE 1

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Privacy in Bitcoin

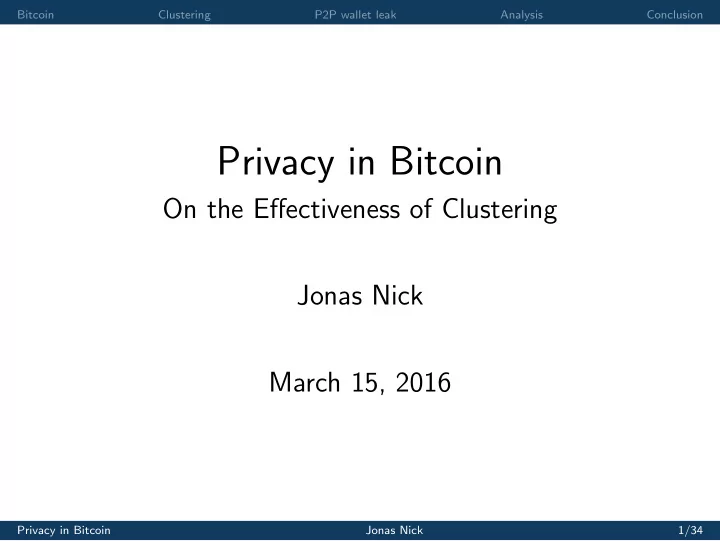

On the Effectiveness of Clustering Jonas Nick March 15, 2016

Privacy in Bitcoin Jonas Nick 1/34

slide-2
SLIDE 2

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Privacy

Privacy in Bitcoin Jonas Nick 2/34

slide-3
SLIDE 3

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Privacy

◮ Anonymity ◮ ”Silkroad, anonymous market” - Bitcoin drug

market

Privacy in Bitcoin Jonas Nick 2/34

slide-4
SLIDE 4

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Privacy

◮ Anonymity ◮ ”Silkroad, anonymous market” - Bitcoin drug

market

◮ ”... the major advantage they [Bitcoin] are

providing is anonymity.”

  • NY’s Department of financial services

Privacy in Bitcoin Jonas Nick 2/34

slide-5
SLIDE 5

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Privacy

◮ Anonymity ◮ ”Silkroad, anonymous market” - Bitcoin drug

market

◮ ”... the major advantage they [Bitcoin] are

providing is anonymity.”

  • NY’s Department of financial services

◮ ”... usually not very anonymous.” - Bitcoin wiki Privacy in Bitcoin Jonas Nick 2/34

slide-6
SLIDE 6

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Privacy

◮ Anonymity ◮ ”Silkroad, anonymous market” - Bitcoin drug

market

◮ ”... the major advantage they [Bitcoin] are

providing is anonymity.”

  • NY’s Department of financial services

◮ ”... usually not very anonymous.” - Bitcoin wiki Privacy in Bitcoin Jonas Nick 2/34

slide-7
SLIDE 7

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Privacy

◮ Why? ◮ Privacy and fungibility essential characteristics of

money.

◮ What? ◮ Anonymity + Selective Transparency Privacy in Bitcoin Jonas Nick 3/34

slide-8
SLIDE 8

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Privacy

◮ Why? ◮ Privacy and fungibility essential characteristics of

money.

◮ What? ◮ Anonymity + Selective Transparency ◮ Good news: That’s possible Privacy in Bitcoin Jonas Nick 3/34

slide-9
SLIDE 9

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Privacy

◮ Why? ◮ Privacy and fungibility essential characteristics of

money.

◮ What? ◮ Anonymity + Selective Transparency ◮ Good news: That’s possible ◮ This talk: There’s a long road road ahead Privacy in Bitcoin Jonas Nick 3/34

slide-10
SLIDE 10

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Privacy

◮ Bitcoin is pseudonymous ◮ entities (persons, companies, etc.) are

represented by public keys (≈ addresses)

◮ unbounded number of public keys per entity Privacy in Bitcoin Jonas Nick 4/34

slide-11
SLIDE 11

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Privacy

◮ Bitcoin is pseudonymous ◮ entities (persons, companies, etc.) are

represented by public keys (≈ addresses)

◮ unbounded number of public keys per entity ◮ sender public keys, recipient public keys and

values of transactions are public

Privacy in Bitcoin Jonas Nick 4/34

slide-12
SLIDE 12

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Privacy

◮ Bitcoin is pseudonymous ◮ entities (persons, companies, etc.) are

represented by public keys (≈ addresses)

◮ unbounded number of public keys per entity ◮ sender public keys, recipient public keys and

values of transactions are public

◮ unknown which public keys belong to an entity Privacy in Bitcoin Jonas Nick 4/34

slide-13
SLIDE 13

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Privacy

◮ Bitcoin is pseudonymous ◮ entities (persons, companies, etc.) are

represented by public keys (≈ addresses)

◮ unbounded number of public keys per entity ◮ sender public keys, recipient public keys and

values of transactions are public

◮ unknown which public keys belong to an entity ◮ Clustering: Given public key, use blockchain to

find public keys owned by the same entity.

Privacy in Bitcoin Jonas Nick 4/34

slide-14
SLIDE 14

Bitcoin Clustering P2P wallet leak Analysis Conclusion

<Friedrich Nietzsche>: Glad that I could help - would be great if you pass me some bitcoin 1GsYQYsgf1zmwY8LAsgEMD

Privacy in Bitcoin Jonas Nick 5/34

slide-15
SLIDE 15

Bitcoin Clustering P2P wallet leak Analysis Conclusion

<Friedrich Nietzsche>: Glad that I could help - would be great if you pass me some bitcoin 1GsYQYsgf1zmwY8LAsgEMD

In blockchain:

1FgtvT2W45nZi9fr3jsVRt

1 bitcoin

− − − − → 1abcDogDating

Privacy in Bitcoin Jonas Nick 5/34

slide-16
SLIDE 16

Bitcoin Clustering P2P wallet leak Analysis Conclusion

<Friedrich Nietzsche>: Glad that I could help - would be great if you pass me some bitcoin 1GsYQYsgf1zmwY8LAsgEMD

In blockchain:

1FgtvT2W45nZi9fr3jsVRt

1 bitcoin

− − − − → 1abcDogDating

Clustering reveals both addresses are from same wallet

Privacy in Bitcoin Jonas Nick 5/34

slide-17
SLIDE 17

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

◮ balance-based vs. UTXO model Privacy in Bitcoin Jonas Nick 6/34

slide-18
SLIDE 18

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

◮ balance-based vs. UTXO model ◮ balance-based (f.e. Ethereum) ◮ Blockchain state

Alice 2 Bob

Privacy in Bitcoin Jonas Nick 6/34

slide-19
SLIDE 19

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

◮ balance-based vs. UTXO model ◮ balance-based (f.e. Ethereum) ◮ Blockchain state

Alice 2 Bob

◮ Transaction: Alice

1 coin

− − − → Bob

Privacy in Bitcoin Jonas Nick 6/34

slide-20
SLIDE 20

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

◮ balance-based vs. UTXO model ◮ balance-based (f.e. Ethereum) ◮ Blockchain state

Alice 2 Bob

◮ Transaction: Alice

1 coin

− − − → Bob

◮ new Blockchain state

Alice 1 Bob 1

Privacy in Bitcoin Jonas Nick 6/34

slide-21
SLIDE 21

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

◮ UTXOs (Unspent Transaction Outputs) ◮ Bitcoin’s model

A1 1 A2 1

◮ Balance implicit ◮ Cash analogy

slide-22
SLIDE 22

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

◮ UTXOs (Unspent Transaction Outputs) ◮ Bitcoin’s model

A1 1 A2 1 B1 1 A1 1

◮ Balance implicit ◮ Cash analogy Privacy in Bitcoin Jonas Nick 7/34

slide-23
SLIDE 23

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

Privacy in Bitcoin Jonas Nick 8/34

slide-24
SLIDE 24

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

  • U1 1
  • ◮ user U, merchant M

◮ spend tx outputs

(value and recipient)

slide-25
SLIDE 25

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

  • U1 1
  • M1 .5

◮ user U, merchant M ◮ spend tx outputs

(value and recipient)

slide-26
SLIDE 26

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

  • U1 1
  • M1 .5

◮ user U, merchant M ◮ spend tx outputs

(value and recipient)

slide-27
SLIDE 27

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

  • U1 1
  • M1 .5

U1 1

◮ user U, merchant M ◮ spend tx outputs

(value and recipient)

◮ inputs

slide-28
SLIDE 28

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

  • U1 1
  • M1 .5

U1 1 U2 .5

◮ user U, merchant M ◮ spend tx outputs

(value and recipient)

◮ inputs ◮ change

slide-29
SLIDE 29

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

  • U1 1
  • M1 .5

U1 1 U2 .5 M2 .6 U4 .4

◮ user U, merchant M ◮ spend tx outputs

(value and recipient)

◮ inputs ◮ change

slide-30
SLIDE 30

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

  • U1 1
  • M1 .5

U1 1 U2 .5 M2 .6 U4 .4

  • U3 .5

◮ user U, merchant M ◮ spend tx outputs

(value and recipient)

◮ inputs ◮ change

slide-31
SLIDE 31

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

  • U1 1
  • M1 .5

U1 1 U2 .5 M2 .6 U4 .4

  • U3 .5

U2 .5 U3 .5

◮ user U, merchant M ◮ spend tx outputs

(value and recipient)

◮ inputs ◮ change ◮ multi-input tx Privacy in Bitcoin Jonas Nick 8/34

slide-32
SLIDE 32

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Transactions

  • U1 1
  • M1 .5

U1 1 U2 .5 M2 .6 U4 .4

  • U3 .5

U2 .5 U3 .5

◮ user U, merchant M ◮ spend tx outputs

(value and recipient)

◮ inputs ◮ change ◮ multi-input tx ◮ pay-to-pubkey-hash Privacy in Bitcoin Jonas Nick 8/34

slide-33
SLIDE 33

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Questions?

Privacy in Bitcoin Jonas Nick 9/34

slide-34
SLIDE 34

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Clustering Strategies

◮ Given pubkey, use blockchain to find pubkeys

  • f the same wallet

◮ make assumptions about wallet behavior ◮ heuristics Privacy in Bitcoin Jonas Nick 10/34

slide-35
SLIDE 35

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Multi-input heuristic

All inputs of a transaction belong to the same wallet.

Privacy in Bitcoin Jonas Nick 11/34

slide-36
SLIDE 36

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Multi-input heuristic

All inputs of a transaction belong to the same wallet. M1 .5 U2 .5 M2 .6 U4 .4

  • U3 .5

U2 .5 U3 .5 M1 .5 U2 .5 U2 .5

Privacy in Bitcoin Jonas Nick 11/34

slide-37
SLIDE 37

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Multi-input heuristic

All inputs of a transaction belong to the same wallet. M1 .5 U2 .5 M2 .6 U4 .4

  • U3 .5

U2 .5 U3 .5 M1 .5 U2 .5 U2 .5 U3 .5

Privacy in Bitcoin Jonas Nick 11/34

slide-38
SLIDE 38

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Shadow change heuristic

Change pubkeys have never been seen before in the blockchain.

Privacy in Bitcoin Jonas Nick 12/34

slide-39
SLIDE 39

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Shadow change heuristic

Change pubkeys have never been seen before in the blockchain.

  • M1 1
slide-40
SLIDE 40

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Shadow change heuristic

Change pubkeys have never been seen before in the blockchain.

  • M1 1
  • U1 1
  • M1 .5

U1 1 U2 .5

slide-41
SLIDE 41

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Shadow change heuristic

Change pubkeys have never been seen before in the blockchain.

  • M1 1
  • U1 1
  • M1 .5

U1 1 U2 .5

  • U1 1
slide-42
SLIDE 42

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Shadow change heuristic

Change pubkeys have never been seen before in the blockchain.

  • M1 1
  • U1 1
  • M1 .5

U1 1 U2 .5

  • U1 1
  • M1 .5

U1 1 U2 .5 U2 .5

Privacy in Bitcoin Jonas Nick 12/34

slide-43
SLIDE 43

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Consumer change heuristic

Transactions from consumer wallets have two or less

  • utputs.

Privacy in Bitcoin Jonas Nick 13/34

slide-44
SLIDE 44

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Consumer change heuristic

Transactions from consumer wallets have two or less

  • utputs.
  • U1 1
  • E1 .5

U1 1 U2 .5 E2 .6 U4 .4

  • U3 .5

U2 .5 U3 .5

Privacy in Bitcoin Jonas Nick 13/34

slide-45
SLIDE 45

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Consumer change heuristic

Transactions from consumer wallets have two or less

  • utputs.
  • U1 1
  • E1 .5

U1 1 U2 .5 E2 .6 U4 .4

  • U3 .5

U2 .5 U3 .5 E1 .5

  • Privacy in Bitcoin

Jonas Nick 13/34

slide-46
SLIDE 46

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Consumer change heuristic

Transactions from consumer wallets have two or less

  • utputs.
  • U1 1
  • E1 .5

U1 1 U2 .5 E2 .6 U4 .4

  • U3 .5

U2 .5 U3 .5 E1 .5

  • U1 1
  • Privacy in Bitcoin

Jonas Nick 13/34

slide-47
SLIDE 47

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Consumer change heuristic

Transactions from consumer wallets have two or less

  • utputs.
  • U1 1
  • E1 .5

U1 1 U2 .5 E2 .6 U4 .4

  • U3 .5

U2 .5 U3 .5 E1 .5

  • U1 1
  • U1 1

U2 .5

Privacy in Bitcoin Jonas Nick 13/34

slide-48
SLIDE 48

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Optimal change heuristic

Wallets do not spend unnecessary outputs.

Privacy in Bitcoin Jonas Nick 14/34

slide-49
SLIDE 49

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Optimal change heuristic

Wallets do not spend unnecessary outputs. M1 .5 U2 .5 M2 .6 U4 .4

  • U3 .5

U2 .5 U3 .5 U2 .5

Privacy in Bitcoin Jonas Nick 14/34

slide-50
SLIDE 50

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Optimal change heuristic

Wallets do not spend unnecessary outputs. M1 .5 U2 .5 M2 .6 U4 .4

  • U3 .5

U2 .5 U3 .5 U2 .5 U4 .4

Privacy in Bitcoin Jonas Nick 14/34

slide-51
SLIDE 51

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Optimal change heuristic

Wallets do not spend unnecessary outputs. M1 .5 U2 .5 M2 .6 U4 .4

  • U3 .5

U2 .5 U3 .5 U2 .5 U4 .4 If there is a unique output with a value smaller than any of the inputs, then this is the change.

Privacy in Bitcoin Jonas Nick 14/34

slide-52
SLIDE 52

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Next steps

◮ How to quantify privacy on the blockchain? ◮ Requires data... Privacy in Bitcoin Jonas Nick 15/34

slide-53
SLIDE 53

Bitcoin Clustering P2P wallet leak Analysis Conclusion

P2P wallet leak

◮ simplified payment verification (SPV): light

wallets

Privacy in Bitcoin Jonas Nick 16/34

slide-54
SLIDE 54

Bitcoin Clustering P2P wallet leak Analysis Conclusion

P2P wallet leak

◮ simplified payment verification (SPV): light

wallets

◮ Some SPV wallets implement BIP37:

Connection Bloom filtering

◮ used for learning about new transactions

concerning the wallet

Privacy in Bitcoin Jonas Nick 16/34

slide-55
SLIDE 55

Bitcoin Clustering P2P wallet leak Analysis Conclusion

P2P wallet leak

◮ simplified payment verification (SPV): light

wallets

◮ Some SPV wallets implement BIP37:

Connection Bloom filtering

◮ used for learning about new transactions

concerning the wallet

◮ Examples: Android Bitcoin Wallet, MultiBit,

Breadwallet, etc.

Privacy in Bitcoin Jonas Nick 16/34

slide-56
SLIDE 56

Bitcoin Clustering P2P wallet leak Analysis Conclusion

P2P wallet leak

◮ simplified payment verification (SPV): light

wallets

◮ Some SPV wallets implement BIP37:

Connection Bloom filtering

◮ used for learning about new transactions

concerning the wallet

◮ Examples: Android Bitcoin Wallet, MultiBit,

Breadwallet, etc.

Privacy in Bitcoin Jonas Nick 16/34

slide-57
SLIDE 57

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Bloom Filter

Privacy in Bitcoin Jonas Nick 17/34

slide-58
SLIDE 58

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Bloom Filter

◮ Purpose: efficiently testing if element is

contained in a set

Privacy in Bitcoin Jonas Nick 17/34

slide-59
SLIDE 59

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Bloom Filter

◮ Purpose: efficiently testing if element is

contained in a set

◮ Operations: insert and query Privacy in Bitcoin Jonas Nick 17/34

slide-60
SLIDE 60

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Bloom Filter

◮ Purpose: efficiently testing if element is

contained in a set

◮ Operations: insert and query ◮ False positive rate: Pr(query|not inserted) Privacy in Bitcoin Jonas Nick 17/34

slide-61
SLIDE 61

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Bloom Filter

◮ Purpose: efficiently testing if element is

contained in a set

◮ Operations: insert and query ◮ False positive rate: Pr(query|not inserted) ◮ No false negatives Privacy in Bitcoin Jonas Nick 17/34

slide-62
SLIDE 62

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Bloom Filter in Bitcoin

Privacy in Bitcoin Jonas Nick 18/34

slide-63
SLIDE 63

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Bloom Filter in Bitcoin

◮ Filter has space and time advantage Privacy in Bitcoin Jonas Nick 19/34

slide-64
SLIDE 64

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Bloom Filter in Bitcoin

◮ Filter has space and time advantage ◮ fp-rate: bandwidth/privacy trade-off Privacy in Bitcoin Jonas Nick 19/34

slide-65
SLIDE 65

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Bloom Filter in Bitcoin

◮ Filter has space and time advantage ◮ fp-rate: bandwidth/privacy trade-off ◮ Most wallets: 8000 false positives Privacy in Bitcoin Jonas Nick 19/34

slide-66
SLIDE 66

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Bloom Filter Vulnerability

◮ Idea: query both pubkey and hash(pubkey) ◮ then

Pr(query(pk and pkh)|not inserted(pk and pkh))

Privacy in Bitcoin Jonas Nick 20/34

slide-67
SLIDE 67

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Bloom Filter Vulnerability

◮ Idea: query both pubkey and hash(pubkey) ◮ then

Pr(query(pk and pkh)|not inserted(pk and pkh))

◮ = fp-rate2 Privacy in Bitcoin Jonas Nick 20/34

slide-68
SLIDE 68

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Bloom Filter Vulnerability

◮ Idea: query both pubkey and hash(pubkey) ◮ then

Pr(query(pk and pkh)|not inserted(pk and pkh))

◮ = fp-rate2 ◮ most wallets: 1 false positive Privacy in Bitcoin Jonas Nick 20/34

slide-69
SLIDE 69

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Bloom Filter Vulnerability

◮ Idea: query both pubkey and hash(pubkey) ◮ then

Pr(query(pk and pkh)|not inserted(pk and pkh))

◮ = fp-rate2 ◮ most wallets: 1 false positive ◮ 20 crawlers collected 37,585 filters ◮ need to be picked up by seed nodes Privacy in Bitcoin Jonas Nick 20/34

slide-70
SLIDE 70

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Results

Figure Distribution of the number of pubkeys in captured BIP37 wallets.

Privacy in Bitcoin Jonas Nick 21/34

slide-71
SLIDE 71

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Results

Figure Distribution of total received bitcoins for a subset of wallets.

Privacy in Bitcoin Jonas Nick 22/34

slide-72
SLIDE 72

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Mitigation

◮ A general fix requires substantial modification

  • f the protocol and is not on the priority list.

Privacy in Bitcoin Jonas Nick 23/34

slide-73
SLIDE 73

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Mitigation

◮ A general fix requires substantial modification

  • f the protocol and is not on the priority list.

◮ Alternatives ◮ a central server that learns all of the client’s

addresses

◮ full node Privacy in Bitcoin Jonas Nick 23/34

slide-74
SLIDE 74

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Evaluate Clustering

◮ Collected filters allow to reconstruct all

pubkeys of a wallet

◮ Can apply clustering and evaluate clustering

performance using ”Ground truth”

Privacy in Bitcoin Jonas Nick 24/34

slide-75
SLIDE 75

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Performance metric

◮ precision: Pr(in wallet|heuristic) ◮ recall: Pr(heuristic|in wallet) Privacy in Bitcoin Jonas Nick 25/34

slide-76
SLIDE 76

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Performance metric

◮ precision: Pr(in wallet|heuristic) ◮ recall: Pr(heuristic|in wallet)

  • U1 1
  • M1 .5

U1 1 U2 .5 M2 .6 U4 .4

  • U3 .5

U2 .5 U3 .5 M1 .5 U1 1 U2 .5 U2 .5 U3 .5 precision: 1, recall: 2

4

Privacy in Bitcoin Jonas Nick 25/34

slide-77
SLIDE 77

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Results

Heuristic mean recall 1/(wallet size) 66.27% Multi-input 68.59% Shadow 69.16% Consumer 69.26% Optimal 69.34% Best 70.94%

Privacy in Bitcoin Jonas Nick 26/34

slide-78
SLIDE 78

Bitcoin Clustering P2P wallet leak Analysis Conclusion Privacy in Bitcoin Jonas Nick 27/34

slide-79
SLIDE 79

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Result

Privacy in Bitcoin Jonas Nick 28/34

slide-80
SLIDE 80

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Conclusion

◮ captured pubkeys of 37, 000 wallets from the

Bitcoin network

Privacy in Bitcoin Jonas Nick 29/34

slide-81
SLIDE 81

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Conclusion

◮ captured pubkeys of 37, 000 wallets from the

Bitcoin network

◮ introduced two new clustering strategies Privacy in Bitcoin Jonas Nick 29/34

slide-82
SLIDE 82

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Conclusion

◮ captured pubkeys of 37, 000 wallets from the

Bitcoin network

◮ introduced two new clustering strategies ◮ evaluated performance of clustering using

ground truth

Privacy in Bitcoin Jonas Nick 29/34

slide-83
SLIDE 83

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Conclusion

◮ captured pubkeys of 37, 000 wallets from the

Bitcoin network

◮ introduced two new clustering strategies ◮ evaluated performance of clustering using

ground truth

◮ modern wallets: 70% recall Privacy in Bitcoin Jonas Nick 29/34

slide-84
SLIDE 84

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Countermeasures for User

◮ keep your wallet up to date Privacy in Bitcoin Jonas Nick 30/34

slide-85
SLIDE 85

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Countermeasures for User

◮ keep your wallet up to date ◮ do not use wallets with Bloom filtering Privacy in Bitcoin Jonas Nick 30/34

slide-86
SLIDE 86

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Countermeasures for User

◮ keep your wallet up to date ◮ do not use wallets with Bloom filtering ◮ do not reuse addresses Privacy in Bitcoin Jonas Nick 30/34

slide-87
SLIDE 87

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Countermeasures for User

◮ keep your wallet up to date ◮ do not use wallets with Bloom filtering ◮ do not reuse addresses ◮ other parties play a role Privacy in Bitcoin Jonas Nick 30/34

slide-88
SLIDE 88

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Countermeasures for User

◮ keep your wallet up to date ◮ do not use wallets with Bloom filtering ◮ do not reuse addresses ◮ other parties play a role ◮ separate Privacy in Bitcoin Jonas Nick 30/34

slide-89
SLIDE 89

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Countermeasures for User

◮ keep your wallet up to date ◮ do not use wallets with Bloom filtering ◮ do not reuse addresses ◮ other parties play a role ◮ separate ◮ openbitcoinprivacyproject.org Privacy in Bitcoin Jonas Nick 30/34

slide-90
SLIDE 90

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Countermeasures for User

◮ keep your wallet up to date ◮ do not use wallets with Bloom filtering ◮ do not reuse addresses ◮ other parties play a role ◮ separate ◮ openbitcoinprivacyproject.org ◮ altcoins? Privacy in Bitcoin Jonas Nick 30/34

slide-91
SLIDE 91

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Countermeasures for Developer

◮ coin selection Privacy in Bitcoin Jonas Nick 31/34

slide-92
SLIDE 92

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Countermeasures for Developer

◮ coin selection ◮ coinjoin

  • +
  • Privacy in Bitcoin

Jonas Nick 31/34

slide-93
SLIDE 93

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Countermeasures for User

◮ coinjoin

  • AI .5

AO .5 AO .5

  • AI .5

AI .5 AI .5

Privacy in Bitcoin Jonas Nick 32/34

slide-94
SLIDE 94

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Countermeasures for User

◮ coinjoin

  • AI .5

AO .5 AO .5

  • AI .5

AI .5 AI .5

◮ trustless, but ◮ UI, exact protocol challenging ◮ Confidential transactions Privacy in Bitcoin Jonas Nick 32/34

slide-95
SLIDE 95

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Countermeasures for User

◮ Joinmarket Privacy in Bitcoin Jonas Nick 33/34

slide-96
SLIDE 96

Bitcoin Clustering P2P wallet leak Analysis Conclusion

Q&A

◮ Questions? ◮ Contact ◮ nickler.ninja ◮ slides: nickler.ninja/slides/

2016-zurich-meetup.pdf

◮ thesis: nickler.ninja/papers/thesis.pdf ◮ jonas@blockstream.com Privacy in Bitcoin Jonas Nick 34/34
