Prioritizing Therapeutics for Lung Cancer: An Integrative - - PowerPoint PPT Presentation

Prioritizing Therapeutics for Lung Cancer: An Integrative Meta-analysis of Cancer Gene Signatures and Chemogenomic Data Fortney et al. Presented by Erkin Otles Approach Identify drugs that reverse gene expression signature of a disease


slide-1

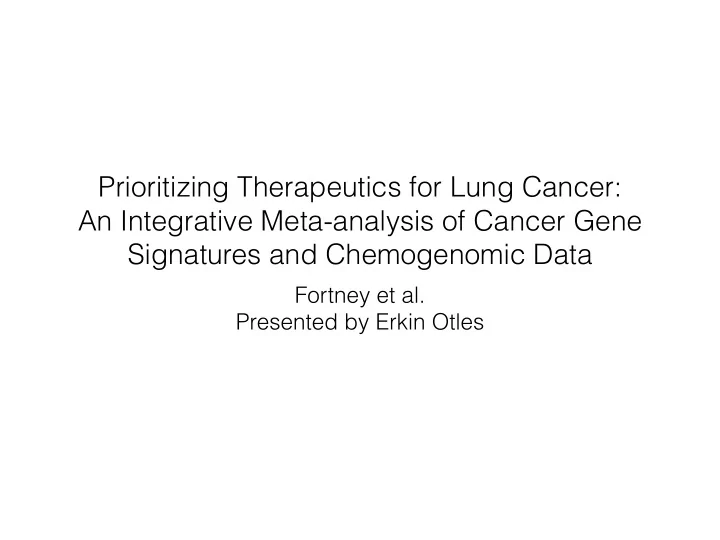

SLIDE 1

Prioritizing Therapeutics for Lung Cancer:
 An Integrative Meta-analysis of Cancer Gene Signatures and Chemogenomic Data

Fortney et al. Presented by Erkin Otles

slide-2
SLIDE 2

Approach

Identify drugs that reverse gene expression signature

  • f a disease

Issues analyzing signatures: Inconsistency across studies Different study designs?

slide-3
SLIDE 3

Signature Source: CMap

Connectivity Map Catalogue of responses to treatments >1,000 small molecules

slide-4
SLIDE 4

CMap

The Connectivity Map: Using Gene-Expression Signatures to Connect Small Molecules, Genes, and Disease Lamb 2006

slide-5
SLIDE 5

Traditional Approaches

Collapse disease signatures into meta-signature Query CMap based on meta-signature Meta-signature may be good, but CMap is noisy Target lists are sensitive

slide-6
SLIDE 6

CMapBatch

For each cancer (disease) sample: Calculate mean connectivity scores for all small molecules Use mean connectivity score to create ranked lists

  • f drugs

Look across signatures to find consistently highly ranked drugs (Rank Product!)

slide-7
SLIDE 7

CMap, CMapBatch, Batch Map Batch!

slide-8
SLIDE 8

RankProduct

Drum Roll Please…

slide-9
SLIDE 9

RankProduct - Breitling 2004

For an experiment examining n genes in k replicates,

  • ne might argue that the probability for a certain

gene to be at the top of each list (rank 1) is exactly
 1/nk
 if the lists were entirely random.

slide-10
SLIDE 10

RankProduct - Breitling 2004

More generally, for each gene g in k replicates i, each examining ni genes, one can calculate the corresponding combined probability as a rank product RP = ᴨi in k (ri/ni) If ni = n for all replicates RP = (ᴨi in k ri)1/k

slide-11
SLIDE 11

Using CMapBatch on Lung Cancer

21 gene expression signatures from Oncomine and CDIP

slide-12
SLIDE 12

Improved drug list stability

slide-13
SLIDE 13

Candidate drugs inhibit growth better

slide-14
SLIDE 14

Prioritized drugs have similar structure

Is this due to CMapBatch picking broad acting agents?

slide-15
SLIDE 15

Significant drugs share protein targets

slide-16
SLIDE 16

CMapBatch picks broad acting drugs

Is this a good thing?

slide-17
SLIDE 17

Pimozide reduces viability of lung cancer
