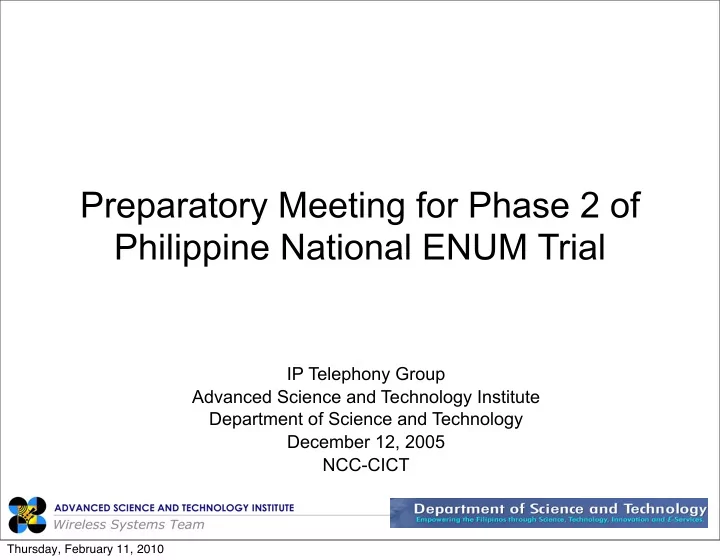

Preparatory Meeting for Phase 2 of Philippine National ENUM Trial

IP Telephony Group Advanced Science and Technology Institute Department of Science and Technology December 12, 2005 NCC-CICT

Thursday, February 11, 2010

slide-2
SLIDE 2

Dialing Scheme

Thursday, February 11, 2010

slide-3
SLIDE 3

Dialing Scheme

  • H.323 Gatekeeper Peering
  • SIP URL + DNS SRV Record
  • ENUM

Thursday, February 11, 2010

slide-4
SLIDE 4

H.323 Gatekeeper Peering

  • The Global Dialing Scheme

(GDS) provides a structure for peering between gatekeepers, such that any endpoint associated with a zone may dial an endpoint in any other zone.

Thursday, February 11, 2010

slide-5
SLIDE 5

SIP URL + DNS SRV Record

sip:ceejay@some.provider

Some.provider pregi.net

SIP server SIP server

sip:denis@some.provider sip:123@pregi.net sip:555@pregi.net

Internet

Thursday, February 11, 2010

slide-6
SLIDE 6

SIP URL + DNS SRV Record

sip:ceejay@some.provider

Some.provider pregi.net

SIP server SIP server

sip:denis@some.provider sip:123@pregi.net sip:555@pregi.net

sip:555@pregi.net

Internet

Thursday, February 11, 2010

slide-7
SLIDE 7

SIP URL + DNS SRV Record

sip:ceejay@some.provider

Some.provider pregi.net

SIP server SIP server

sip:denis@some.provider sip:123@pregi.net sip:555@pregi.net

sip:555@pregi.net

DNS SRV lookup pregi.net

Internet

Thursday, February 11, 2010

slide-8
SLIDE 8

SIP URL + DNS SRV Record

sip:ceejay@some.provider

Some.provider pregi.net

SIP server SIP server

sip:denis@some.provider sip:123@pregi.net sip:555@pregi.net

sip:555@pregi.net

DNS SRV lookup pregi.net

sip:55@pregi.net

Internet

Thursday, February 11, 2010

slide-9
SLIDE 9

SIP URL + DNS SRV Record

sip:ceejay@some.provider

Some.provider pregi.net

SIP server SIP server

sip:denis@some.provider sip:123@pregi.net sip:555@pregi.net

sip:555@pregi.net session

DNS SRV lookup pregi.net

sip:55@pregi.net

Internet

Thursday, February 11, 2010

slide-10
SLIDE 10

ENUM(RFC 3761)

Thursday, February 11, 2010

slide-11
SLIDE 11

What is ENUM

  • ENUM works

INTERNET Telephone Network

ENUM DNS Server ENUM No. Email / SIP / URL Telephone No. Mobile No. Fax No.

Enabled Applications

  • Voice over IP
  • Unified

Messaging

  • Instant

Messaging

  • IP Fax
  • Personal Web

Pages

Thursday, February 11, 2010

slide-12
SLIDE 12

What is ENUM

VoIP Service Mobile Public Phone Service (PSTN or IP) Internet Terminal (browser / outlook / VoIP Platform) Mobile Handset Home Phone Called B@xxx.co.kr www.xxx.co.kr E.164 Mobile No. Geographic E.164 VoIP Network Geographic E.164 E.164 No. Of Called B Service lists, related names and, preference

Information of Called B ENUM DNS service

Caller A

1 2 4

WebSite / e-Mail IP Network Mobile Network Choose ENUM service Multi Service Terminal PSTN

3

Called B

  • ENUM Usages

Thursday, February 11, 2010

slide-13
SLIDE 13

ENUM is Convergence

ENUM at its most basic is the convergence of the Public Switched Telephone Network (PSTN) and Internet Protocol (IP) networks; it is the mapping of a telephone number from the PSTN to Internet functionalities. ENUM takes a complete, international telephone number and resolves it to a fully qualified domain name address using a Domain Name Service (DNS)-based architecture.

Thursday, February 11, 2010

slide-14
SLIDE 14

So what is ENUM adding?

sip:ceejay@asti.dost.gov.ph

some.provider pregi.net ENUM DNS

SIP server SIP server

sip:mah@asti.dost.gov.ph sip:123@pregi.net sip:555@pregi.net Thursday, February 11, 2010

slide-15
SLIDE 15

So what is ENUM adding?

sip:ceejay@asti.dost.gov.ph

some.provider pregi.net ENUM DNS

SIP server SIP server

sip:mah@asti.dost.gov.ph sip:123@pregi.net sip:555@pregi.net

+637315555

Thursday, February 11, 2010

slide-16
SLIDE 16

So what is ENUM adding?

sip:ceejay@asti.dost.gov.ph

some.provider pregi.net ENUM DNS

SIP server SIP server

sip:mah@asti.dost.gov.ph sip:123@pregi.net sip:555@pregi.net

+637315555 IN NAPTR 5.5.5.5.1.3.7.3.6.e164.arpa. ?

Thursday, February 11, 2010

slide-17
SLIDE 17

So what is ENUM adding?

sip:ceejay@asti.dost.gov.ph

some.provider pregi.net ENUM DNS

SIP server SIP server

sip:mah@asti.dost.gov.ph sip:123@pregi.net sip:555@pregi.net

+637315555 IN NAPTR 5.5.5.5.1.3.7.3.6.e164.arpa. ?

... NAPTR ... "!^.*$!sip:555@pregi.net!"

Thursday, February 11, 2010

slide-18
SLIDE 18

So what is ENUM adding?

sip:ceejay@asti.dost.gov.ph

some.provider pregi.net ENUM DNS

SIP server SIP server

sip:mah@asti.dost.gov.ph sip:123@pregi.net sip:555@pregi.net

+637315555 IN NAPTR 5.5.5.5.1.3.7.3.6.e164.arpa. ?

... NAPTR ... "!^.*$!sip:555@pregi.net!"

DNS SRV lookup fwd.pulver.com Thursday, February 11, 2010

slide-19
SLIDE 19

So what is ENUM adding?

sip:ceejay@asti.dost.gov.ph

some.provider pregi.net ENUM DNS

SIP server SIP server

sip:mah@asti.dost.gov.ph sip:123@pregi.net sip:555@pregi.net

+637315555 IN NAPTR 5.5.5.5.1.3.7.3.6.e164.arpa. ?

... NAPTR ... "!^.*$!sip:555@pregi.net!"

DNS SRV lookup fwd.pulver.com

sip:555@sip.pregi.net

Thursday, February 11, 2010

slide-20
SLIDE 20

So what is ENUM adding?

sip:ceejay@asti.dost.gov.ph

some.provider pregi.net ENUM DNS

SIP server SIP server

sip:mah@asti.dost.gov.ph sip:123@pregi.net sip:555@pregi.net

+637315555 session IN NAPTR 5.5.5.5.1.3.7.3.6.e164.arpa. ?

... NAPTR ... "!^.*$!sip:555@pregi.net!"

DNS SRV lookup fwd.pulver.com

sip:555@sip.pregi.net

Thursday, February 11, 2010

slide-21
SLIDE 21

ENUM in a nutshell

Thursday, February 11, 2010

slide-22
SLIDE 22

ENUM in a nutshell

  • take an E.164 phone number

Thursday, February 11, 2010

slide-23
SLIDE 23

ENUM in a nutshell

  • take an E.164 phone number

+63 2 426 9766

Thursday, February 11, 2010

slide-24
SLIDE 24

ENUM in a nutshell

  • take an E.164 phone number

+63 2 426 9766

  • turn it into a FQDN

Thursday, February 11, 2010

slide-25
SLIDE 25

ENUM in a nutshell

  • take an E.164 phone number

+63 2 426 9766

  • turn it into a FQDN

6.6.7.9.6.2.4.2.3.6.e164.arpa.

Thursday, February 11, 2010

slide-26
SLIDE 26

ENUM in a nutshell

  • take an E.164 phone number

+63 2 426 9766

  • turn it into a FQDN

6.6.7.9.6.2.4.2.3.6.e164.arpa.

Thursday, February 11, 2010

slide-27
SLIDE 27

ENUM in a nutshell

  • take an E.164 phone number

+63 2 426 9766

  • turn it into a FQDN

6.6.7.9.6.2.4.2.3.6.e164.arpa.

  • query the DNS (for NAPTR)

Thursday, February 11, 2010

slide-28
SLIDE 28

ENUM in a nutshell

  • take an E.164 phone number

+63 2 426 9766

  • turn it into a FQDN

6.6.7.9.6.2.4.2.3.6.e164.arpa.

  • query the DNS (for NAPTR)

Thursday, February 11, 2010

slide-29
SLIDE 29

ENUM in a nutshell

  • take an E.164 phone number

+63 2 426 9766

  • turn it into a FQDN

6.6.7.9.6.2.4.2.3.6.e164.arpa.

  • returns list of URIs
  • query the DNS (for NAPTR)

Thursday, February 11, 2010

slide-30
SLIDE 30

ENUM in a nutshell

  • take an E.164 phone number

+63 2 426 9766

  • turn it into a FQDN

6.6.7.9.6.2.4.2.3.6.e164.arpa.

  • returns list of URIs

sip:ceejay@asti.dost.gov.ph

  • query the DNS (for NAPTR)

Thursday, February 11, 2010

slide-31
SLIDE 31

ENUM in a nutshell

  • take an E.164 phone number

+63 2 426 9766

  • turn it into a FQDN

6.6.7.9.6.2.4.2.3.6.e164.arpa.

  • returns list of URIs

sip:ceejay@asti.dost.gov.ph

  • query the DNS (for NAPTR)

mailto:ceejay@asti.dost.gov.ph

Thursday, February 11, 2010

slide-32
SLIDE 32

ENUM in a nutshell

  • take an E.164 phone number

+63 2 426 9766

  • turn it into a FQDN

6.6.7.9.6.2.4.2.3.6.e164.arpa.

  • returns list of URIs

sip:ceejay@asti.dost.gov.ph

  • query the DNS (for NAPTR)

mailto:ceejay@asti.dost.gov.ph sms tel:+639165407331

Thursday, February 11, 2010

slide-33
SLIDE 33

ENUM in a nutshell

  • take an E.164 phone number

+63 2 426 9766

  • turn it into a FQDN

6.6.7.9.6.2.4.2.3.6.e164.arpa.

  • returns list of URIs

sip:ceejay@asti.dost.gov.ph

  • query the DNS (for NAPTR)

mailto:ceejay@asti.dost.gov.ph sms tel:+639165407331

IN NAPTR 100 100 "u" “E2U+sip“ !^.*$!SIP:ceejay@asti.dost.gov.ph!.

Thursday, February 11, 2010

slide-34
SLIDE 34

ENUM Server Media Gateway STP Signaling Gateway MGC SSP Proxy Server A Proxy Server B

ENUM enables PSTN to SIP calls

1

SIP: UserB@illuminet.com

User B

ENUM 21215553191.e164.arpa

5 4

Invite 3

2

Invite 6 Invite 7

User A

Invite: 19135551212 From: 12025551212 Invite: SIP: UserB@illuminet.com From: 12025551212 In this example, User A attempts to contact User B who is on a VoIP network and uses a SIP phone. 1. User A dials the global E.164 number for User B. 2. The SSP sends an IAM message via SS7 to a SG (which is part of the Media Gateway Controller / Media Gateway). 3. The Media Gateway Controller sends an invite message to the nearest Proxy Server. 4. Proxy Server A does not know User B address; therefore it contacts an ENUM Server. 5. The ENUM Server returns the address of User B. 6. Proxy A sends invite message to User B’s Proxy Server B 7. Proxy Server B passes the invite to User B 8. If User B accepts the call, there is a two-way RTP path established between User B and the Media Gateway controller. A two-way path is also established between the Media Gateway and User A. At this point User A is able to communicate with User B.

8

Thursday, February 11, 2010

slide-35
SLIDE 35

What are the major benefits?

  • Linking to together VoIP islands on the Internet, enabling all

Internet services – VoIP PBX and also “Carrier” networks

  • Allowing terminals on the Internet to be reached from the PSTN

– Terminals on the PSTN may dial only numbers and not URIs

  • ENUM can be used for any URI = any service

– mailto, fax, video, … – sms, mms, … – h323, pres, im, … – http, ft, – certificates, locations, …

Thursday, February 11, 2010

slide-36
SLIDE 36

Enum

ENUM was developed as a solution to the question of how network elements can find services on the Internet using

  • nly a telephone number, and how telephones, which

have an input mechanism limited to twelve keys on a keypad, can be used to access Internet services. ENUM at its most basic is the convergence of PSTN and IP networks; it is the mapping of a telephone number from the public switched telephone network to Internet functionalities.

Thursday, February 11, 2010

slide-37
SLIDE 37

Will ENUM telephone routing confuse the PSTN routing system?

  • It is a core principle that in providing a unified resource directory

service, ENUM will not change the existing right-to-use rules and principles for telephone numbers.

  • ENUM is not intended to change how telephone numbers are

administered, but instead facilitate a wide range of applications using phone numbers as subscriber names.

  • ENUM also will not interfere with existing PSTN functions and

technology, such as circuit switching, SS7 (ISUP or TCAP), or Intelligent Networking, where similar resource discovery activities are performed through the PSTN legacy technologies. ENUM Subscriber edits NAPTR

Thursday, February 11, 2010

slide-38
SLIDE 38

Philippine National ENUM Trial

Thursday, February 11, 2010

slide-39
SLIDE 39

Working Group

  • ENUM Trial Technical WG
  • Definition of possible ENUM DNS models, requirements, evaluation

criteria

  • ENUM Trial Policy and Regulatory WG
  • Discuss policy and regulations in phase 2 and 3 of trial and then

publish guidelines

Thursday, February 11, 2010

slide-40
SLIDE 40

PH ENUM Trial Technical WG (PHETT WG)

Thursday, February 11, 2010

slide-41
SLIDE 41

Responsibilities

  • PH ENUM Trial Technical Working Group is responsible

to set up and carry out the ENUM Trial with the aim to test architectural, technical, operational and user experience aspects related to the provision of ENUM capabilities, as defined in IETF RFC3761, for Country Code 63.

Thursday, February 11, 2010

slide-42
SLIDE 42

PHETT WG Objectives

1. To produce interim and a final reports covering all aspects needed to meet the specified requirements of PHETG to identify technical and policy issues that need to be addressed prior to launch of a commercial implementation of ENUM within PH and make recommendations based

  • n experience gained during the course of the trial where appropriate.

Thursday, February 11, 2010

slide-43
SLIDE 43

PHETT WG Objectives

  • 2. To evaluate processes/interfaces/protocols for the interactions between the

different parties involved (Tier 1 Registry, ENUM Domain Name System (DNS) Provider, ENUM Registrar, Application Service Provider, Number Assignment Entity, Authentication Agency and Telephone Service Provider).

Thursday, February 11, 2010

slide-44
SLIDE 44

PHETT WG Objectives

  • 3. To determine technical and operational requirements to

provisioning ENUM records at Tier 1 Registry and ENUM DNS Provider level and assess DNS requirements/ implications in the provision of ENUM services;

Thursday, February 11, 2010

slide-45
SLIDE 45

PHETT WG Objectives

  • 4. To test from a technical and user perspective applications based on the use
  • f ENUM capabilities.
  • 5. To evaluate and refine economic benefits and costs of supporting ENUM.
  • 6. To consider and implement where appropriate inter-working capabilities with
  • ther ENUM trials.

Thursday, February 11, 2010

slide-46
SLIDE 46

Phases and Schedule for PHETT WG

  • Phase 1(Proof of Concept)
  • Phase 2(Operator ENUM)
  • Phase 3(User ENUM)

Thursday, February 11, 2010

slide-47
SLIDE 47

Phase 1(Proof of Concept)

  • 3.6.e164.arpa Delegation
  • Formulation of ENUM Technical Group
  • Infrastructure
  • ENUM DNS
  • Single Carrier(ASTI’s SIP/H.323 ITSP)
  • ENUM Applications

– SIP Proxy – VoIP Router/Gateway – Internet Fax

  • ENUM Trial Web Portal

– Updates – Online Meeting – Mailing List

Thursday, February 11, 2010

slide-48
SLIDE 48

Phase 2(Operator ENUM)

  • Provisioning, Authentication
  • Integration Trial of National Internet Telephony Service Provider

(SIP)

  • Multiple Carriers Testing(PSTN/Mobile/ITSP Providers)

Thursday, February 11, 2010

slide-49
SLIDE 49

Thursday, February 11, 2010

slide-50
SLIDE 50

ENUM-enabled Number Range

Thursday, February 11, 2010

slide-51
SLIDE 51

ENUM-enabled Number Range

  • Format: +63 73 abcdef (ghi)

Thursday, February 11, 2010

slide-52
SLIDE 52

ENUM-enabled Number Range

  • Format: +63 73 abcdef (ghi)
  • the registration of the ENUM domain IS the number assignment

Thursday, February 11, 2010

slide-53
SLIDE 53

ENUM-enabled Number Range

  • Format: +63 73 abcdef (ghi)
  • the registration of the ENUM domain IS the number assignment
  • a cancellation of the ENUM domain will relinquish the number

Thursday, February 11, 2010

slide-54
SLIDE 54

ENUM-enabled Number Range

  • Format: +63 73 abcdef (ghi)
  • the registration of the ENUM domain IS the number assignment
  • a cancellation of the ENUM domain will relinquish the number
  • easy, cheap, one-step process

Thursday, February 11, 2010

slide-55
SLIDE 55

ENUM-enabled Number Range

  • Format: +63 73 abcdef (ghi)
  • the registration of the ENUM domain IS the number assignment
  • a cancellation of the ENUM domain will relinquish the number
  • easy, cheap, one-step process
  • end-user is in control of the ENUM entries

Thursday, February 11, 2010

slide-56
SLIDE 56

ENUM-enabled Number Range

  • Format: +63 73 abcdef (ghi)
  • the registration of the ENUM domain IS the number assignment
  • a cancellation of the ENUM domain will relinquish the number
  • easy, cheap, one-step process
  • end-user is in control of the ENUM entries
  • decoupling of number range allocation and gateway operator

Thursday, February 11, 2010

slide-57
SLIDE 57

ENUM-enabled Number Range

  • Format: +63 73 abcdef (ghi)
  • the registration of the ENUM domain IS the number assignment
  • a cancellation of the ENUM domain will relinquish the number
  • easy, cheap, one-step process
  • end-user is in control of the ENUM entries
  • decoupling of number range allocation and gateway operator
  • any gateway may route the whole number range,

just needs to be able to query ENUM

Thursday, February 11, 2010

slide-58
SLIDE 58

ENUM-enabled Number Range

  • Format: +63 73 abcdef (ghi)
  • the registration of the ENUM domain IS the number assignment
  • a cancellation of the ENUM domain will relinquish the number
  • easy, cheap, one-step process
  • end-user is in control of the ENUM entries
  • decoupling of number range allocation and gateway operator
  • any gateway may route the whole number range,

just needs to be able to query ENUM

  • any gateway may route similar number ranges

(e.g. +87810, +42360, +260510, …)

Thursday, February 11, 2010

slide-59
SLIDE 59

ENUM-enabled Number Range

  • Format: +63 73 abcdef (ghi)
  • the registration of the ENUM domain IS the number assignment
  • a cancellation of the ENUM domain will relinquish the number
  • easy, cheap, one-step process
  • end-user is in control of the ENUM entries
  • decoupling of number range allocation and gateway operator
  • any gateway may route the whole number range,

just needs to be able to query ENUM

  • any gateway may route similar number ranges

(e.g. +87810, +42360, +260510, …)

  • these gateways are called generic gateways (GG)

Thursday, February 11, 2010

slide-60
SLIDE 60

Example: +6373 and the Generic

Thursday, February 11, 2010

slide-61
SLIDE 61

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

Generic Gateway

Internet

Thursday, February 11, 2010

slide-62
SLIDE 62

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

Internet

Thursday, February 11, 2010

slide-63
SLIDE 63

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2

Internet

ENUM Registry

Thursday, February 11, 2010

slide-64
SLIDE 64

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2 Subscription

Internet

ENUM Registry

Thursday, February 11, 2010

slide-65
SLIDE 65

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2 Subscription

Internet

ENUM Registry

5.5.5.5.1.3.7.3.6.e164.arpa

Thursday, February 11, 2010

slide-66
SLIDE 66

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2 Subscription

Internet

ENUM Registry

5.5.5.5.1.3.7.3.6.e164.arpa

Thursday, February 11, 2010

slide-67
SLIDE 67

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2 Subscription

Internet

ENUM Registry

5.5.5.5.1.3.7.3.6.e164.arpa

someone@provider.com

Thursday, February 11, 2010

slide-68
SLIDE 68

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2 Subscription

Called Party B Internet

ENUM Registry

5.5.5.5.1.3.7.3.6.e164.arpa

someone@provider.com

Thursday, February 11, 2010

slide-69
SLIDE 69

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2 Subscription

Called Party B Internet

ENUM Registry

Registration

5.5.5.5.1.3.7.3.6.e164.arpa

someone@provider.com

Thursday, February 11, 2010

slide-70
SLIDE 70

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2 Subscription

Called Party B Internet

ENUM Registry

Registration

5.5.5.5.1.3.7.3.6.e164.arpa

someone@provider.com

Called@provider.com Globally reachable

+63 73 15555

Thursday, February 11, 2010

slide-71
SLIDE 71

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2 Subscription

Calling Party A Called Party B Internet

ENUM Registry

Registration

5.5.5.5.1.3.7.3.6.e164.arpa

someone@provider.com

Called@provider.com Globally reachable

+63 73 15555

Thursday, February 11, 2010

slide-72
SLIDE 72

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2 Subscription

Calling Party A Called Party B Internet

ENUM Registry

Registration

+63 2 4269766

5.5.5.5.1.3.7.3.6.e164.arpa

someone@provider.com

Called@provider.com Globally reachable

+63 73 15555

Thursday, February 11, 2010

slide-73
SLIDE 73

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2 Subscription

Calling Party A Called Party B Internet

ENUM Registry

Registration

+63 2 4269766

5.5.5.5.1.3.7.3.6.e164.arpa

someone@provider.com

Called@provider.com Globally reachable

+63 73 15555

Thursday, February 11, 2010

slide-74
SLIDE 74

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2 Subscription

Calling Party A Called Party B Internet

ENUM Registry

Registration

+63 2 4269766

5.5.5.5.1.3.7.3.6.e164.arpa

someone@provider.com

Called@provider.com Globally reachable

+63 73 15555

Thursday, February 11, 2010

slide-75
SLIDE 75

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2 Subscription

Calling Party A Called Party B Internet

ENUM Registry

Registration

+63 2 4269766

5.5.5.5.1.3.7.3.6.e164.arpa

someone@provider.com

Called@provider.com Globally reachable

+63 73 15555

Thursday, February 11, 2010

slide-76
SLIDE 76

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2 Subscription

Calling Party A Called Party B Internet

ENUM Registry

Registration

+63 2 4269766

5.5.5.5.1.3.7.3.6.e164.arpa

someone@provider.com

Called@provider.com Globally reachable

+63 73 15555

Thursday, February 11, 2010

slide-77
SLIDE 77

Example: +6373 and the Generic

PSTN ENUM-driven number range e.g. +63 2

VoIP Provider +Registrar

Generic Gateway

ENUM Tier 1 ENUM Tier 2 Subscription

Calling Party A Called Party B Internet

ENUM Registry

Registration

+63 2 4269766

5.5.5.5.1.3.7.3.6.e164.arpa

someone@provider.com

Called@provider.com Globally reachable

+63 73 15555

Thursday, February 11, 2010

slide-78
SLIDE 78

Impact on Interconnect?

Thursday, February 11, 2010

slide-79
SLIDE 79

Impact on Interconnect?

  • The good message:

Thursday, February 11, 2010

slide-80
SLIDE 80

Impact on Interconnect?

  • The good message:

– Interconnect on the Internet using ENUM is a no brainer

Thursday, February 11, 2010

slide-81
SLIDE 81

Impact on Interconnect?

  • The good message:

– Interconnect on the Internet using ENUM is a no brainer – In bellhead speak:

Thursday, February 11, 2010

slide-82
SLIDE 82

Impact on Interconnect?

  • The good message:

– Interconnect on the Internet using ENUM is a no brainer – In bellhead speak: – It is a global IN service

Thursday, February 11, 2010

slide-83
SLIDE 83

Impact on Interconnect?

  • The good message:

– Interconnect on the Internet using ENUM is a no brainer – In bellhead speak: – It is a global IN service – providing global service provider portability

Thursday, February 11, 2010

slide-84
SLIDE 84

Impact on Interconnect?

  • The good message:

– Interconnect on the Internet using ENUM is a no brainer – In bellhead speak: – It is a global IN service – providing global service provider portability – Using All Call Query (ACQ)

Thursday, February 11, 2010

slide-85
SLIDE 85

Impact on Interconnect?

  • The good message:

– Interconnect on the Internet using ENUM is a no brainer – In bellhead speak: – It is a global IN service – providing global service provider portability – Using All Call Query (ACQ) – Providing you with the global routing information to the destination network – a URI

Thursday, February 11, 2010

slide-86
SLIDE 86

Impact on Interconnect?

  • The good message:

– Interconnect on the Internet using ENUM is a no brainer – In bellhead speak: – It is a global IN service – providing global service provider portability – Using All Call Query (ACQ) – Providing you with the global routing information to the destination network – a URI – Using standardized protocols – SIP and H.323, and ..

Thursday, February 11, 2010

slide-87
SLIDE 87

Impact on Interconnect?

  • The good message:

– Interconnect on the Internet using ENUM is a no brainer – In bellhead speak: – It is a global IN service – providing global service provider portability – Using All Call Query (ACQ) – Providing you with the global routing information to the destination network – a URI – Using standardized protocols – SIP and H.323, and .. – Using a reliable, scalable, fast, cheap and available technology – the DNS

Thursday, February 11, 2010

slide-88
SLIDE 88

Impact on Interconnect?

  • The good message:

– Interconnect on the Internet using ENUM is a no brainer – In bellhead speak: – It is a global IN service – providing global service provider portability – Using All Call Query (ACQ) – Providing you with the global routing information to the destination network – a URI – Using standardized protocols – SIP and H.323, and .. – Using a reliable, scalable, fast, cheap and available technology – the DNS

  • The not so good message:

Thursday, February 11, 2010

slide-89
SLIDE 89

Impact on Interconnect?

  • The good message:

– Interconnect on the Internet using ENUM is a no brainer – In bellhead speak: – It is a global IN service – providing global service provider portability – Using All Call Query (ACQ) – Providing you with the global routing information to the destination network – a URI – Using standardized protocols – SIP and H.323, and .. – Using a reliable, scalable, fast, cheap and available technology – the DNS

  • The not so good message:

– there are no termination fees on the Internet

Thursday, February 11, 2010

slide-90
SLIDE 90

Impact on Interconnect?

  • The good message:

– Interconnect on the Internet using ENUM is a no brainer – In bellhead speak: – It is a global IN service – providing global service provider portability – Using All Call Query (ACQ) – Providing you with the global routing information to the destination network – a URI – Using standardized protocols – SIP and H.323, and .. – Using a reliable, scalable, fast, cheap and available technology – the DNS

  • The not so good message:

– there are no termination fees on the Internet

  • BUT there is also a slight bonus for telcos:

Thursday, February 11, 2010

slide-91
SLIDE 91

Impact on Interconnect?

  • The good message:

– Interconnect on the Internet using ENUM is a no brainer – In bellhead speak: – It is a global IN service – providing global service provider portability – Using All Call Query (ACQ) – Providing you with the global routing information to the destination network – a URI – Using standardized protocols – SIP and H.323, and .. – Using a reliable, scalable, fast, cheap and available technology – the DNS

  • The not so good message:

– there are no termination fees on the Internet

  • BUT there is also a slight bonus for telcos:

– for calls originating on the PSTN to ENUM enabled numbers you may keep the whole money

Thursday, February 11, 2010

slide-92
SLIDE 92

Thank You!

Thursday, February 11, 2010
