A Comparison of GSI-based EnKF and 3DVar for Multi-scale Data Assimilation and Prediction of the Development of an MCS over the Continental US Aaron Johnson and Xuguang Wang University of Oklahoma, Norman, OK, USA Acknowledgement: Jacob Carley

slide-1
SLIDE 1

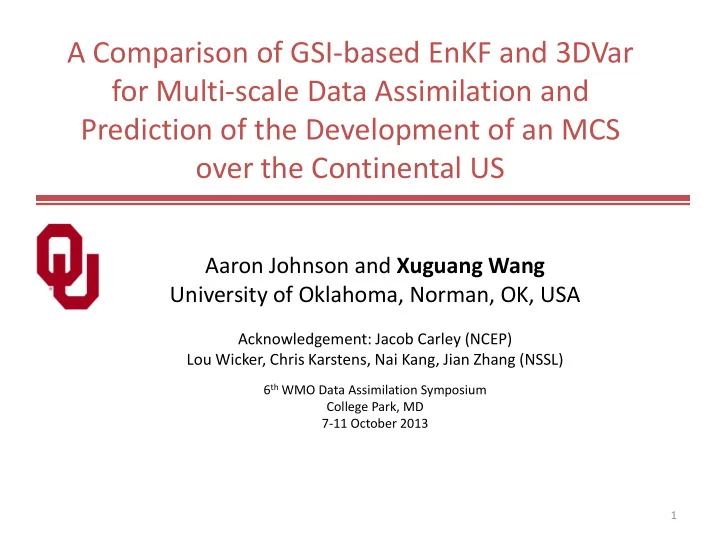

A Comparison of GSI-based EnKF and 3DVar for Multi-scale Data Assimilation and Prediction of the Development of an MCS

  • ver the Continental US

Aaron Johnson and Xuguang Wang University of Oklahoma, Norman, OK, USA

Acknowledgement: Jacob Carley (NCEP) Lou Wicker, Chris Karstens, Nai Kang, Jian Zhang (NSSL)

6th WMO Data Assimilation Symposium College Park, MD 7-11 October 2013

1

slide-2
SLIDE 2

2

Background

GSI-based 3DVar/EnKF/Hybrid GFS

Hurricane- WRF (HWRF) Rapid Refresh (WRF ARW) NAM (WRF-NMM)

 The GSI-based EnKF-Var hybrid DA system showed significant improvement compared to GSI 3DVar and became operational on May 22, 2012 for GFS.  It has also been extended to a 4DEnsVar hybrid and showed further improvements.  Efforts are being conducted to integrate, further develop and research GSI based EnKF-Var hybrid DA for operational regional forecast systems, e.g.,

slide-3
SLIDE 3

3

Sandy 2012

  • Model: operational HWRF
  • Observations: radial velocity

from Tail Doppler Radar (TDR)

  • nboard NOAA P3 aircraft
  • Initial and LBC ensemble: GFS

global hybrid DA system

  • Ensemble size: 40

Xu Lu Poster

GSI hybrid for HWRF: Retrospective and real time tests

slide-4
SLIDE 4

4

Track and MSLP forecasts for 2012-2013 cases with NOAA P3 missions

Track MSLP

slide-5
SLIDE 5

Background and Motivation

System development/enhancement for radar DA

  • ver CONUS
  • This study aims to extend the GSI-based 3DVar/EnKF/Hybrid

system for WRF ARW to add capability to directly assimilate ground based radar data (e.g., add hydrometeors control/state variables for reflectivity DA).

  • The development takes advantages of existing capabilities in

GSI and therefore directly integrates with the operational DA system.

5

slide-6
SLIDE 6

Background and Motivation

  • This study assimilates both synoptic/regional scale observations

and storm-scale radar observations to compare the performance and understand the differences of GSI based 3DVar/EnKF/hybrid at multiple scales (e.g., GSI-EnKF vs. GSI-3DVar).

  • Prediction of a complex MCS with multiple storm modes and

interactions, and a largely heterogeneous environment remains a challenge.

  • Successful prediction of such complex system with multi-scale

interactions requires accurate estimate at multiple scales.

  • Comparison of Var with EnKF or EnsVar hybrid for such complex

cases with convection permitting/resolving resolution is still limited.

6

slide-7
SLIDE 7

20 May 2010 case overview

7

www.mmm.locust.ucar.edu

  • Complex evolution of multiple interacting storms with upscale growth

into an MCS.

  • Johnson et al. (2013) using wavelet analysis showed particularly strong

sensitivity of precipitation forecast to both small scale and large scale perturbations.

  • A broad, deep layer cyclone; well defined cold

front, warm front and dry line on surface.

slide-8
SLIDE 8

Experiment Design

8

  • WRF ARW
  • Outer Domain

– Assimilate operational conventional surface and mesonet observations, RAOB, wind profiler, ACARS, and satellite derived winds to define synoptic/mesoscale environment

  • Convection-permitting Inner Domain

– Assimilate velocity and reflectivity from WSR88D radar network

WSR88D

slide-9
SLIDE 9

Mesoscale analysis and forecasts

9

  • GSI-EnKF shows better forecast except low level temperature.
slide-10
SLIDE 10

Need for storm scale analysis

10

  • Mesoscale environment defined in outer domain EnKF analysis was able to

support the development of a realistic-looking MCS.

  • However, spin-up time and resulting westward displacement throughout

storm period suggests need for storm scale data assimilation. Inner domain PQPF (>12.7mm/h) initialized with outer domain EnKF

slide-11
SLIDE 11

GSI-based EnKF vs. 3DVAR for storm scale analysis

11

GSI-3DVar GSI-EnKF KTLX Observation

slide-12
SLIDE 12

12

GSI-3DVar after radar DA GSI-EnKF after radar DA

Probabilistic precipitation forecasts

  • Prob. (> 12.7mm/h)
  • Phase lag is largely

improved after radar DA.

  • 3DVar worse than

EnKF

The storm was

  • pushed out to the east

by the cold pools faster than observed;

  • out to the south too

much than observed;

  • dissipated too quickly

than observed

slide-13
SLIDE 13

13

BS for probabilistic precipitation forecasts

  • Prob. (> 12.7mm/h)

BS: the lower the better

slide-14
SLIDE 14

Impact of mesoscale analysis on storm scale forecast

  • The better evolution of MCS

at 4-8 h suggests the environment was better analyzed by EnKF than 3DVar

  • Mesoscale warm front in

eastern OK was analyzed too far south for GSI 3DVar, explaining the forecast differences after the first few hours.

14

EnKF 3DVar

slide-15
SLIDE 15

Vr vs. Vr+dBZ for GSI 3DVAR

  • The forecast with reflectivity is subjectively worse than velocity-only
  • Including reflectivity caused much more expansive cold pools (not shown)
  • This may be a result of the deficiency of the 3DVar static background error covariance -- added

hydrometeors largely evaporating and falling out since without adjusting temp/wind fields consistently.

15

Vr with dBZ Vr only

slide-16
SLIDE 16

Vr vs. Vr+dBZ for GSI EnKF

  • Improved

forecast at 2-3 h due to better forecast of central OK storm

16

Vr with dBZ Vr only

slide-17
SLIDE 17

Summary and Conclusions

  • GSI-based 3DVar/EnKF/Hybrid system is further developed/extended to directly

assimilate radar data for WRF ARW.

  • Implemented for a real data, MCS case study with complex and heterogeneous

environment assimilating data at multiple scales. Performance was evaluated at both mesoscale and storm scale.

  • Comparison between GSI-3DVar and GSI-EnKF suggests
  • a. using the flow-dependent ensemble can improve the analysis at both meso and

convective scales.

  • b. Forecast quality is sensitive to both the quality of the storm scale analysis and the

mesoscale environment analysis.

  • Improvement of static covariance for storm scale assimilation is needed.
  • Further compare to understand GSI-based Var, EnKF and hybrid (3DEnsVar, 4DEnsVar)

for convective scale DA.

  • Systematic tests with more cases.

17

slide-18
SLIDE 18

Posters

  • Xu Lu: Assimilation of Airborne Doppler Radar observations using the GSI- based hybrid

ensemble-variational data assimilation system to improve high resolution hurricane forecast by HWRF

  • Nick Gasperoni: Improving Ensemble-based Observation Impact Estimate using a Group

Filter Technique

  • Terra Thompson: Multi-Scale Data Assimilation of the June 13, 2010 VORTEX2 Tornadic

Supercell

  • Ting Lei: GSI-based Hybrid Data Assimilation for NCEP GFS: How Is the Dual Resolution

Hybrid Compared to the Single Resolution Hybrid?

  • Kutty Govindan: A Comparison of Impacts of Radiosonde and AMSU Radiance

Observations In GSI-based Hybrid and 3DVar Data Assimilation Systems for NCEP GFS

18

Acknowledgement: Local organizing committee

slide-19
SLIDE 19

20 May 2010 case overview

19

www.mmm.locust.ucar.edu

Johnson et al. (2013) using wavelet analysis showed particularly strong sensitivity of precipitation forecast to both small scale and large scale perturbations.

Johnson et al., 2013: Multiscale characteristics and evolution of perturbations for warm season convection-allowing precipitation forecasts: Dependence on background flow and method of

  • perturbation. Mon. Wea. Rev., in review.
