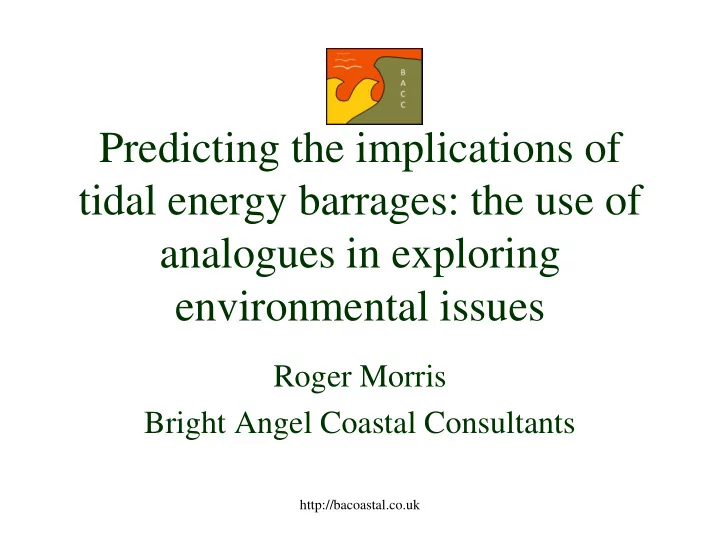

Predicting the implications of tidal energy barrages: the use of analogues in exploring environmental issues

Roger Morris Bright Angel Coastal Consultants

Structure of this presentation

• Introduction to the UK tidal energy debate
• The Severn Estuary
• Generic impacts of tidal power barrages
• Setting parameters for analogues
• What different structures do?
• Interpretation and aplication

http://bacoastal.co.uk

Severn barrage proposals

http://bacoastal.co.uk

The Severn Estuary Characteristics (inter-alia)

• Third largest tidal range in the

World (after the Bay of Fundy and Ungava Bay in Canada).

• Exceptional suspended

sediment concentrations that change in response to spring- neap cycle.

• Relatively low primary

productivity.

• Soft muddy banks.

http://bacoastal.co.uk

Tidal power known impacts

Barrages are known to:

• Reduce tidal propagation;
• Reduce flushing;
• Change the halocline; and
• Impact upon fish

movement and populations. They will also have more far- reaching knock-on effects.

http://bacoastal.co.uk

Modelling

• some basic thoughts
• Models can only be constructed on the basis of

what we know (analogues).

• Some of the principles are simple – e.g. if you

impede water movement there will be a reduction in the energy available to move both water and sediment.

• Modelling in multiple dimensions and

involving sediments gets complicated and expensive.

http://bacoastal.co.uk

Applying analogues

• Analogues can be used to identify the

relationship between cause and effect. They provide a ‘first-order’ analysis.

• This follows into the development of

conceptual models.

• Conceptual models form the basis of the

algorithms required to construct mathematical models.

http://bacoastal.co.uk

Setting the parameters for analogues

• Finding suitable analogues depends upon

understanding what a particular structure will do to coastal/estuarine geometry.

• In the case of a barrage the basic changes

will be:

• Reduced cross-sectional area;
• Creation of a headpond with fluctuating water

levels; and

• Impediments to movements by mobile animals.

http://bacoastal.co.uk

Issues to consider when investigating analogues

• The types of changes in tidal propagation.
• Bank responses to wind-driven wave action.
• Sedimentation patterns.
• Sediment behaviour related to tidal energy.
• Plants and animals in responses to salinity regimes.
• Responses of migratory birds to food availability.
• Responses of fish populations to loss of adults.
• Responses of phyto- and zoo- plankton to changing

nutrient loads and water clarity.

http://bacoastal.co.uk

A wealth of information

• Man has been modifying the coast for

hundred; perhaps thousands of years.

• There are numerous examples of changes

such as:

• Sea walls
• Channel deepening
• Bridges
• Storm surge barrages
• Causeways

http://bacoastal.co.uk

We can even use history to develop analogues

http://bacoastal.co.uk

Finding suitable analogues - requisite parameters

• We must look for examples of reductions in tidal range.
• We need to understand how estuaries with high sediment

loads respond to reduced tidal energy and why they do so?

• We must explore tidal propagation impacts on fine sandy
• r weakly cohesive sediments.
• Sediment sources need to be comparable.
• The major change in form involves the development of a

temporary reservoir for several hours each day.

• There is a need to find analogues where the changes are of

sufficient magnitude for a response to have been detected.

http://bacoastal.co.uk

Barrages and causeways

Eastern Schelde Storm Surge Barrage Ems Estuary

http://bacoastal.co.uk

Analogues of reduced tidal propagation

Impact Location Notes

Reduced tidal propagation upstream Eastern Schelde Overall tidal range reduced by around 0.5m Wansbeck estuary Tidal influences only reach the upper section on spring tides. Creation of sediment exporting conditions Alde/Ore Estuary Blyth Estuary Several UK examples of extreme narrowing

• f long sections of estuaries.

Reduced tidal propagation immediately downstream Modelled for Severn Estuary Not proven empirically from monitoring of historic sites Increased tide heights – far-field effects Modelled for Severn Estuary and Bay of Fundy Not proven empirically from monitoring of historic sites

http://bacoastal.co.uk

Increased accommodation space

http://bacoastal.co.uk

Impact Location Notes

Reduced tidal propagation Alkborough, Humber Estuary UK Effect modelled and identified as effective flood risk management tool.

Channel deepening

http://bacoastal.co.uk

Analogues of Increase in sub-tidal cross-sectional area

Impact Location Notes

Increased tidal propagation Elbe, Ems (Germany) Seine (France) This is a well-established issue where there has been channel deepening to facilitate access to inland ports. Increased suspended sediment load Ems (Germany) This is an exceptional case on the basis of a major change to SSC.

http://bacoastal.co.uk

Reduced Suspended Sediment Concentrations

Annapolis Royal Eastern Schelde

http://bacoastal.co.uk

Analogues of

Reduced Suspended Sediment Concentrations

Impact Location Notes

Annapolis Royal Bank erosion and sub-tidal deposition. A temporary phenomenon that is dependent upon the size of the estuary. Eastern Schelde Bank erosion and sub-tidal deposition.

http://bacoastal.co.uk

Temporary or permanent lake formation

http://bacoastal.co.uk

Impact Location Notes

Annapolis Royal Bank erosion Two stage changes make this a useful analogue. Cardiff Bay Bank erosion where undefended Issue has only recently become significant because it is a long way upstream. Wansbeck Estuary Bank erosion Significant issue because erosion is mobilising industrial waste.

Interpretation and application

• It is important to remember that analogues

do NOT give refined answers.

• Their strength lies in providing basic

explanations to decision-makers that can be backed up by examples.

• If a project is taken to the construction

phase, much more detailed analysis will be necessary, including the use of models.

http://bacoastal.co.uk

Interpretation 1

• We know that changing tidal propagation

will change sediment mobilisation patterns, especially sub-tidally. This creates a sink.

• We also know that reducing the tidal range

reduces the area of foreshore that is affected by wind driven waves.

• This combination of factors is the key to

understanding the main physical responses.

http://bacoastal.co.uk

Interpretation 2

• Not everybody will understand the analysis

– many think that coastal evolution only involves currents determining where sediments are deposited.

• Relatively few people will grasp the

significance of the changed relationship between tidal (current) energy and wave energy.

http://bacoastal.co.uk

Interpretation 3 Annapolis Royal is critical

http://bacoastal.co.uk

A wider canvas?

• Experience from around the world can be used

to explore many of the responses that may

• ccur as a consequence of creating barrages.
• Biological responses are intimately tied to

physical changes, so there is a need to think about the physical changes first.

• Once a physical change has been identified,

then a relevant biological analogue can be sought.

http://bacoastal.co.uk

Summary

• Analogues are a tool but not the total solution to

problem-solving.

• There is a wide range of possible structures that

can be used as analogues.

• It is not what the structure is designed to do that

matters; it is the changes to physical processes that result that matter.

• Biological and physical responses are linked, so

the key is understanding the phyical responses and applying them to the biology.

http://bacoastal.co.uk

Thank you for inviting me and for listening
